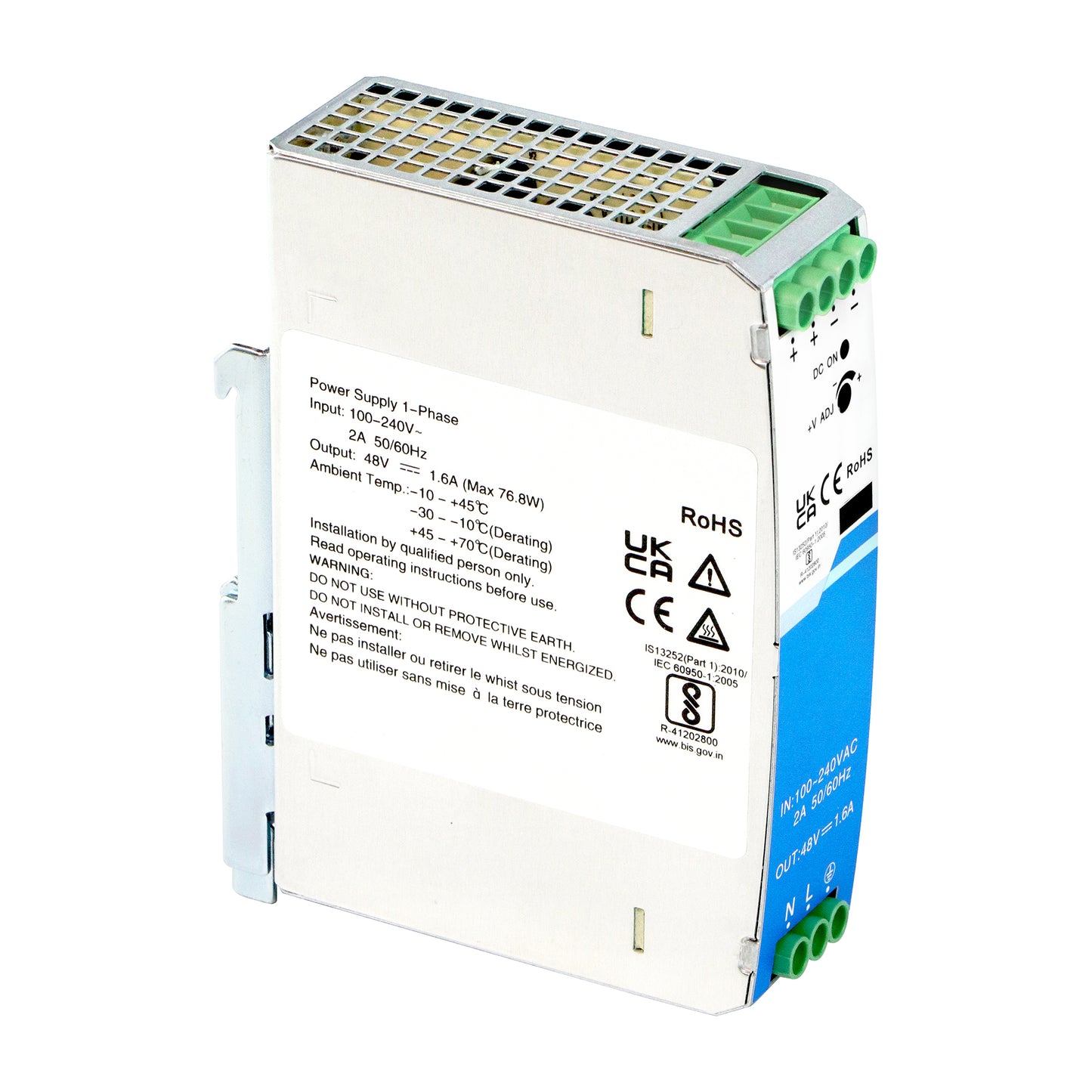

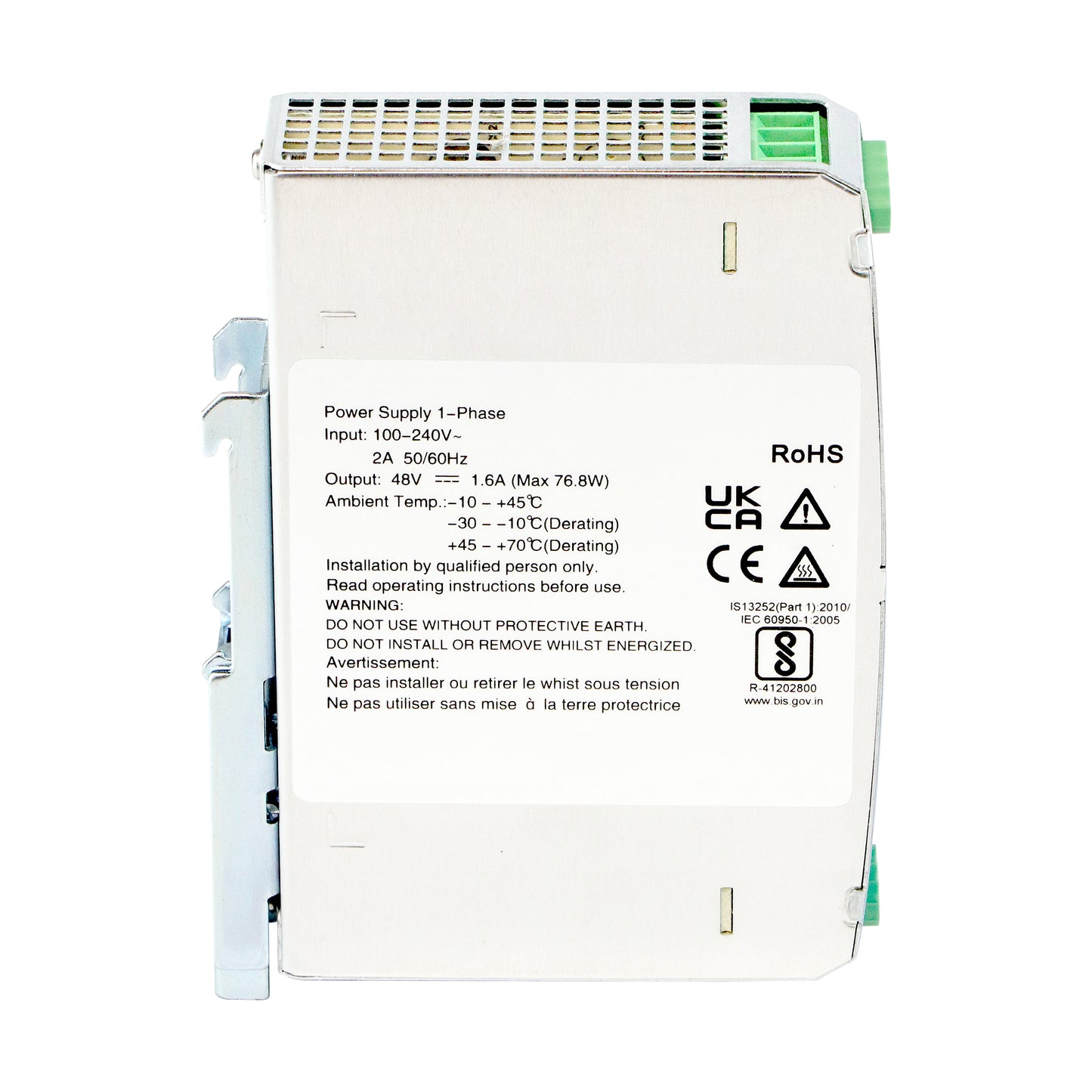

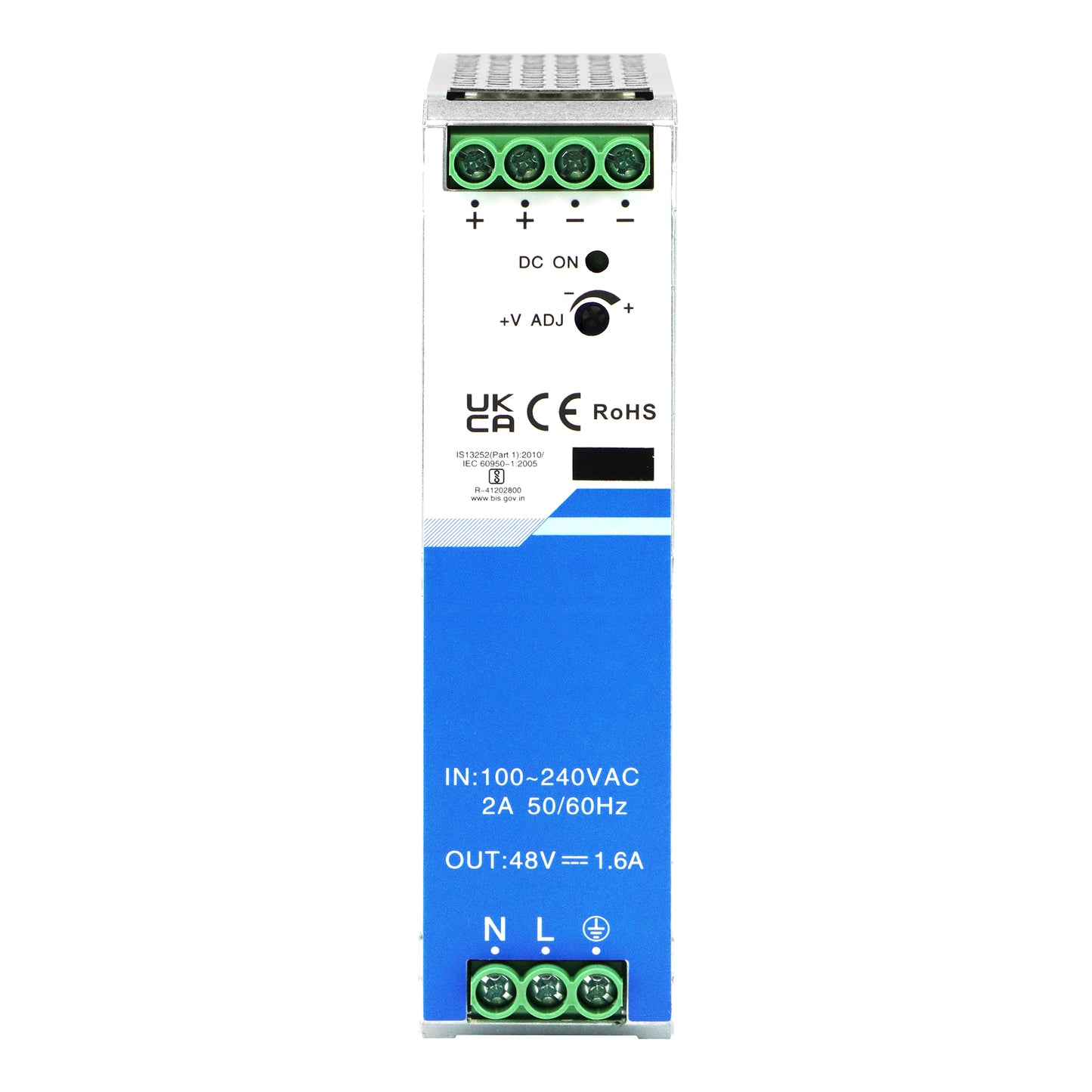

48V DIN Power Adapter 75W PSU 1.6A AC/DC Input Industrial Level -30~70°C CE UL

48V DIN Power Adapter 75W PSU 1.6A AC/DC Input Industrial Level -30~70°C CE UL

$16.00 USD
$18.00 USD $16.00 USD
Распродажа Продано
Olycom IM-DAC220/DC48V1.6A is a 75W high-efficiency industrial DIN-rail power supply designed to convert AC220V to DC48V for powering PoE switches, automation systems, and communication equipment with below features
Key Features
  • Wide Input Compatibility:
90–264VAC or 120–370VDC input range, supporting dual-use terminals (AC/DC)
Input frequency 47–63Hz; input current ≤2A @115VAC, ≤1A @230VAC
High power factor: 0.98 (115VAC) / 0.94 (230VAC)
  • Reliable DC Output:
48VDC / 1.6A rated output, 76.8W total power
Voltage accuracy ±1%, line regulation ±0.5%, load regulation ±1%
Ripple & noise ≤150mVp-p; temperature coefficient ±0.03%/°C
Hold-up time: 12ms @115VAC / 60ms @230VAC
  • Strong Electrical Protection:
Isolation: Input–Output 4000VAC, Input–Earth 2000VAC, Output–Earth 500VAC
Protection circuits: short-circuit (auto recovery), over-current (105–150% Io), over-voltage (≤60V), and over-temperature shutdown with auto recovery
  • Industrial-Grade Reliability:
Operating temperature: -30°C ~ +70°C (derating above +45°C)
Humidity: 20–95% RH non-condensing
MTBF ≥300,000 hours (MIL-HDBK-217F @25°C)
EMC immunity: IEC/EN61000-4-2/3/4/5/6/11 (ESD ±8kV air, surge ±4kV line-ground)
EMC emission: EN55032 Class B, harmonic current EN61000-3-2 Class A
  • Mechanical & Safety:

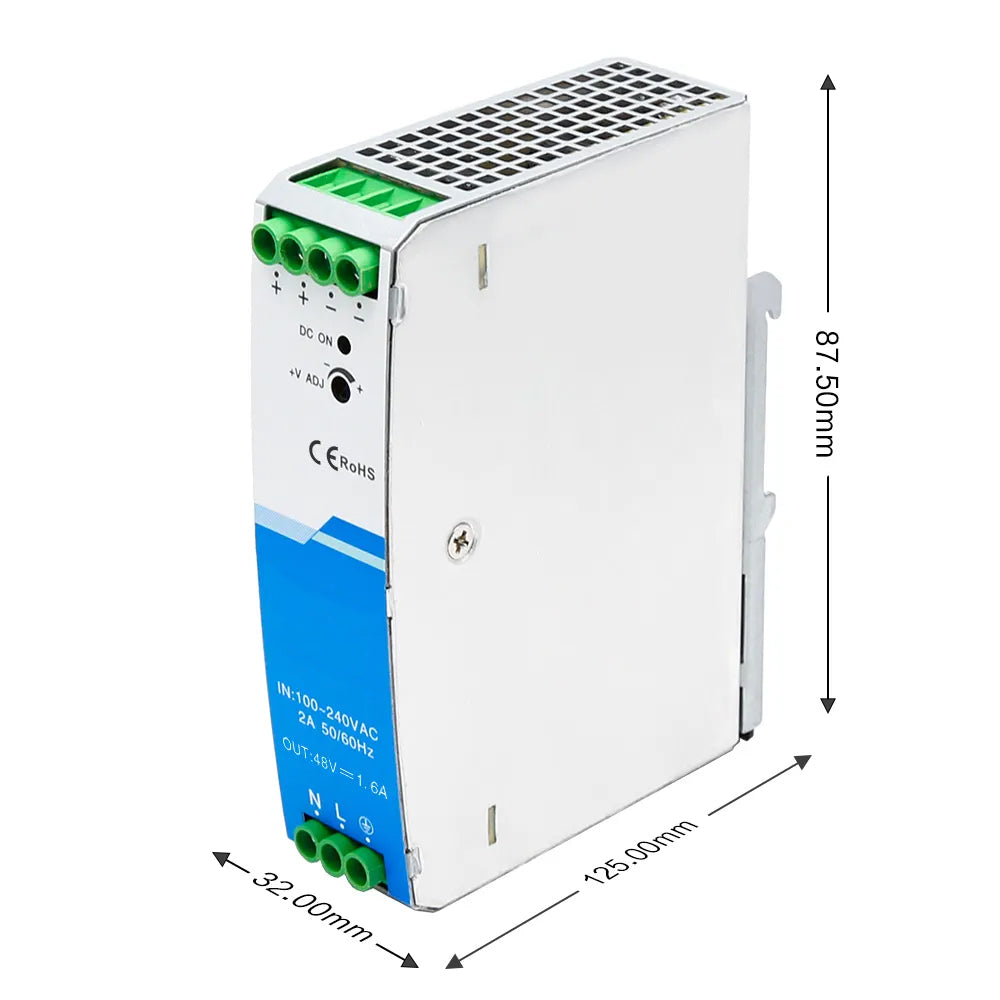

Compact size: 32 × 125 × 87.5 mm; weight: 350g

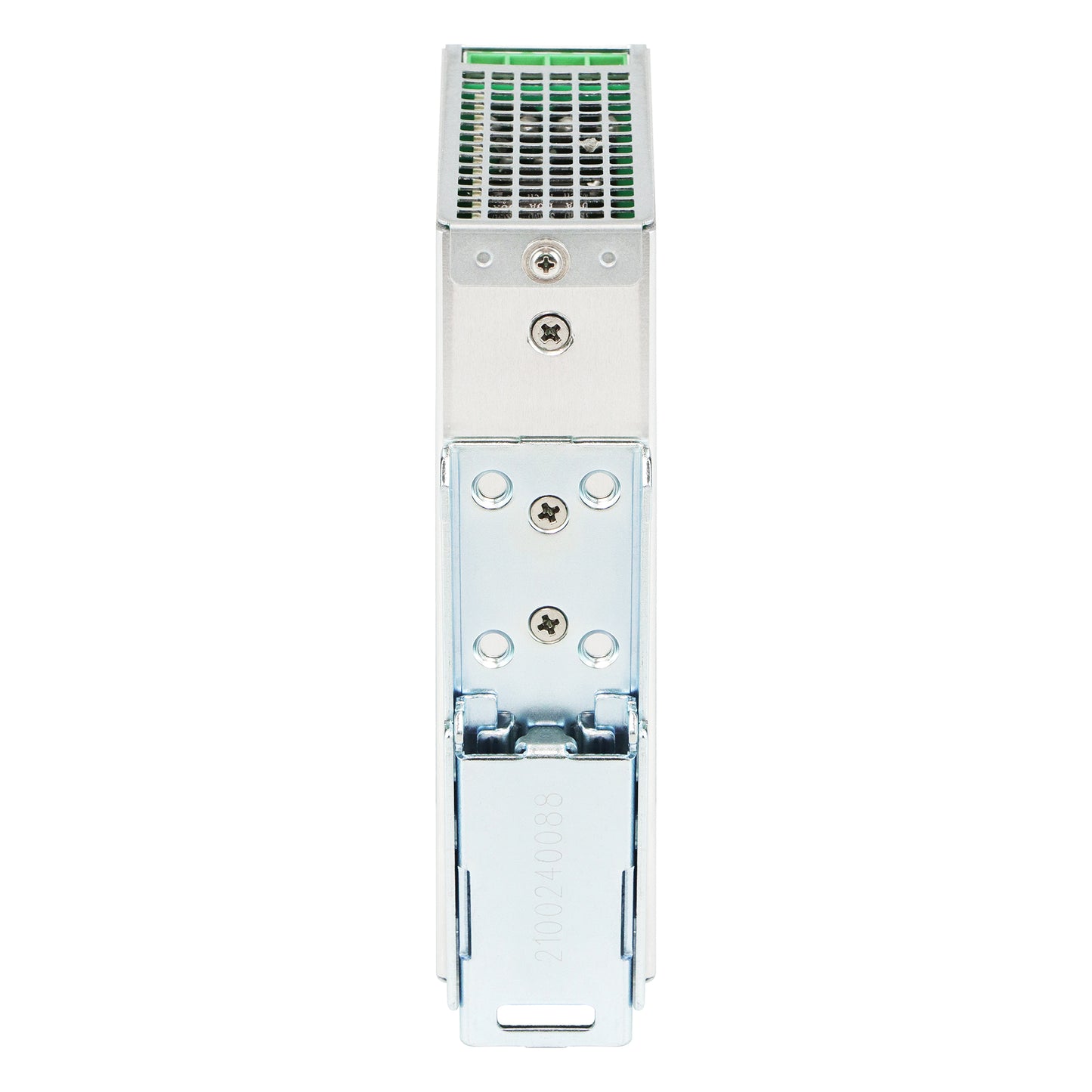

DIN-rail TS35/7.5 or 15 mounting, aluminum/SGCC enclosure
Compliance: CE, FCC, IS13252 (Part1), EN62368-1, UL61010-1 Class I safety design
Cooling by natural air convection — no moving parts, zero maintenance

Application
  • PoE Power Systems: Ideal for 48V PoE switches, IP cameras, and wireless access points requiring IEEE 802.3af/at power delivery
  • Industrial Control & Automation: Supports PLCs, sensors, relays, and HMI panels within distributed control networks
  • Communication Equipment: Provides reliable power for base stations, optical fiber converters, and network transmission modules
  • Transportation & Smart Infrastructure: Used in monitoring systems, railways, and smart traffic control cabinets with wide temperature endurance
  • Energy & Utility Networks: Suitable for renewable energy control systems and substations requiring long-life, high-isolation DC power
