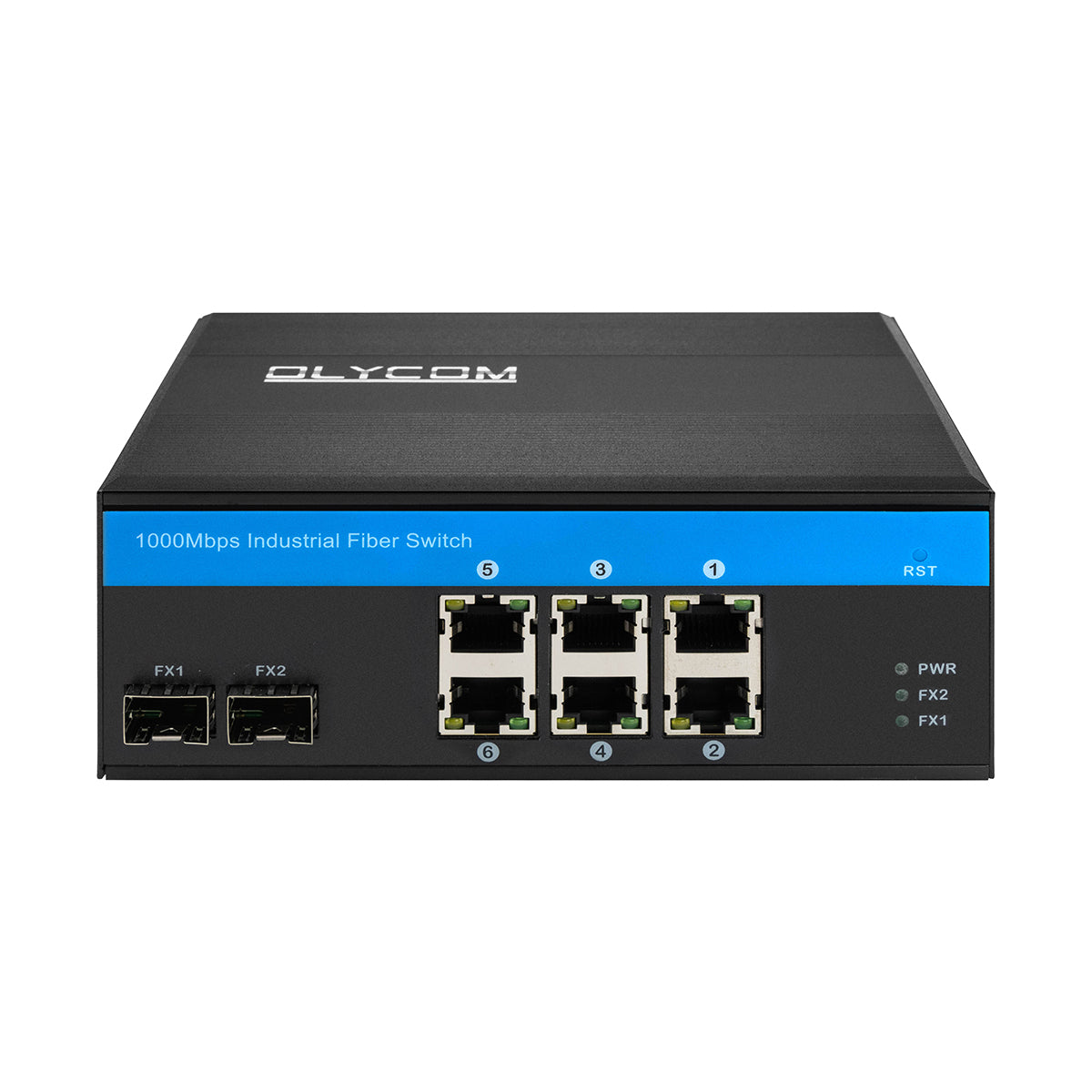

10/100/1000Mbps Industrial POE Fiber Switch ( 2 Fiber to 6 UTP )

• SKU: Industrial POE Fiber Switch IM-FP266GE
• 3-Year Warranty, 30-Day Returns, 30-Day Exchange
• Noted: Not include Power adapter and SFP transceiver
• GLOBAL TECH SUPPORT
• Packing List: 1pc 8-port Hardened DIN-Rail POE Fiber Switch, 1pc User Manual, 1pc Warranty Card, Removable Terminal Block

Specification:

• Model No.:  IM-FP266GE

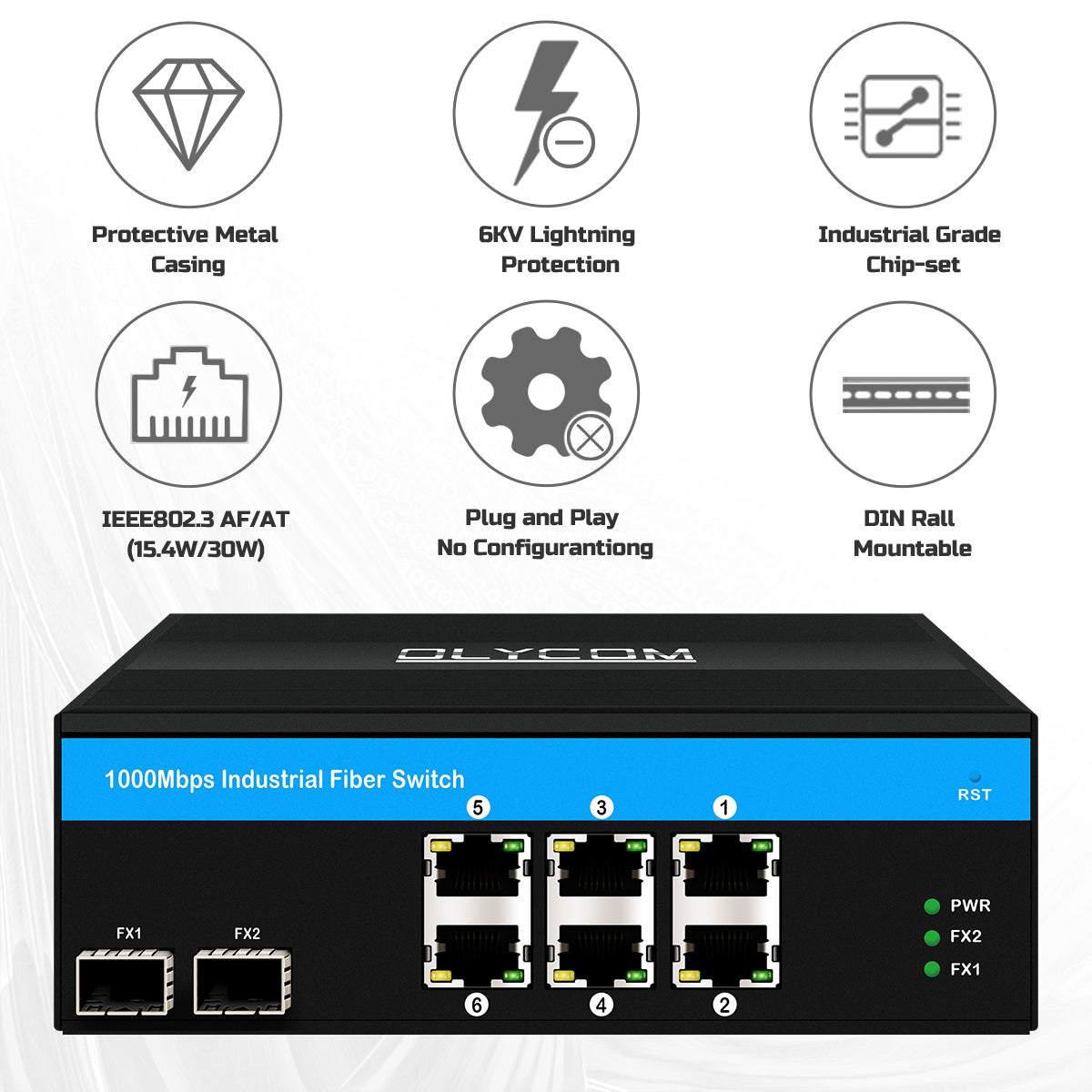

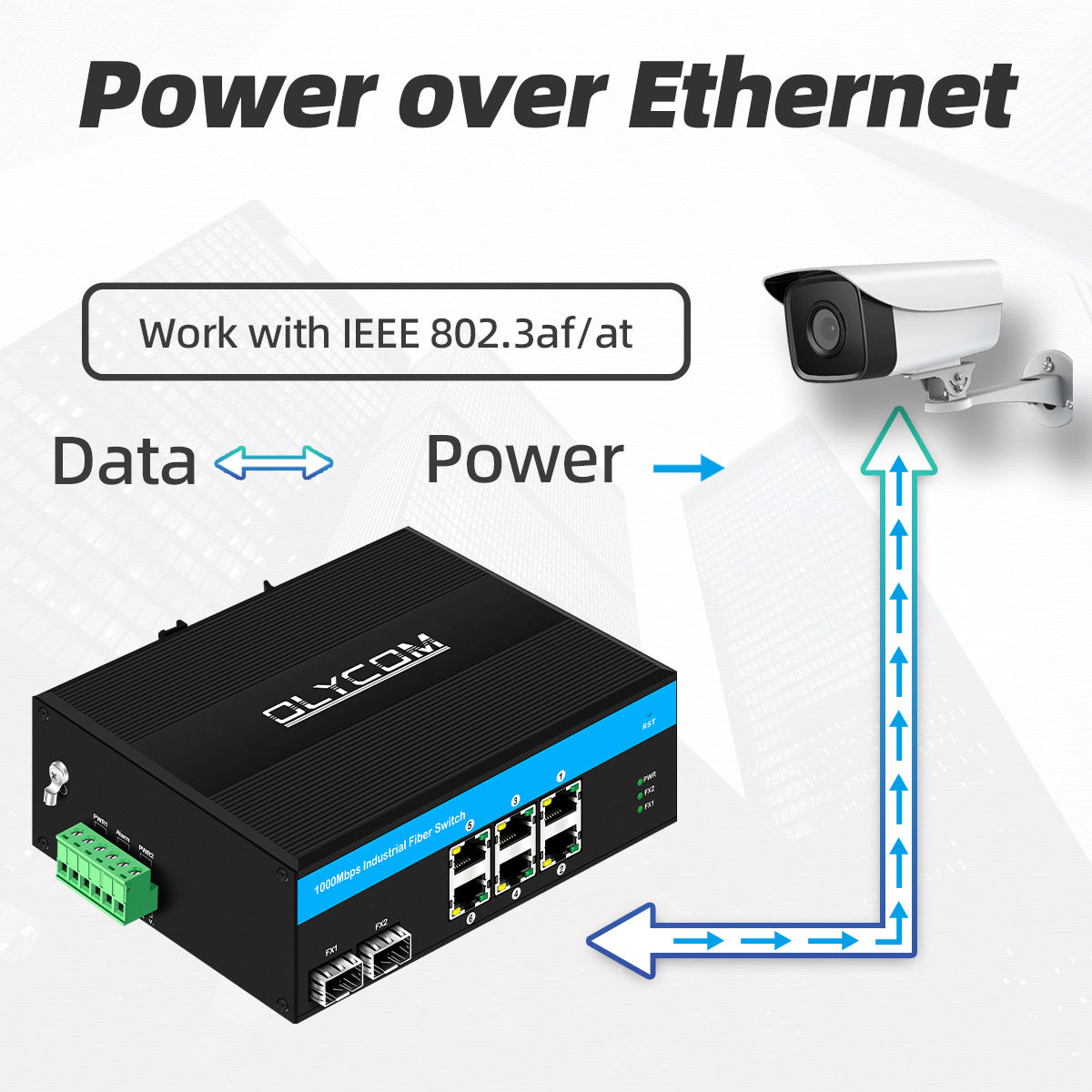

• Port:  2x 1000Mpbs SFP ports,  6x10/100/1000M UTP RJ45 ports with POE AT (30w each RJ45 port)

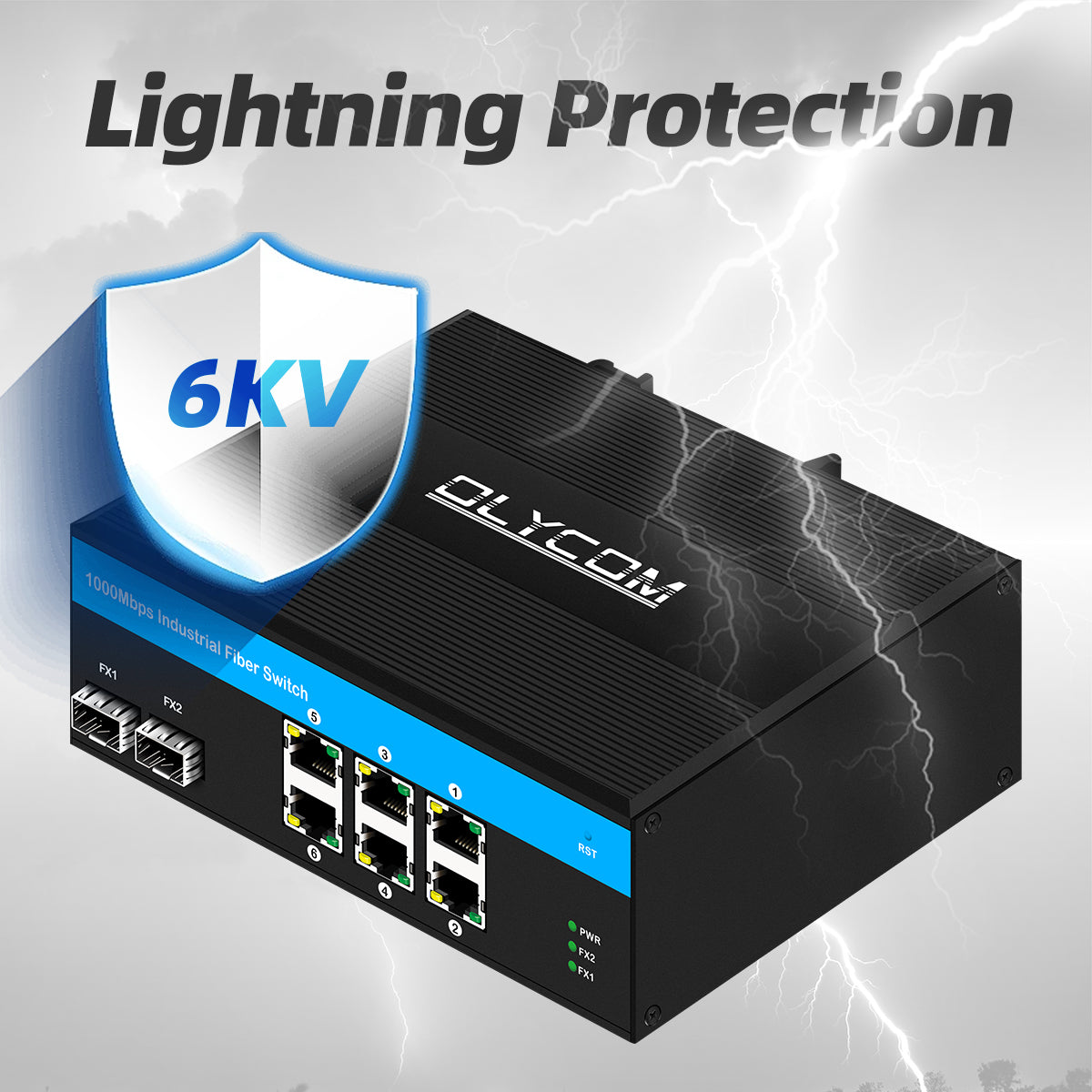

• 6KV Ethernet surge protection

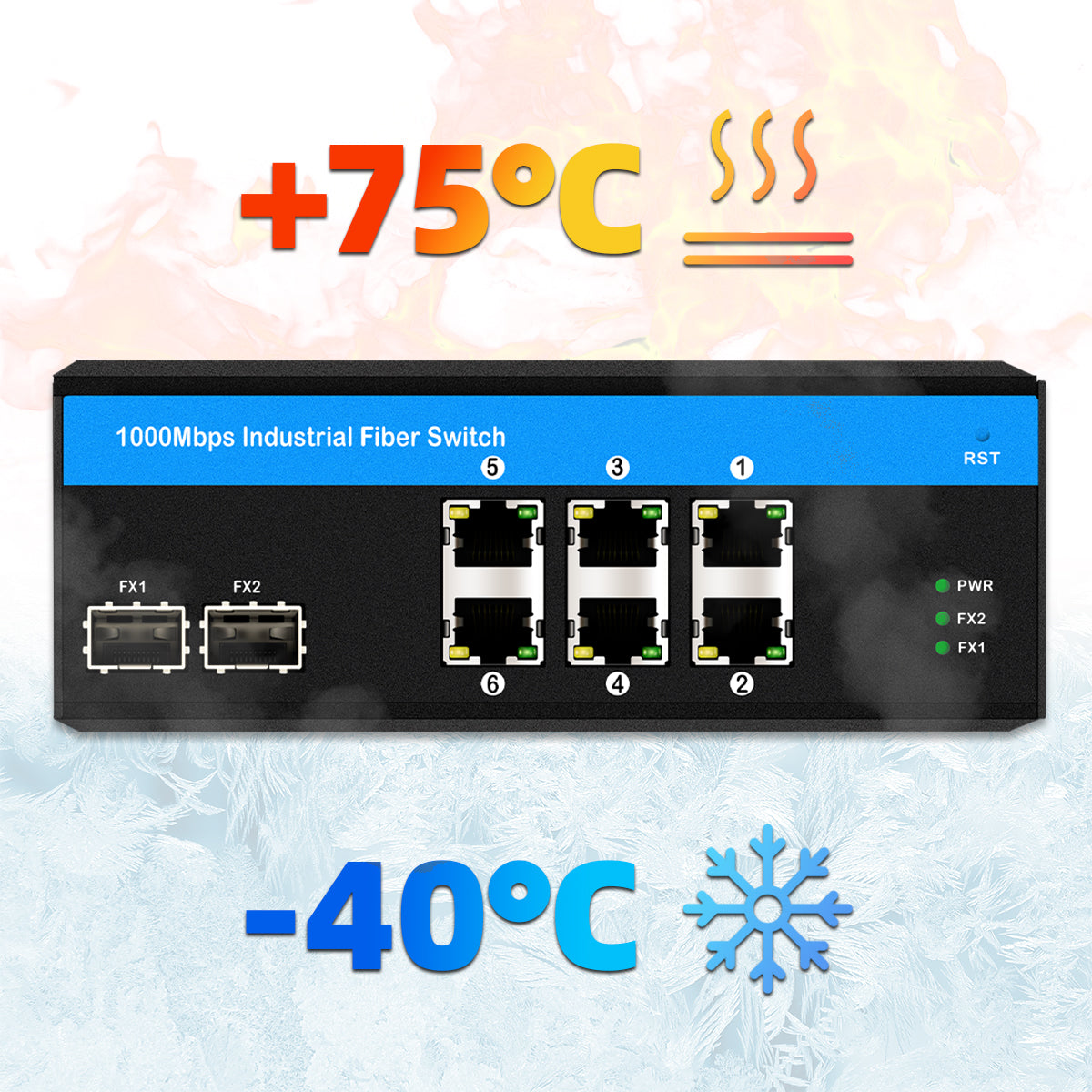

• Operating environment temperature:-40° c ~75° c
• Transmission mode：storage and forward
• System bandwidth：40Gbps (non-traffic jam)
• LEDs: Power, network, fiber

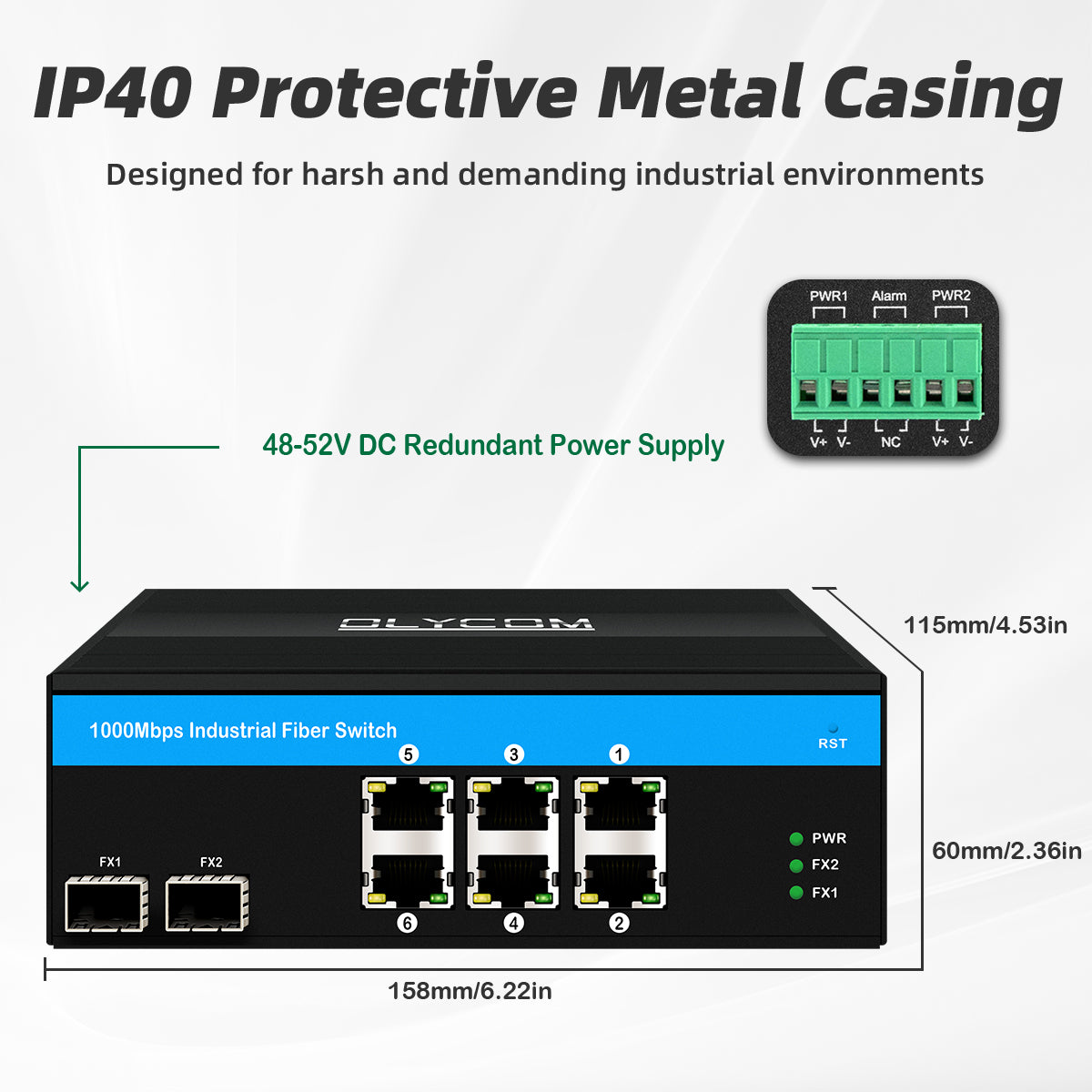

• Power supply: 48V (max 52V) DC redundant power
• Industry Standards: EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A   EMS：EN 61000-4-2 (ESD) Level 3，EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3，EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3，EN 61000-4-8Traffic Control：NEMA-TS2   Vibration：IEC 60068-2-6   Freefall：IEC 60068-2-32    Shock：IEC 60068-2-27    Rail Traffic：EN 50121-4
• Shell: Corrugated metal shell

• Dimension:  158 x 114.8 x 60mm

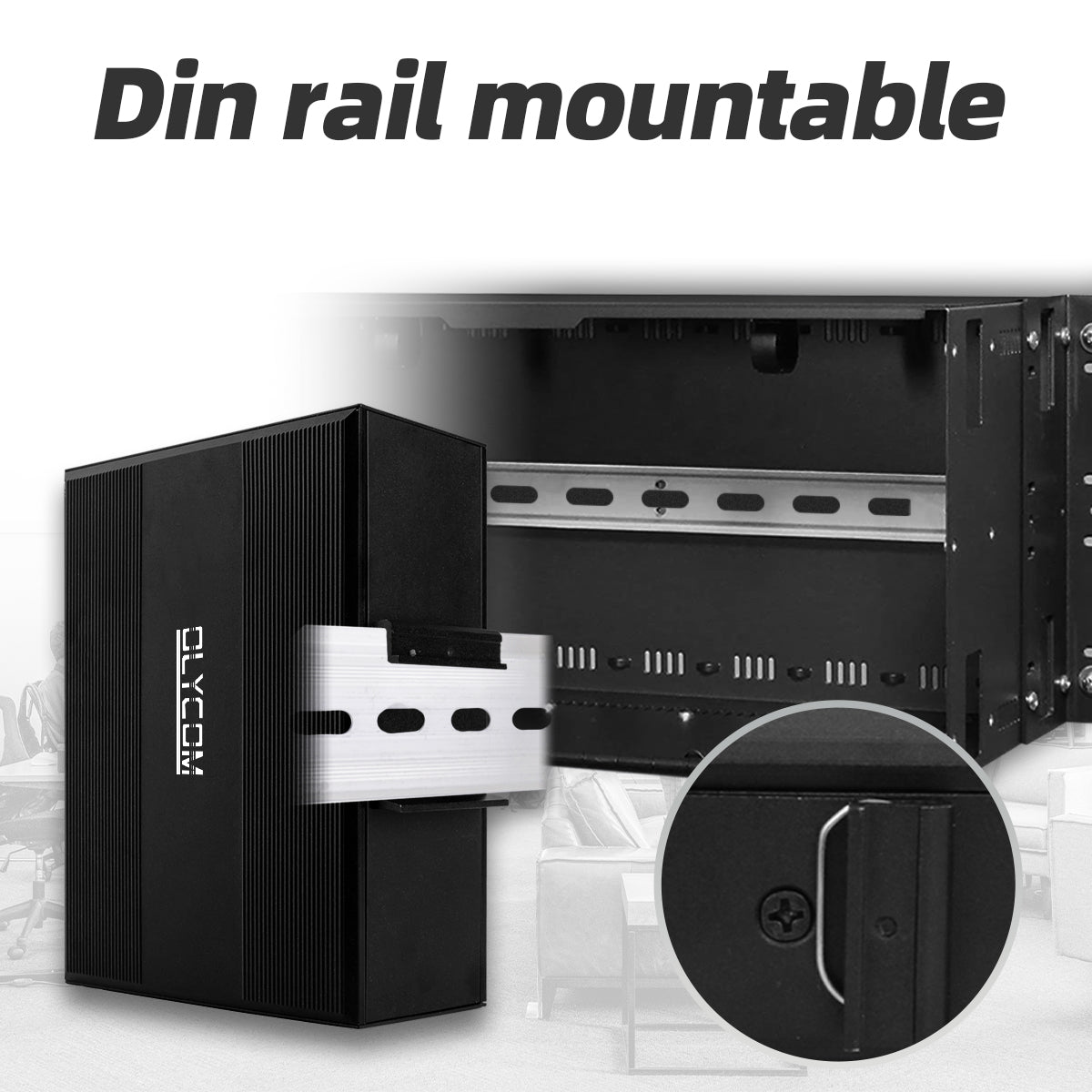

• Mounting method：Din-rail mounting
• Certification: CE FCC ROHS
