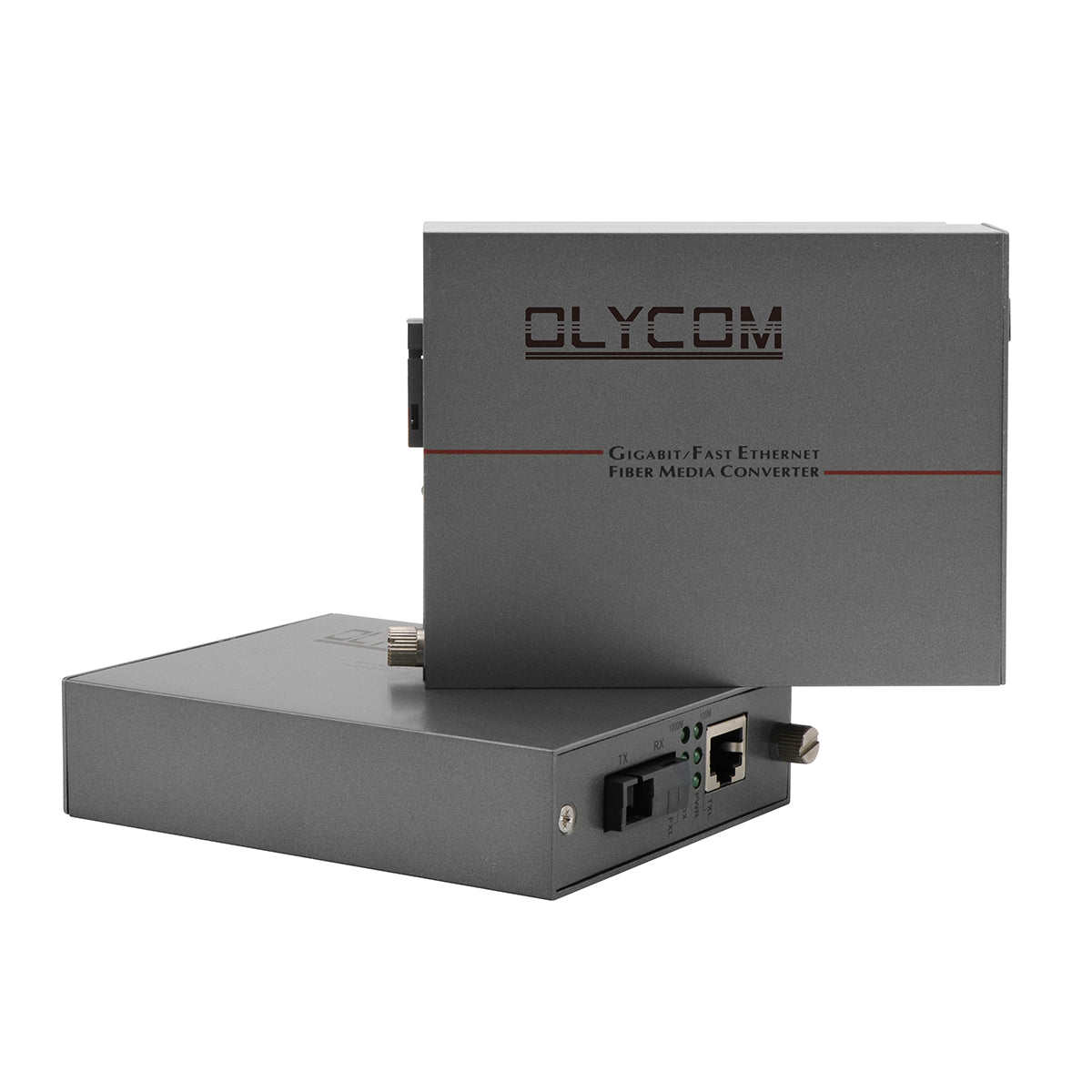

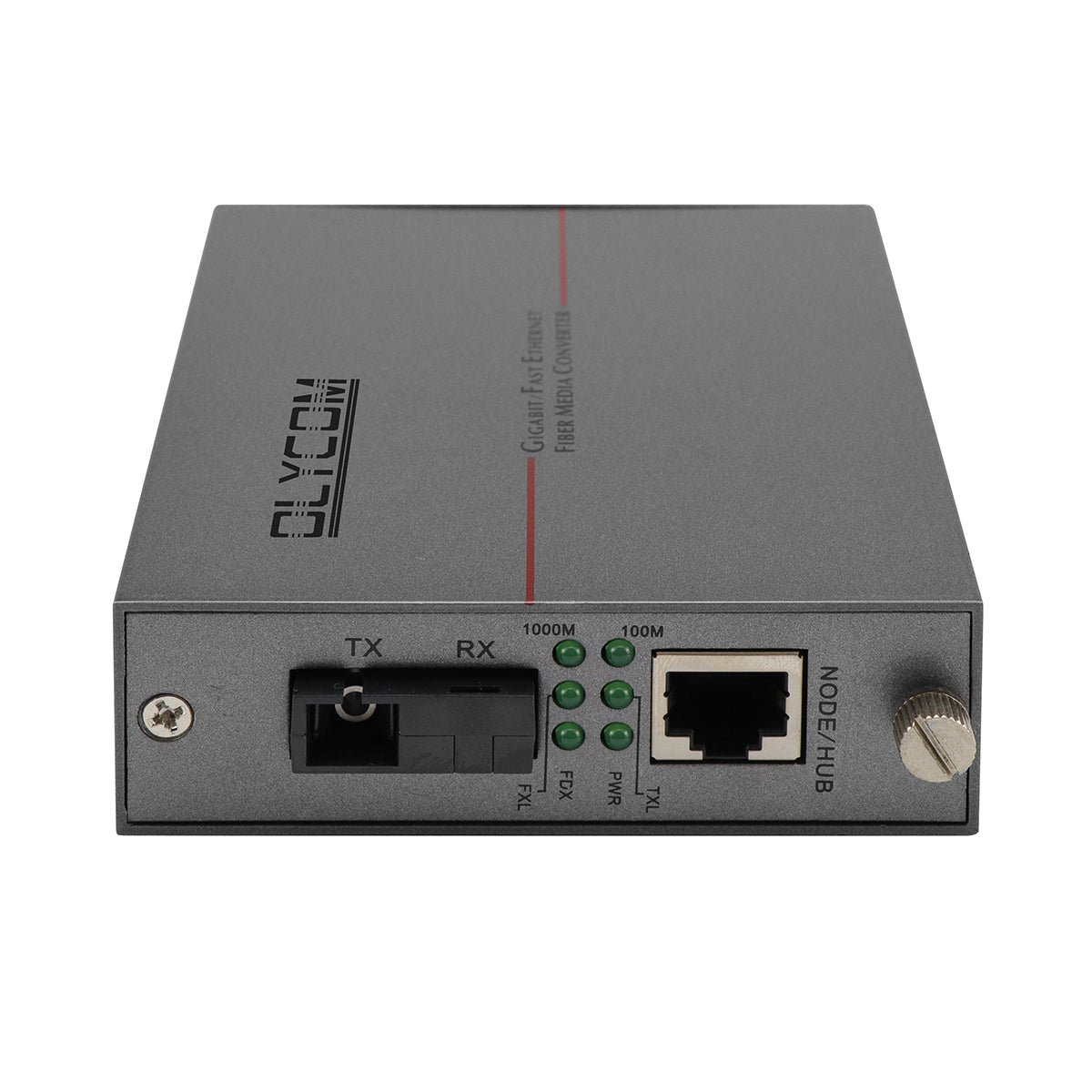

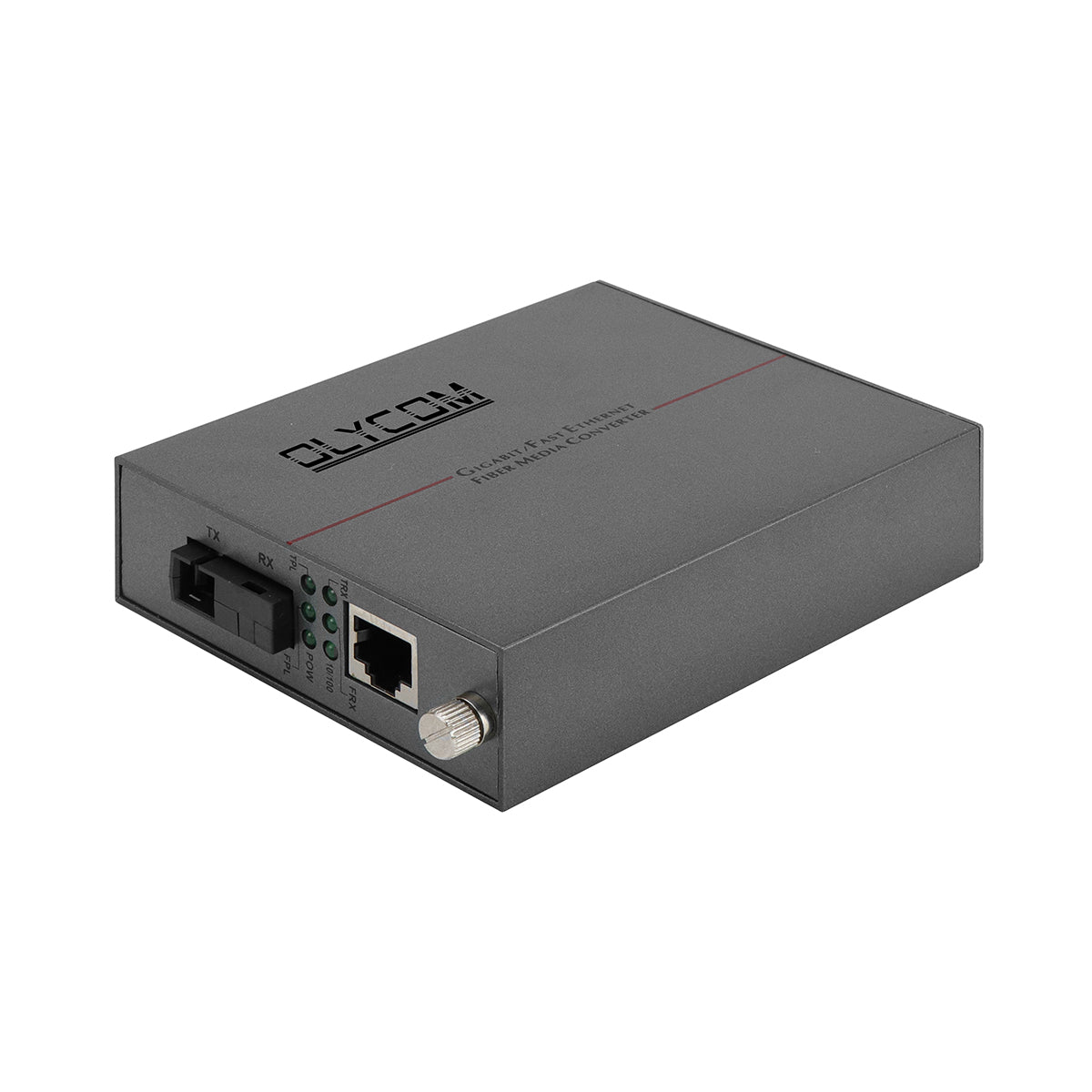

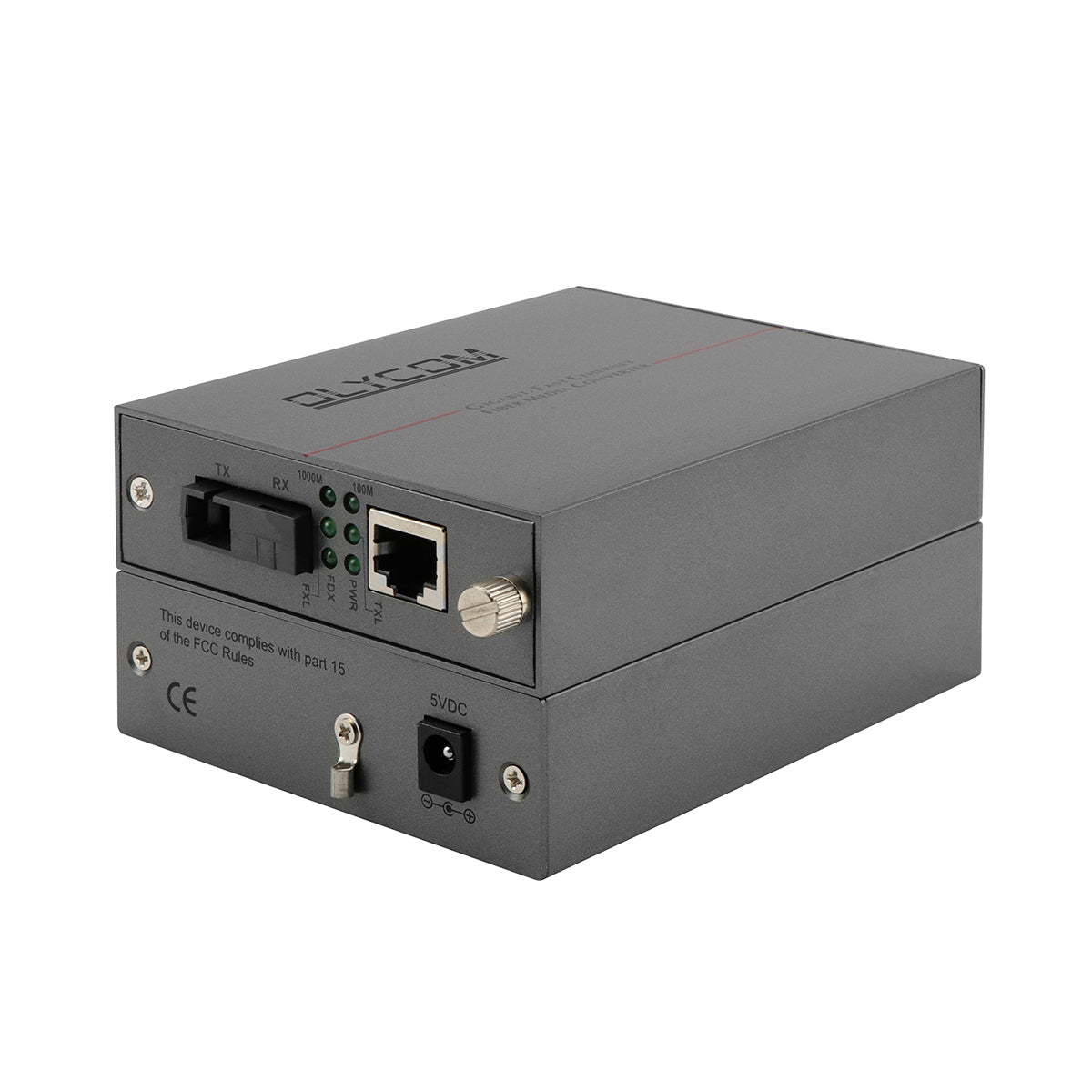

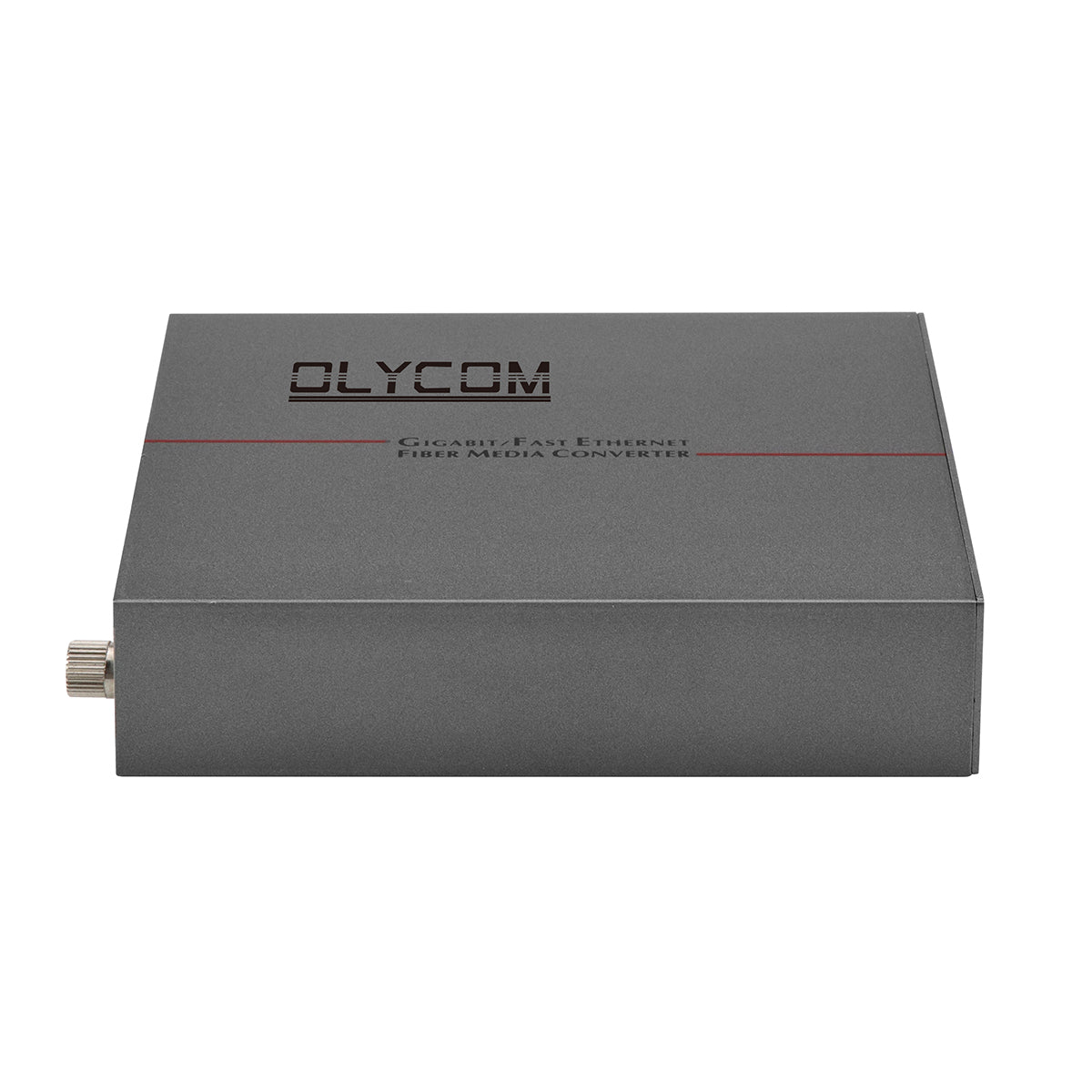

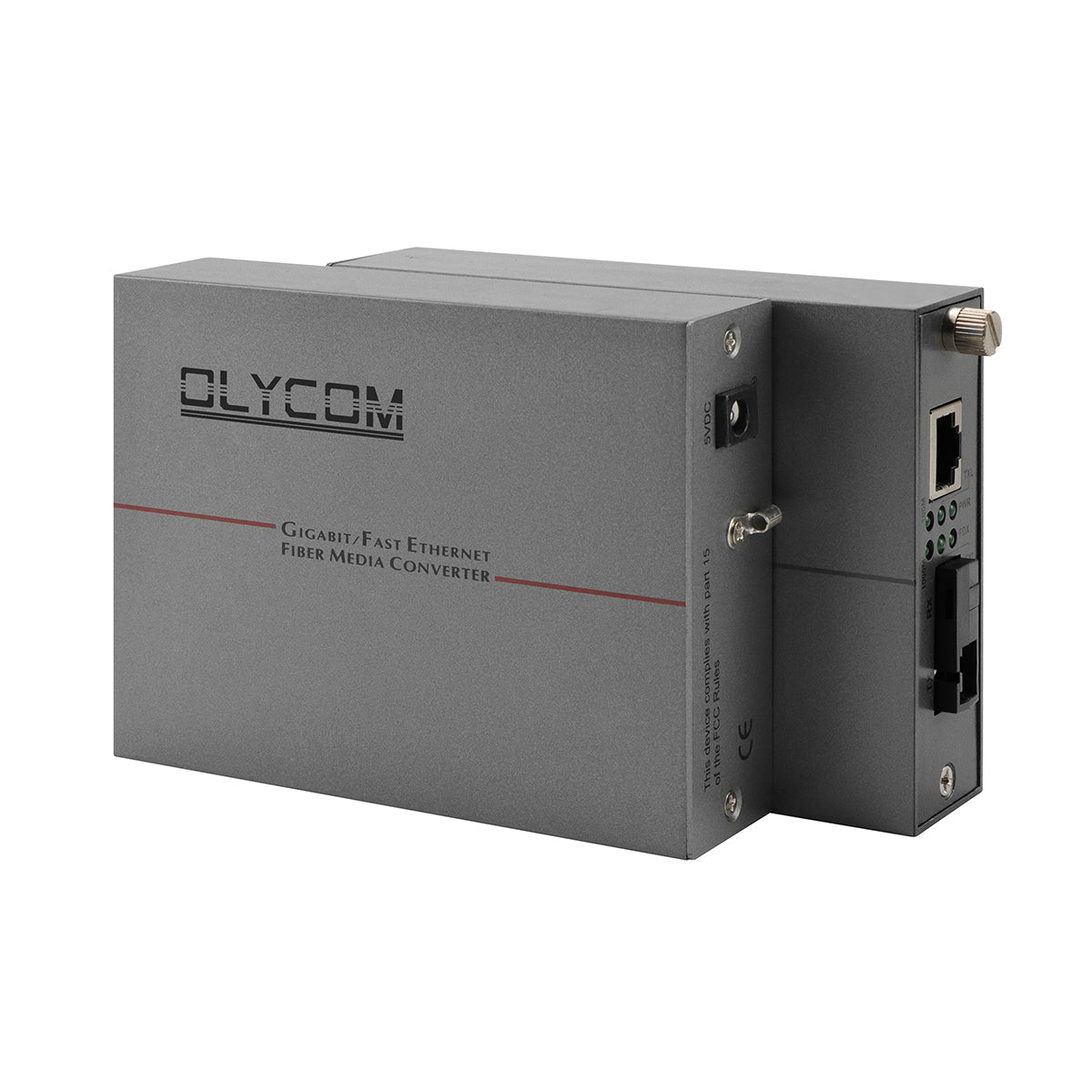

Olycom TA540-GE is a commercial-grade single-fiber Gigabit media converter designed to extend Ethernet connectivity over distances up to 120 km using just one fiber core.
Its modular swap-able card design supports both standalone units and 19” 2U chassis, offering exceptional flexibility for telecom operators, enterprise networks, and large-scale infrastructure deployments.
Key Features
Single-fiber transmission using 1310/1550nm WDM for long-distance, cost-efficient deployment.
Auto-negotiation 10/100/1000Mbps, auto-MDI/MDIX, and 10K jumbo frame support.
Store-and-forward (<10µs) or cut-through (<0.9µs) for optimized performance.
LFPT (Link Fault Pass Through) and AVB support for synchronized, time-sensitive network applications.
Premium aluminum housing, low power consumption (<2.5W), MTBF >50,000 hours.
Compatible with MMF (2–5 km) and SMF (20–120 km) optical links.
Applications
Telecommunication & ISP Infrastructure – Ideal for metro access, backbone extension, and optical last-mile connectivity using single-fiber WDM technology.
Enterprise & Campus Networks – Links distant buildings, data centers, or branch offices where copper Ethernet cannot reach.
Public Safety & Surveillance Systems – Provides long-distance fiber connectivity for HD video backhaul and monitoring centers.
Education, Healthcare, and Commercial Complexes – Ensures high-speed, interference-free networking for large facilities.
