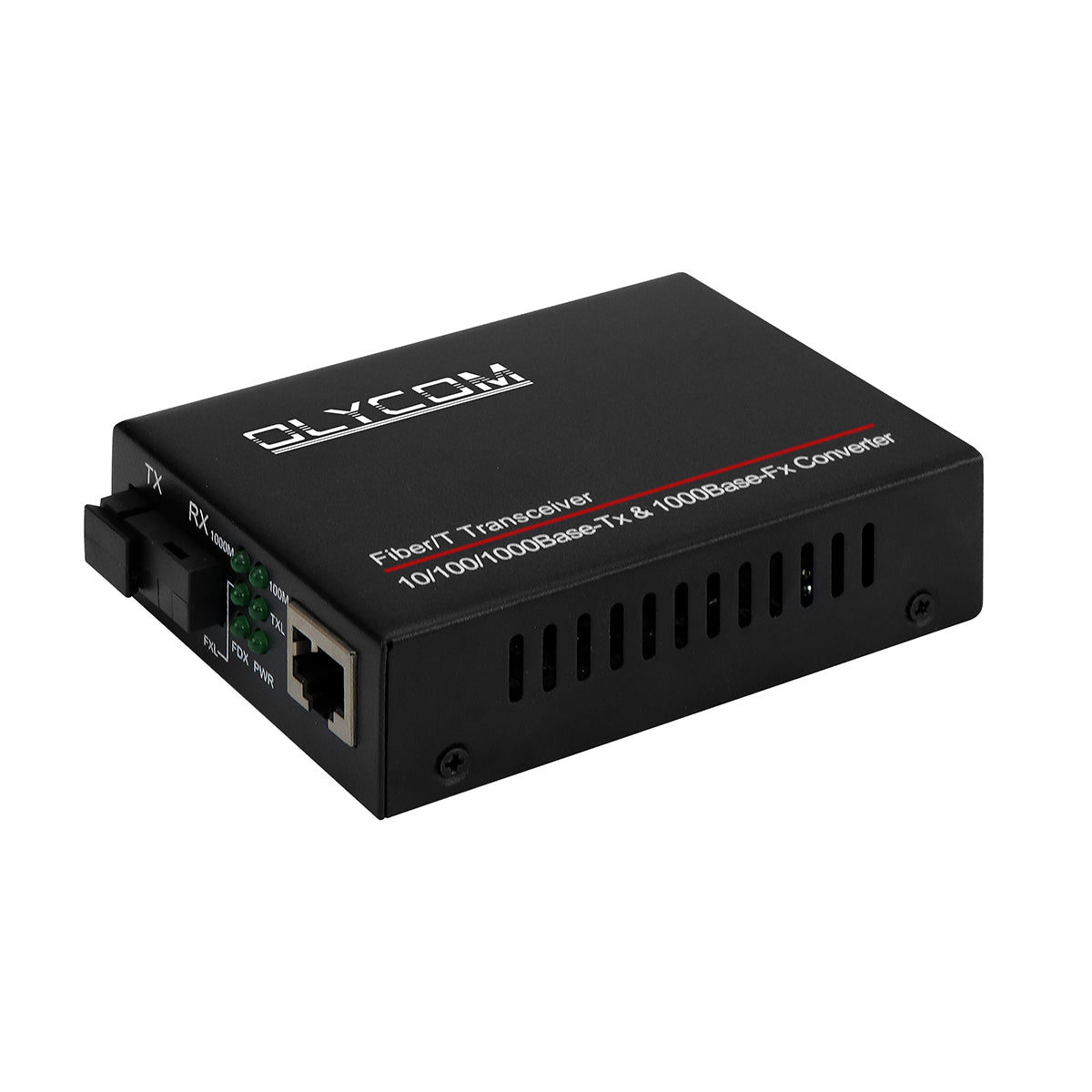

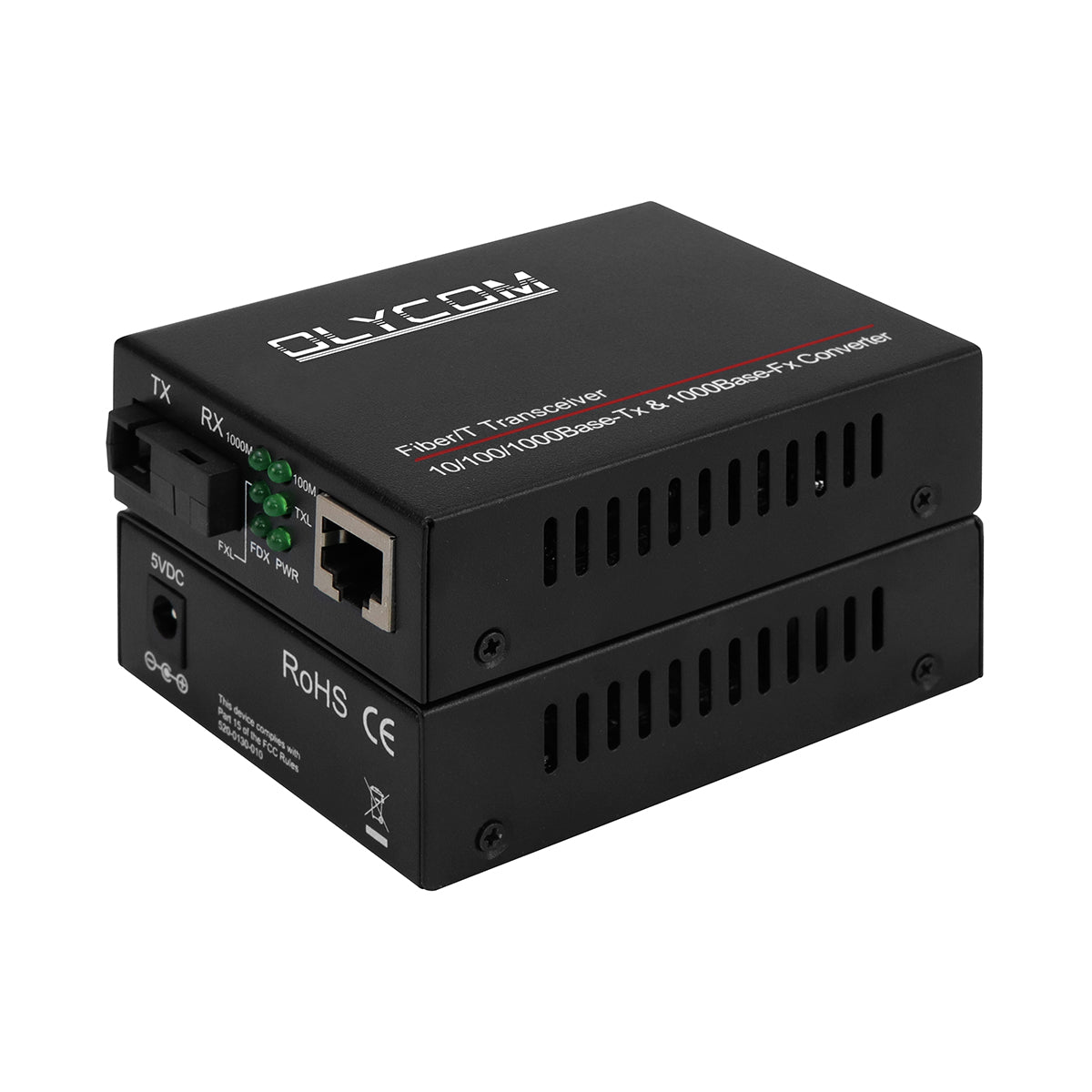

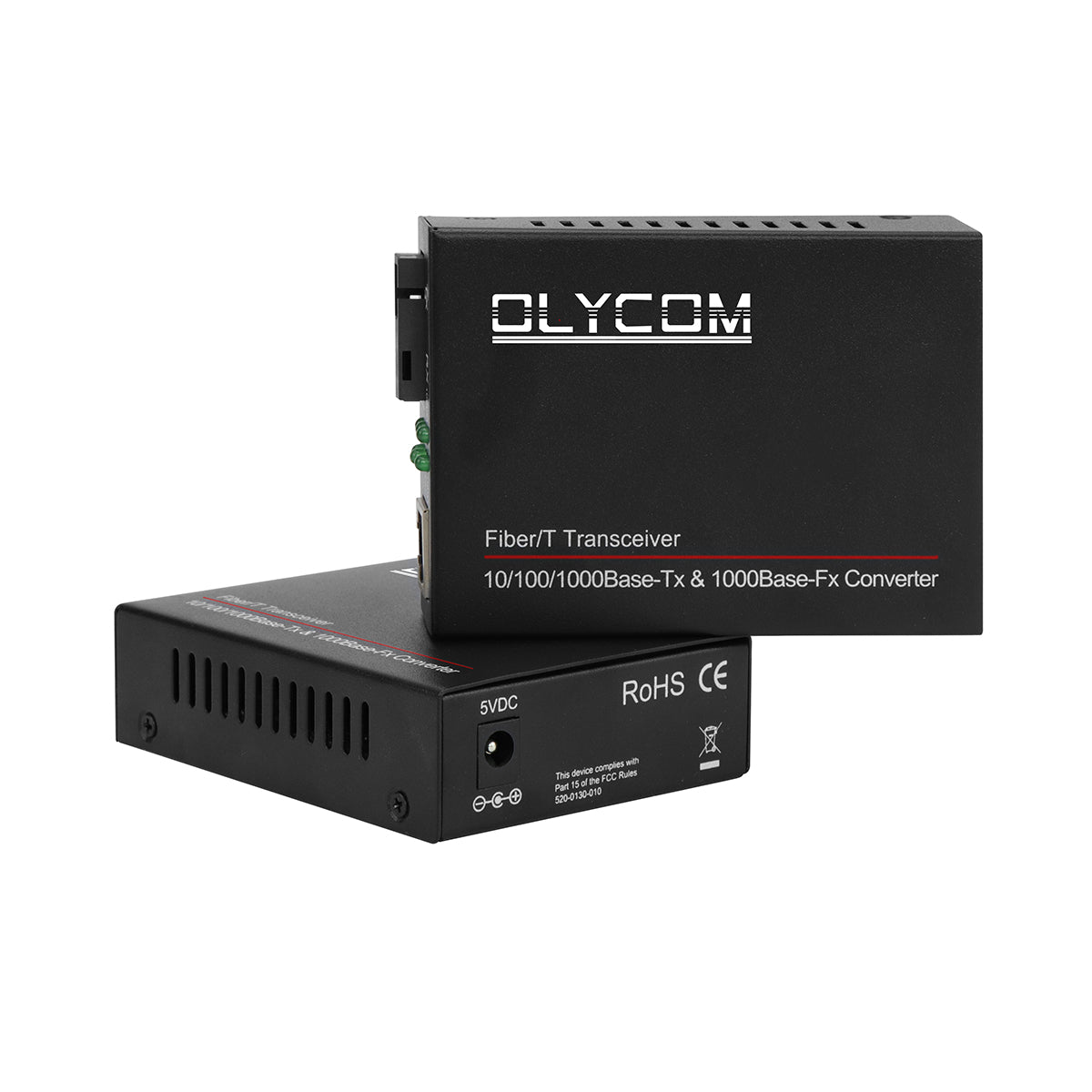

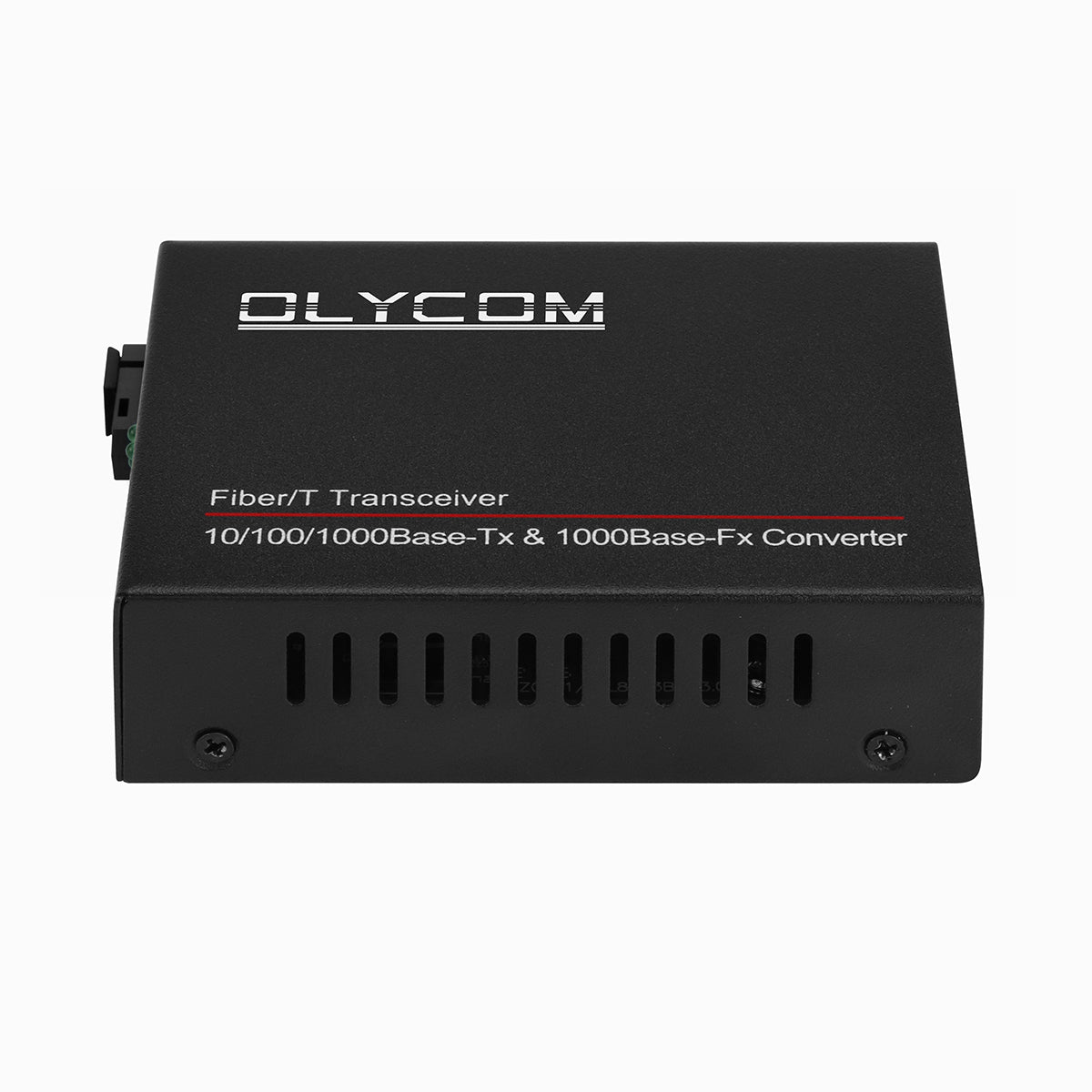

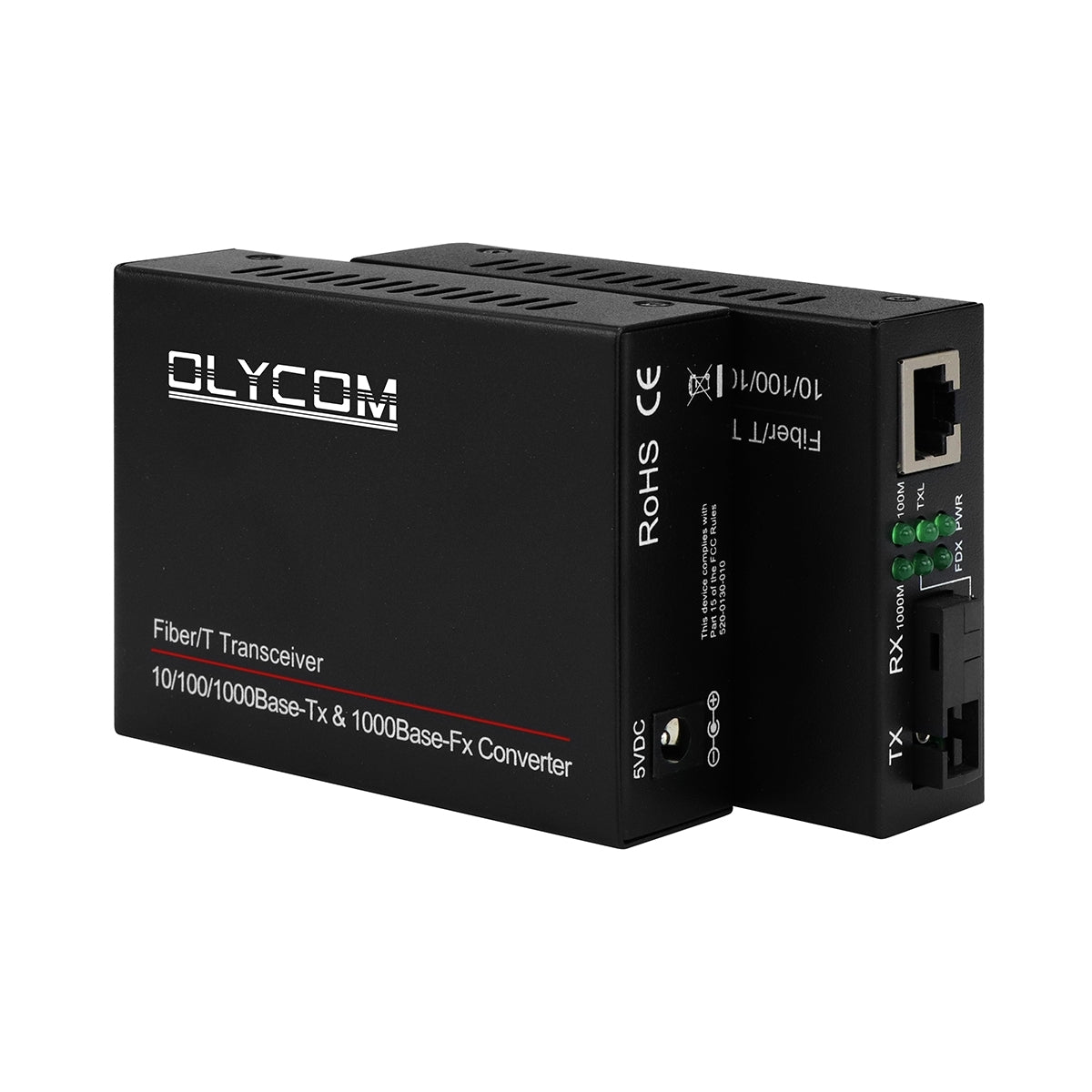

Olycom Gigabit Media Converter 10/100/1000M WDM Single Fiber SC DC5V Rack Mounted

Olycom Gigabit Media Converter 10/100/1000M WDM Single Fiber SC DC5V Rack Mounted

$39.99 USD
$45.99 USD $39.99 USD
Sale Sold out
Olycom TA510-GE is a Gigabit Ethernet single-fiber media converter that utilizes Wavelength Division Multiplexing (WDM) technology to transmit and receive data through a single optical fiber.
Below features make it ideal for enterprise, telecom, and educational network environments requiring stable and efficient long-distance Ethernet extension.

Key Features
  • Single-Fiber WDM Design – Transmits and receives data over one fiber using 1310nm/1550nm wavelengths for cost-effective deployment.
  • High-Speed Triple-Rate Support – Compatible with 10/100/1000Mbps Ethernet devices, auto-negotiation on both copper and fiber sides.
  • Extended Transmission Distance – Supports 20km, 40km, 60km, 80km, 100km, and 120km single-mode fiber options.
  • Low Latency & High Reliability – Store-and-forward delay <10μs, BER <1×10⁻⁹, and MTBF >50,000 hours.
  • Comprehensive Standards Compliance – IEEE802.3, 802.3u, 802.3z, 802.3x, 802.1Q, 802.1p, and 802.1d.
  • Compact Industrial Design – Rugged metal enclosure (70×93×25mm), net weight 0.16kg, suitable for desktop or rackmount chassis.
  • Full-Duplex Flow Control – 802.3x flow control in full duplex, back-pressure in half duplex.
  • Flexible Power Supply – External DC 5V/1A adapter, power consumption <2.5W.

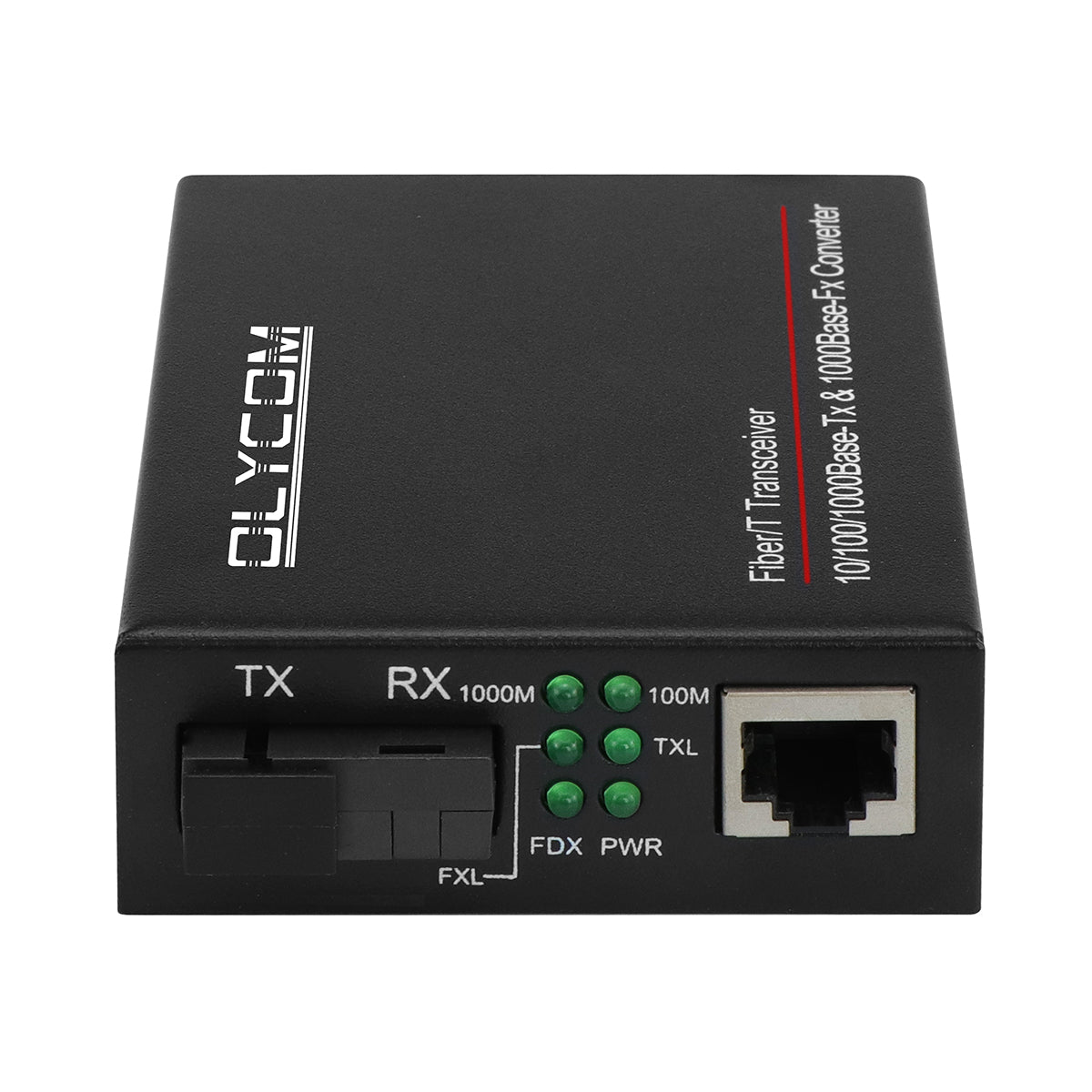

  • Clear LED Indicators – Front-panel LEDs for power, link, and activity monitoring.
  • Optional Rack Integration – Supports installation in 14-slot rack chassis for centralized management.

Applications
  • Telecommunication Networks – Ideal for broadband fiber access and long-distance Ethernet extension.
  • Enterprise & Office Networks – Connects switches, routers, and servers over single fiber links.
  • Campus & Education Systems – Extends high-speed fiber backbone between buildings and network zones.
  • CCTV & Security Surveillance – Stable gigabit fiber link for IP cameras and NVRs.
  • Internet Cafes & Cyber Bars – Reliable, low-maintenance network backbone for high-speed data access.
  • Industrial & Utility Networks – Provides robust fiber connectivity for control and automation systems.
