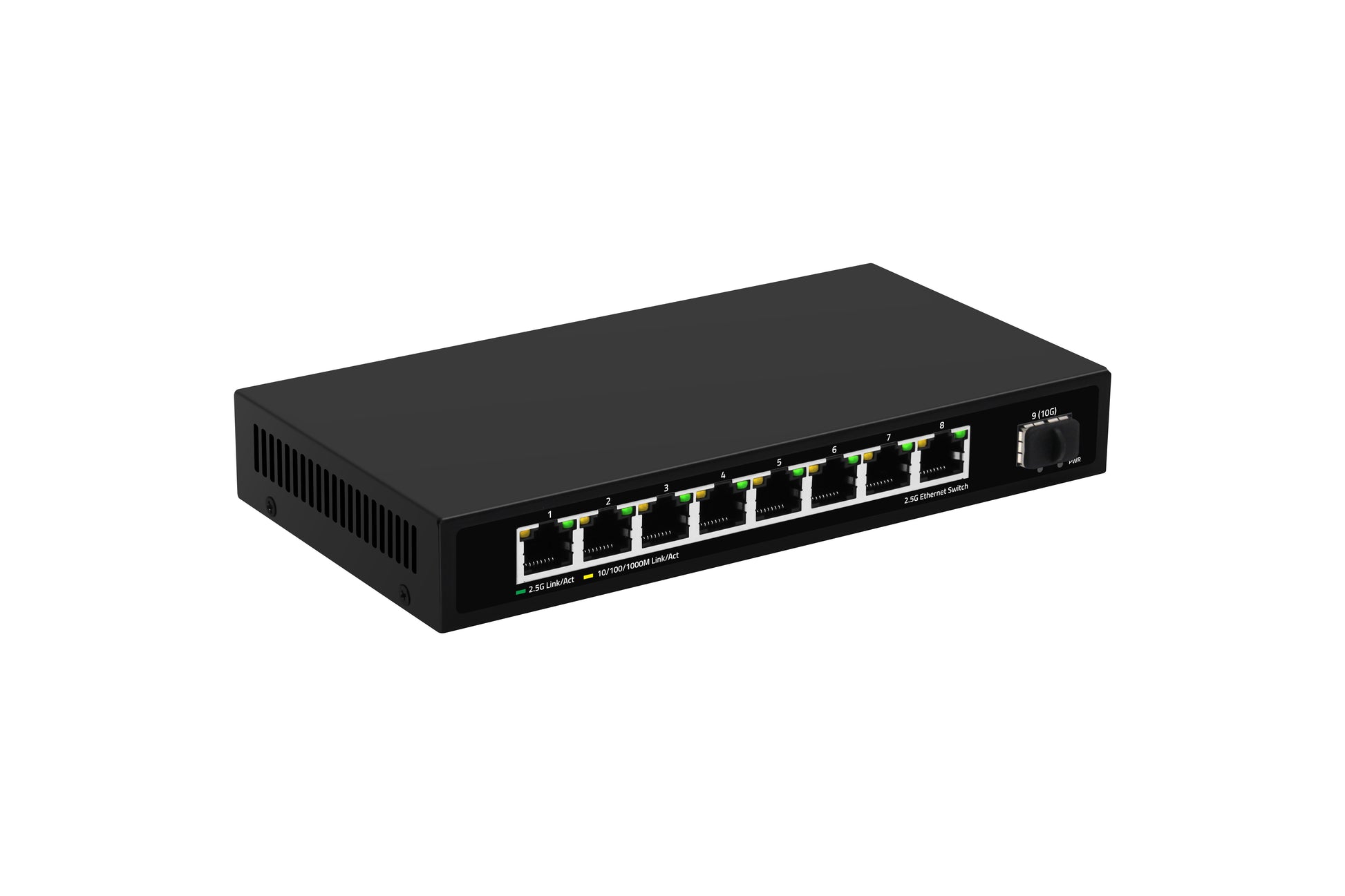

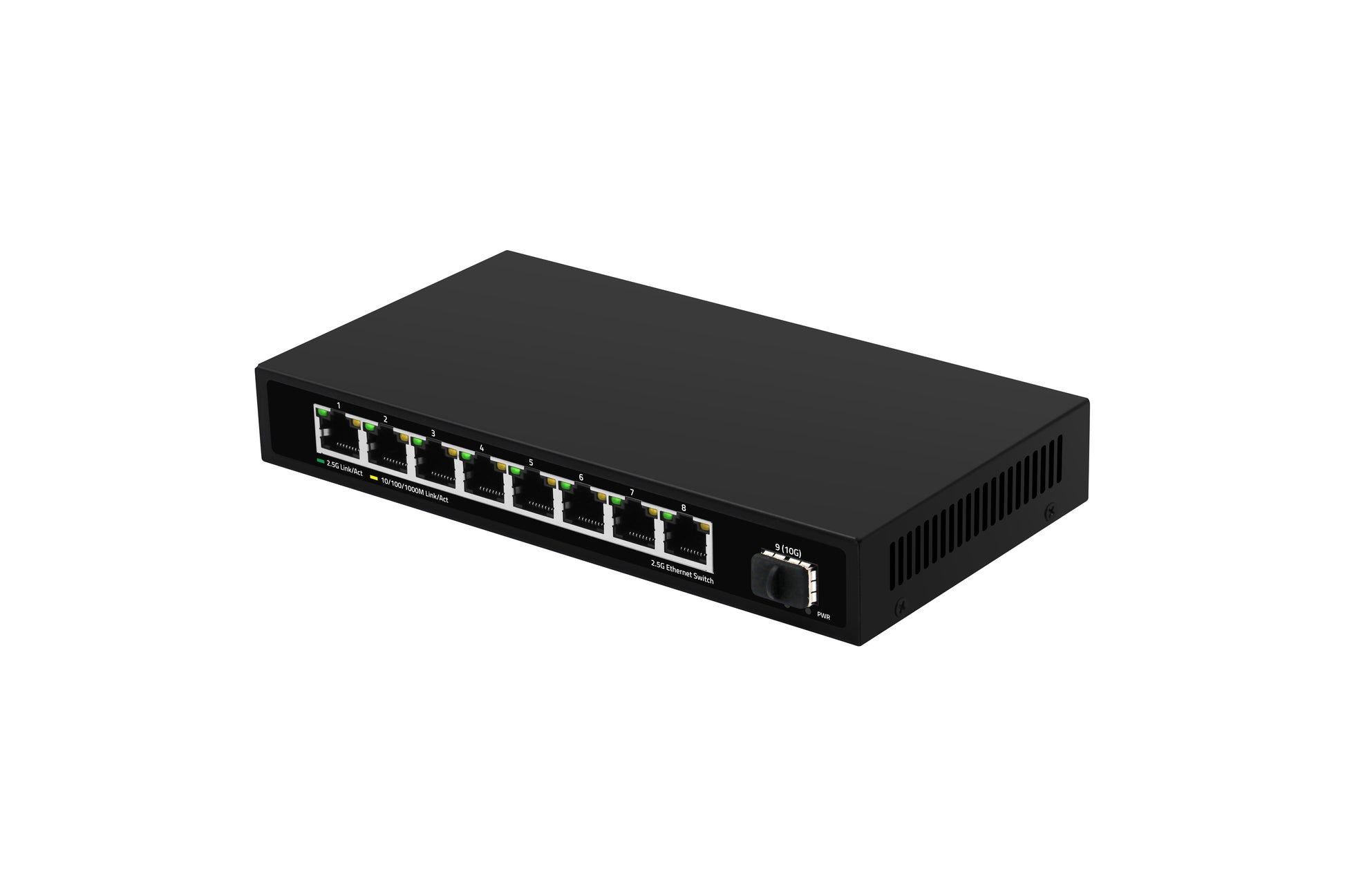

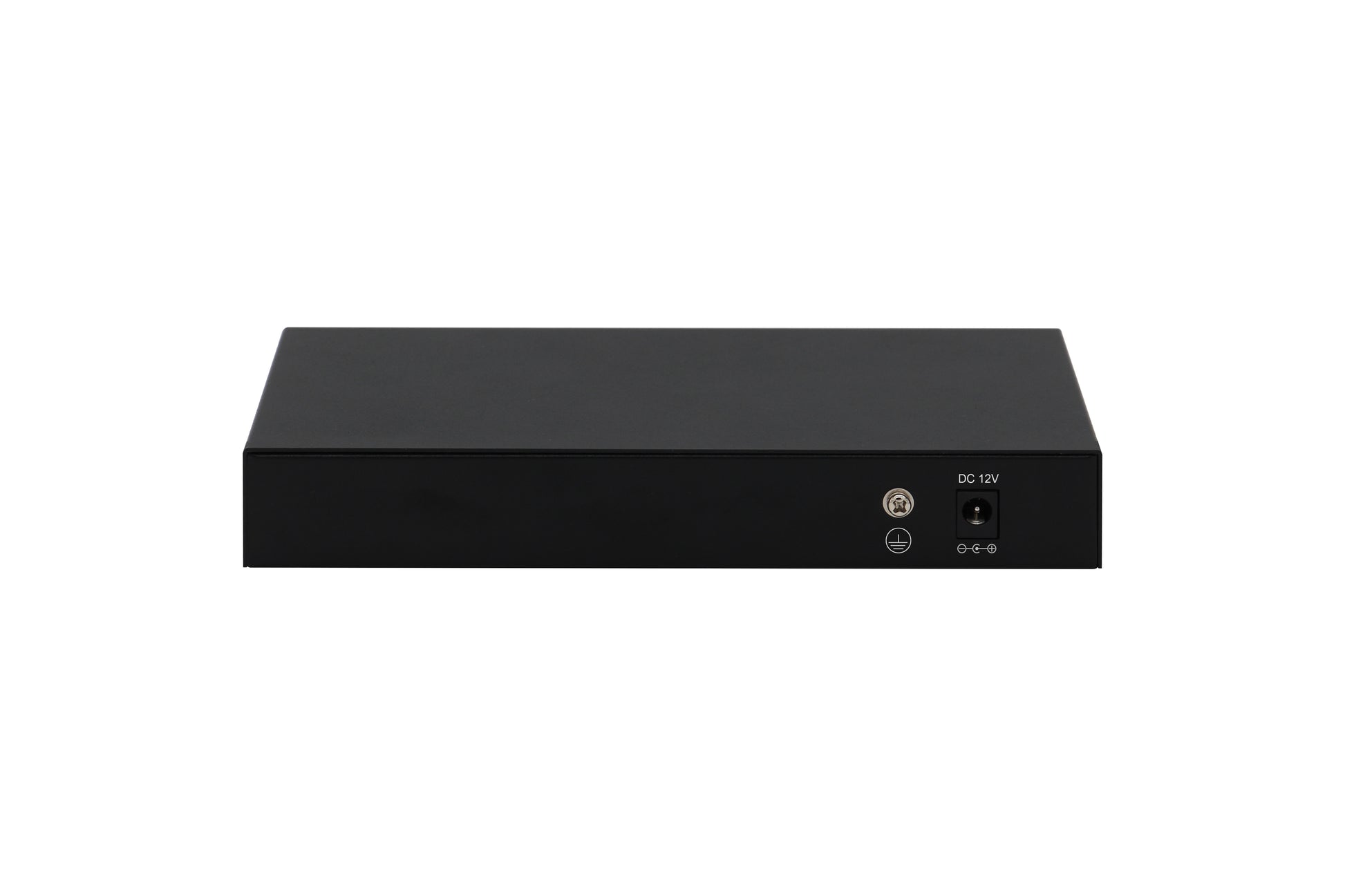

Olycom 8-Port 2.5G Ethernet Switch 10G Uplink Fanless Unmanaged CE DC12V Input

Olycom 8-Port 2.5G Ethernet Switch 10G Uplink Fanless Unmanaged CE DC12V Input

$64.99 USD
$72.99 USD $64.99 USD
Sale Sold out
Olycom OM1X80(2)GE is a high-speed 8-port 2.5G Ethernet switch with a 10G SFP uplink, purpose-built for modern high-bandwidth networks.
Designed with a fanless, silent architecture, it eliminates noise issues common in compact switches, making it ideal for offices, studios, and enterprise edge environments.

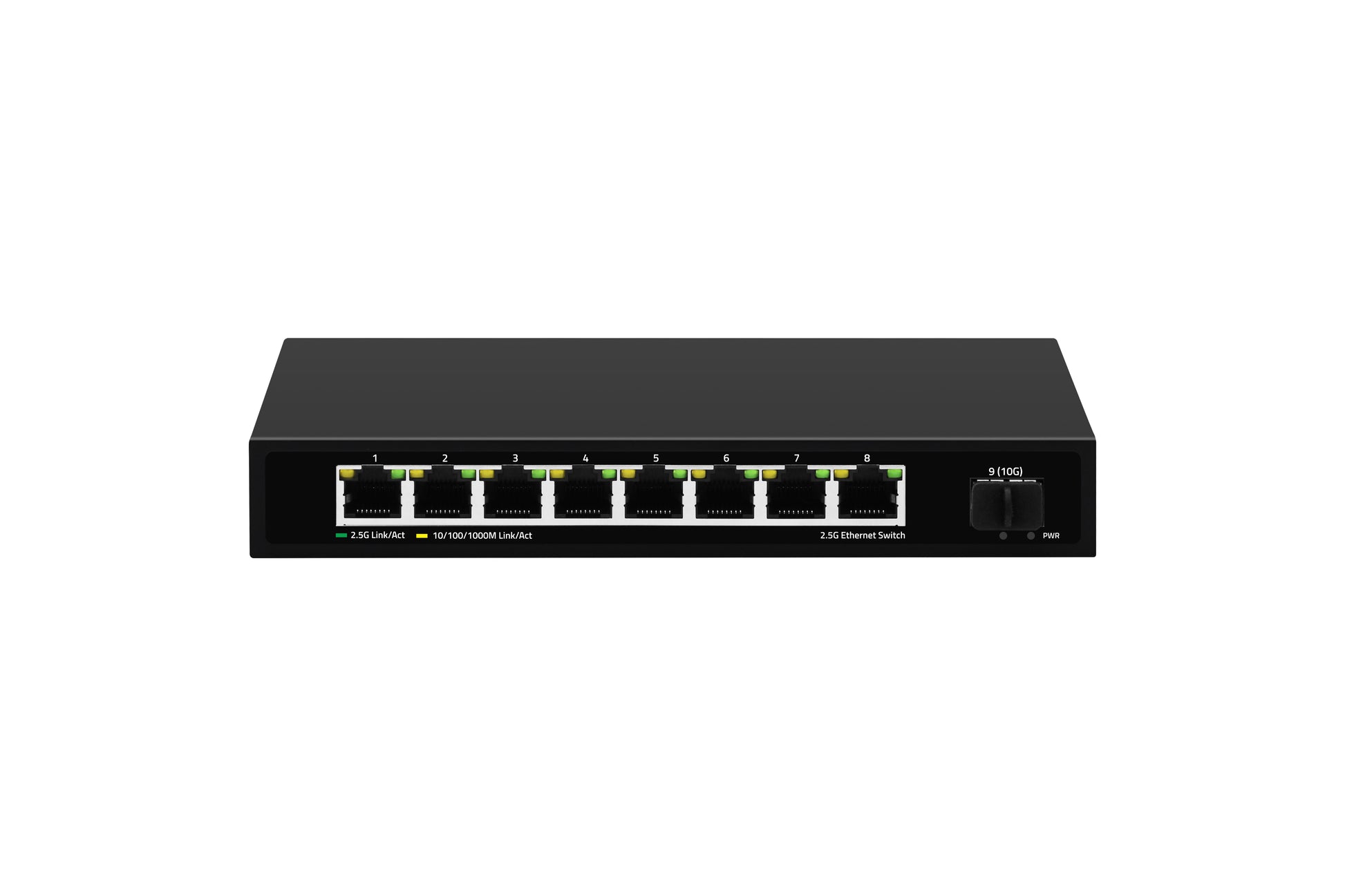

Featuring 8×2.5G RJ45 ports and 1×10G SFP fiber port, the switch enables seamless integration of multi-gigabit devices such as Wi-Fi 6 access points, NAS systems, and high-definition IP surveillance.

Key Features
  • High-Performance Architecture: 8 × 2.5G RJ45 ports and 1 × 10G SFP uplink for flexible multi-gigabit networking
  • Multi-Speed Compatibility: Auto-negotiation for 10/100/1000M/2.5G Ethernet devices, fully compliant with IEEE 802.3bz
  • Silent & Energy-Efficient: Fanless design ensures quiet operation and stable performance in any environment
  • Robust Switching Fabric: 60Gbps backplane bandwidth, 44.64Mpps forwarding rate, and 12KB jumbo frame support
  • Enhanced Reliability: MTBF ≥ 100,000 hours, industrial-grade surge protection (6KV common, 8KV air ESD)
  • Smart Management Indicators: Dual-color LEDs for link/activity monitoring and quick fault diagnostics
  • Plug & Play Simplicity: Automatic MDI/MDIX crossover, no configuration required
  • Broad Standards Compliance: IEEE802.3, 802.3u, 802.3ab, 802.3bz, 802.3ae, and 802.3x flow control
  • Certified Safety & Environmental Standards: CE, FCC, RoHS; operating temperature -10°C ~ 50°C

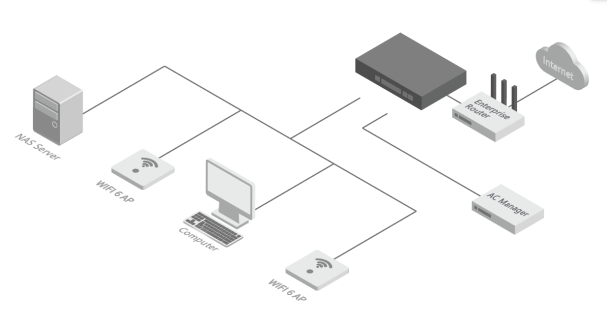

Applications
  • Enterprise & SMB Networks – High-speed connectivity for servers, APs, and workstations in modern offices
  • Wi-Fi 6 / Wi-Fi 7 Infrastructure – Optimized for multi-gigabit AP backhaul and low-latency wireless distribution
  • Surveillance Systems – Stable backbone for high-definition IP cameras and NVR networks
  • Data Centers & NAS Systems – Ideal for high-throughput file transfer and data synchronization
  • Campus & Multimedia Networks – Reliable performance for e-learning, broadcasting, and real-time streaming
  • Home Lab & Creative Studios – Perfect balance of speed, silence, and scalability for power users
