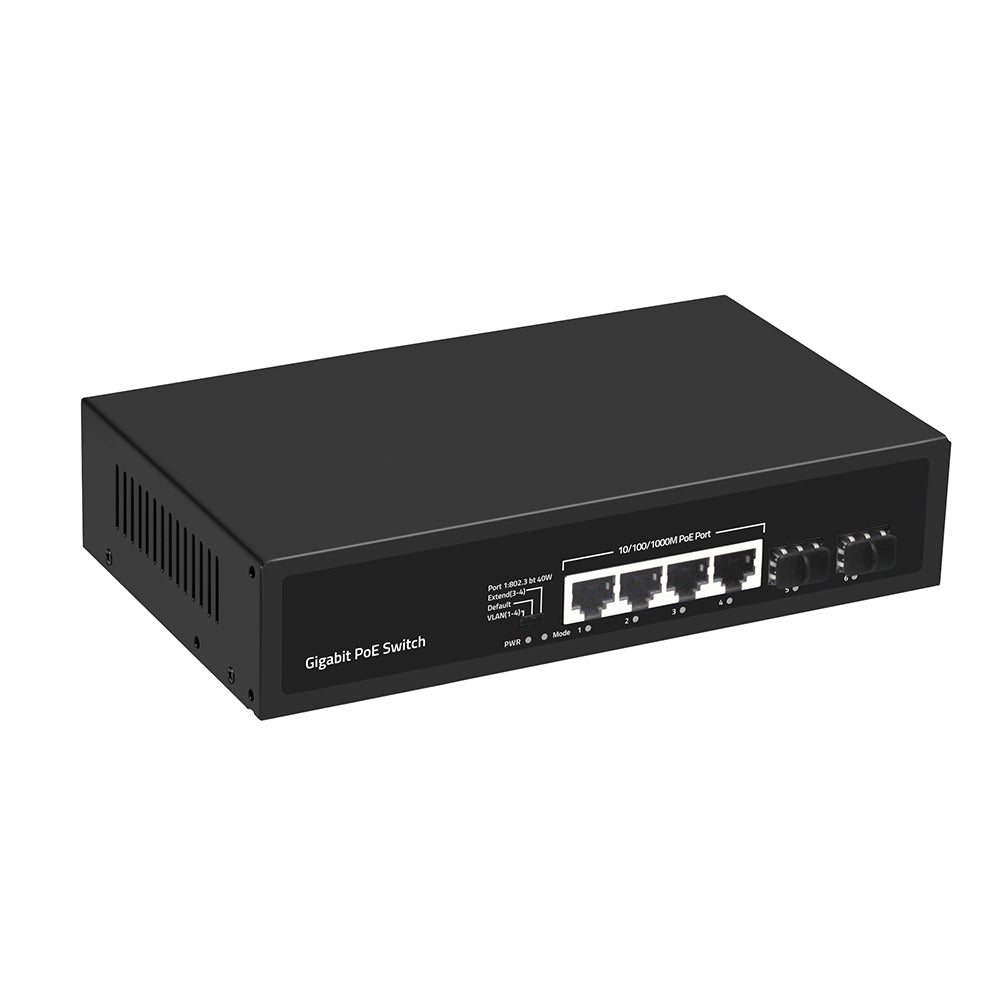

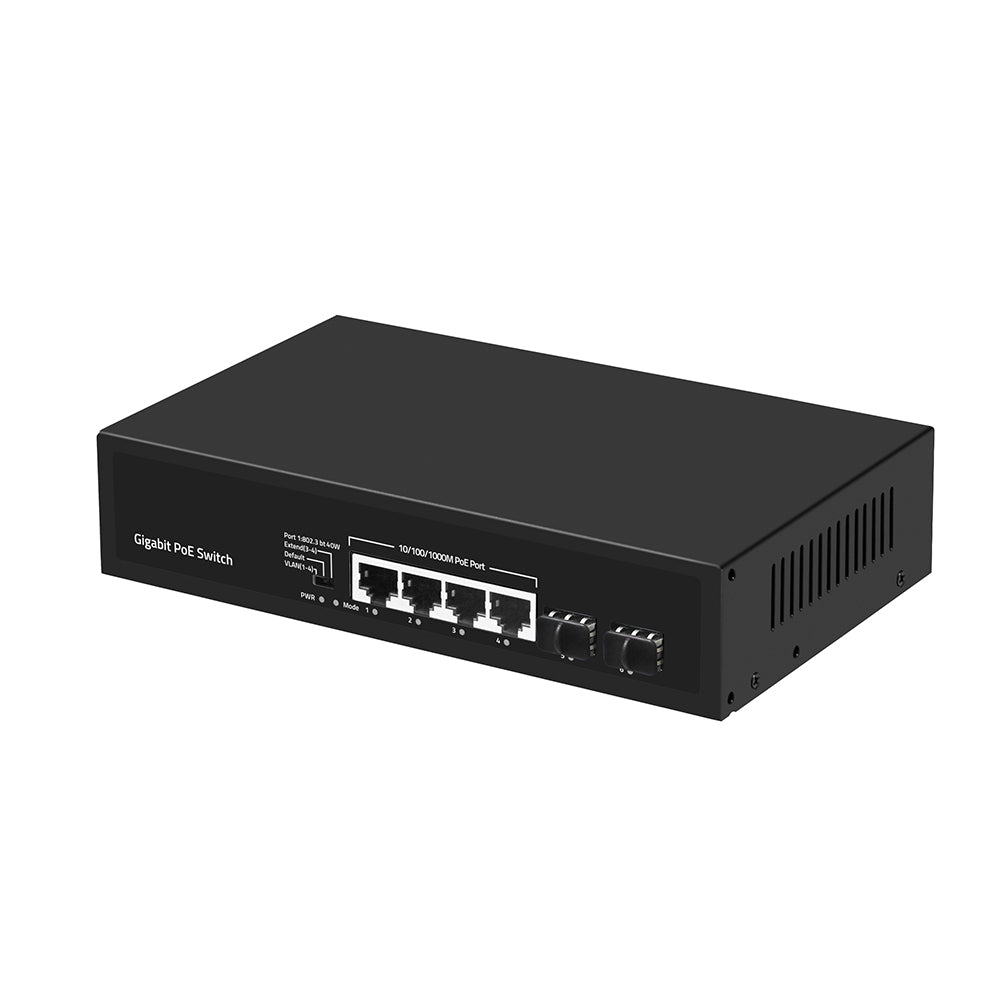

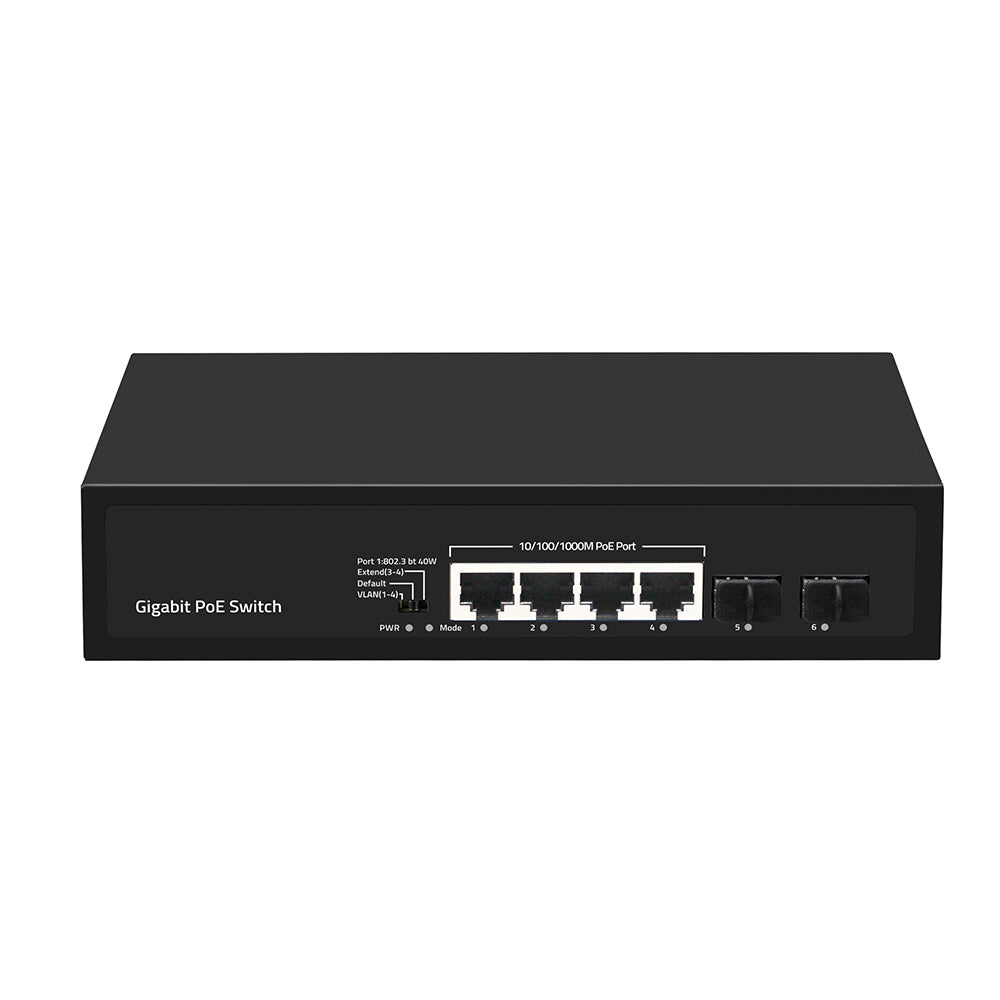

Olycom 6-Port Gigabit SFP Fiber PoE Switch 60W Unmanaged AC Input Rack Mounted

Olycom OM244-PSE-GE is a compact 6-port Gigabit PoE switch designed for high-performance network access and reliable power delivery.

Equipped with 4×10/100/1000M PoE+ RJ45 ports and 2×Gigabit SFP uplink ports, it supports IEEE802.3af/at standards to provide up to 30W per port for IP cameras, wireless APs, and VoIP devices.

With plug-and-play installation, intelligent PoE detection, and VLAN/Extend functionality, this switch delivers stable transmission and cost-effective deployment for modern networks.

Key Features

• Flexible Connectivity: 4 × 10/100/1000M PoE ports + 2 × Gigabit SFP uplink ports
• Standards Compliance: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x flow control
• PoE Support: IEEE802.3af (15.4W) & IEEE802.3at (30W), max 60W total PoE power
• Smart DIP Switch: VLAN mode (port isolation), Default mode (standard), Extend mode (250m transmission at 10Mbps)
• Performance: 12Gbps switching capacity, 8.928Mpps forwarding rate, 1M buffer, 2K MAC address table, jumbo frames up to 9216 bytes
• Industrial Reliability: CE/FCC/RoHS certified, -10°C ~ 50°C operating temperature, fanless design, MTBF ≥ 100,000 hours
• Easy Deployment: Auto MDI/MDIX, panel LED indicators, plug-and-play installation

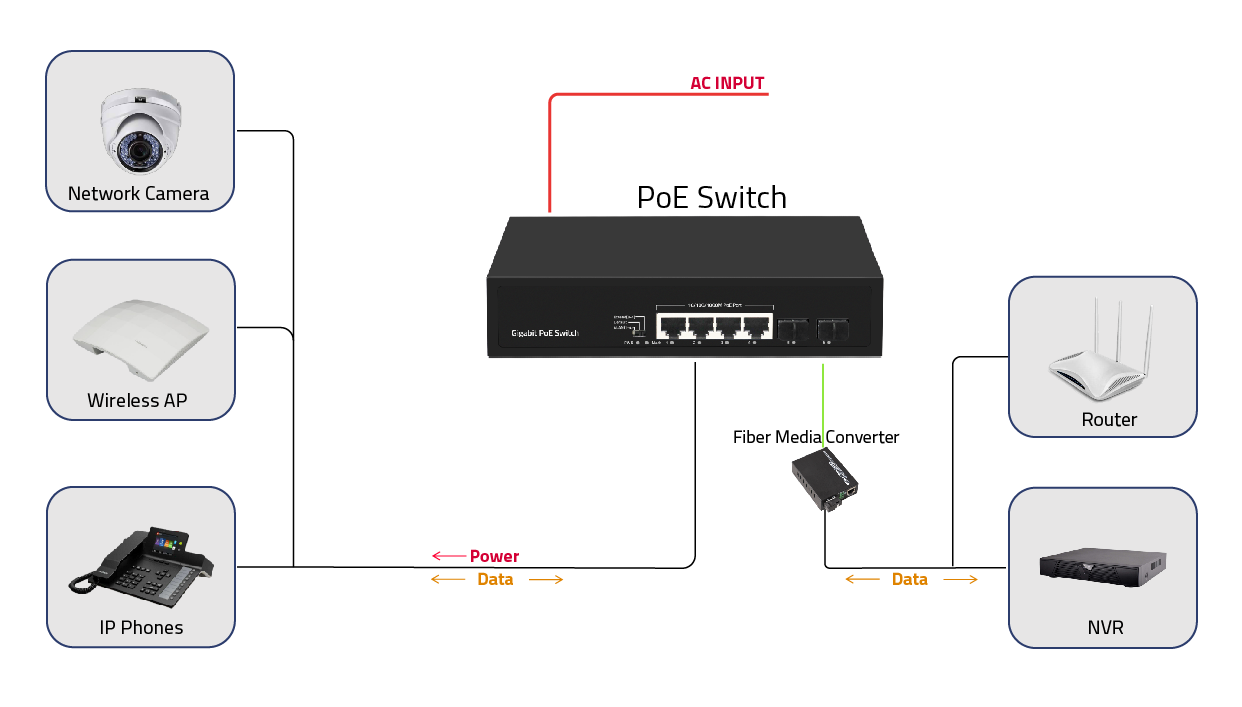

Applications

• Metro Optical Broadband Networks: Telecom, cable TV, and system integrators requiring high-performance access switches
• Enterprise & Private Networks: Financial, government, education, oil, energy, public security, and transportation sectors
• Multimedia Transmission: Integrated voice, video, and data delivery for video conferencing and remote learning
• Real-Time Monitoring: Reliable PoE and data for IP surveillance systems, NVRs, and control centers
