4-Port Gigabit PoE Switch VLAN/Extend Mode 60W Budget AC Input Plug-and-Play

4-Port Gigabit PoE Switch VLAN/Extend Mode 60W Budget AC Input Plug-and-Play

$35.99 USD
$42.99 USD $35.99 USD
Sale Sold out
Introduction

  • The OM064-PSE-GE is a 6-port unmanaged full-Gigabit PoE switch purpose-built for access-layer deployments that demand reliable power delivery and flexible operating modes without the complexity of a managed platform.

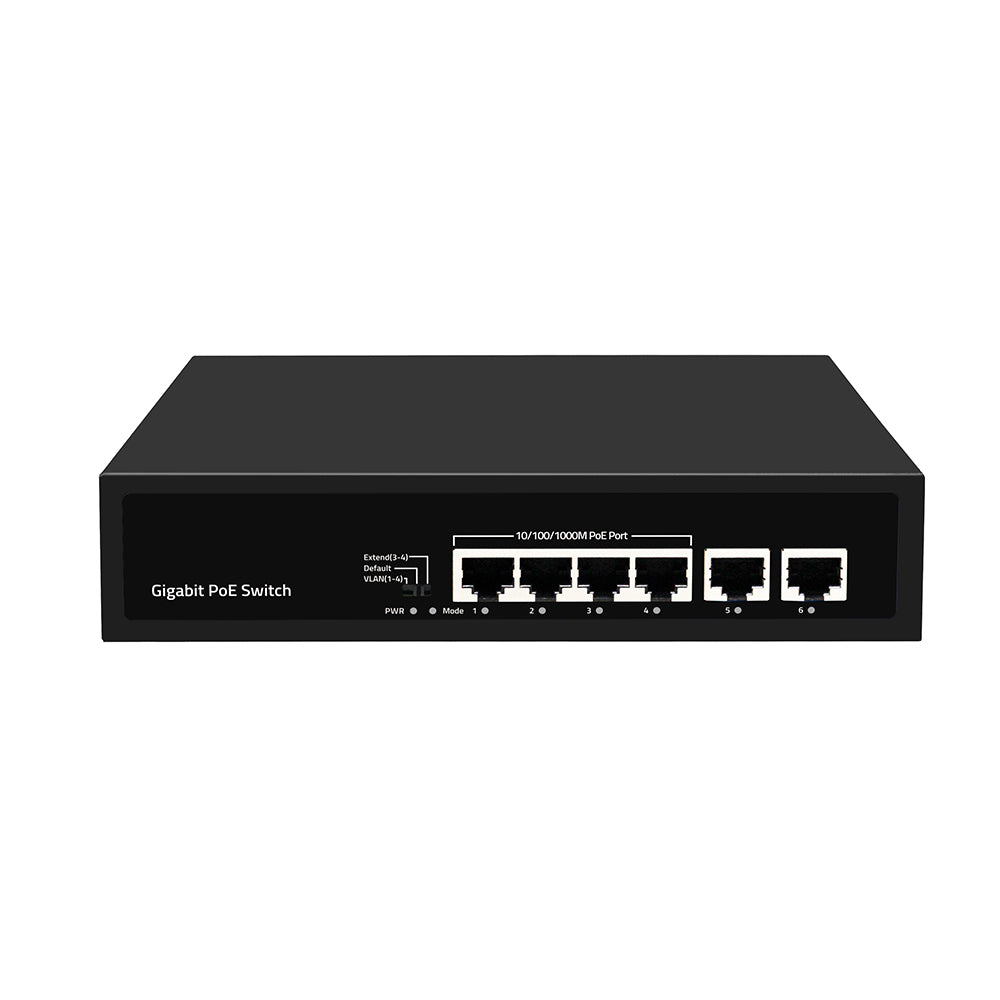

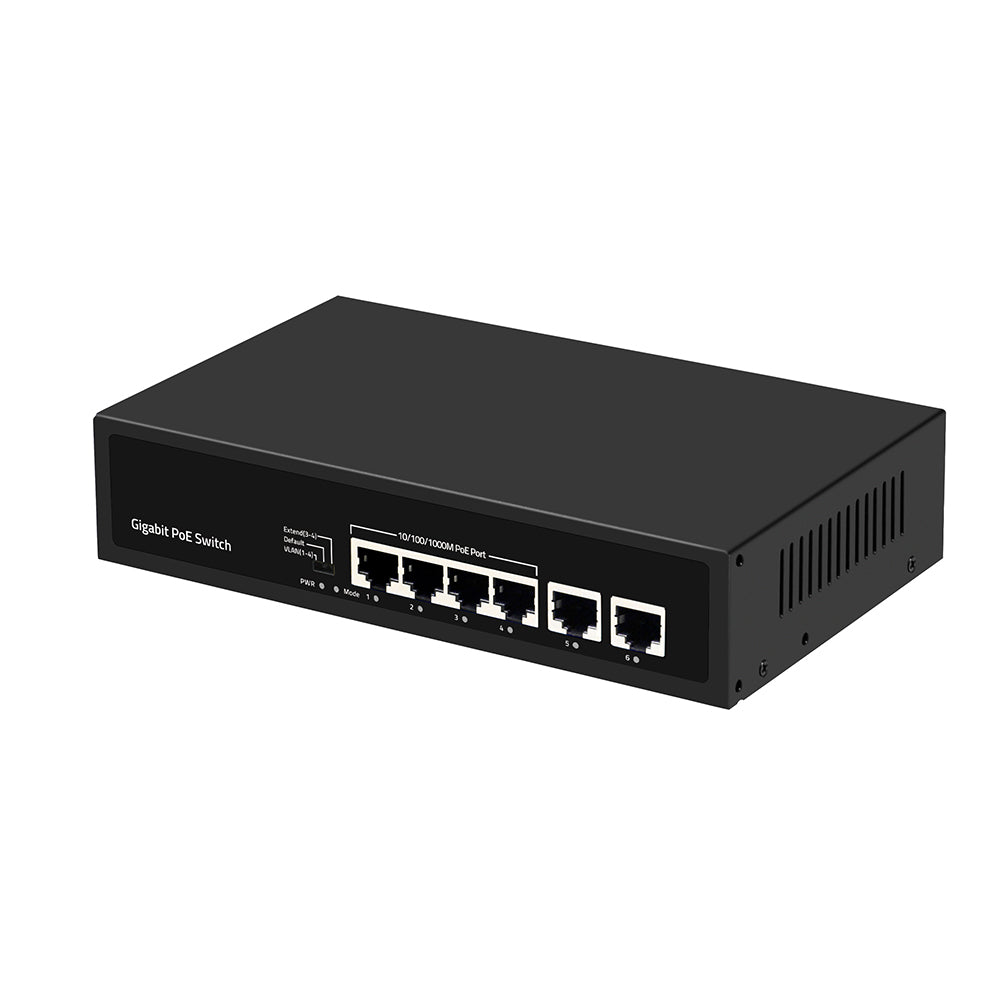

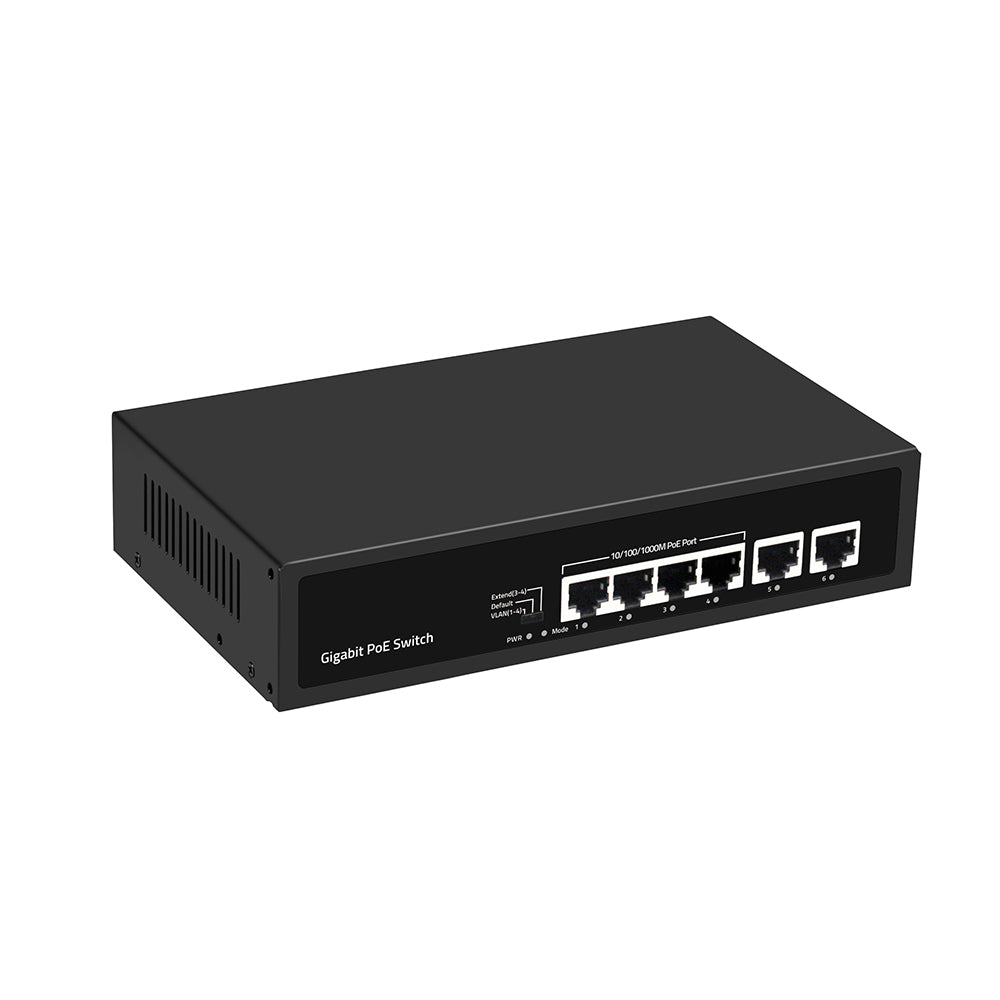

  • With 4 × Gigabit PoE ports and 2 × Gigabit RJ45 uplinks, it powers and connects IEEE 802.3af/at endpoints — IP cameras, wireless APs, VoIP phones, and access control panels — directly from a single AC 100–240V input, eliminating the need for separate power adapters at every device.
  • Three DIP switch–selectable operating modes give installers precise control over network behavior without any configuration interface: OFF mode for standard full-speed Gigabit operation, VLAN mode for port isolation that prevents endpoint-to-endpoint communication in security-sensitive environments, and Extend mode for pushing PoE connectivity up to 250m over standard Cat5e/6 cable — well beyond the 100m limit of conventional switches.
  • Fanless by design, the OM064-PSE-GE operates in complete silence, making it equally at home in an open-plan office, a corridor cabinet, or a quiet residential broadband deployment.

Key Features

  • 4 × Gigabit PoE + 2 × Gigabit RJ45 Uplinks — Full 1000Mbps on every port; PoE ports auto-detect IEEE 802.3af (15.4W) and 802.3at (30W) endpoints and supply power only to compliant devices — non-PoE equipment connects safely without risk of damage

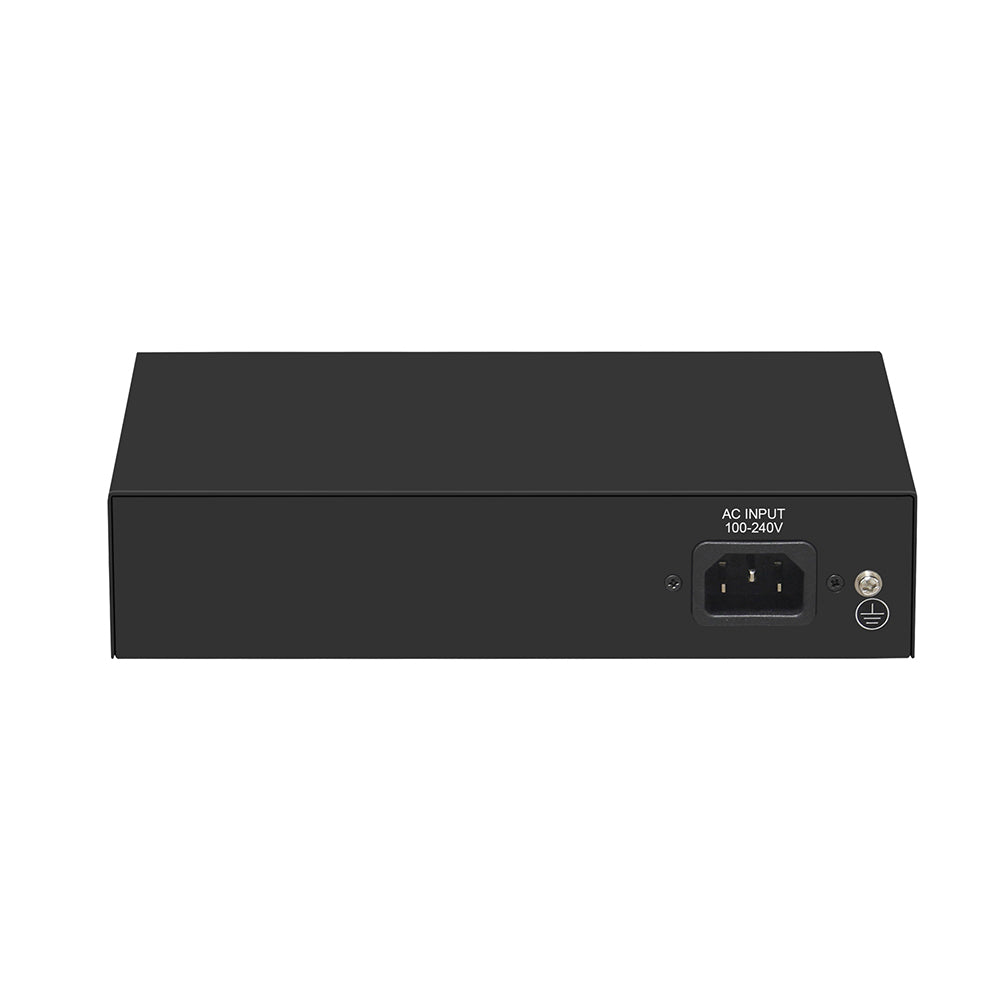

  • AC 100–240V Input / DC 48V PoE Output — Universal AC input for global deployment; internal conversion to standard 48V PoE eliminates external injectors, reduces cabling complexity, and consolidates power into a single infrastructure point
  • Three DIP Switch Operating Modes:
OFF Mode — Standard full-speed Gigabit operation up to 100m; all ports communicate freely with full PoE delivery
VLAN Mode — Isolates every PoE access port from its neighbors while maintaining uplink connectivity; essential for IP camera networks where camera-to-camera communication is a security risk, and for multi-tenant environments requiring client separation
Extend Mode — Reduces link speed to 10Mbps to extend PoE transmission up to 250m over Cat5e/6, enabling camera or AP placement far beyond standard Ethernet distance limits without additional extenders or media converters
  • IEEE 802.3af/at Compliant — Automatic power classification and delivery; supports the full range of standard PoE devices from low-power IP phones to higher-draw PTZ cameras and dual-radio APs
  • Auto MDI/MDIX on All Ports — Plug-and-play wiring in any topology; no crossover cables required
  • IEEE 802.3x Flow Control — Prevents packet loss under high traffic load in full-duplex environments
  • Fanless Silent Operation — No moving parts; zero acoustic noise; suited for offices, hospitality, and residential deployments where fan noise is unacceptable
  • Plug-and-Play, Zero Configuration — No software, no CLI, no management interface required; powers up and operates immediately out of the box
  • Panel LED Indicators — Per-port link, speed, and PoE status indicators for instant visual fault isolation without tools

Applications

  • IP Surveillance & CCTV Networks — Powers and connects IP cameras across industrial parks, factory floors, building perimeters, and parking structures; VLAN mode prevents cameras from communicating with each other, containing any compromised device to a single port, while Extend mode eliminates the need for PoE extenders at distant mounting points
  • Wireless Access Point Deployment — Supplies 802.3at power to dual-radio Wi-Fi APs in offices, hotels, schools, and public spaces; the 2 Gigabit uplinks provide the bandwidth headroom needed to aggregate traffic from multiple active APs without congestion
  • VoIP & IP Phone Rollouts — Simultaneously powers multiple 802.3af IP desk phones across offices, call centers, and government facilities with zero per-phone configuration; plug-and-play operation keeps deployment fast and maintenance-free
  • Government & Public Sector Facilities — Provides a reliable PoE access layer for government offices, courthouses, and municipal buildings where IP cameras, access control readers, VoIP terminals, and intercoms share a common wiring infrastructure and uptime is non-negotiable
  • Industrial & Mining Environments — Serves factories, mines, and heavy-industry facilities where PoE-powered devices — cameras, sensors, access panels — must be deployed along long cable runs; Extend mode supports distances up to 250m without additional hardware
  • Residential Broadband & MDU Deployments — Powers IP cameras, Wi-Fi APs, and intercom systems in apartment buildings, residential complexes, and managed broadband installations; fanless silent operation and plug-and-play setup minimize both noise impact and on-site configuration time
  • Education & Campus Facilities — Powers IP cameras, wireless APs, IP intercoms, and classroom displays across school buildings and university facilities; Extend mode is particularly valuable where outdoor cameras or remote APs are situated beyond 100m from the nearest wiring closet
