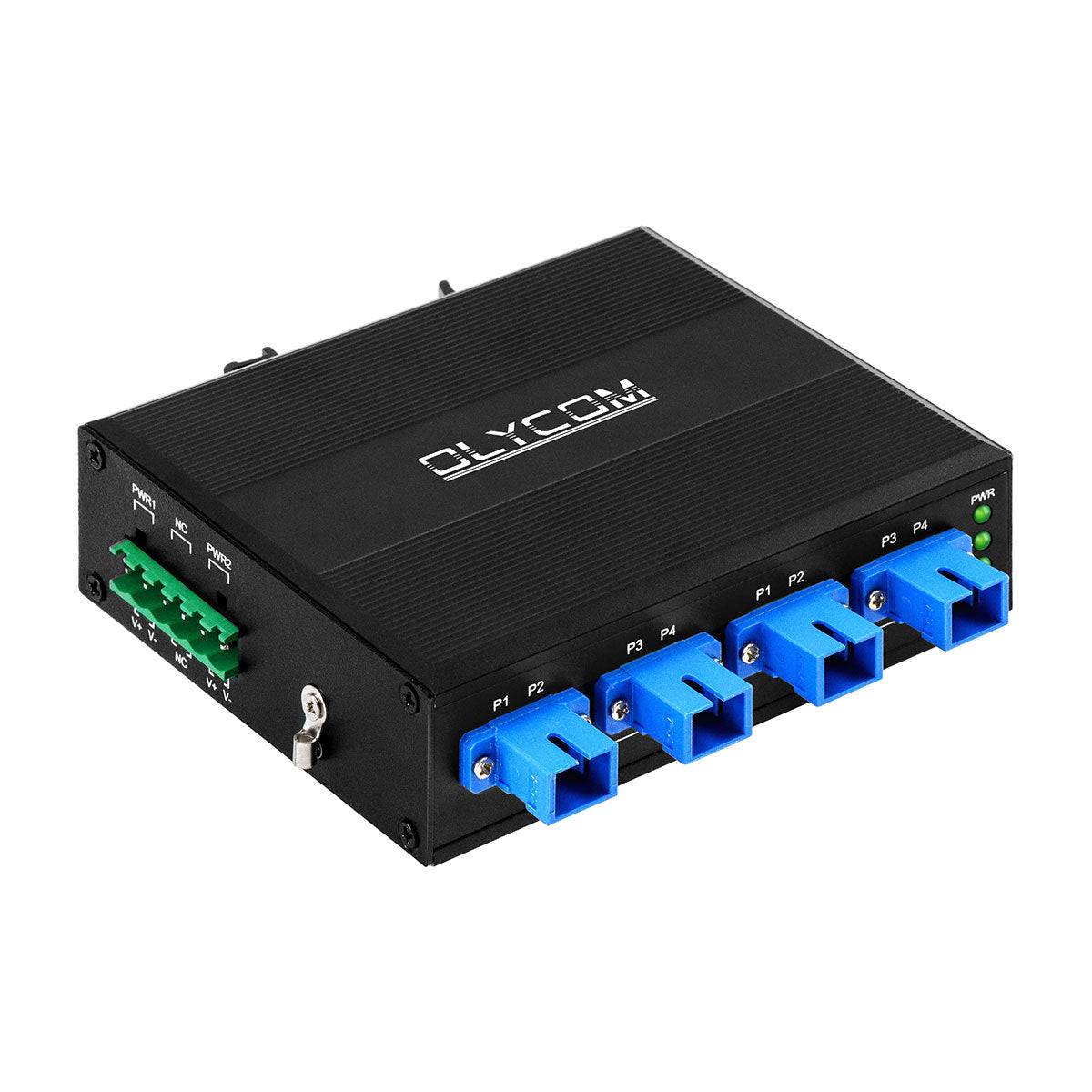

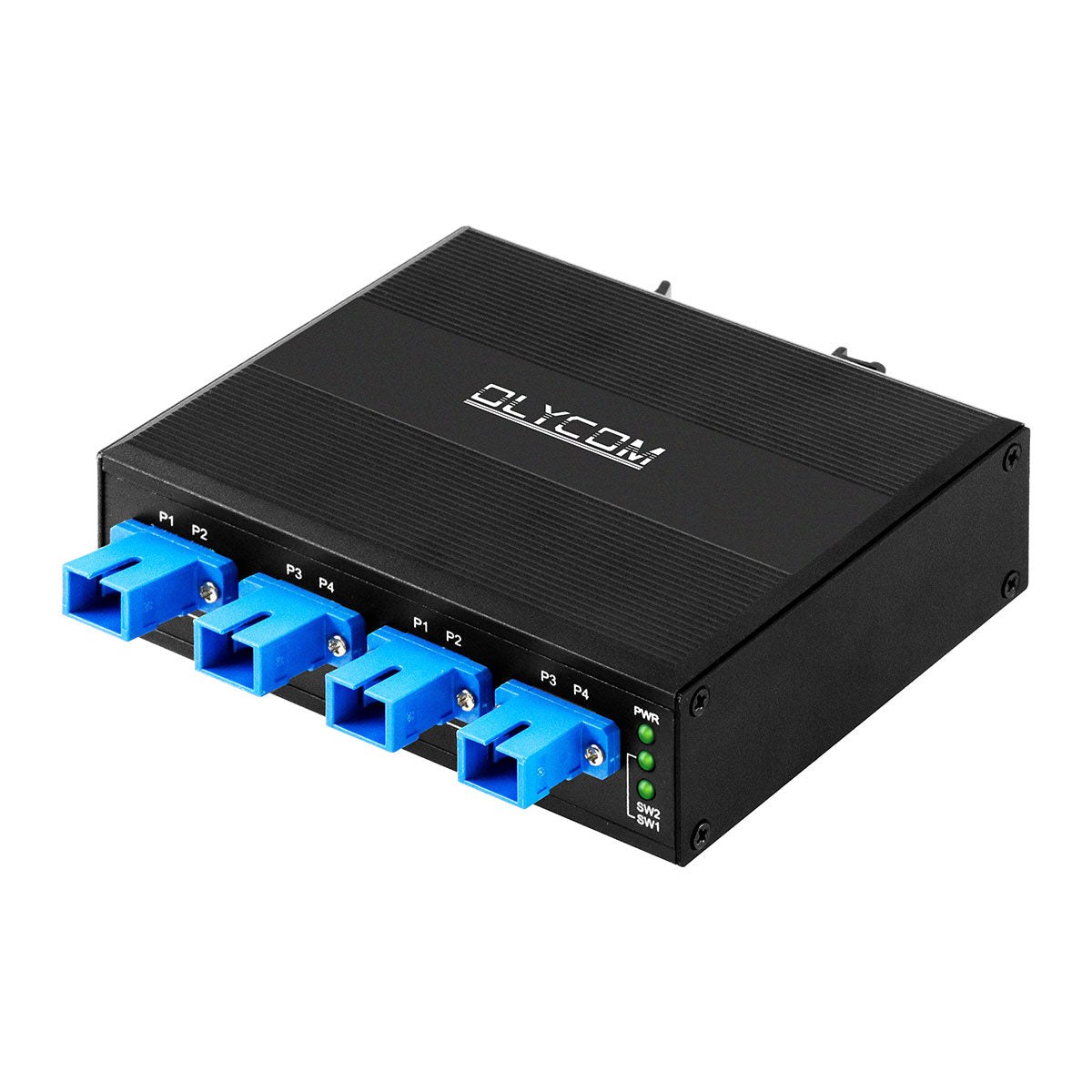

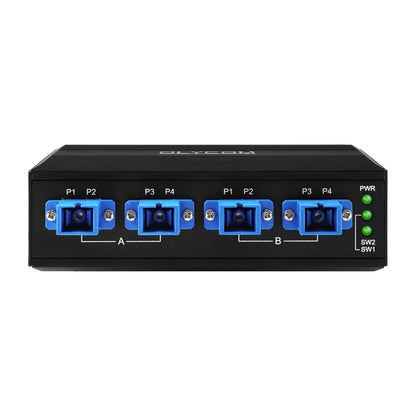

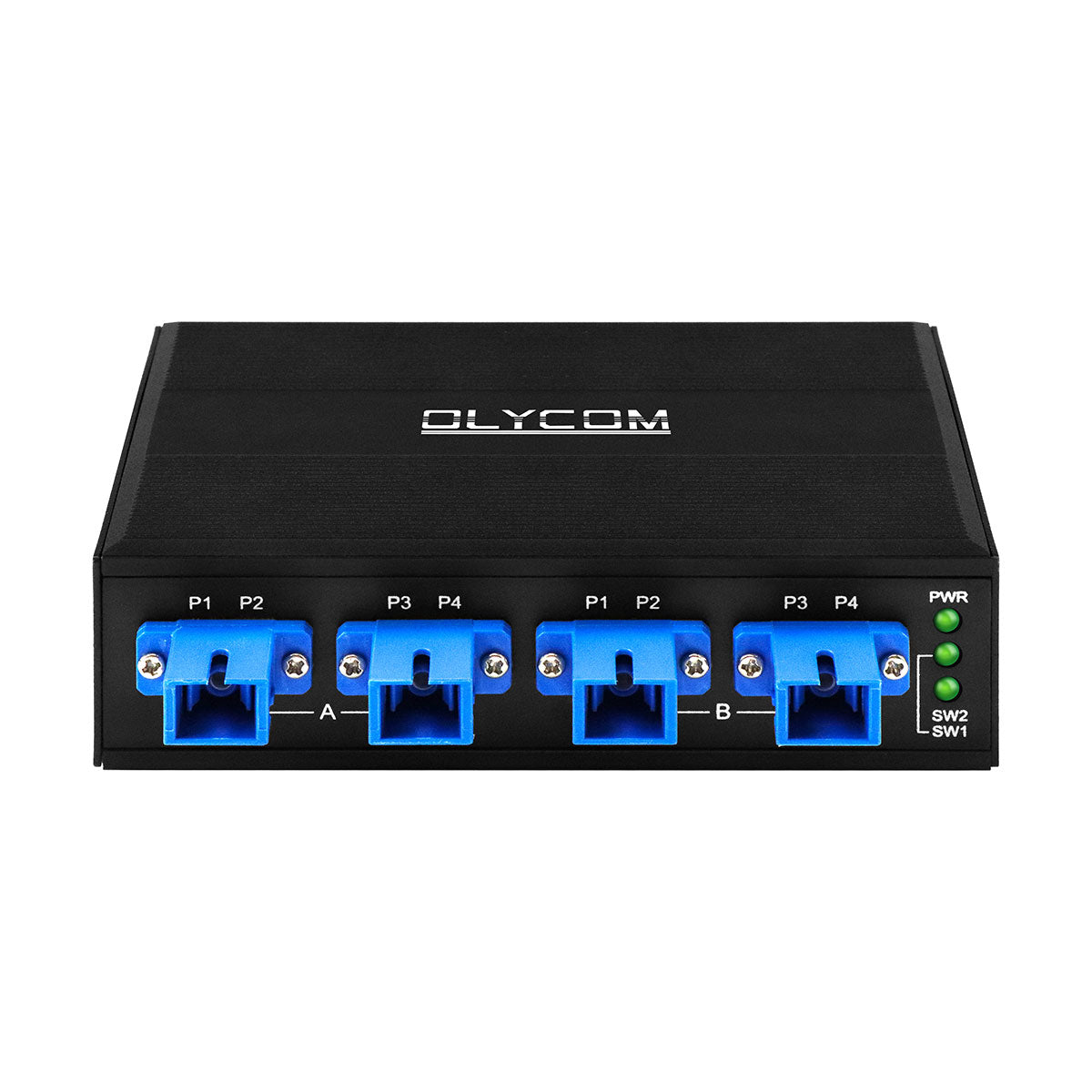

Olycom Fiber Optic Bypass Unit is designed to protect and monitor optical communication systems ensuring continuous transmission even during equipment power-off.
Key Features
Low Insertion Loss (≤1.0 dB typical) for efficient optical transmission
Wide Wavelength Range: 850/1310 nm for multimode, 1310/1550 nm for single-mode
Low Crosstalk & High Return Loss: Ensure signal integrity and stable communication
Fast Switching Time: ≤10 ms
Dual Power Input: DC12V~DC52V
Temperature Range: -20℃~+70℃ operation

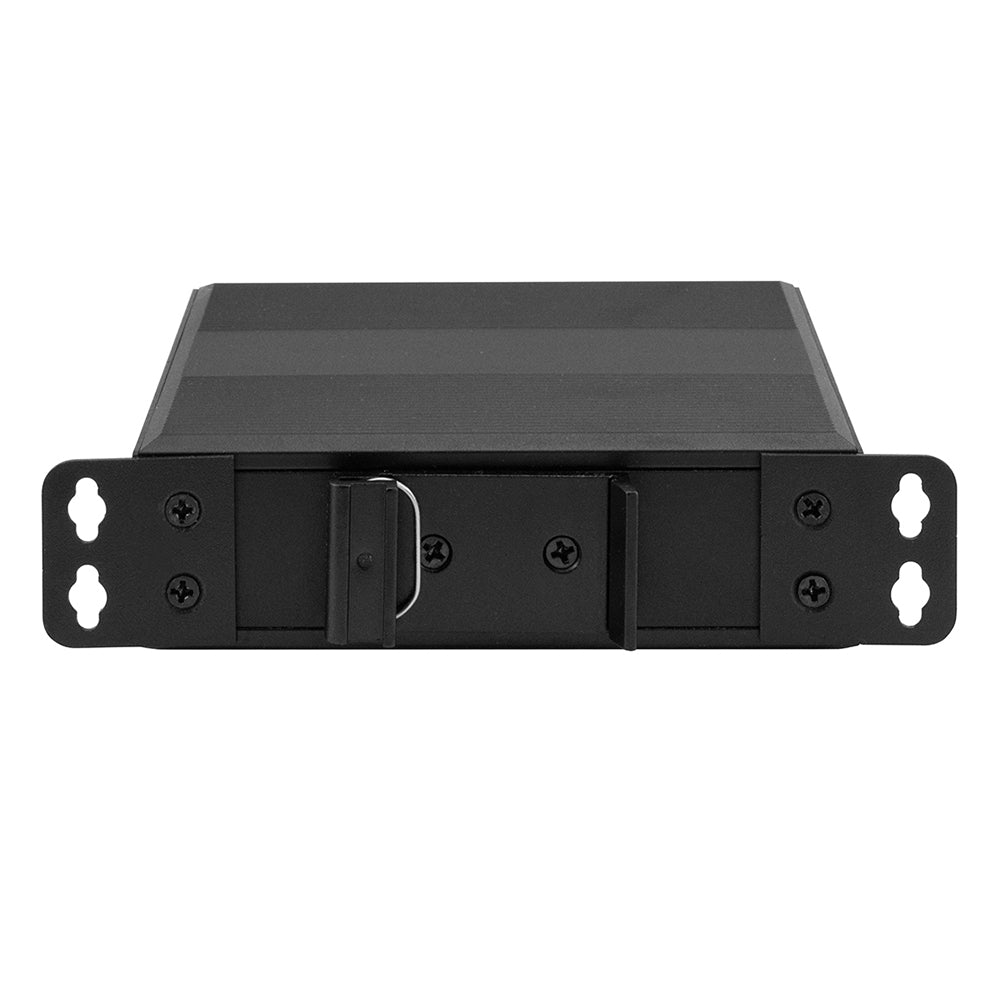

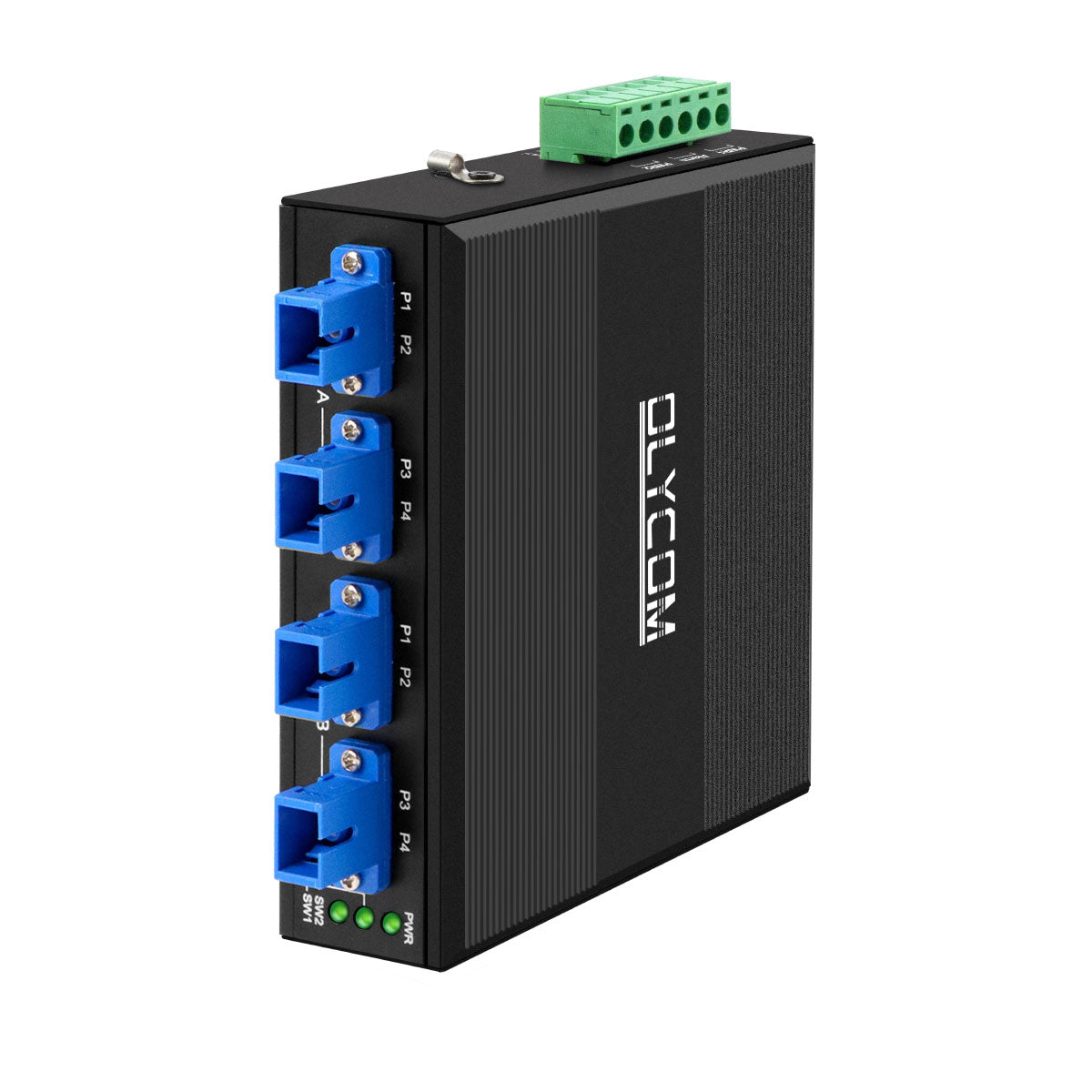

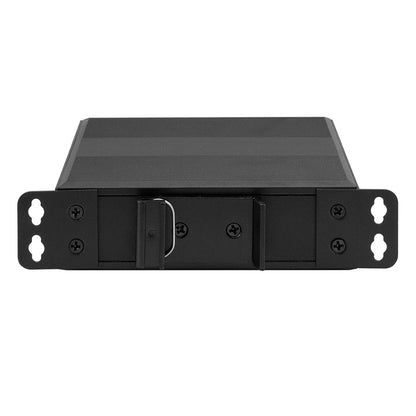

Hardware: 114×93×35 mm, DIN-rail or wall mounting, IP40-rated
Power-off Protection: Maintains optical transmission when power is lost
Applications
Metropolitan Area Networks (MAN): Ensure uninterrupted fiber communication
Laboratory R&D: Optical test systems and multiplexing
System Monitoring: Real-time optical protection and switching
Cascade or Ring Networks: Reliable integration with high-density fiber systems
