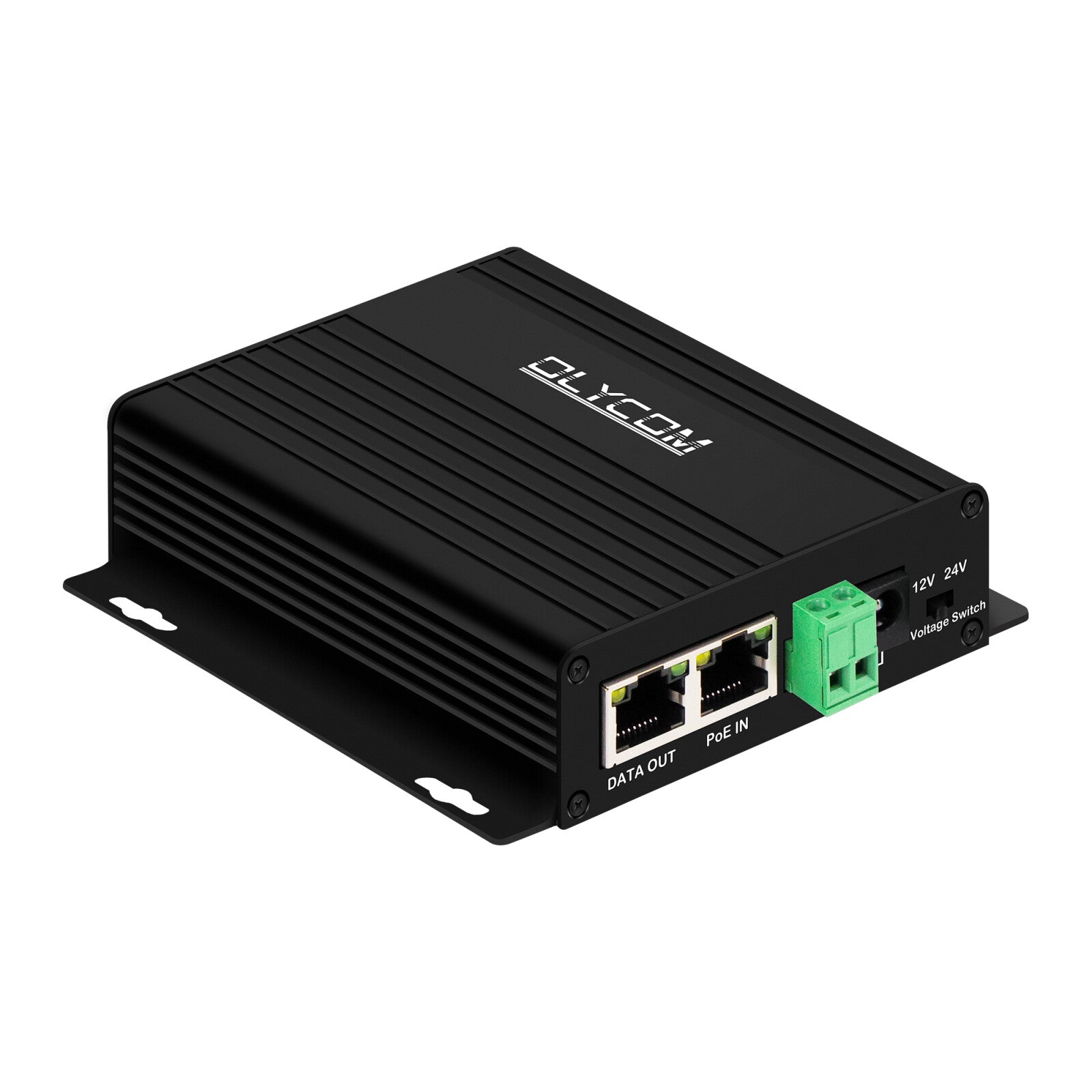

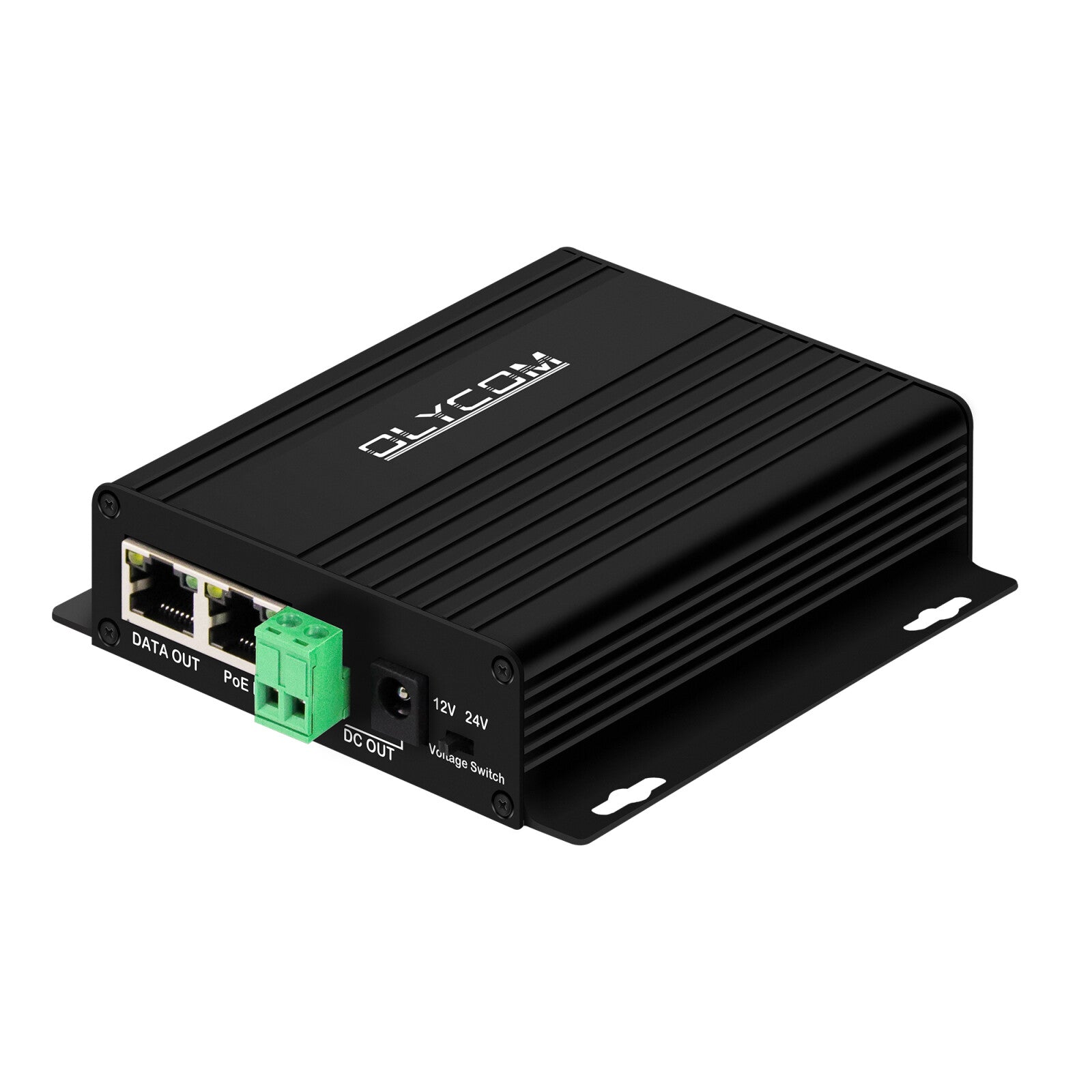

Olycom 30W Gigabit PoE Splitter DC12V DC24V Wall Mounted

Olycom OM-PS1230 PoE Splitter is a high-performance solution designed to split IEEE802.3af/at PoE input into separate DC power (12V/24V) and Gigabit data output.
With robust metal housing and stable performance, it is widely used in IP surveillance cameras, wireless access points, and access control systems.

Key Features

• Supports 10/100/1000Mbps transmission speed, up to 100m distance
• Input: 1 × PoE RJ45 (Max 30W)

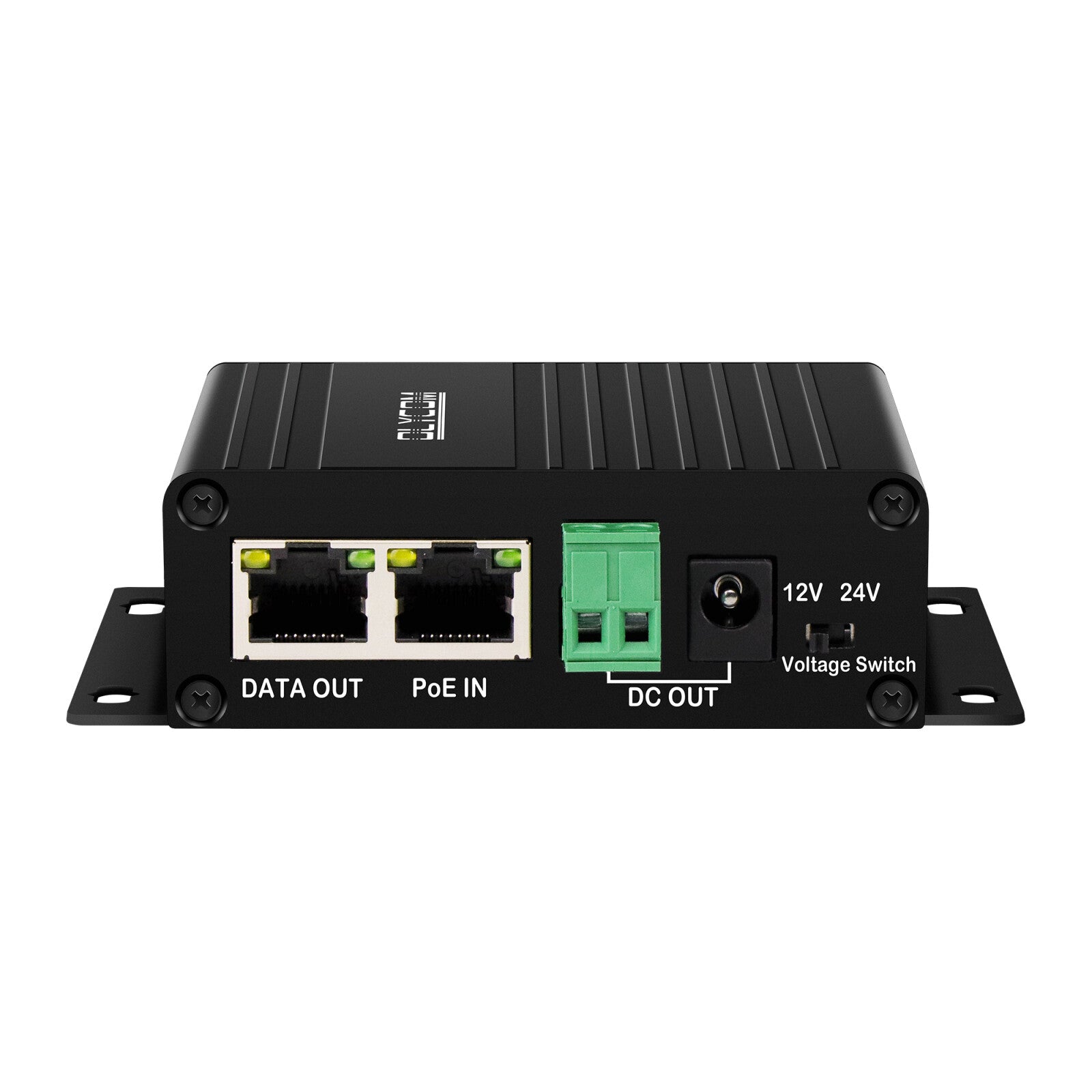

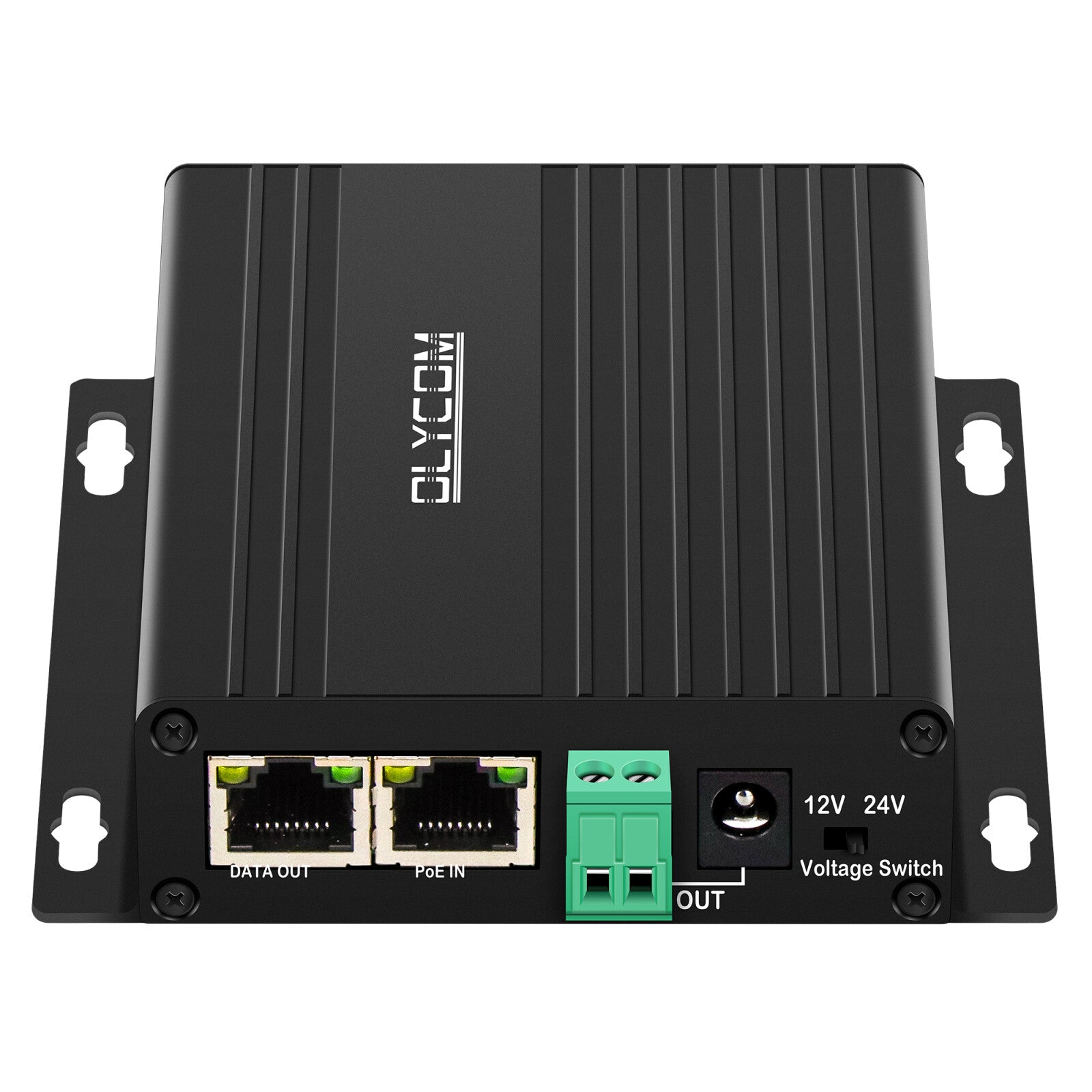

• Output: 1 × RJ45 Data Out, 1 × DC terminal / green terminal (12V/24V)
• Power output options: 12V 2.5A or 24V 1.25A
• PoE Standard: IEEE802.3af/at
• Transmission Medium: Cat5/5e/6 standard network cable
• PoE Wiring: 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
• Robust metal casing with wall-mount design
• Operating temperature: -20℃ to +70℃

Application

• IP Security Cameras
• Wireless Access Points (APs)
• Access Control Systems
• Industrial and commercial PoE networking
