Olycom 12V DIN Rail Power Adapter Industrial grade CE UL Certified Plastic Case

Olycom 12V DIN Rail Power Adapter Industrial grade CE UL Certified Plastic Case

$8.50 USD
$10.00 USD $8.50 USD
Sale Sold out
Olycom IM-DAC220/DC12V1.67A DIN Rail Industrial Power Supply provides a reliable conversion from AC220V to DC12V 1.67A, delivering stable power for industrial automation, Ethernet switches, and communication equipment.
With CE and UL certification, wide input range, and excellent EMC performance, this compact 20W power supply ensures safe and efficient operation even in harsh industrial environments.

Key Features
  • Wide Input Range: 85–264VAC or 120–370VDC
  • Input Frequency: 47–63Hz
  • Output Voltage: 12VDC (adjustable 9–13.5V)
  • Output Current: 1.67A
  • Rated Power: 20W
  • High Efficiency: Up to 86% with low power loss
  • Isolation Voltage: 4000VAC input; 2000VAC input-output
  • Ripple & Noise: ≤120mV (20MHz bandwidth)
  • Hold-up Time: 20ms @115VAC / 50ms @230VAC
  • Reliability: MTBF >300,000h, free air convection cooling
  • Safety Isolation: Up to 4000VAC between input and output
  • Operating Temperature: -30℃ to +70℃
  • Comprehensive Protections: Short circuit, over-current, over-voltage

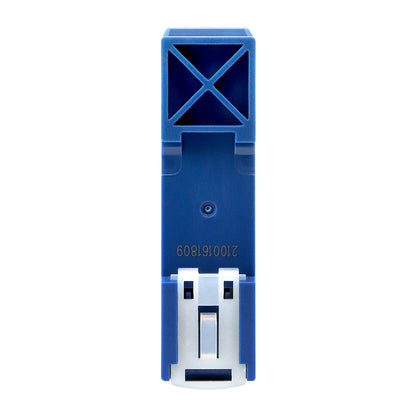

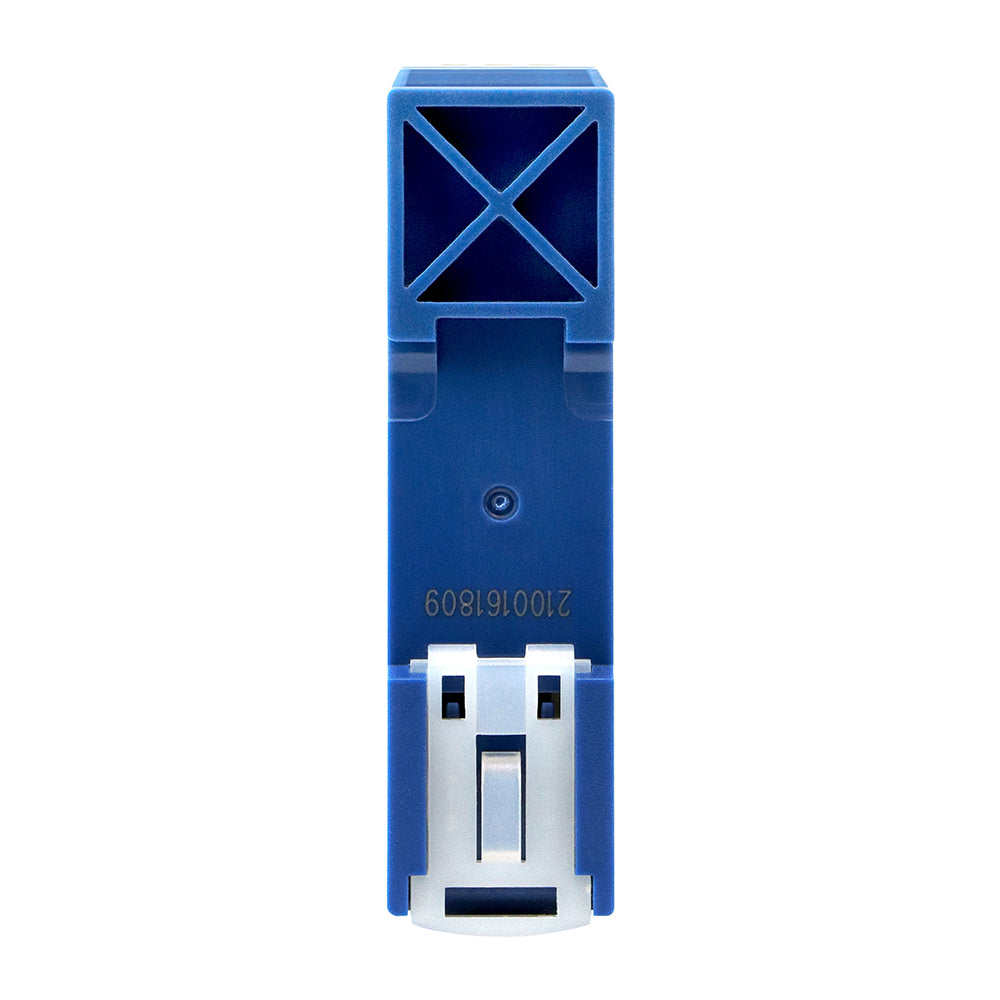

  • DIN Rail Mounting: Standard TS35 rail, easy installation
  • Certifications: CE, UL, EN62368, UL61010, UL508 compliant
  • Dimensions: 95 × 22.5 × 85 mm
  • Weight: 125g (typ.)

Application
  • The IM-DAC220/DC12V1.67A is designed for:
  • Industrial Ethernet switches & routers
  • Automation control systems
  • Security monitoring & communication equipment
  • Factory and building automation
  • Powering 12VDC industrial devices
