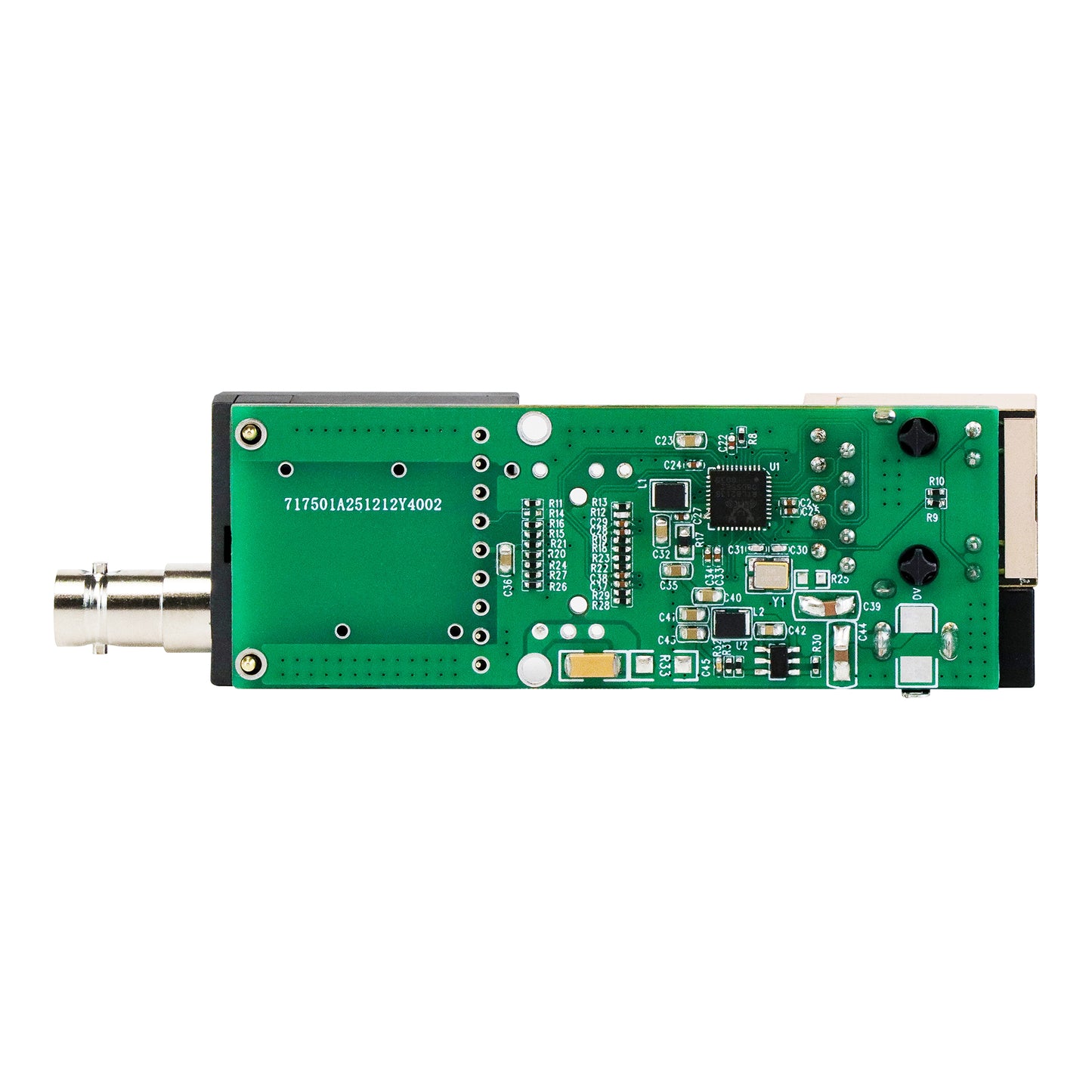

Mini Gigabit Fiber Media Converter Card For UAV Fiber Communication Solution

Mini Gigabit Fiber Media Converter Card For UAV Fiber Communication Solution

$12.99 USD
$15.99 USD $12.99 USD
Sale Sold out
Key Feature

  • Wide voltage power supply 5-24V, compatible with a variety of batteries, ensuring stable operation
  • Flexible communication distances and optical connectors
  • Lightweight, compact size 70x25x15mm, reducing equipment burden and improving flight efficiency
  • Realtek based, long-term supply and guaranteed performance
Specification

  • Main Signal: 10/100/1000 Gigabit Ethernet IP
  • Standard: IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEE802.3z 1000BASE -SX/LX(Gigabit-Ethernet)
  • Communication Interface: RJ45: STP or UTP Category 5/5e/6 cable (Max. 100m), Auto-MDI/MDIX
  • Conversion Mode / Delay Time: Store-and-Forward < 10us, Straight-through<0.9us
  • Flow Control: Full duplex-flow control, Half duplex-back pressure
  • Optical Fiber: 9/125um Single-mode G.657A2 fiber cable
  • Distance: 20KM / 40KM / 60KM / 80KM Optional
  • Power Range: DC5~24V(DC Jack)
  • Dimension: 70×25×15mm
  • Power Consumption: < 3W
  • Operating Temperature: 0℃~70℃
  • MAC Address Table: 2K
  • Buffer Size: 64K
  • Indicator: Optical fiber, Ethernet
  • Fiber Port: FC / SC / ST / SFP Optional
  • Core Mission: 4K thermal IP camera, LiDAR, Onboard edge computing data transmission
