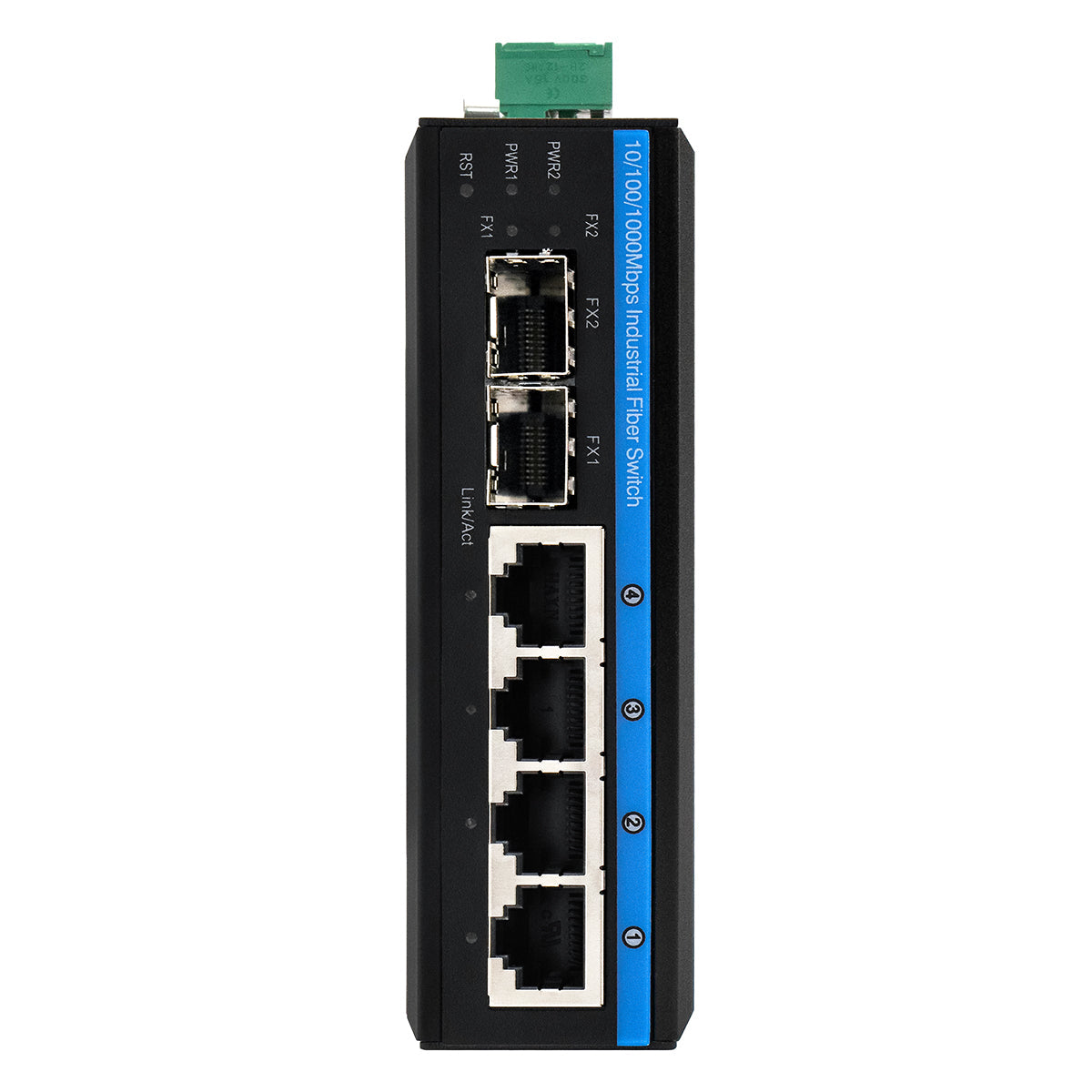

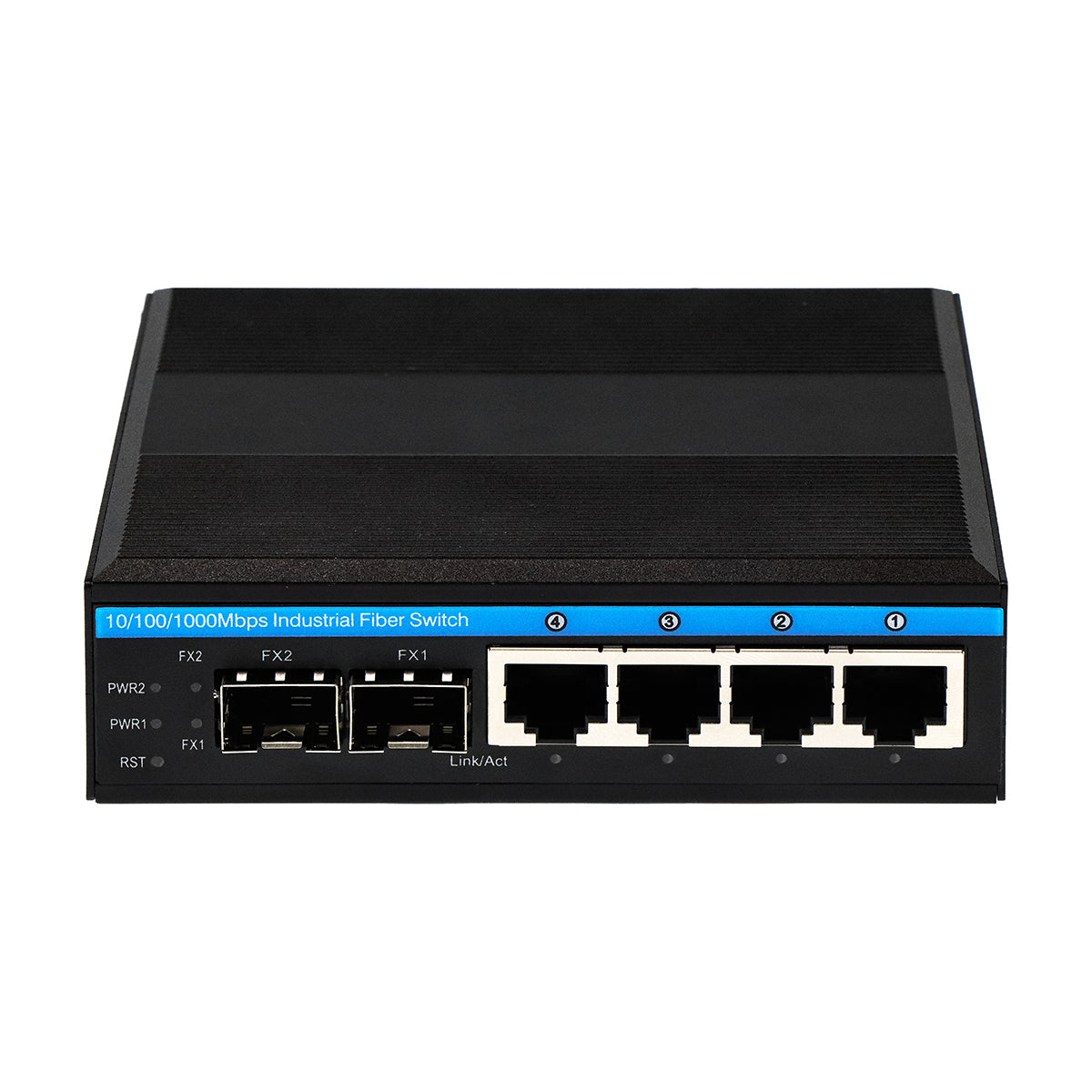

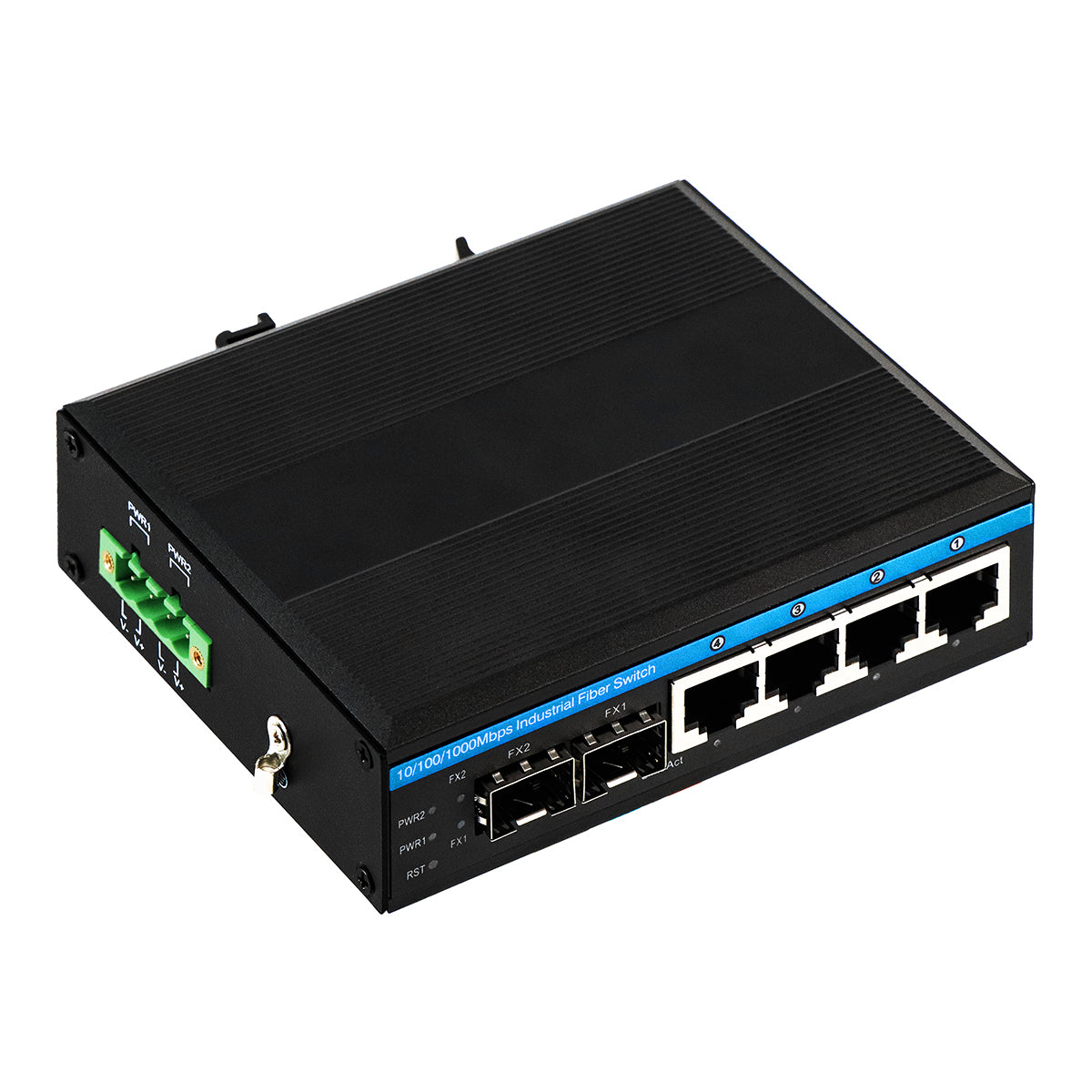

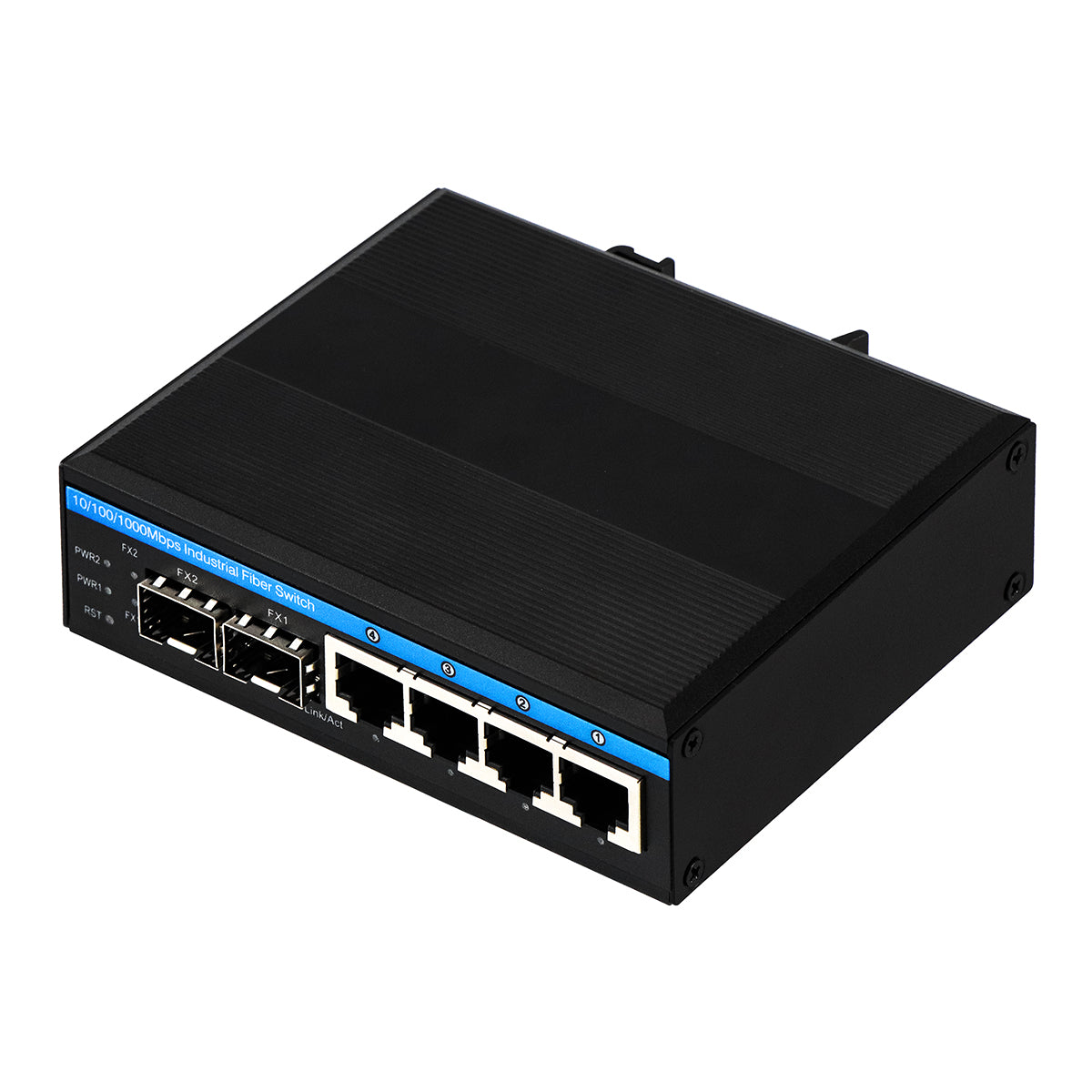

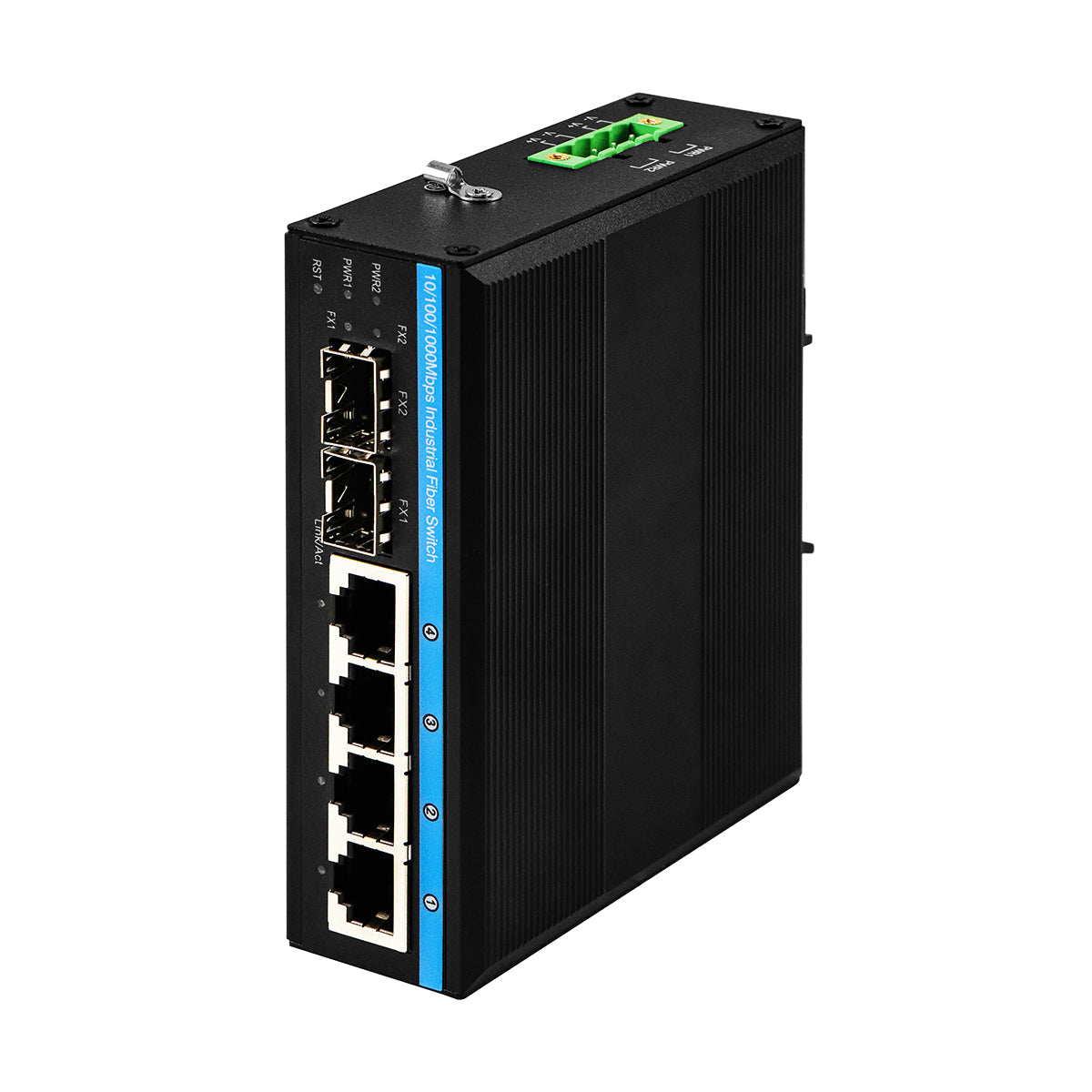

Managed 10/100/1000Mbps Industrial Fiber Switch ( 2 Fiber to 4UTP)
Managed 10/100/1000Mbps Industrial Fiber Switch ( 2 Fiber to 4UTP)
Couldn't load pickup availability
Introduction
IM-FP240GM series is the 10/100/1000Mbps mini managed outdoor ethernet switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Noted: This goods is not with PSU and modules.
Key Features
- 4x 10/100/1000Mbps Auto-sensing RJ45 ports
- 2x 1000Mbps SFP fiber port
- 4KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard,
- half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- A store-and-forward switching mechanism
- Operating environment temperature:-40 ° ~85 ° c
- Support bus/star topology, ring structure, support ITU-T G.8032/Y.1344 ERPS
- Support SNMPv1, v2, v3, Web management, support user login password protection and other device configuration methods
- Support ACL, port-based MAC filtering, MAC address binding, port-based 802.1x authentication, system automatic defense, prevent DDOS and other attacks;
- Support VLAN: support port VLAN and 802.1Q Tag
- Support QoS 4-level priority, static LACP, support port-based one-way and two-way traffic mirroring
- Support IGMP Snooping v1/v2, port bandwidth control, broadcast storm suppression
- Support SNTP protocol
- Support MIB libraryopening to meet the requirements of operation and maintenance
- Support SNMPv3, IEEE 802.1X, HTTPS and SSH, enhancing network security
- Support WEB, CLI, Telnet, Windows utility and SNMP management methods
- Reset: Support restart and restore default configuration
Specification
|
Product Name |
10/100/1000Mbps Managed Industrial Fiber Switch (2F+4TP) |
|
Model No. |
IM-FP240GM |
|
Port |
2 x 1000Mpbs SFP port SM：1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM：1310nm, 2Km; 4x10/100/1000M UTP RJ45（Support MDI/MDIX auto-sensing） |
|
Standard |
IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x , IEEE 802.1Q VLAN Tagging, IEEE 802.1p CoS, IEEE 802.1X, IEEE 802.3ad, ITU-T G.8032 ERPS, IEEE802.3af, IEEE802.3at |
|
Managed |
☆Support VLAN: 802.1Q VLAN (4K), Port-based VLAN ☆ Jumbo frame processing: 9k ☆ Report buffer: 64K ☆ Broadcast storm suppression: support broadcast, multicast, unknown unicast suppression ☆ Flow control: Adopt IEEE802.3x negotiation flow control, CAR function, speed limit step size is 1Kb ☆ Ring network function: support ITU-T G.8032 /Y.1344 ERPS ☆ Multicast protocol: IGMPv1/2/3 Snooping ☆ Port management: support port isolation and port aggregation ☆ DHCP management: support DHCP Snooping, option 82 ☆ QoS mechanism: 802.1p; support port default priority marking, each port has at least 4 queues with different priorities ☆ Security: login access authentication, login password modification, MAC address filtering, support dynamic or static MAC address learning / support ARP learning function off and on, ARP message speed limit / support IP+MAC+ port manual and automatic scanning binding Set IEEE 802.1x (Port based, MAC based), can transparently transmit 802.1x data packets/port loop detection |
|
Switching Features |
Exchange capacity: 12Gbps Packet forwarding rate: 8.928Mpps MAC address table: 2K Swap delay: <5μs Transmission method: store and forward |
|
Power supply |

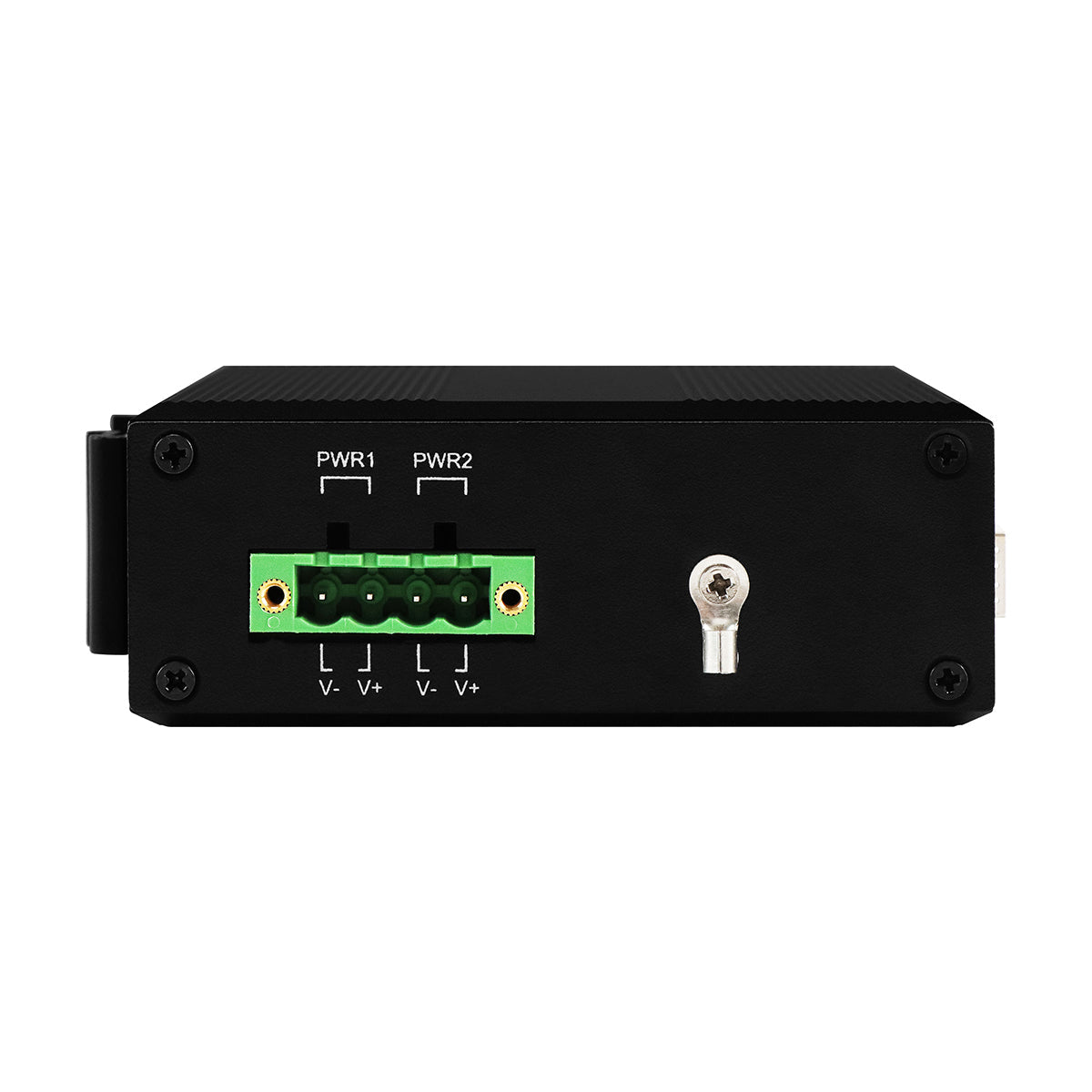

Input voltage：DC 9-52V Reverse connection: support Overload protection: support Redundant protection: support |
|
Environment |
Working Temp：-40°～ 75°C ; Storage Temp：-40°～ 85°C; Working humidity：5%～95%, non-condensing |
|
Industry Standards |
EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A EMS：EN 61000-4-2 (ESD) Level 3，EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3，EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3，EN 61000-4-8 Traffic Control：NEMA-TS2 Vibration：IEC 60068-2-6 Freefall：IEC 60068-2-32 Shock：IEC 60068-2-27 Rail Traffic：EN 50121-4 |
|
Mechanical information |
Shell：Corrugated metal shell; Safety class：IP40 Dimension：113.8 x 93 x 34.9mm Mounting method：Din-rail mounting |
|
Warranty |
Replacement within 1year; 3 years repairing |
