Introduction

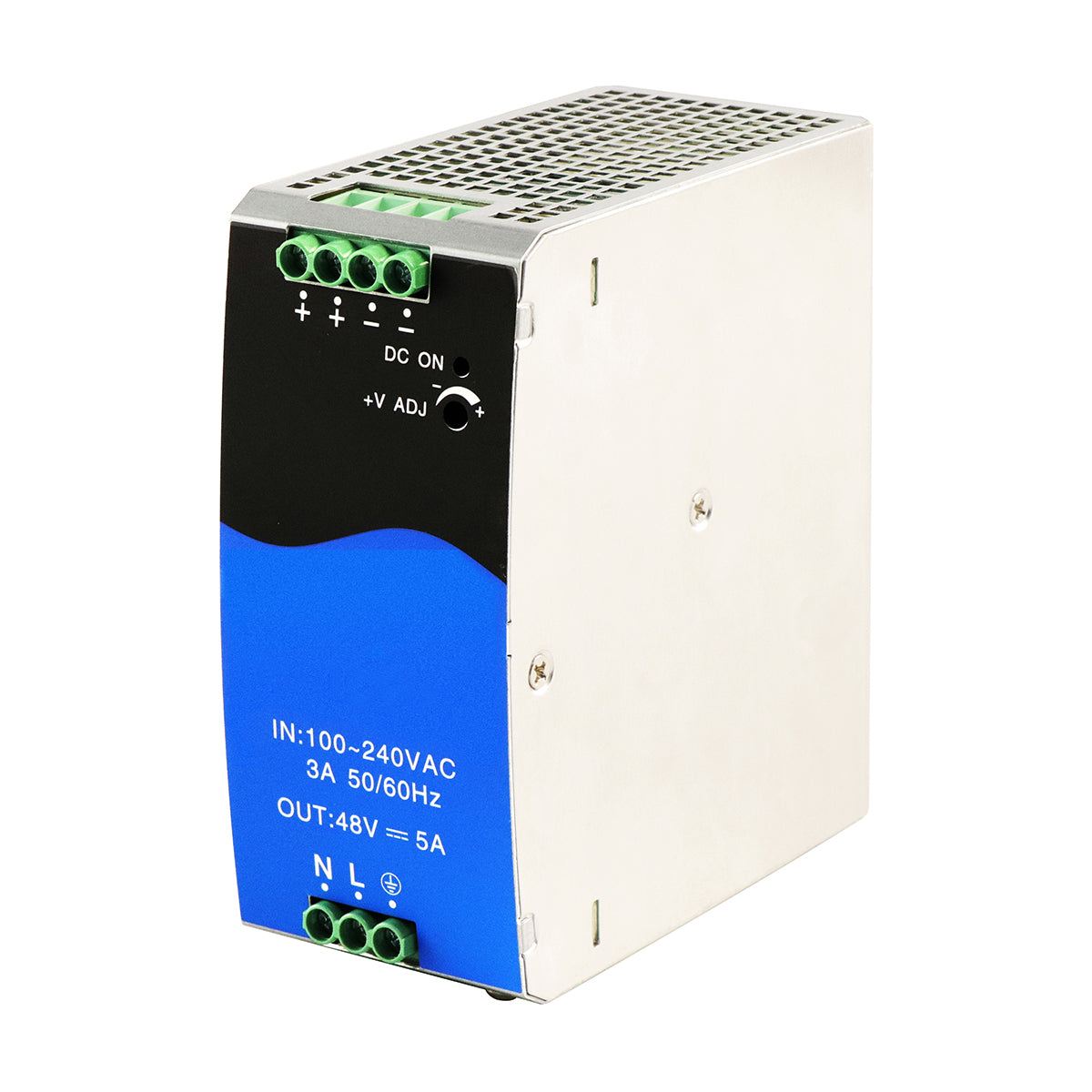

- The IM-DAC220/DC48V5A is a 240W industrial DIN rail power supply that converts AC 220V to DC 48V 5A, engineered specifically for industrial PoE switches, automation controllers, and edge networking equipment.
- Built for demanding environments, it supports a wide 85–264VAC / 120–370VDC input range through a single shared terminal, operates across -40°C to +70°C, and delivers rock-solid power stability with active PFC, multi-layer protection, and 300,000+ hour MTBF — all in a compact, fanless DIN rail form factor.
Key Features
- Universal Wide-Range Input — Accepts 85–264VAC or 120–370VDC through a single shared terminal, compatible with global grid standards
- 240W Continuous Output Power — Delivers stable DC 48V at 5A with ±1.0% output voltage accuracy across full load range
- 150% Peak Load Capacity — Handles 150% peak load output for up to 3 seconds, protecting systems during startup surges
- Built-in Active PFC — Power factor up to 0.98 at 115VAC, reducing reactive power consumption and improving energy efficiency
- Extreme Temperature Operation — Rated -40°C to +70°C operating range, ideal for outdoor cabinets and harsh industrial environments
- Comprehensive Protection Suite — Short circuit (hiccup mode, self-recovery), over-current (110–200% Io), over-voltage (≤60V), and over-temperature (80°C) protection

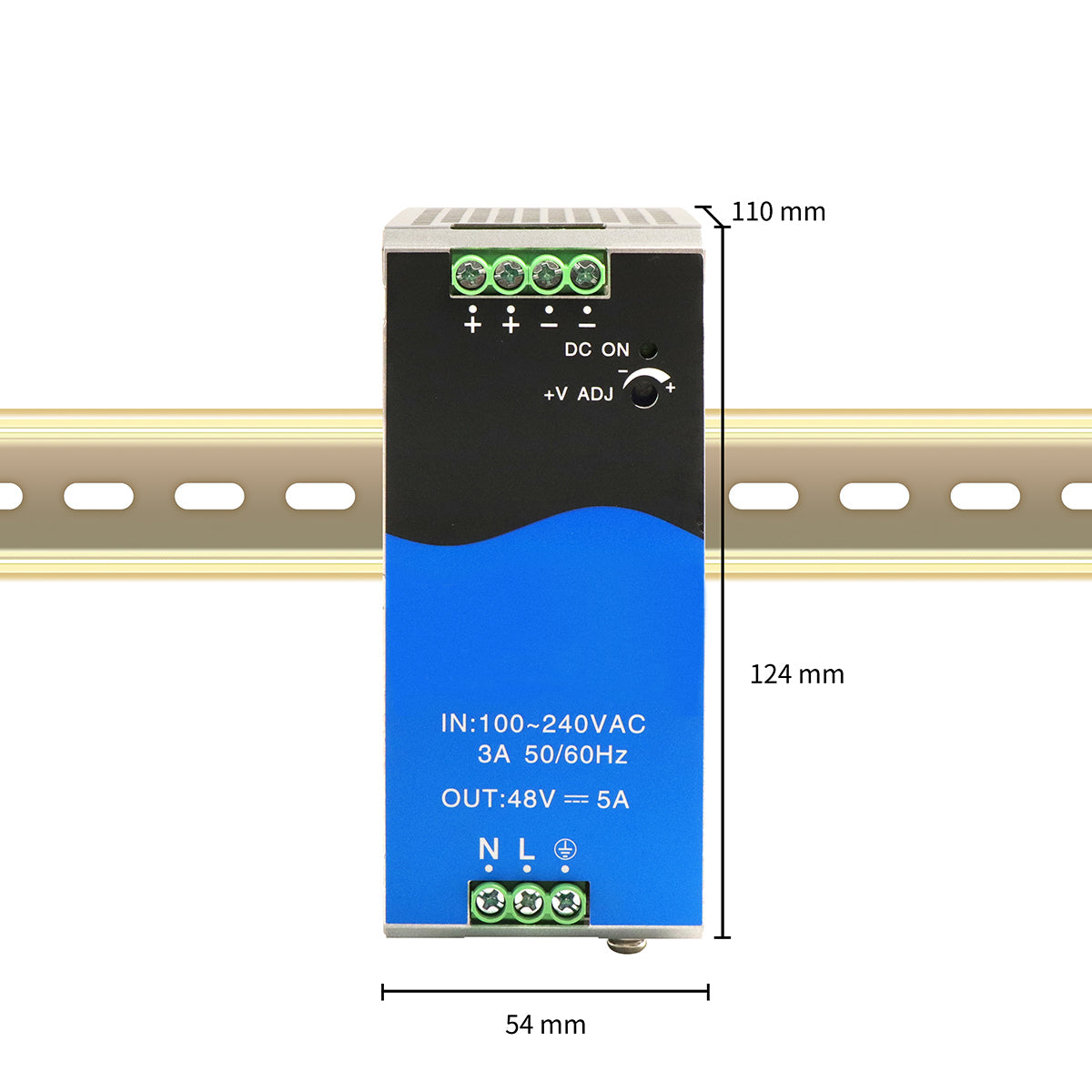

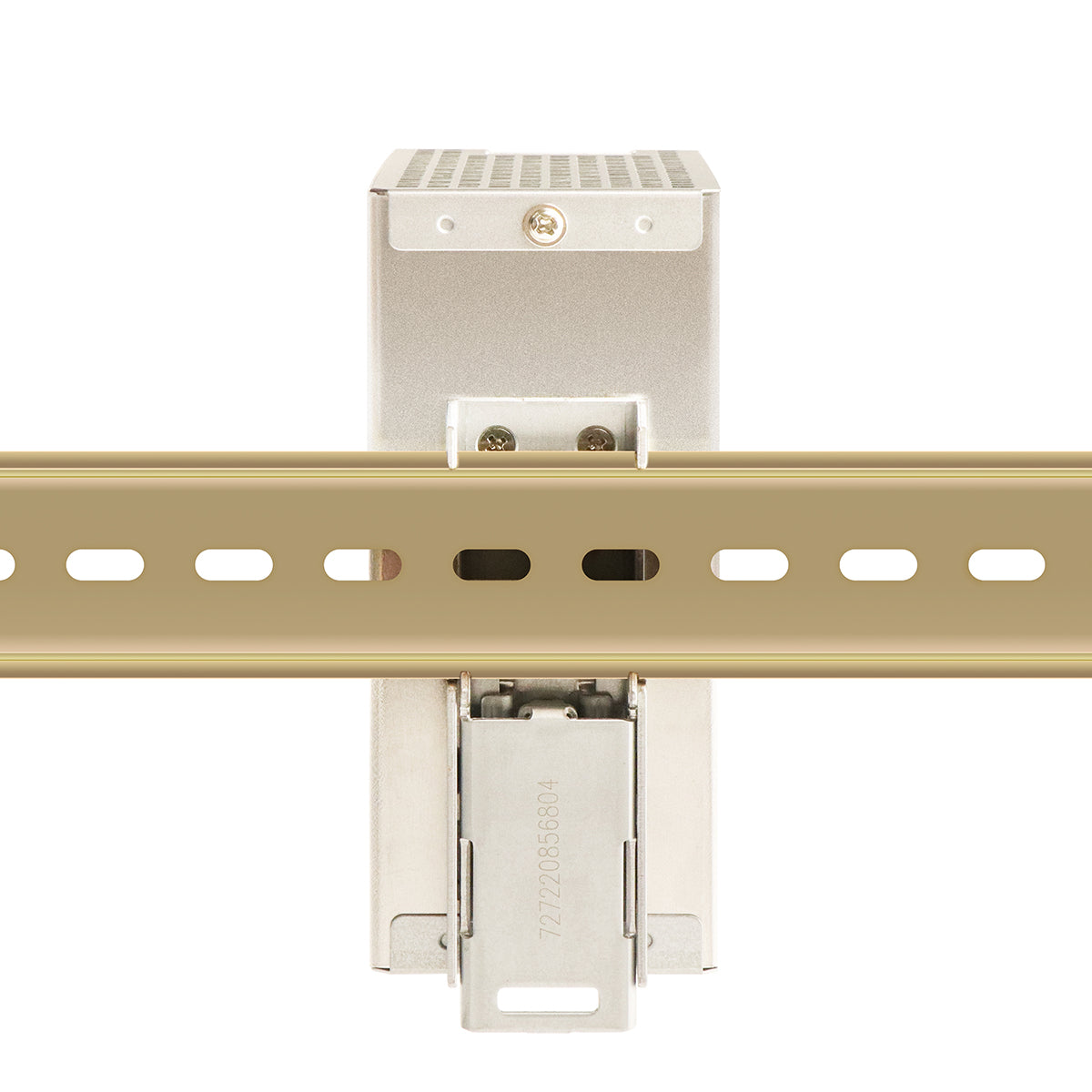

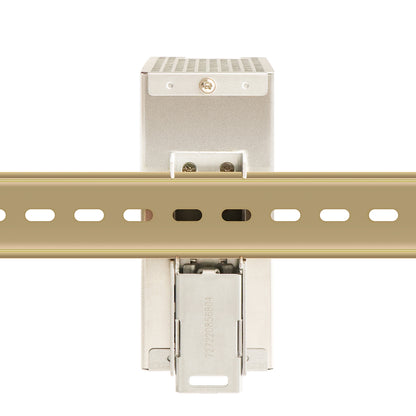

- Standard DIN Rail Mounting — Compact 124 × 54 × 110mm form factor fits directly onto standard 35mm DIN rails for fast, tool-free installation

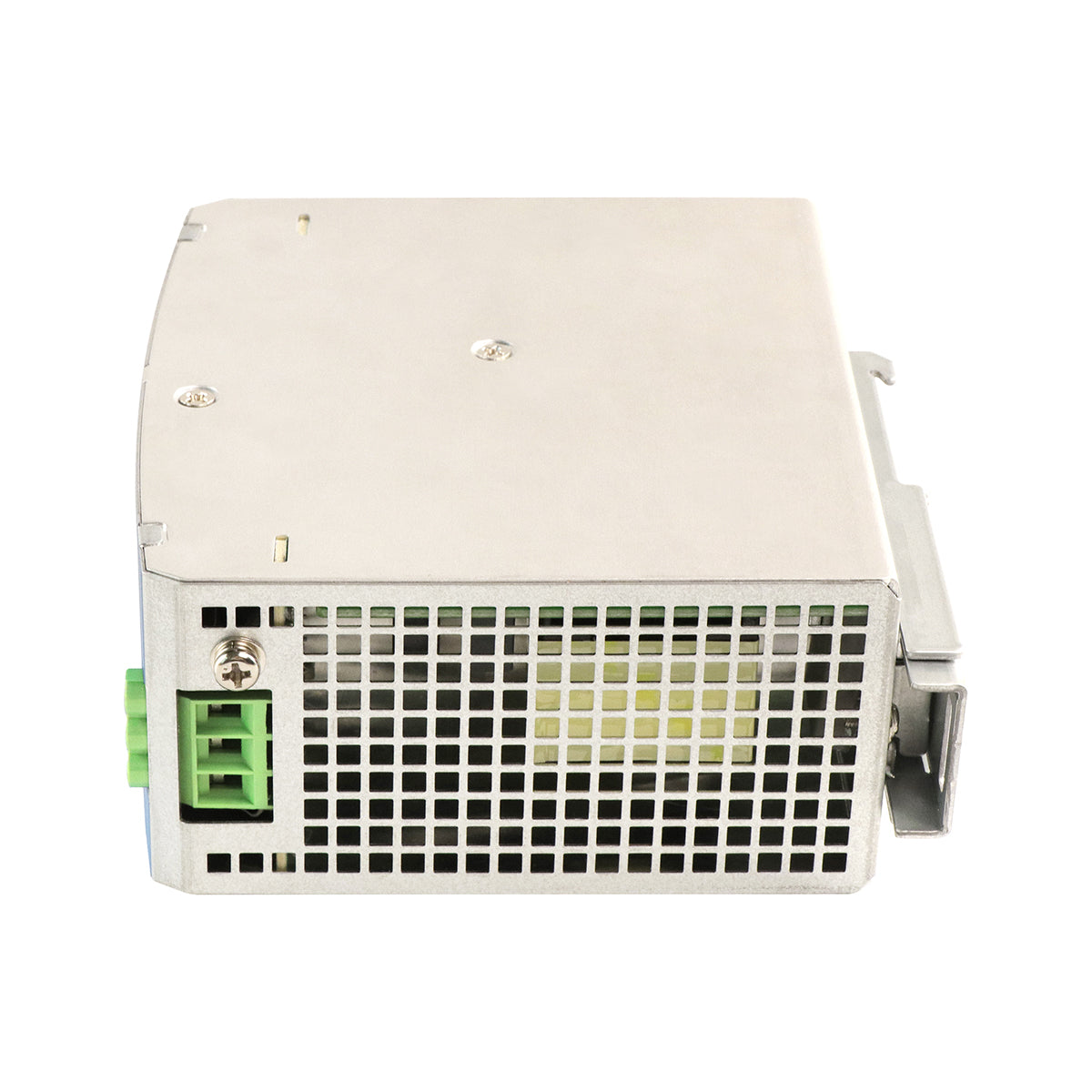

- Free Air Convection Cooling — Fanless design eliminates noise and mechanical failure risk
- LED Power Indicator — Instant visual confirmation of operational status
- High MTBF Reliability — Mean Time Between Failures exceeding 300,000 hours (MIL-HDBK-217F @ 25°C)

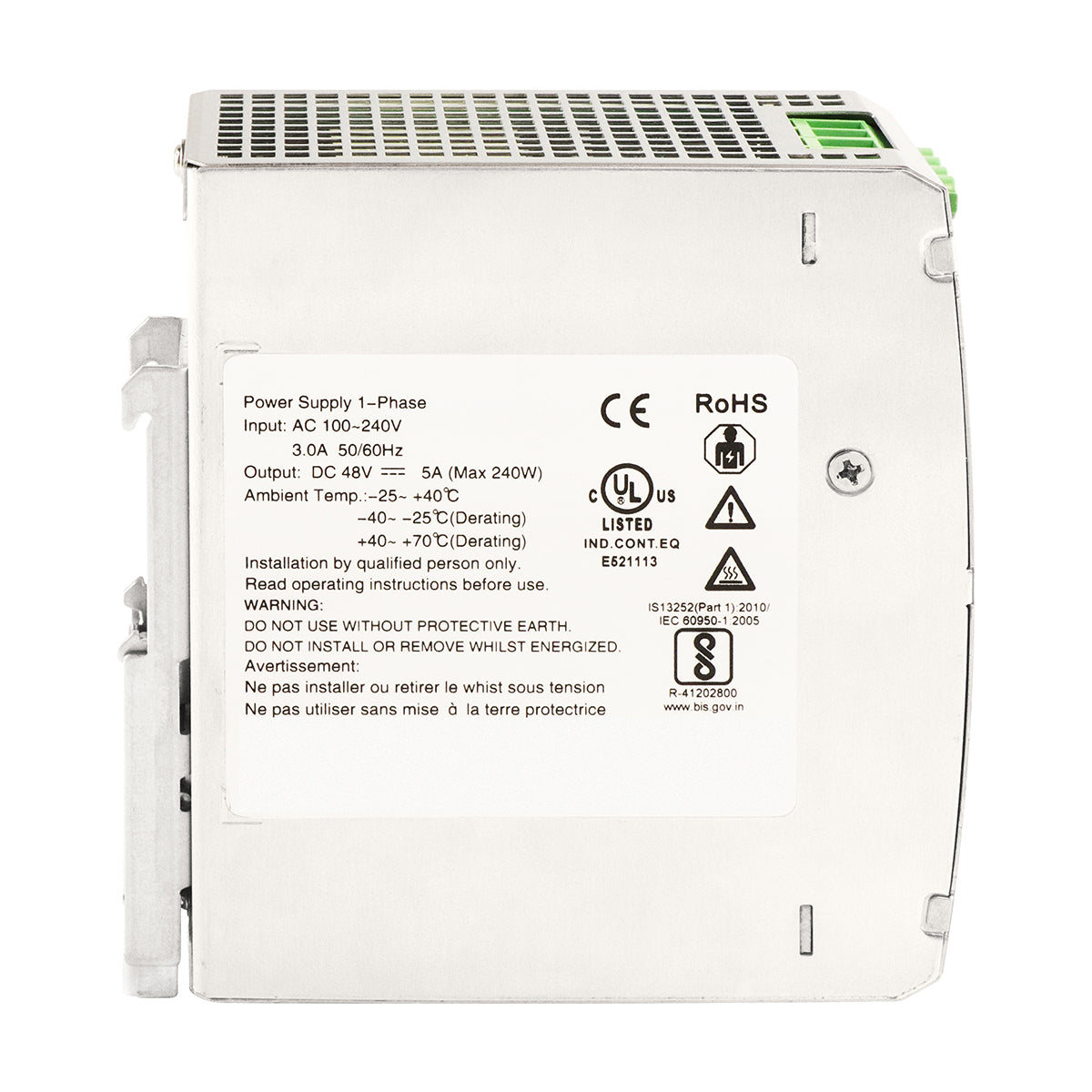

- Multi-Standard Safety Certified — Complies with IEC/UL/BS EN 62368-1, UL508, UL61010-1, EN61558; EMC certified to CISPR32/EN55032 Class B
Applications
- Industrial PoE Switches — Provides the stable 48V DC rail required to power managed and unmanaged industrial PoE network switches in automation cabinets
- Factory Automation & PLC Systems — Reliable auxiliary power for PLCs, HMIs, sensors, and control panels in manufacturing environments
- Outdoor Telecom & Edge Networking Cabinets — Wide temperature tolerance makes it suitable for roadside enclosures, cell tower base stations, and remote edge nodes
- Building Automation & Smart Infrastructure — Powers BMS controllers, access control panels, IP cameras, and intercom systems
- Railway & Transportation Systems — Rugged, vibration-tolerant design meets the demands of transit control and signaling equipment
- Renewable Energy & EV Charging Infrastructure — Stable DC conversion for monitoring and control subsystems in solar/wind installations and EV charger controllers
- Industrial Ethernet & Fiber Optic Networks — Compatible with media converters, industrial routers, and fiber switches requiring a 48V DC supply
