Gigabit SFP Fiber Media Converter LFPT Rack Mountable Unmanaged CE FCC Listed

Gigabit SFP Fiber Media Converter LFPT Rack Mountable Unmanaged CE FCC Listed

$29.99 USD
$34.99 USD $29.99 USD
Sale Sold out

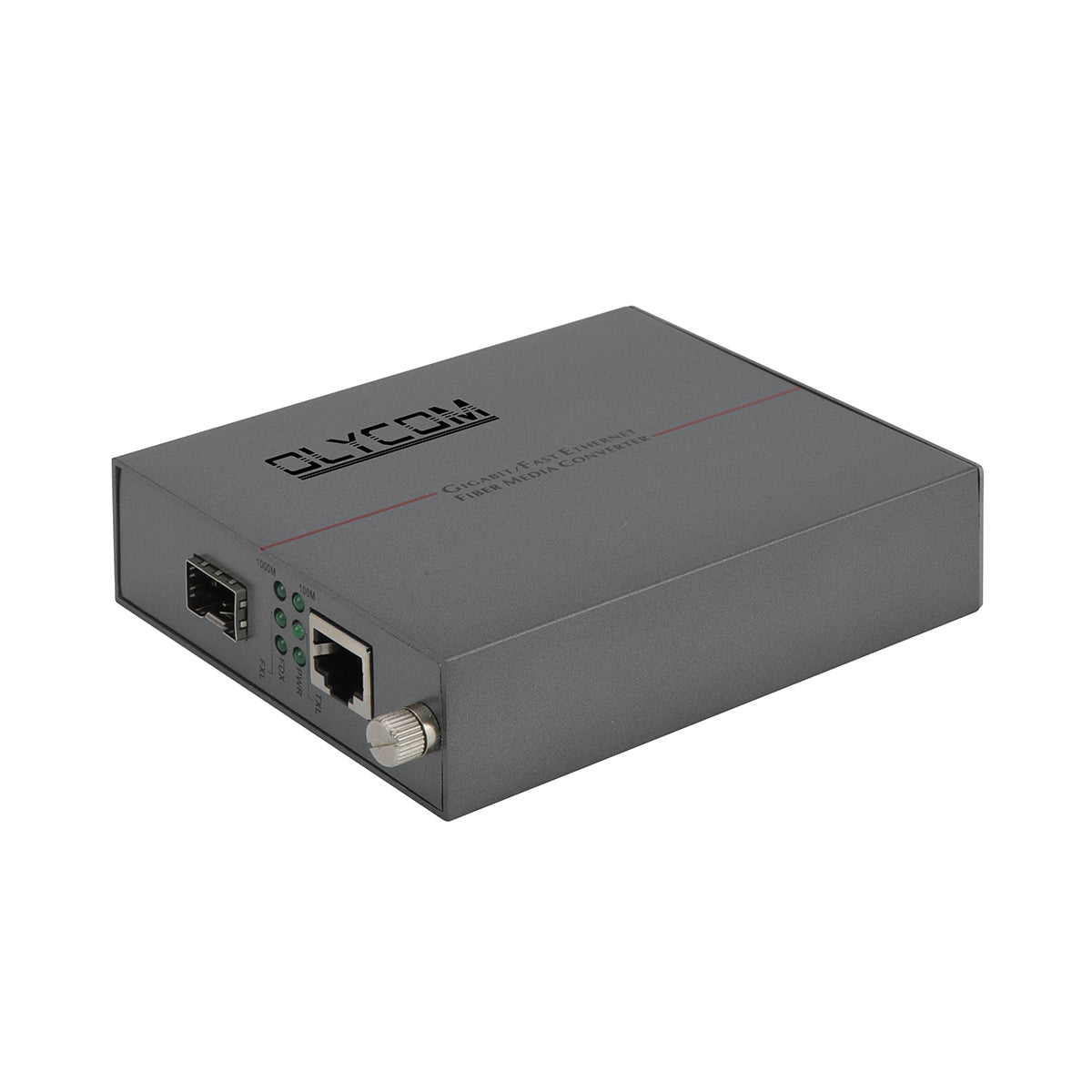

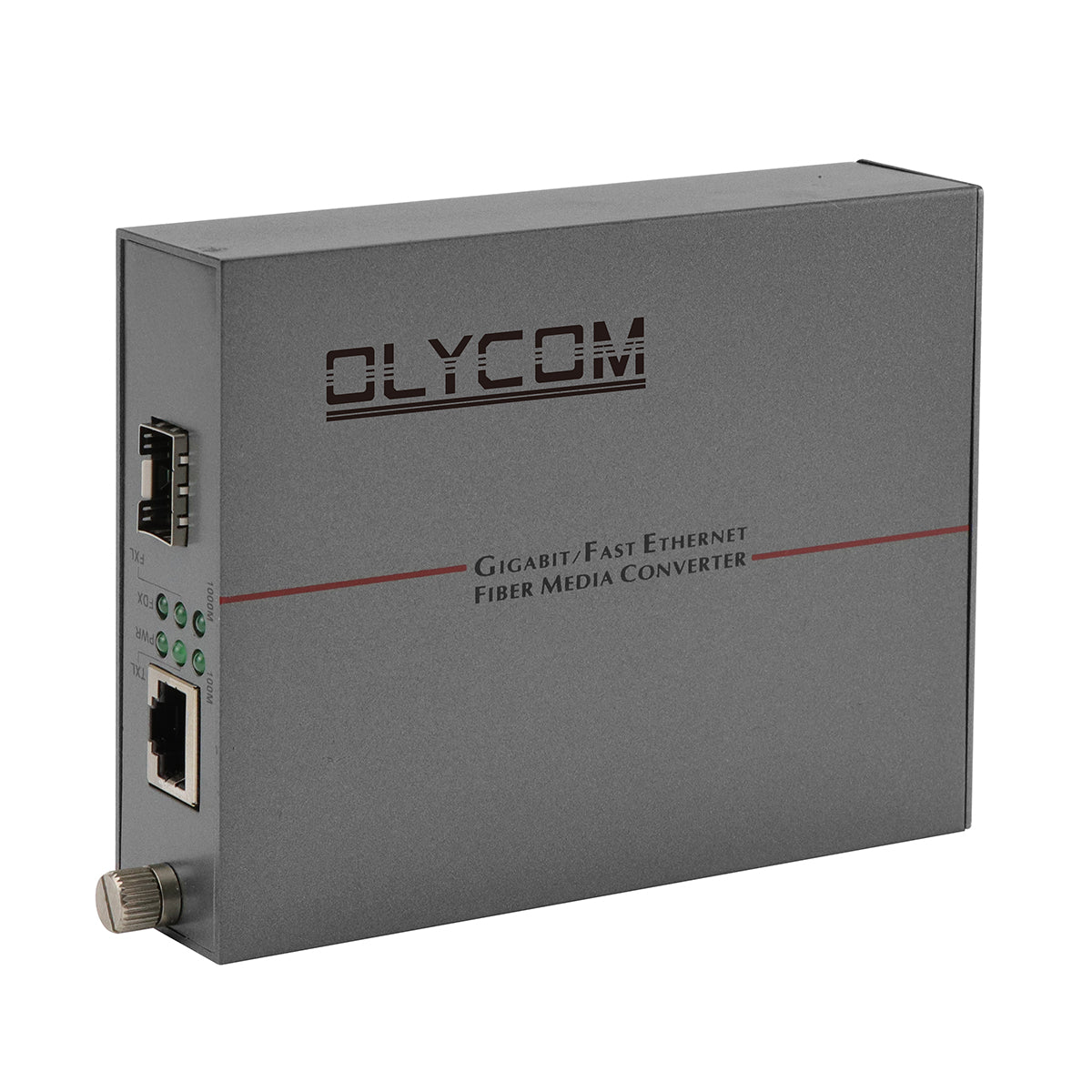

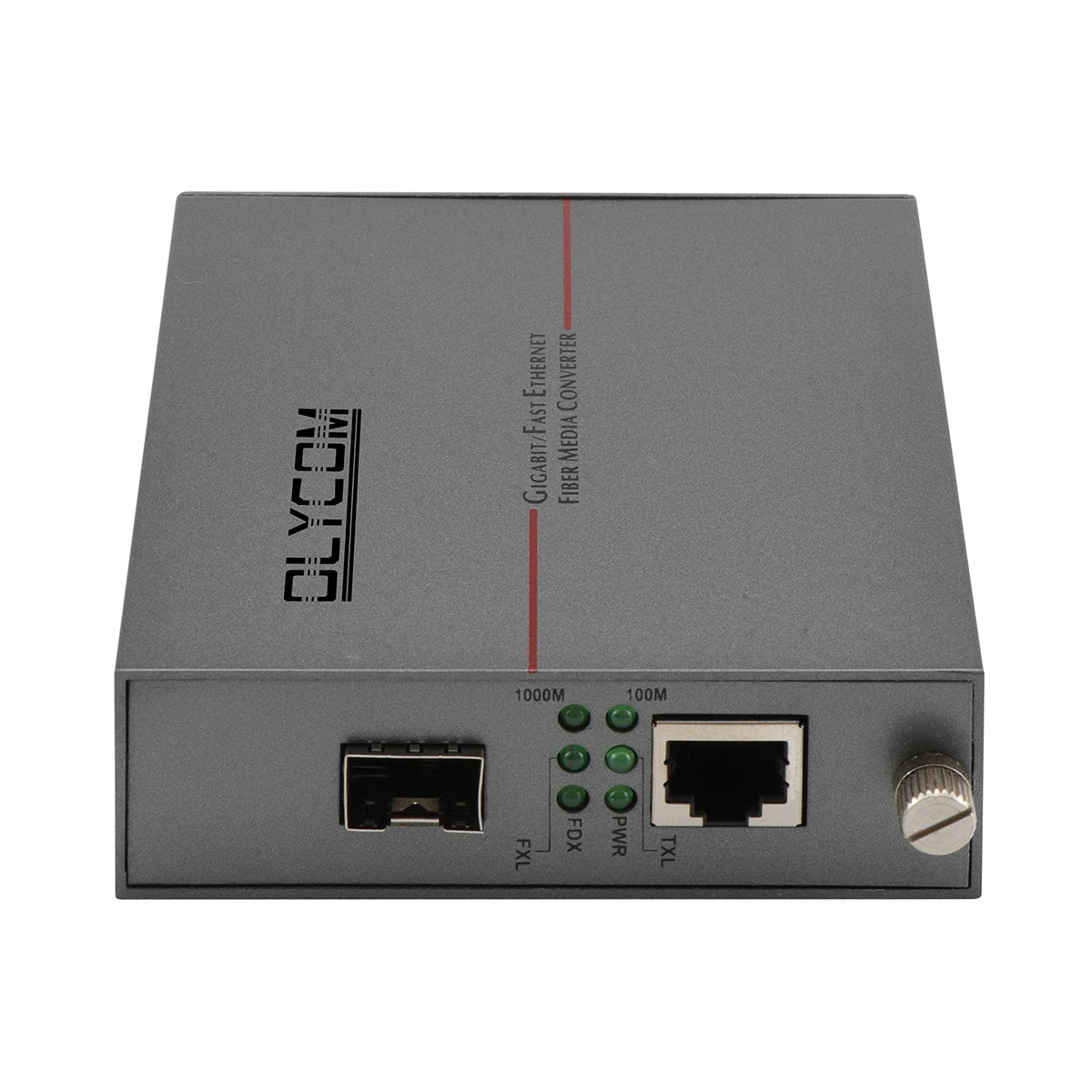

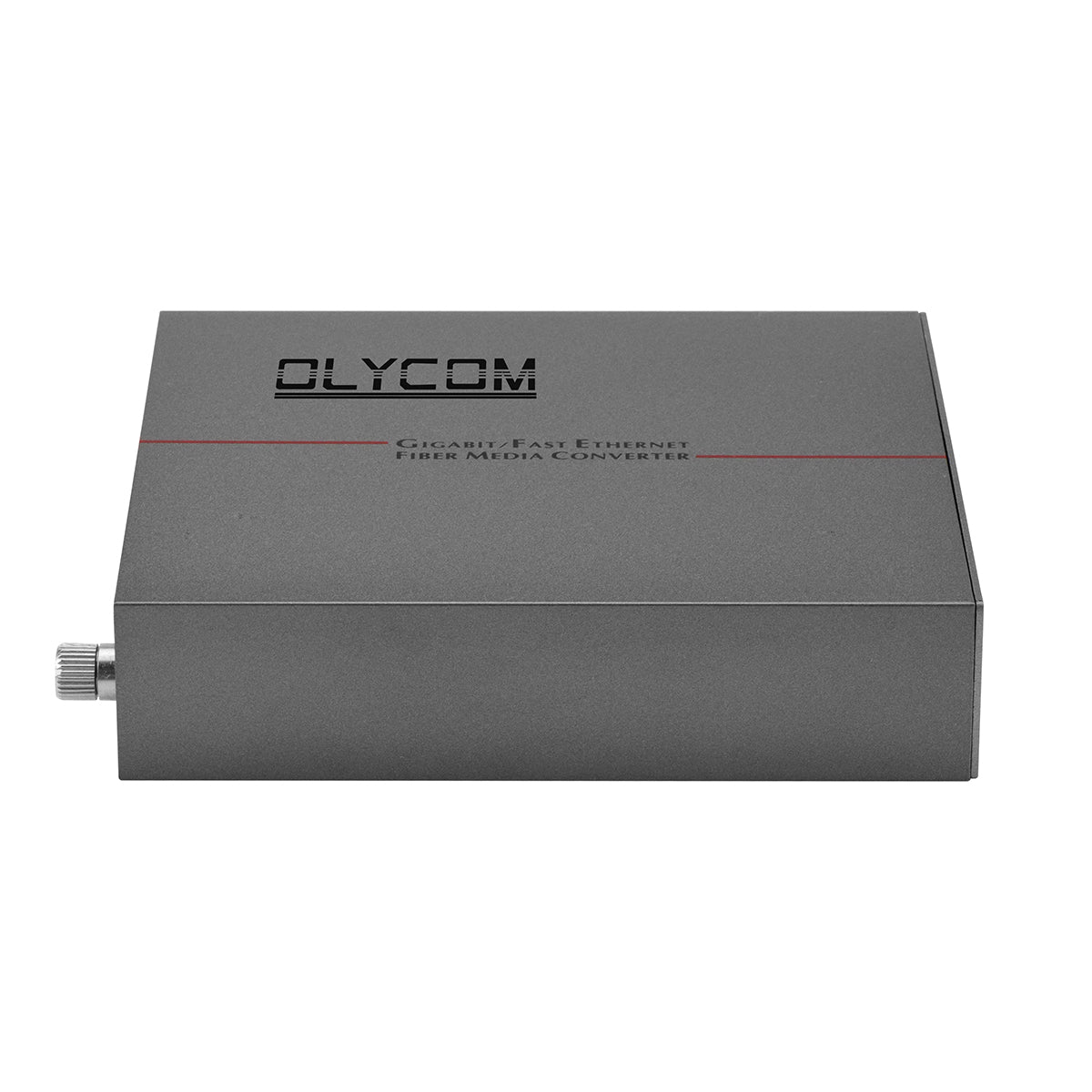

Olycom TA343-GE is a professional Gigabit Ethernet SFP fiber media converter designed to provide seamless copper-to-fiber bridging for modern network infrastructures.
Supporting 10/100/1000Mbps auto-negotiation, it adapts to various network environments and fiber types through its hot-swappable SFP slot, enabling flexible deployment over multimode or single-mode fiber from short-range LAN extensions to long-distance backbone links.
Engineered with a premium aluminum enclosure, low-latency forwarding, and full IEEE compliance, the TA343-GE delivers stable, high-performance optical transmission suitable for enterprises, telecom operators, and campus networks.

Key Features

  • Flexible Fiber Networking – Hot-pluggable SFP slot supports SX, LX, EX, ZX, EZX, and Bi-Di optical modules.
  • Triple-Speed Ethernet – Auto 10/100/1000M detection with auto-MDI/MDIX for simple deployment.
  • High Performance Switching – 10K jumbo frame support, 1.75M buffer, 4K MAC table, BER < 1×10⁻⁹.
  • Low Latency Forwarding – Store-and-forward <10μs; straight-through <0.9μs for real-time applications.
  • Advanced Flow Control – Full-duplex IEEE802.3x flow control and half-duplex back pressure.
  • Link Fault Pass Through (LFPT) – Ensures quick fault detection across copper–fiber links.
  • Premium Build Quality – Compact aluminum casing (117×90×28mm) with excellent heat dissipation.
  • Energy Efficient – External 5V/1A power supply with <2.5W power consumption.
  • Comprehensive Standards Support – IEEE802.3/802.3u/802.3z, IEEE802.1Q, 802.1p, 802.1d, IEEE1588V2, 802.3az.
  • Dual Installation Options – Same card can be used standalone or inserted into a 19” 2U rack chassis.

Applications

  • Telecommunication Networks – Fiber access, long-distance Gigabit extensions, and metro-edge connectivity.
  • Enterprise and Office Networks – Copper-to-fiber conversion for reliable building-to-building communication.
  • Campus Networks & Education – High-speed optical interconnection for school and university infrastructure.
  • Security & Surveillance Systems – Stable fiber backbone for HD/4K IP camera deployments. Internet Cafes & Cyber Bars – Durable, low-latency Gigabit connectivity for high-traffic LAN environments.
  • Industrial & Utility Networks – Robust Ethernet-over-fiber for control systems and automation.
