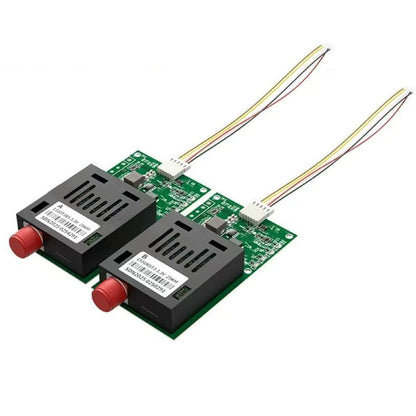

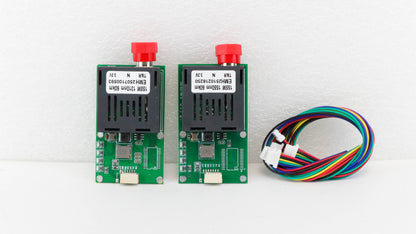

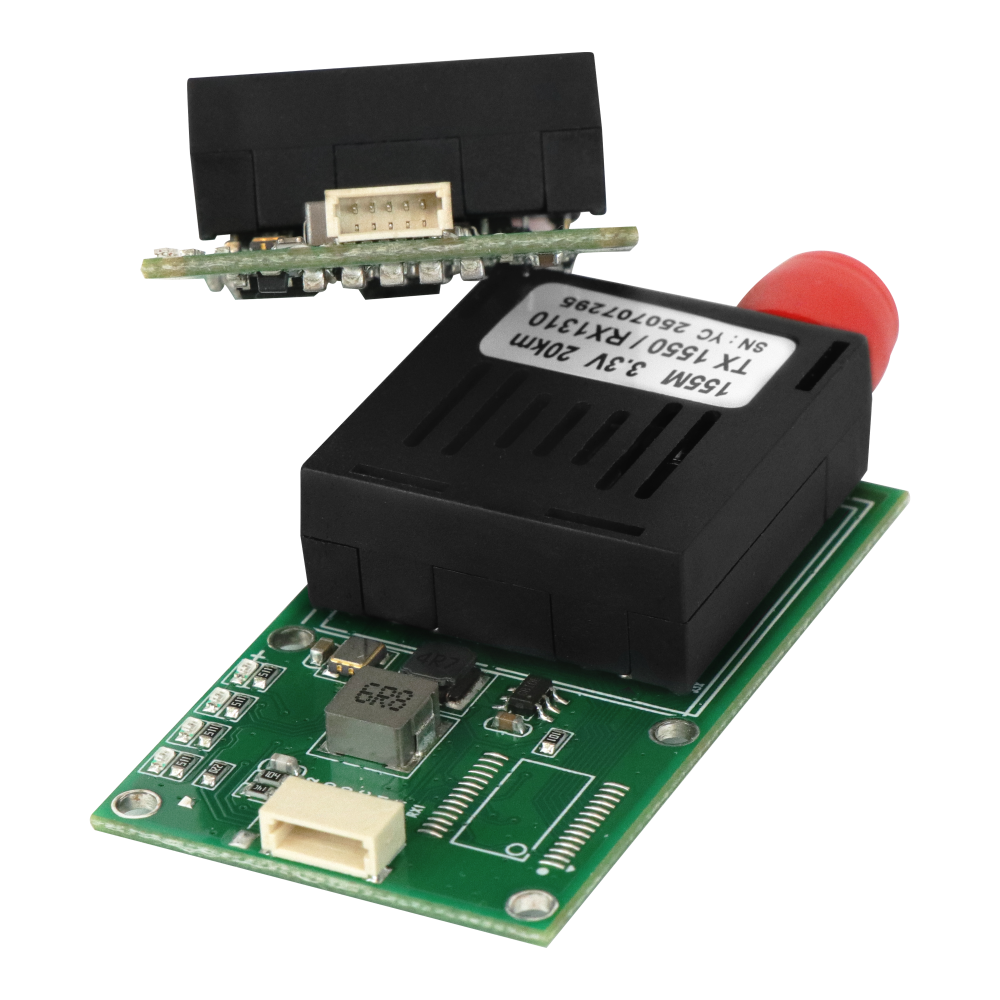

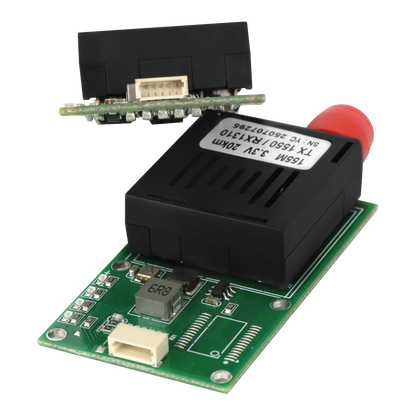

NDAA Compliant Tether Drone Module CRVS UART TTL Data FC/ST/SC Connector 20KM Fiber Distance for UAVs

NDAA Compliant Tether Drone Module CRVS UART TTL Data FC/ST/SC Connector 20KM Fiber Distance for UAVs

$34.99 USD
$39.99 USD $34.99 USD
Sale Sold out

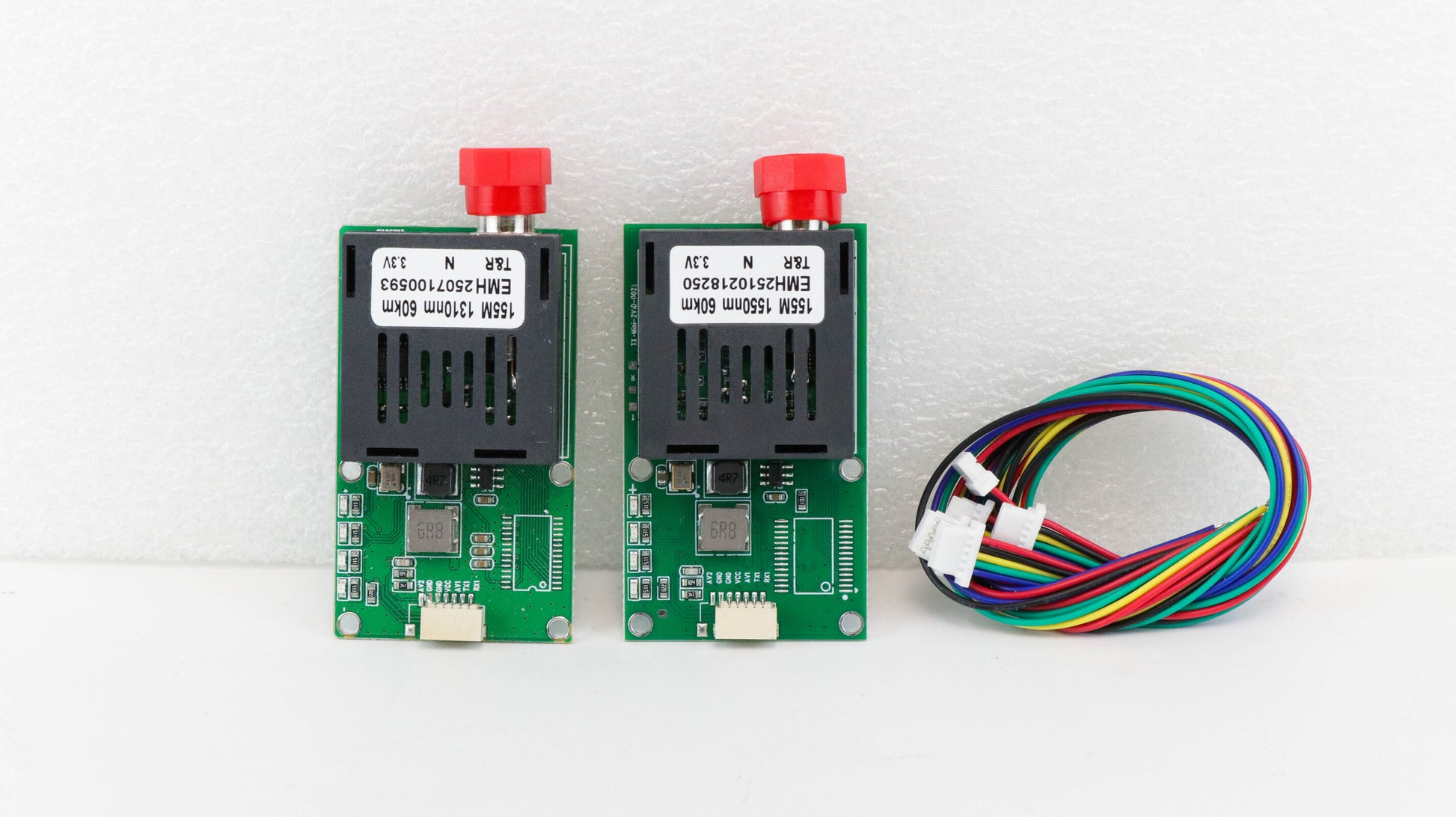

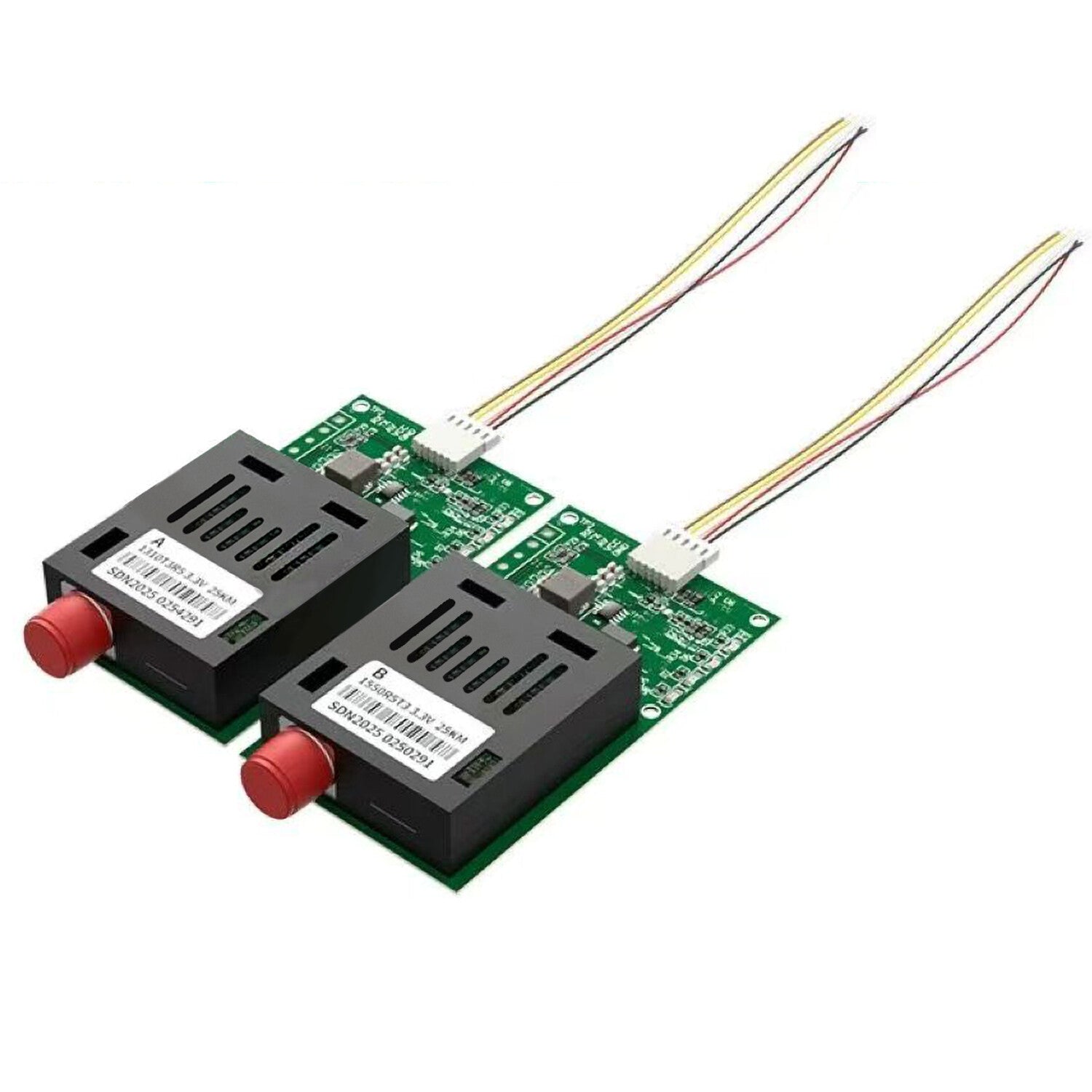

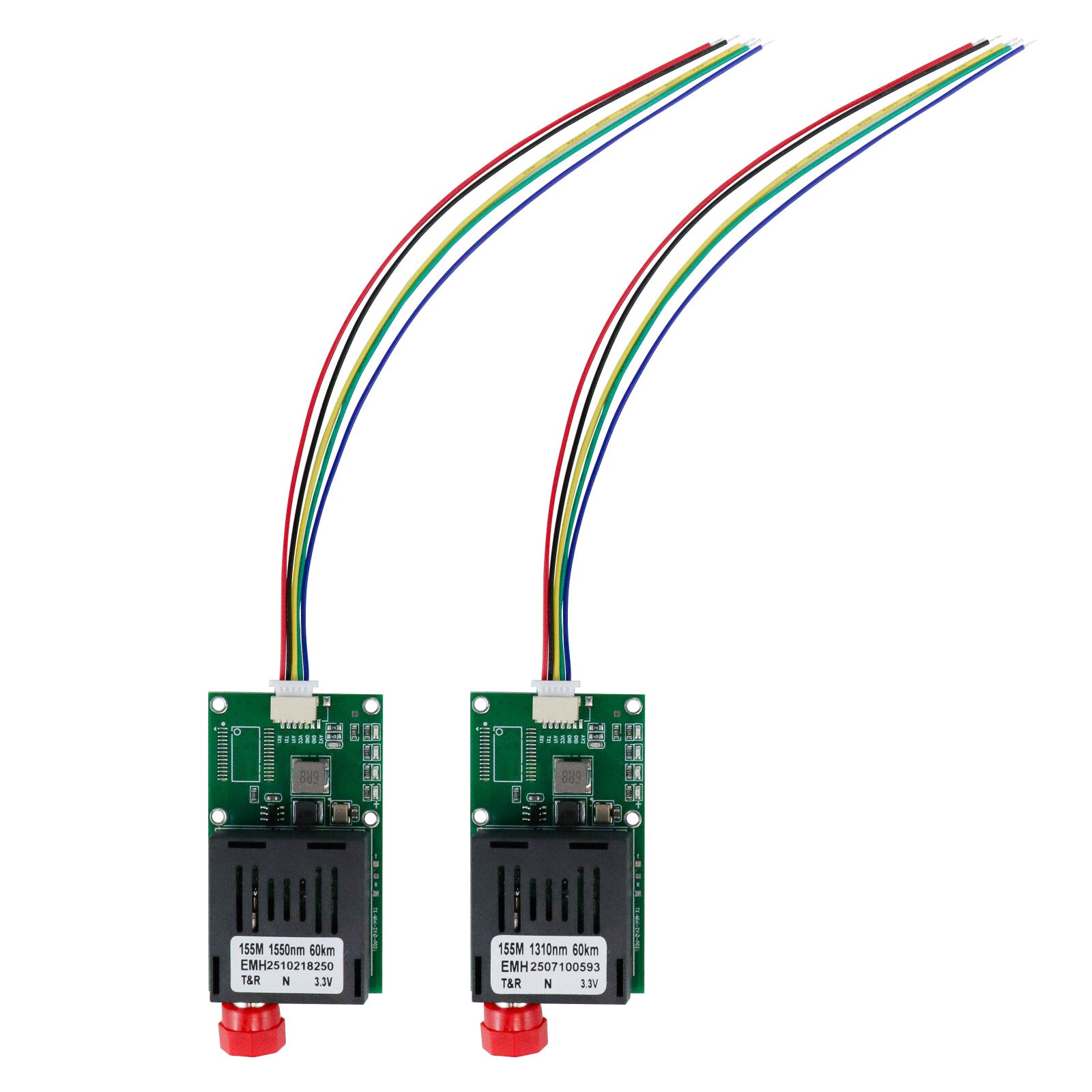

Olycom OM610-1V↑1TTLWT/R is a compact optical video and data transmission module designed specifically for UAVs, drones, and remote control systems requiring long-distance, interference-free communication.

Key Features

  • 1-Channel Analog Video + 1-Channel TTL Data – Enables simultaneous transmission of video and control signals.
  • Long-Distance Transmission – Optical communication range up to 80km without signal degradation.
  • Wide Power Input – Supports DC 5.5–26V (2S–6S Li-ion battery), providing flexibility for different UAV platforms.
  • Compact & Lightweight Design – Only 50×29×13mm, minimizing payload weight and enhancing flight efficiency.
  • Wavelength Optimization – 1490nm (airborne) and 1550nm (ground) for enhanced transmission quality and signal separation.
  • Multiple Status Indicators – Power, optical link, video, and data LEDs for real-time operational monitoring.
  • Low Power Consumption – <5W total power usage, supporting extended UAV operation time.
  • High Reliability – Rugged PCB design with strong resistance to interference and temperature variations.
  • Flexible Fiber Interface Options – Supports FC / SC / ST connectors for system integration.

Specification

  • Main Signal: TTL / CRSF UART + CVBS Analog Video
  • Standard: Custom serial optical transmission, CRSF 420kbps timing optimized
  • Communication Interface: MX-SH1.0mm-5P, CRSF interface / CVBS video port
  • Conversion Mode / Delay Time: Hardware transparent serial forwarding, Microsecond-level low jitter
  • Flow Control: N/A serial device
  • Optical Fiber: 9/125um Single-mode G.657A2 fiber cable
  • Distance: 20KM / 40KM / 60KM / 80KM Optional
  • Power Range: DC5.5~26V(2S-6S battery)
  • Dimension: 50×29×13mm
  • Power Consumption: < 3W
  • Operating Temperature: 0℃~70℃
  • MAC Address Table: N/A serial module
  • Buffer Size: N/A serial module
  • Indicator: Power, Optical fiber, Video, Data
  • Fiber Port: FC / SC / ST / SFP Optional
  • Core Mission: Bidirectional flight control, Flight remote control & telemetry

Applications

  • UAV & Drone Communication Systems – Real-time FPV video and telemetry data for inspection and surveillance drones.
  • Scientific & Industrial Research – Long-range optical data transmission in controlled or outdoor test environments.
  • Aerial Photography & Mapping – Stable video feedback for aerial cinematography and mapping drones.
  • Security & Defense Systems – Safe, low-latency communication for tactical or border surveillance applications.
  • Robotics & Remote Control Systems – Reliable data transmission between mobile platforms and control stations.
