8 Port Full 10G Ethernet Switch Unmanaged 1G/2.5G/5G Auto-sensing Fanless CE AC Input

Olycom OM08X0GE is a high-performance 8-port 10G Ethernet switch designed for enterprise, data center, and high-bandwidth applications with below features

• Full 10G Port Architecture

8× 10G RJ45 Ethernet ports, each supporting 100/1000M/2.5G/5G/10G adaptive speeds

Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3ae, 802.3x, and 802.3az standards

Auto MDI/MDIX and full/half-duplex support for flexible deployment

Store-and-forward switching with 12Mbit buffer and 16K MAC address table

• High-Speed Performance

160Gbps switching capacity and 119.04Mpps forwarding rate for zero-congestion transmission

Supports jumbo frames up to 12KB, ideal for 4K/8K video, virtualization, and cloud workloads

Integrated RTL9303 + RTL8261N chipset ensures stability and high throughput

• Robust Build & Protection

Durable fanless steel chassis ensures silent, stable, and heat-efficient operation

Surge protection: 6kV (common mode) / ESD protection: ±8kV (air), ±6kV (contact)

Operating temperature: -10°C ~ +50°C; storage: -40°C ~ +70°C

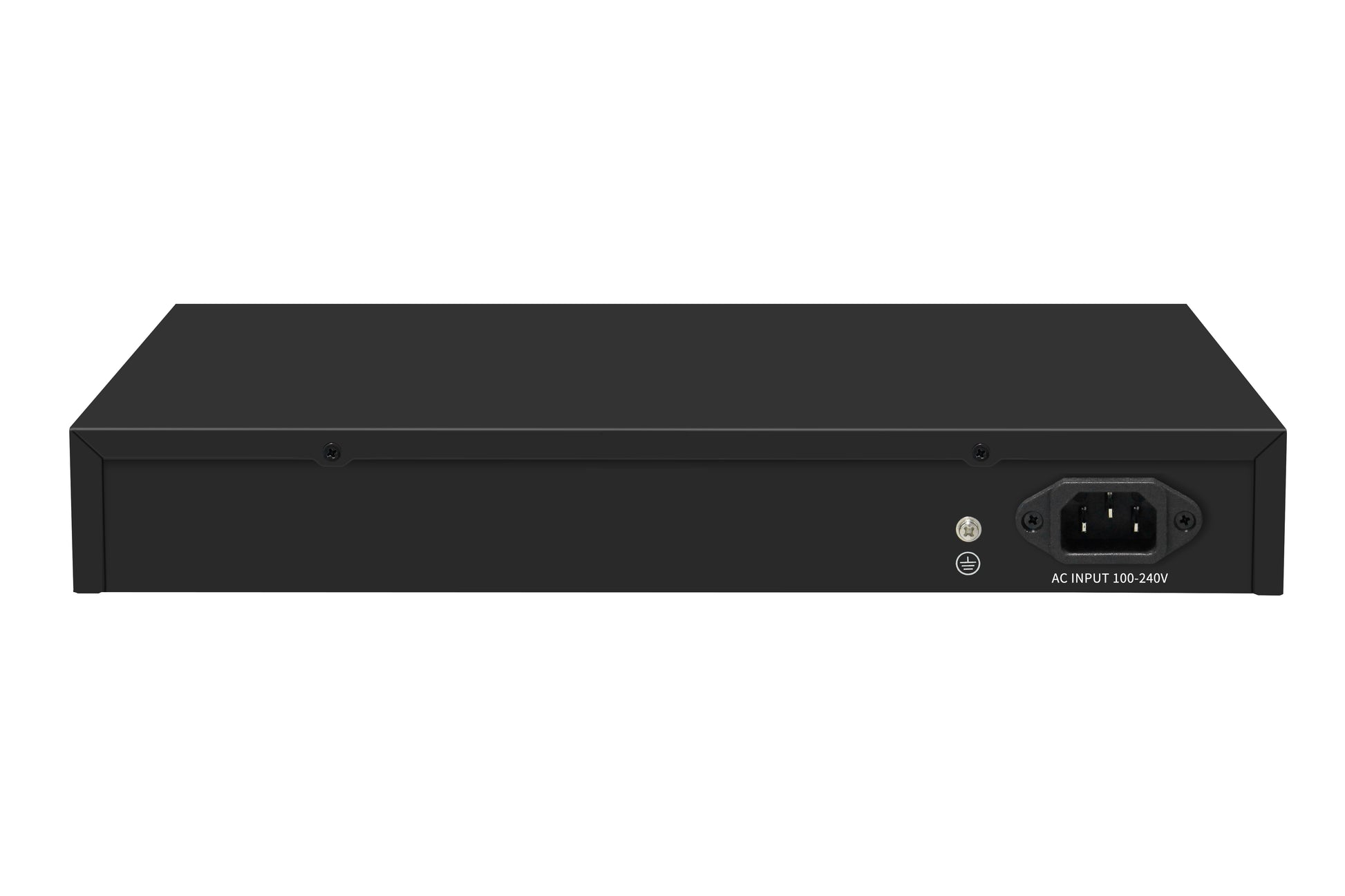

Power input: AC100–240V, output 12V/8A, maximum power consumption <40W

Efficient Monitoring & LED Indicators

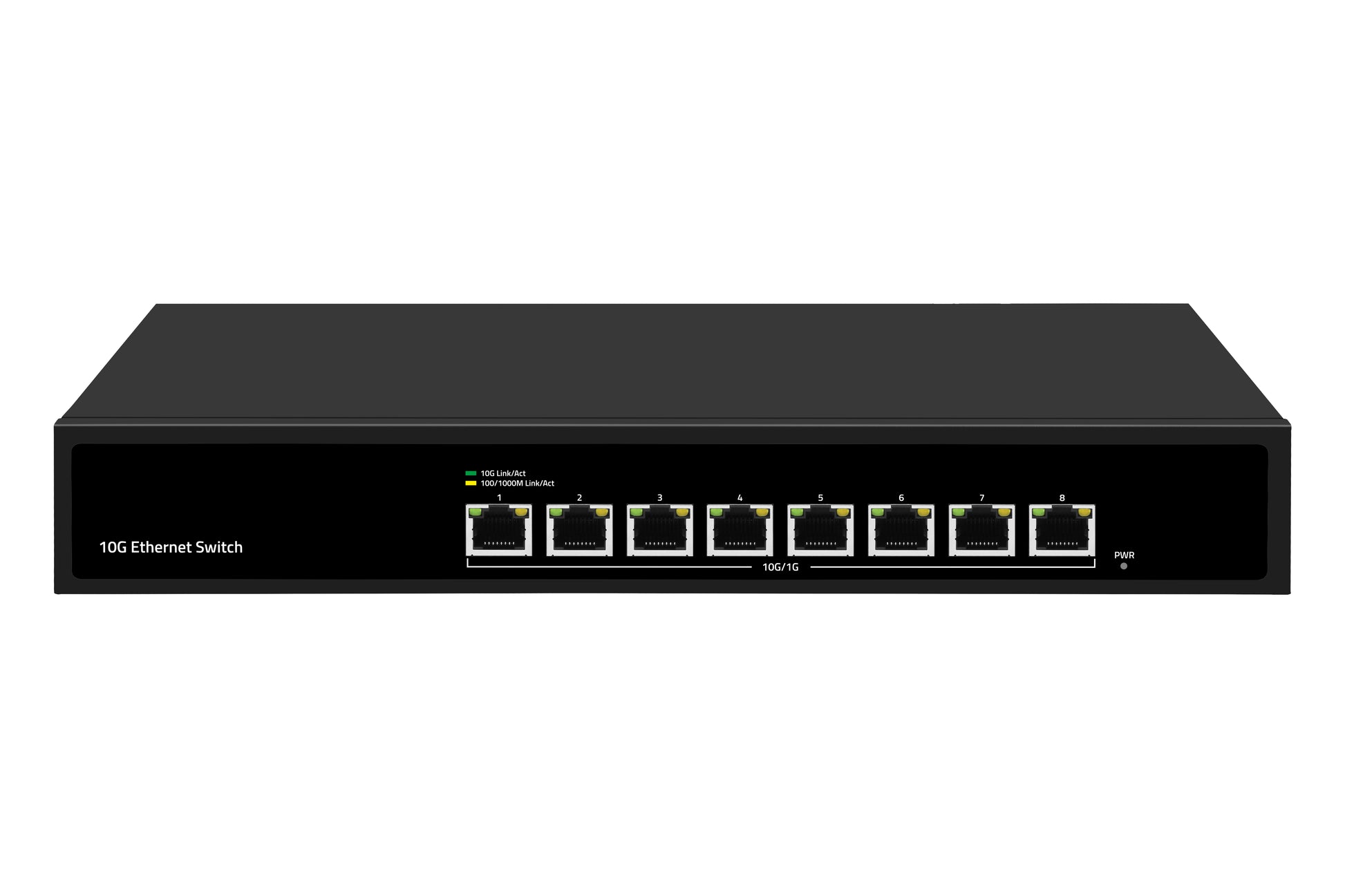

Dual-color LEDs show link, speed, and activity status (Green for 5G/10G, Yellow for 1G/100M)

Real-time diagnostics assist in quick fault detection and link verification

• Certified & Reliable

CE, FCC, and RoHS certified for global compliance

MTBF >100,000 hours for long-term continuous service

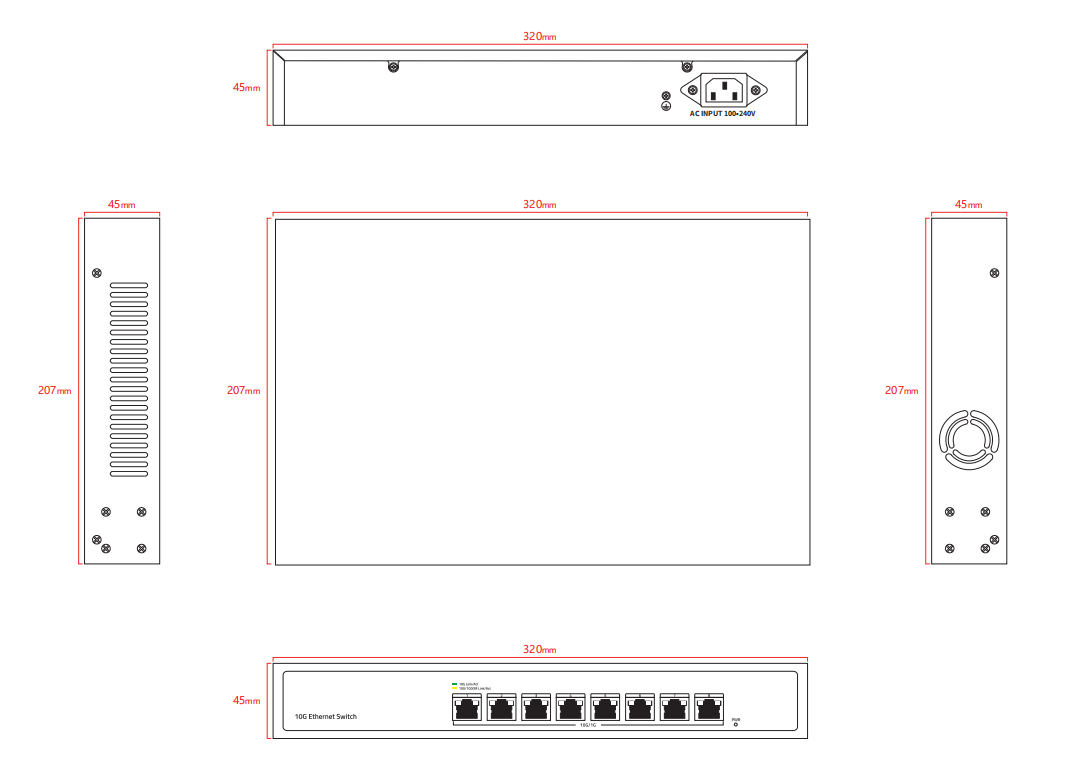

Compact size: 320 × 207 × 45 mm, net weight 1.72kg

Applications

OM08X0GE is ideal for enterprise backbone networks, video surveillance systems, and high-performance computing environments requiring ultra-fast transmission.

It is widely used in:
