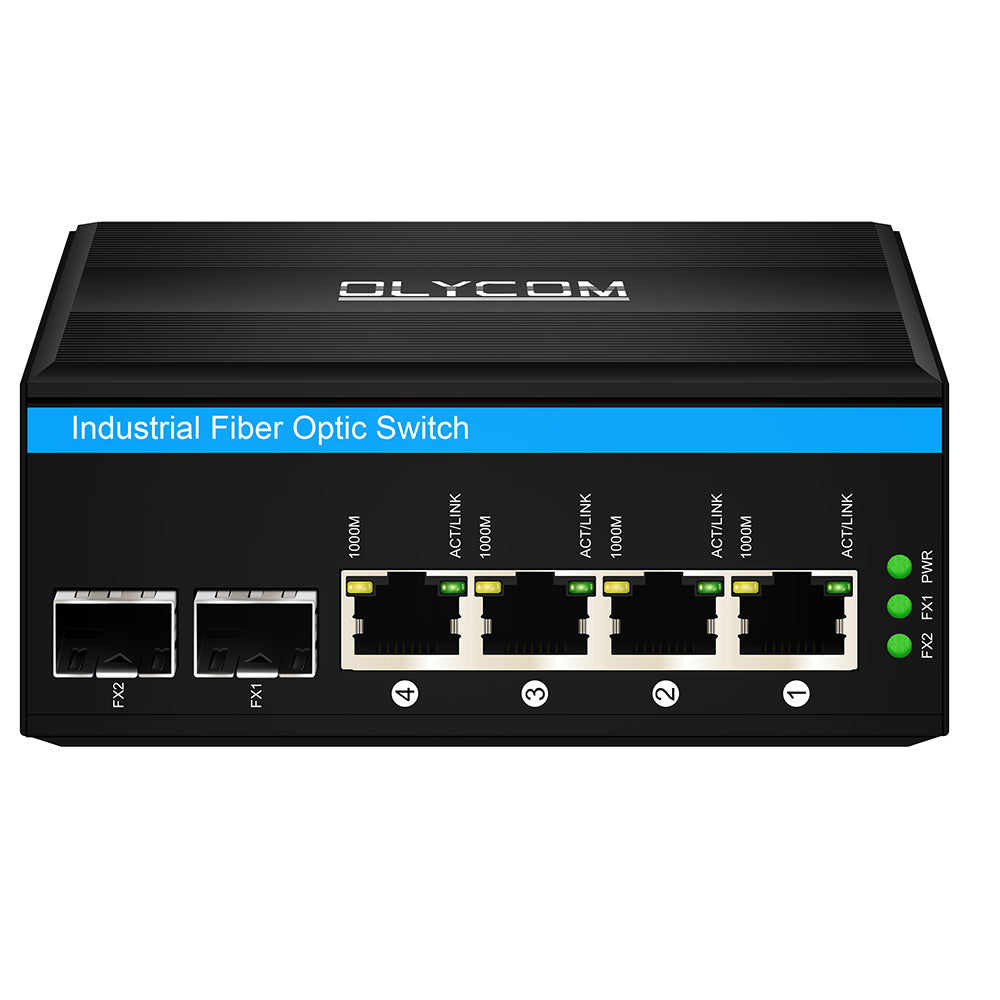

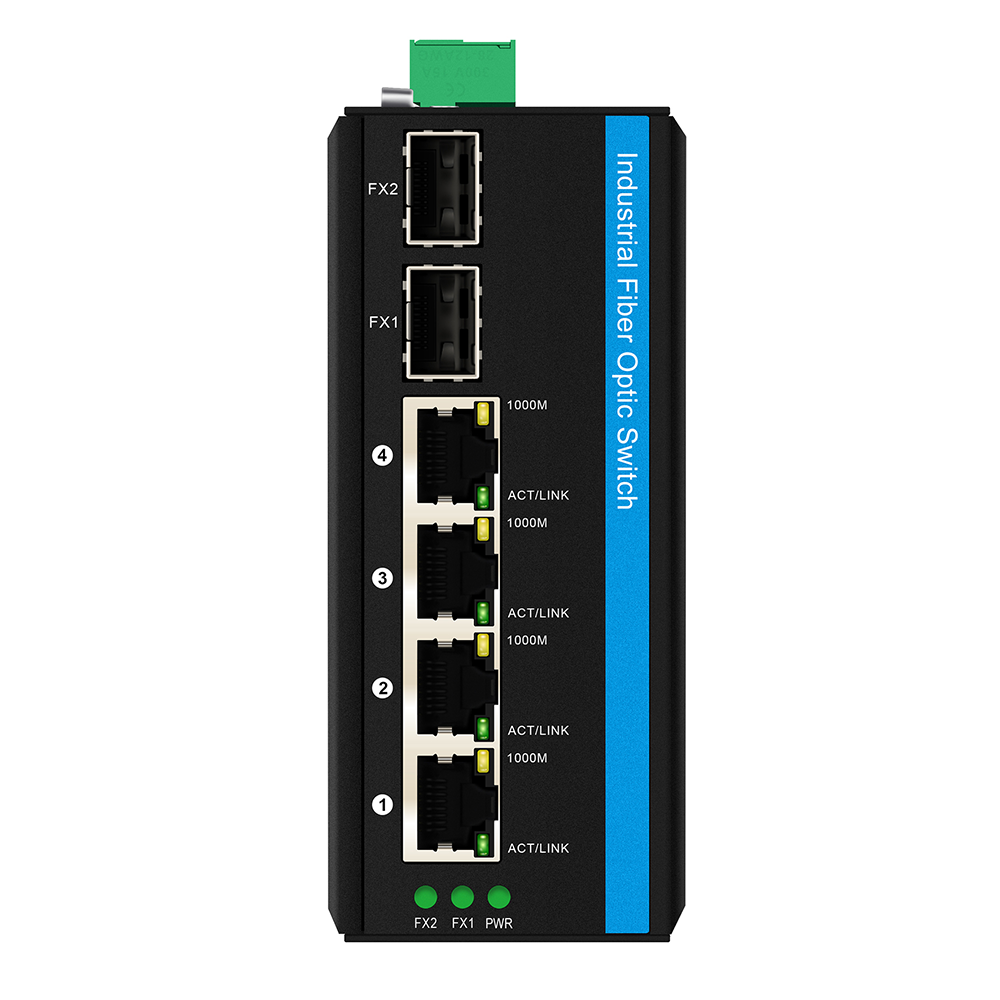

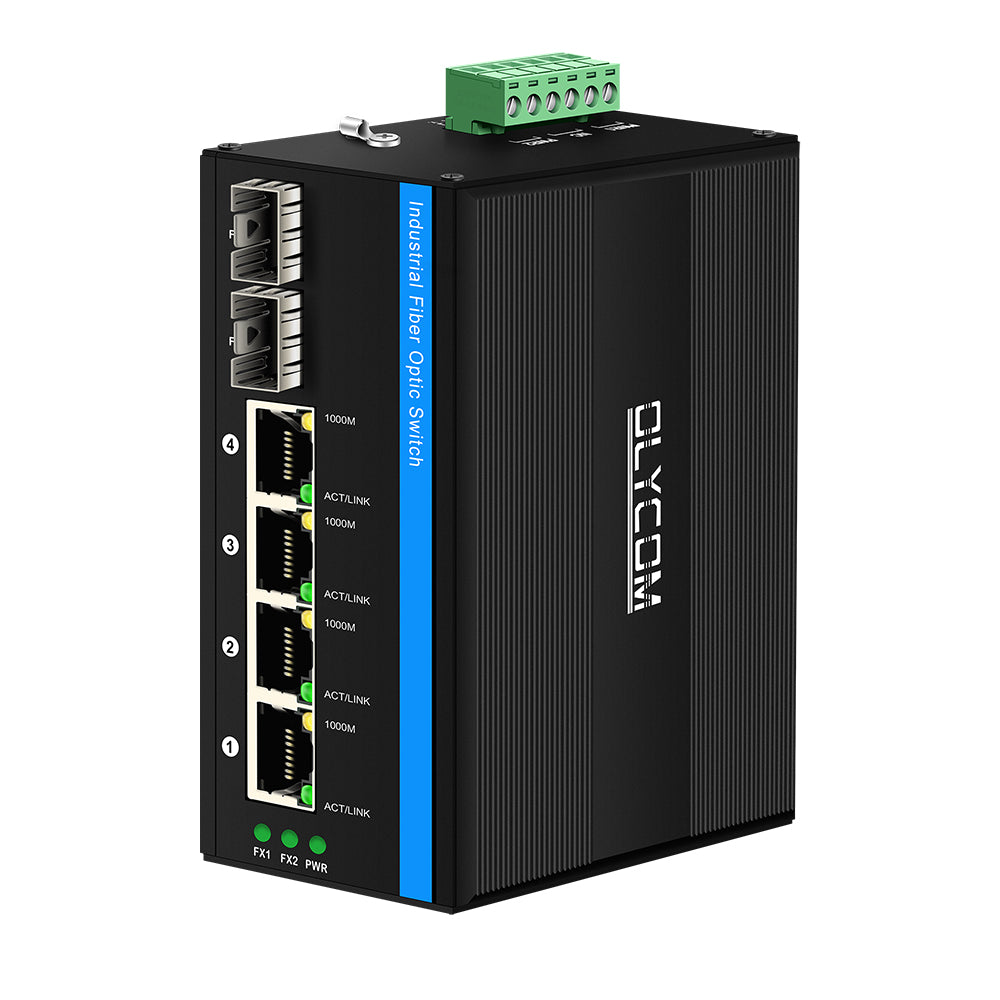

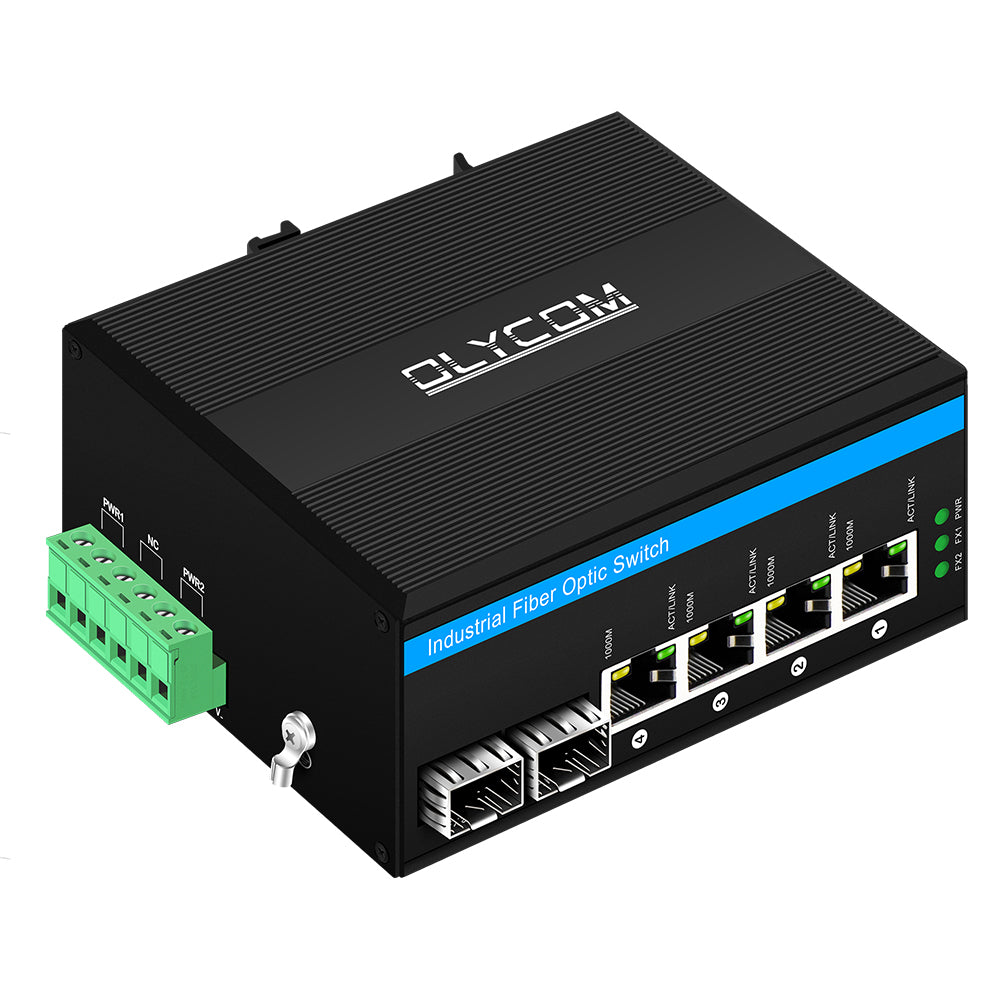

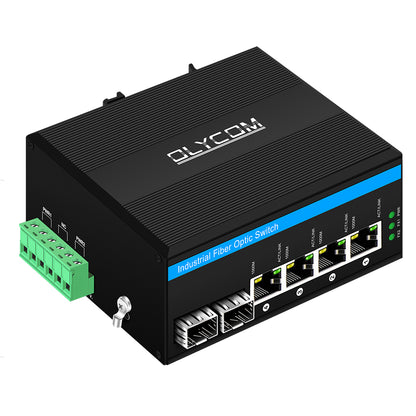

6-Port Gigabit PoE/PoE+ Booster Fiber Switch 802.3af/at 120W Budget DC12–48V Input

6-Port Gigabit PoE/PoE+ Booster Fiber Switch 802.3af/at 120W Budget DC12–48V Input

$79.99 USD
$89.99 USD $79.99 USD
Sale Sold out
Introduction

  • The Olycom IM-FP244BGE is a rugged unmanaged industrial PoE booster switch that solves one of the most common challenges in off-grid and vehicle-based networking: powering standard IEEE 802.3af/at PoE devices from low-voltage or unstable DC sources.
  • With a built-in power booster that accepts wide-range DC 12–48V input and delivers a stable DC 48V PoE output, it bridges the gap between real-world power environments — vehicle batteries, solar panels, backup DC rails — and the standardized 48V PoE infrastructure that IP cameras, wireless APs, and industrial sensors require.
  • Combined with 6KV surge protection, a -40°C to +75°C operating range, 2 × SFP fiber uplinks, and a compact DIN-rail or wall-mount form factor, it is purpose-built to operate reliably where commercial-grade switches simply cannot.

Key Features

  • 4 × 10/100/1000Mbps RJ45 PoE Ports — Auto-sensing IEEE 802.3af/at ports deliver up to 30W per port, 120W total PoE power budget for flexible endpoint deployment
  • 2 × 100M/1G SFP Fiber Uplink Ports — Dual fiber uplinks support long-distance backbone connections and ring/cascade topologies in industrial fiber networks

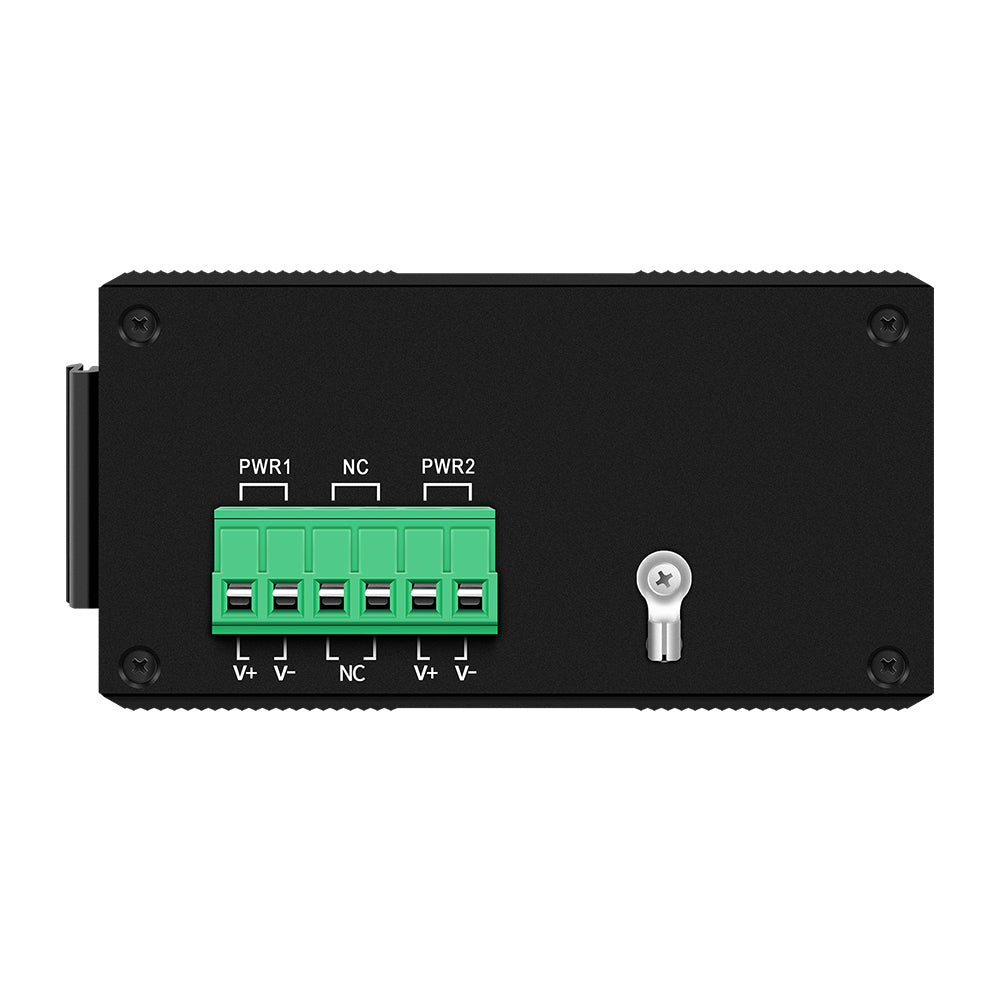

  • Built-in Power Booster — Accepts DC 12–48V wide-range input and boosts output to stable DC 48V, enabling PoE delivery from vehicle batteries, solar arrays, and low-voltage DC bus systems
  • 120W Total PoE Budget — Up to 30W per port across all four RJ45 ports, sufficient to simultaneously power multiple IP cameras or wireless APs
  • 6KV Ethernet Surge Protection — Industrial-grade lightning and surge protection on all ports safeguards connected equipment in outdoor, rooftop, and vehicle-mounted installations
  • Wide Operating Temperature: -40°C to +75°C — Performs reliably in extreme cold and heat without derating, covering arctic winters and desert summers alike
  • IP40-Rated Rugged Metal Housing — All-metal enclosure provides dust protection, EMI shielding, and structural durability for permanent industrial installation
  • DIN-Rail & Wall-Mount Ready — Compact form factor installs directly onto standard 35mm DIN rails or flat surfaces without additional hardware
  • Fanless Plug-and-Play Design — No configuration, no moving parts, no noise; powers up and operates immediately out of the box
  • EMC Industrial Standards Compliant — Meets industrial electromagnetic compatibility requirements for deployment in electrically noisy environments

Applications

  • Vehicle & Mobile Networking — Directly powers onboard IP cameras, wireless APs, and passenger Wi-Fi systems from the vehicle's 12V or 24V DC battery bus, eliminating dedicated PoE power supplies in buses, trains, trucks, and fleet vehicles. The wide input range handles voltage fluctuations common in automotive electrical systems without disrupting connected devices
  • Solar & Off-Grid Power Systems — Integrates seamlessly with solar charge controllers and battery banks outputting 12V–48V, enabling full PoE network infrastructure in locations with no grid access — remote monitoring stations, agricultural sites, construction yards, and off-grid security installations where running mains power is impractical or cost-prohibitive
  • CCTV & Outdoor Surveillance — Provides stable PoE output to IP cameras mounted on rooftops, poles, tunnel walls, and perimeter fencing where power source voltage may be inconsistent or low. The 6KV surge protection and wide temperature tolerance ensure cameras stay online through storms, lightning events, and seasonal extremes
  • Industrial Automation & Factory Floors — Connects PoE-powered sensors, vision systems, barcode scanners, and industrial wireless APs to control networks in manufacturing environments where 24V DC is the standard plant bus voltage, avoiding the need for a separate 48V PSU
  • Railway & Mass Transit Infrastructure — Rugged surge protection and -40°C cold-start capability make it well-suited for trackside equipment cabinets, station access control, and onboard passenger systems in rail applications where EN 50155 environments are common
  • Oil, Gas & Energy Infrastructure — Deployed in remote pump stations, pipeline monitoring nodes, and substation perimeters where equipment runs on battery-backed 24V or 48V DC rails and must withstand extreme temperature swings and electrical noise
  • Smart Agriculture & Environmental Monitoring — Powers weather stations, soil sensors, IP cameras, and LoRa gateways in field deployments fed by solar panels, where the DC input voltage varies with battery charge state throughout the day
  • Emergency & Disaster Response Networks — Rapidly deployable PoE infrastructure powered from vehicle batteries or portable solar generators, enabling temporary surveillance, communications, and command networks in disaster zones or field operations
