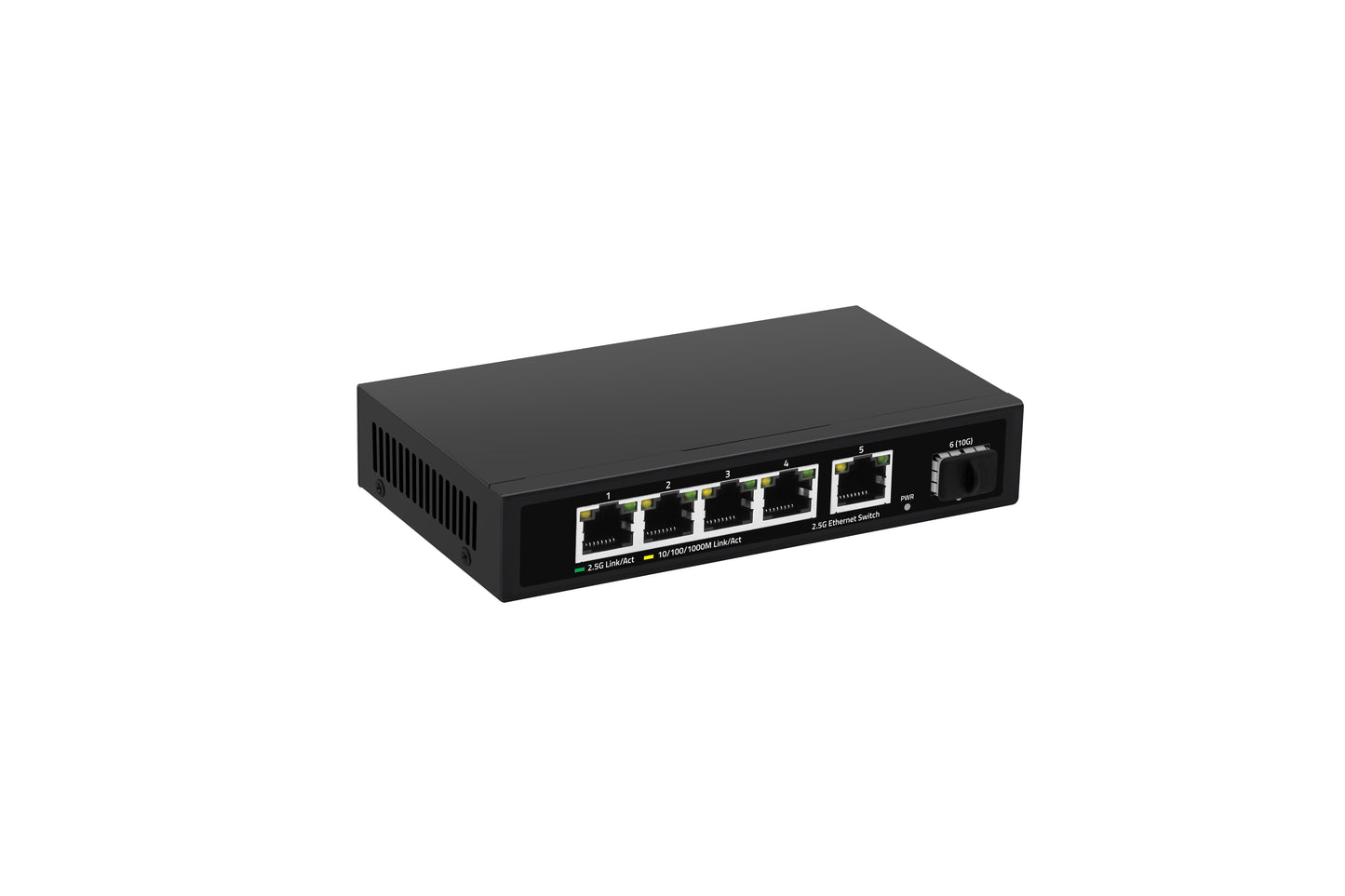

6-Port 10G Uplink 2.5G Ethernet Switch Unmanaged Fanless High-Speed Network Solution

6-Port 10G Uplink 2.5G Ethernet Switch Unmanaged Fanless High-Speed Network Solution

$49.99 USD
$59.99 USD $49.99 USD
Sale Sold out
Olycom OM1X50(2)GE is a 6-port unmanaged Ethernet switch designed for office, SOHO, and multimedia applications.

Key Features
  • High-Speed Port Configuration
5× 2.5G RJ45 ports + 1× 10G SFP port
Compatible with IEEE 802.3, 802.3u, 802.3ab, 802.3bz, and 802.3ae standards
Supports 10/100/1000M/2.5G auto-negotiation and Auto MDI/MDIX
4K MAC address table with 12KB jumbo frame support for optimized throughput
  • Stable & Silent Operation
Fanless design for noise-free office and desktop environments
Supports full-duplex IEEE 802.3x flow control and half-duplex back pressure
100,000-hour MTBF with industrial-grade components for long-term stability
  • Power & Electrical Protection

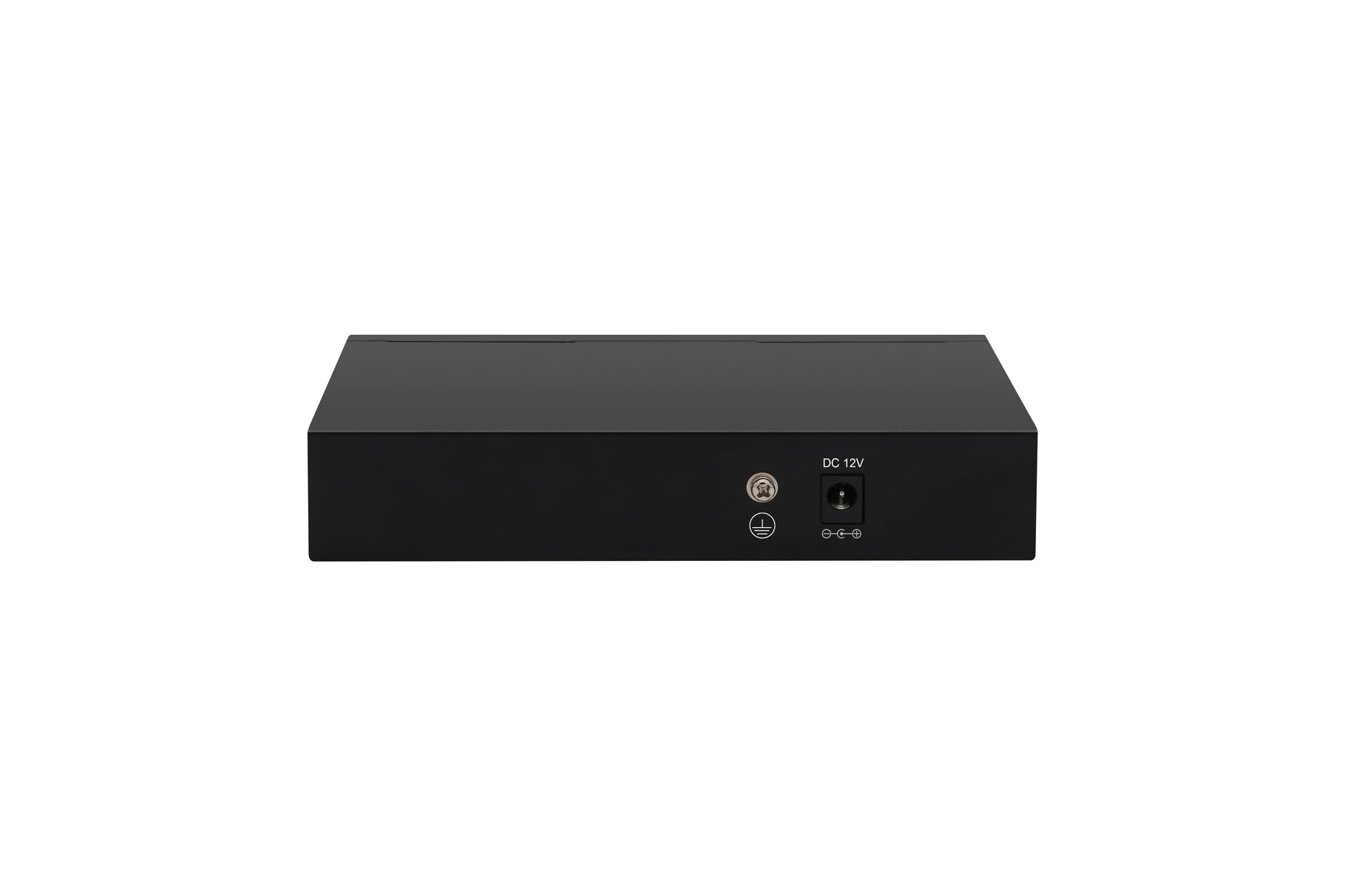

DC12V 1A input power, with surge protection up to 6kV (common mode)
ESD protection: ±8kV (air) / ±6kV (contact)
Energy-efficient design meeting CE, FCC, and RoHS safety standards
  • Compact and Durable Design
Product size: 140×93×28mm, net weight 0.33kg
Solid metal housing with LED status indicators for link and activity monitoring
Plug-and-play operation for quick deployment without software configuration
  • Performance Highlights
Switching capacity: 45Gbps; forwarding rate: 33.48Mpps
Supports up to 4096 VLAN IDs, ideal for segmented or extended networks
Storage and forward switching mode for reliable packet delivery
Operating temperature: -10°C to +50°C; humidity: 10–90% non-condensing

Application

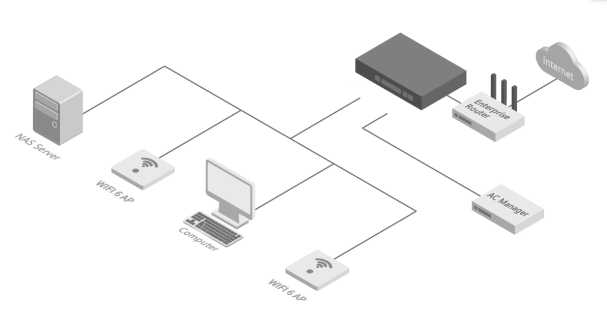

  • Enterprise & Office Networks: High-speed connection for workstations, NAS, and Wi-Fi 6 access points without fan noise
  • Video Surveillance Systems: Stable multi-channel data flow for HD/4K IP cameras and NVRs
  • Education & Campus Networks: Fast data transfer for classrooms, e-learning, and administrative systems
  • Home & SOHO Environments: Upgrading from Gigabit to 2.5G/10G for multimedia, gaming, or creative workstations
  • Broadband & Industrial Integration: Ideal for small telecom nodes, security systems, and IoT gateways
