220V WDM Media Converter Gigabit Ethernet SC Single Fiber 20KM Unmanaged CE

220V WDM Media Converter Gigabit Ethernet SC Single Fiber 20KM Unmanaged CE

$43.99 USD
$49.99 USD $43.99 USD
Sale Sold out

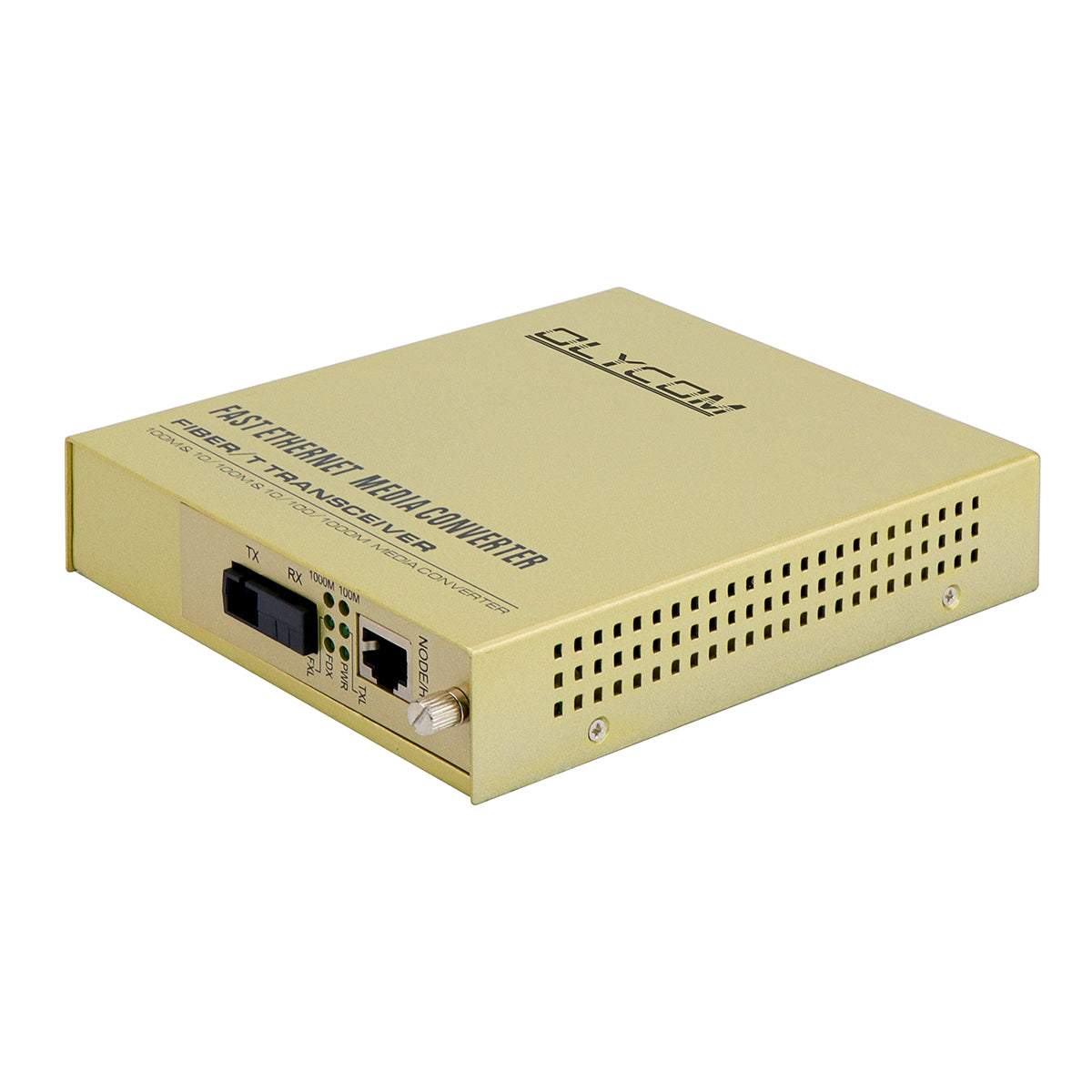

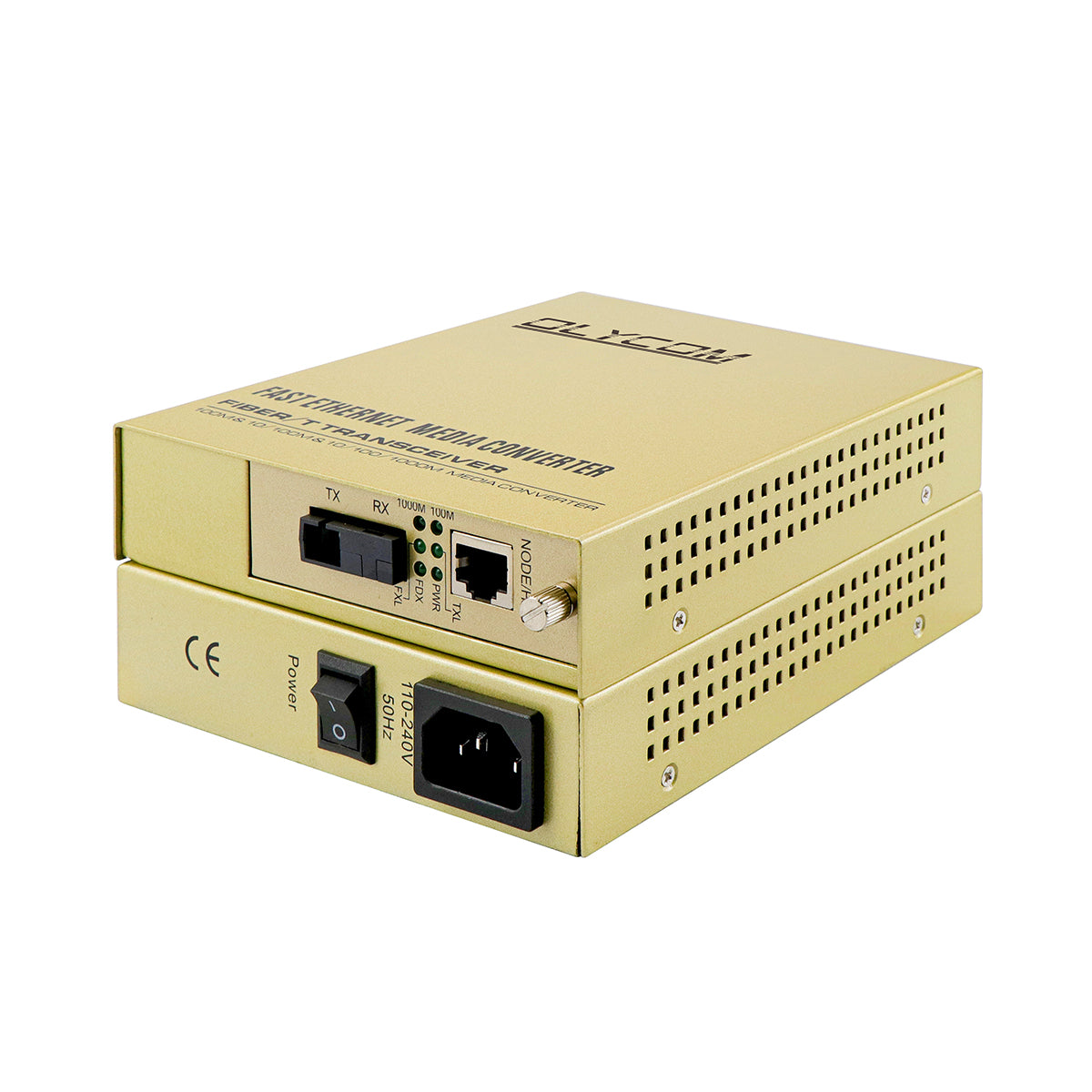

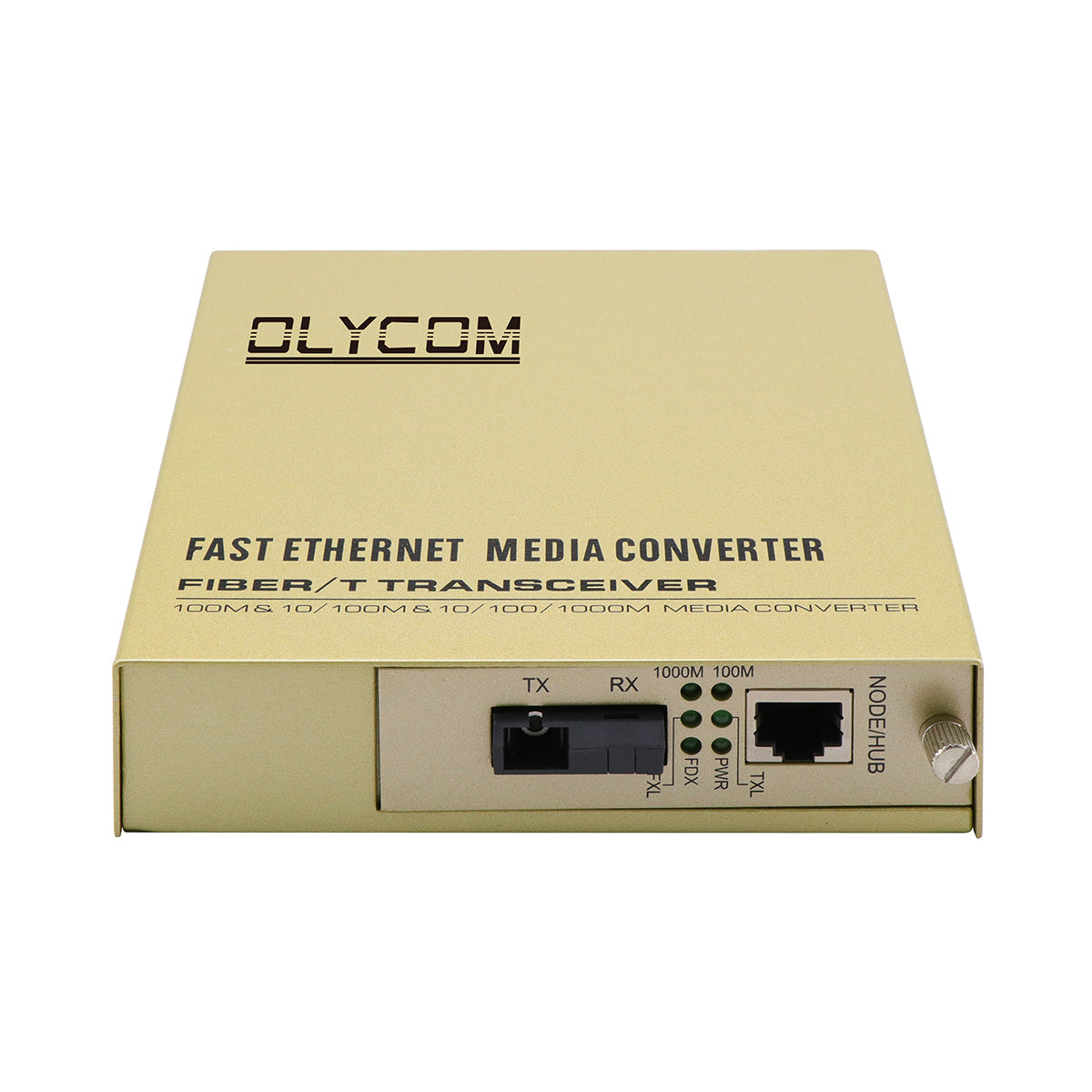

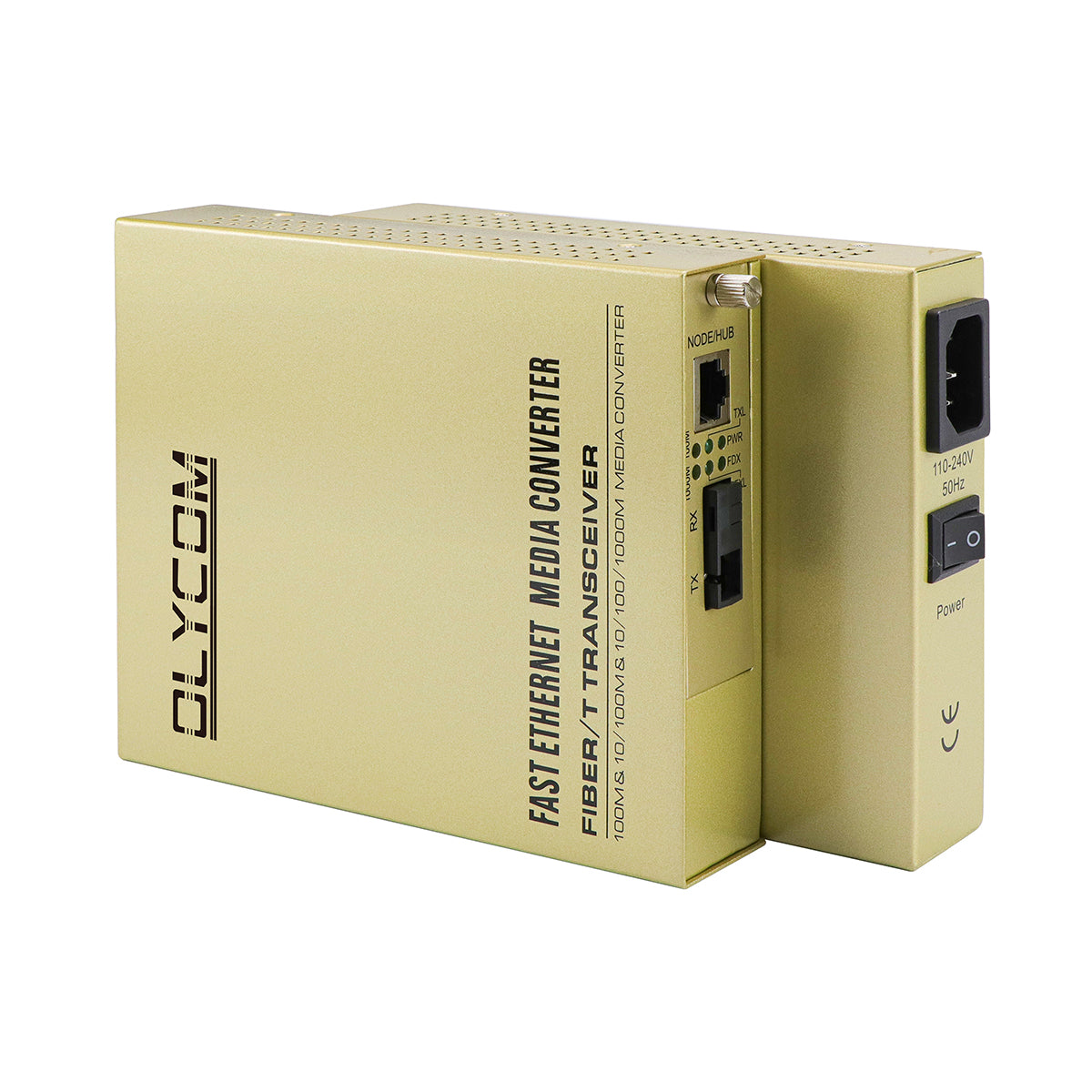

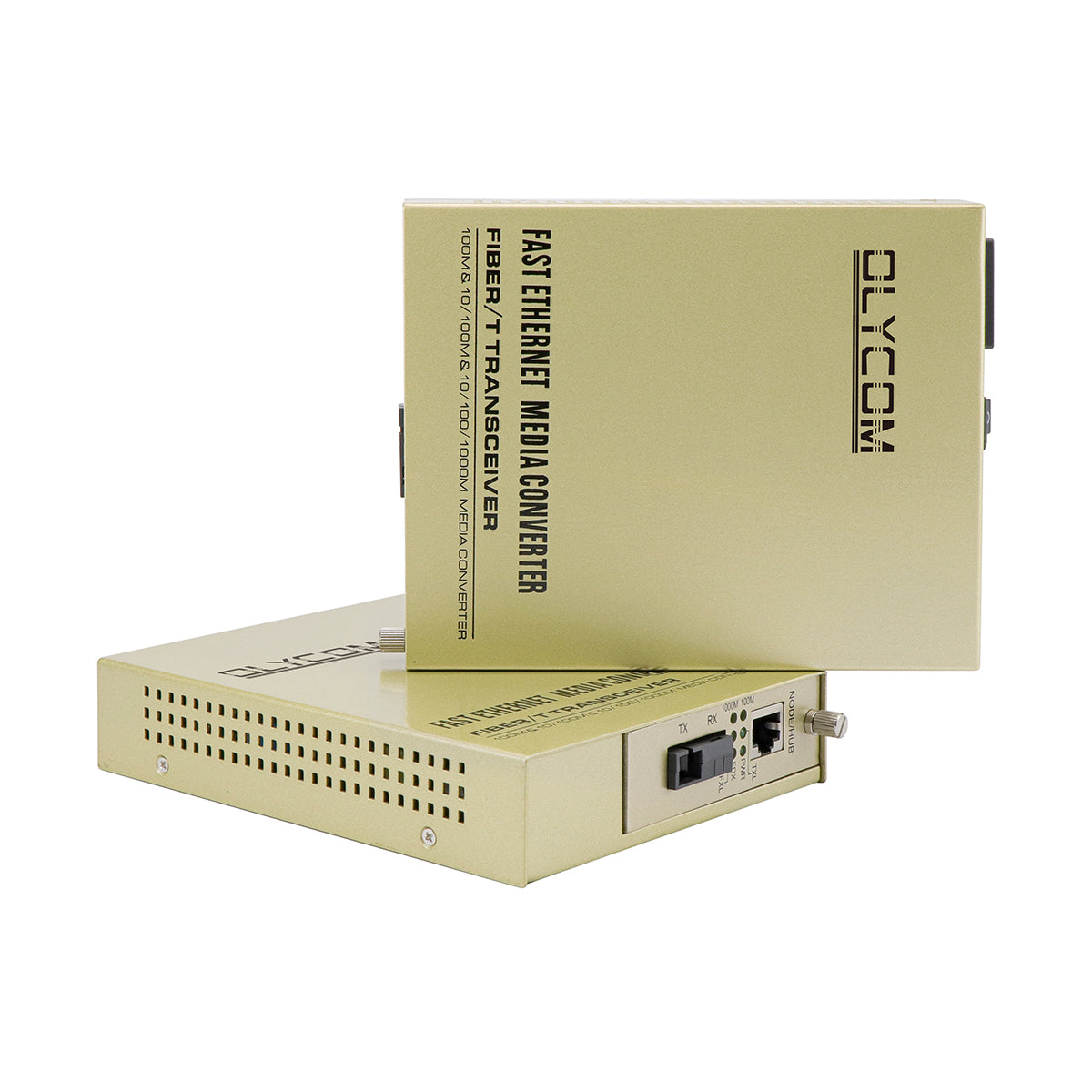

Olycom OM510-GE is a high-performance single-fiber Gigabit media converter designed to extend Ethernet transmission over distances ranging from 20 km to 120 km.
Using advanced Wavelength Division Multiplexing (WDM) technology, it enables bidirectional data transmission through a single strand of fiber, significantly reducing fiber deployment costs.
With built-in AC power, robust design, and compliance with IEEE Ethernet standards, the OM510-GE offers stable, low-latency, and high-bandwidth connectivity for enterprise and carrier networks.

Key Features
  • Single-fiber WDM transmission (1310/1550 nm) for long-distance, cost-efficient networking.
  • Supports 10/100/1000Mbps auto-negotiation and auto-MDI/MDIX.
  • Store-and-forward (<10 µs) or cut-through (<0.9 µs) switching for optimized performance.
  • 10K jumbo frame support, AVB compatibility, and full link-fault pass-through (LFPT).
  • Internal AC100–240V power supply with low power consumption (<2.5W) and MTBF >50,000 hours.
  • Flexible deployment with SC fiber interface (ST/FC optional).
  • Compliance with IEEE1588v2, VLAN, QoS, spanning tree, and energy-efficient Ethernet (802.3az).

Applications
  • Telecommunication and ISP Networks — Extends backbone links and metro-access connections using minimal fiber resources.
  • Campus & Enterprise Interconnection — Connects remote buildings, departments, and data centers with high-speed fiber.
  • Public Security & Surveillance — Provides stable backhaul for HD video transmission across large monitoring zones.
  • Education, Office & Commercial Facilities — Ideal for high-bandwidth, low-latency connectivity in schools, offices, and internet cafés.
  • Industrial & Utility Networks — Ensures reliable data communication in electrically noisy environments where copper Ethernet is limited.
