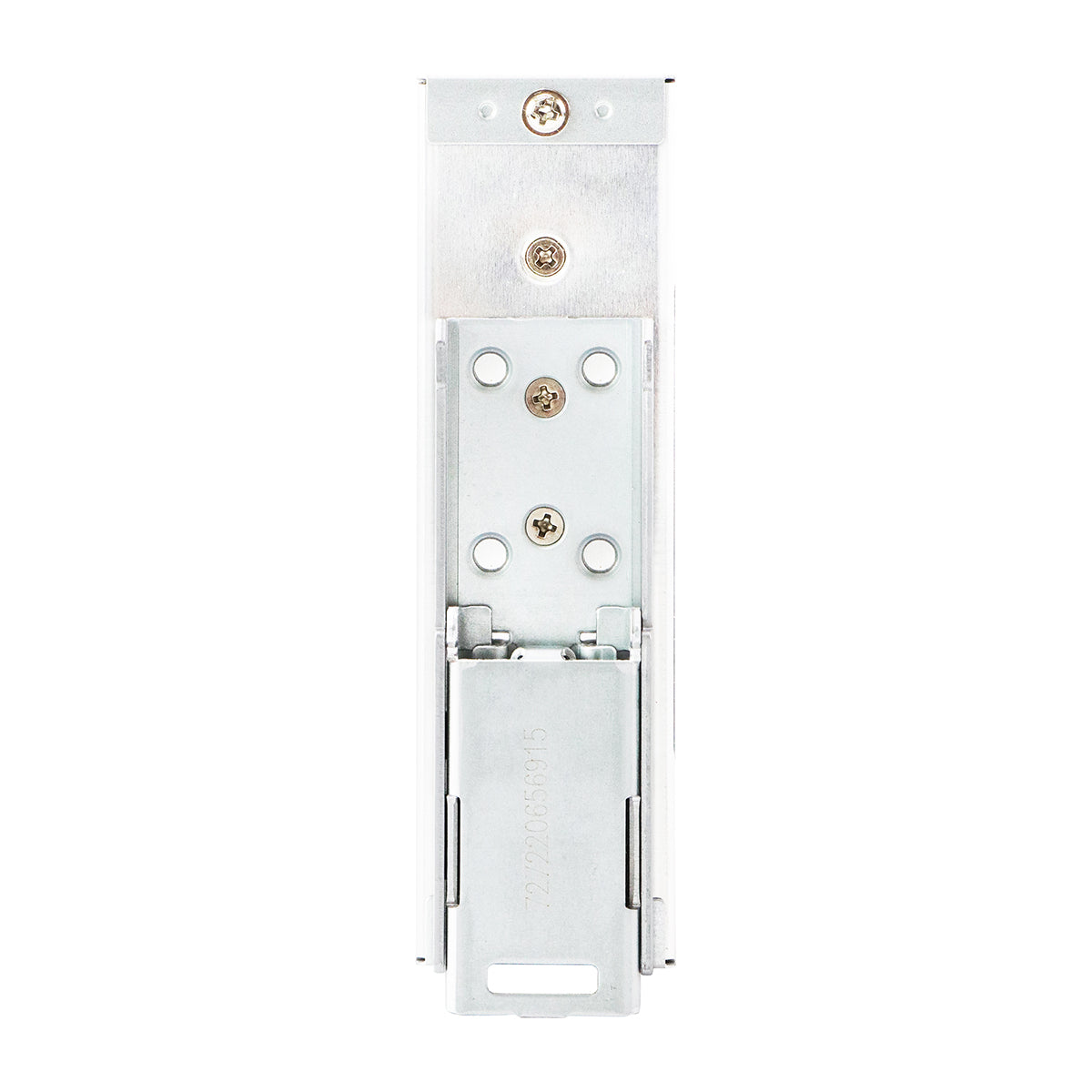

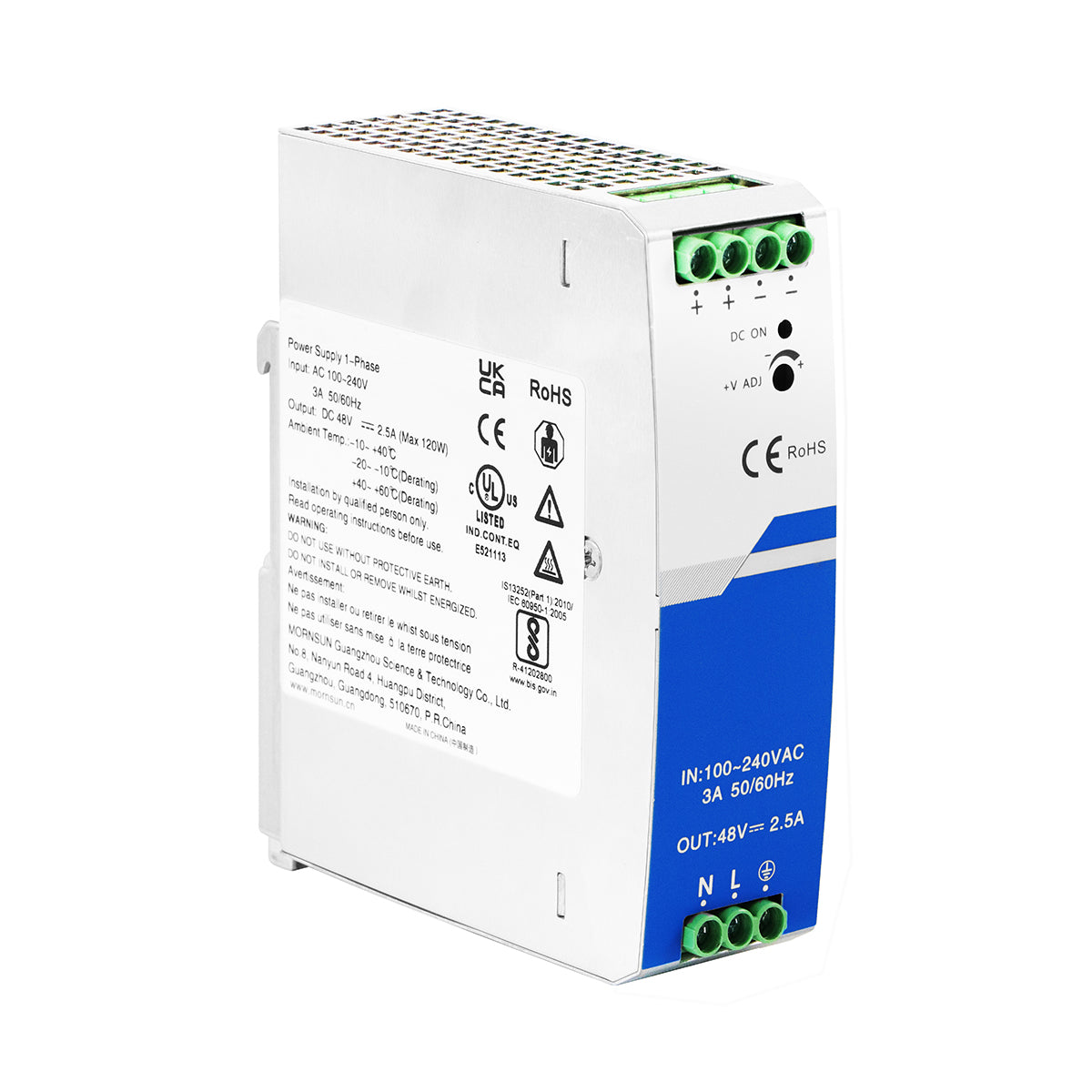

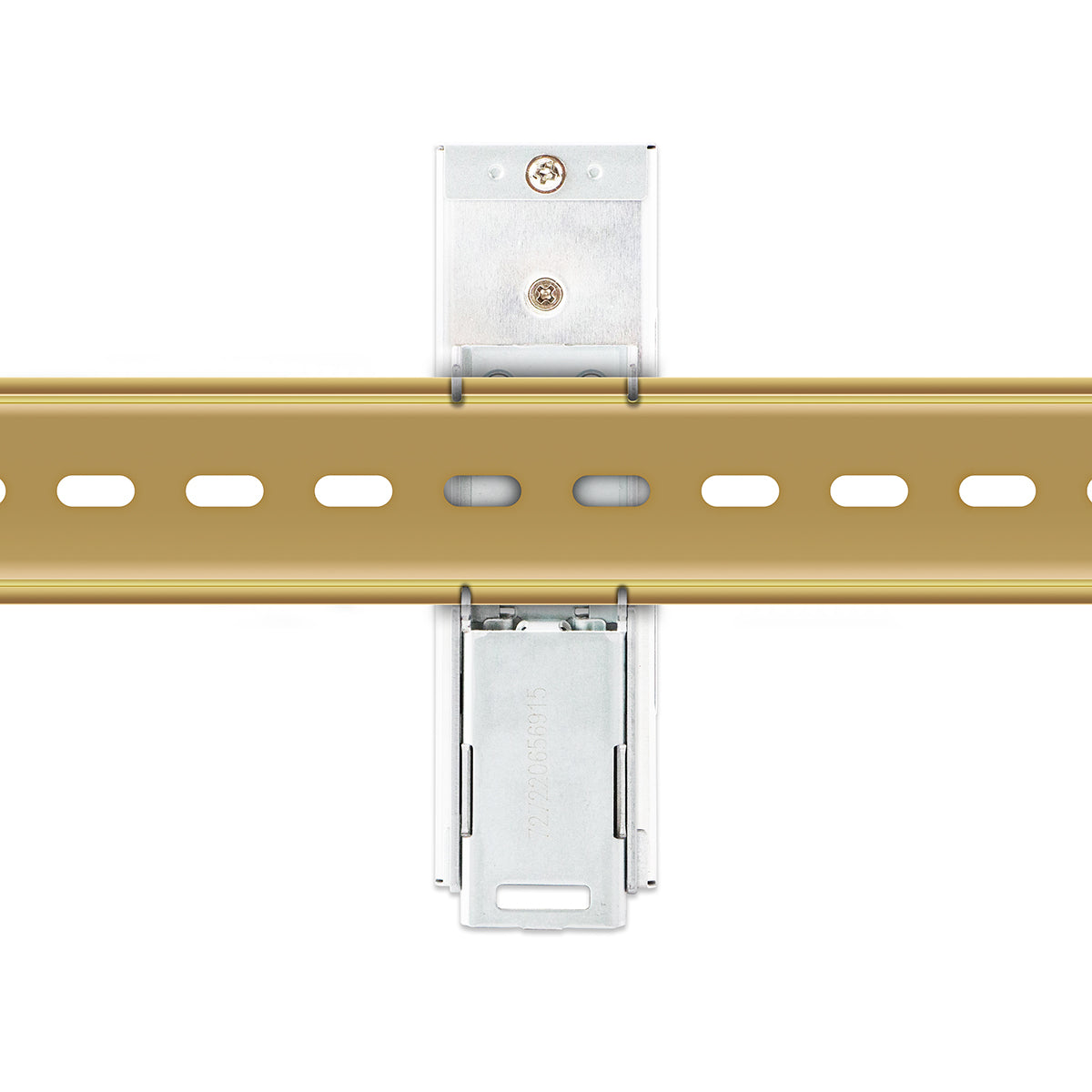

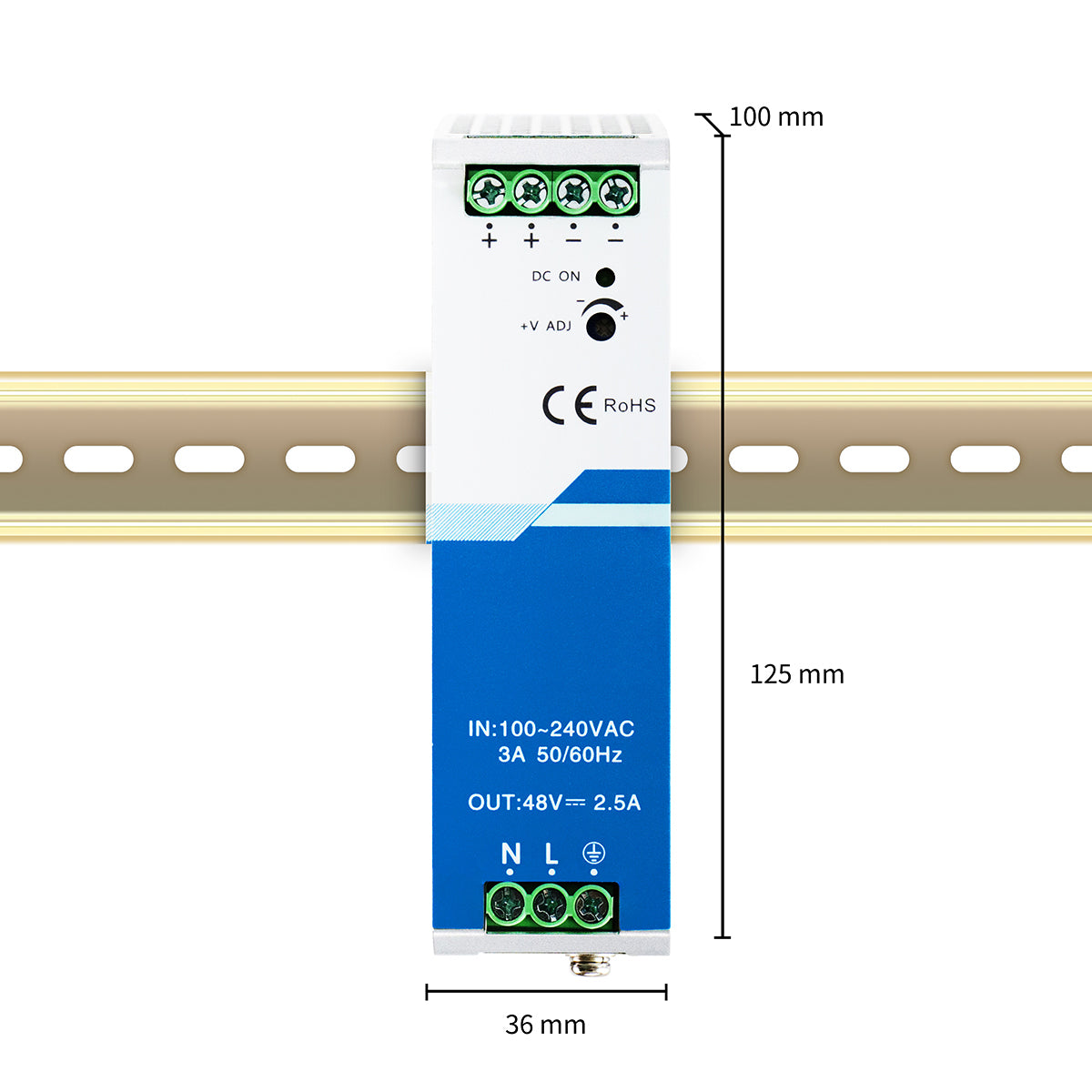

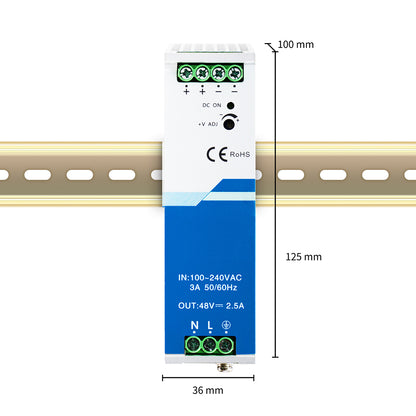

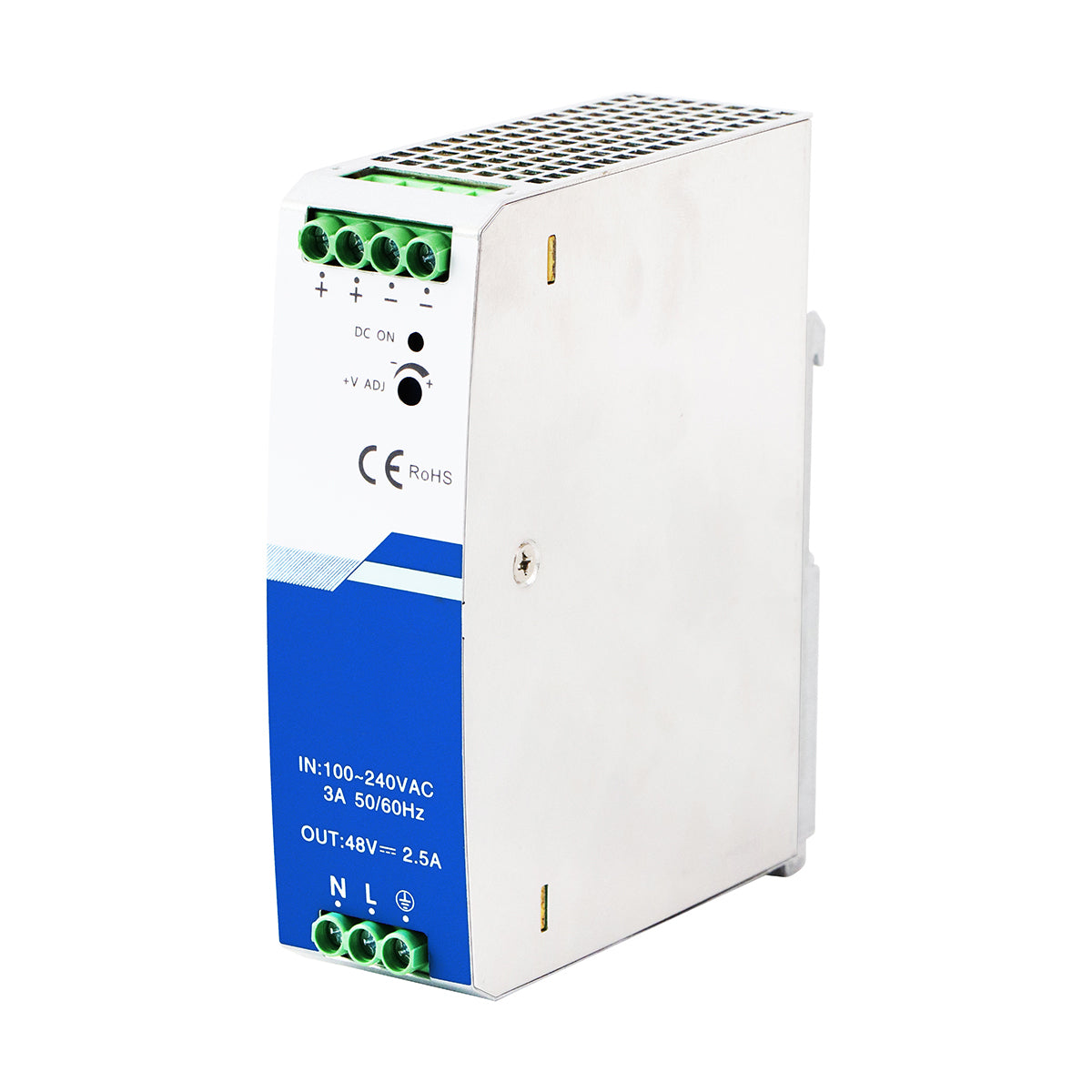

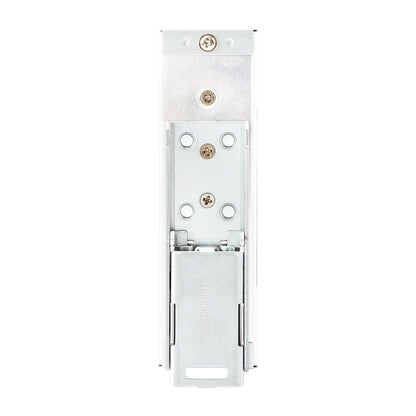

IM-DAC220/DC48V2.5A is a cost-effective and energy efficient DIN-rail mounted power supply converting AC220V to DC48V for industrial PoE switches or industrial automation
Universal 85 - 264VAC or 120 - 370VDC Input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -40℃ to +70℃
High efficiency up to 94%, high reliability
DC OK function
Active PFC
150% peak load output for 3 seconds
DC ON output status indicator LED
Output short circuit, over-current, over-voltage, over-temperature protection
Operating altitude up to 5000m
OVCⅡ
Indoor use
Safety according to IEC/UL/BS EN 62368
With good EMC performance, immunity to noise and reliability, it could ensure stable and continuous operation of the automation system
