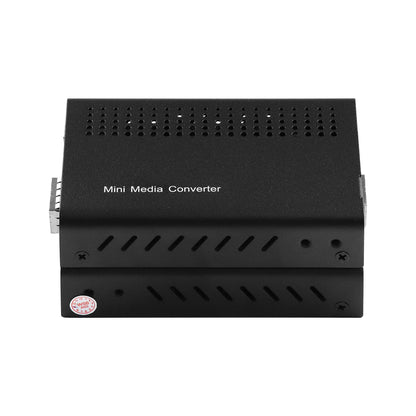

10G SFP+ Fiber Media Converter RJ45 to SFP Multi-Speed 10Mb/s to 10G Mini Size

10G SFP+ Fiber Media Converter RJ45 to SFP Multi-Speed 10Mb/s to 10G Mini Size

$99.99 USD
$109.99 USD $99.99 USD
Sale Sold out
Olycom 10G Mini Media Converter is a compact optical–electrical conversion device that supports transmission rates up to 10Gbps.
It enables seamless signal regeneration, amplification, and optical-to-electrical conversion over long distances using DWDM/CWDM technology, allowing multiple optical signals to be transmitted through a single fiber.

Key Features
  • High-Speed Multi-Rate Support – Compatible with 10M / 100M / 1.25G / 2.5G / 5G / 10G Ethernet speeds for maximum flexibility.
  • Versatile Interface Design – Converts between RJ45 copper and SFP/SFP+ fiber interfaces, supporting 10GBase-T and 10GBase-SR/LR/ER/ZR standards.
  • Extended Transmission Distance – Works with optical modules up to 40km (SFP) or 80km (SFP+), ideal for long-distance data transport.
  • Advanced Function Control – Built-in DIP switches for LFP (Link Fault Pass-Through), ALS (Automatic Laser Shutdown), and Media Conversion Mode configuration.
  • High Forwarding Performance – 14.88Mpps packet forwarding rate with 2K MAC address table and 10K jumbo frame support.
  • LED Status Indicators – Real-time monitoring for power, link, speed, and fiber activity for simplified diagnostics.
  • Compact & Durable Design – Rugged IP30-rated metal housing (60×20×90mm) ensures reliable operation in harsh environments.
  • Energy Efficient & Low Power – Operates with DC 5–12V external power supply, power consumption ≤5W.
  • Flexible Mounting Options – Can be used as a standalone converter or installed in a 1U rackmount 12-slot chassis for centralized management.
  • Industry-Grade Reliability – Operating temperature 0°C to +50°C, CE/FCC/RoHS certified, supporting stable 24/7 operation.

Applications
  • Fiber-to-Copper Conversion – Seamless connection between copper-based and optical Ethernet equipment across 1G–10G networks.
  • Enterprise Backbone Networks – Extends fiber connectivity between core switches, routers, and high-performance servers.
  • Data Centers & SAN/LAN/MAN Networks – Provides high-bandwidth fiber uplink for storage, access, and aggregation layers.
  • Telecommunication & R&D Facilities – Enables long-range data transmission and testing over single-mode or multimode fiber.
  • Video Surveillance & Security Systems – Supports stable, high-speed transmission for 4K/8K IP camera networks.
  • Industrial & Utility Networks – Reliable and compact media conversion for automation, control systems, and smart grid
