10-Port PoE Switch Full Gigabit Ethernet Single AC Powered Rack Mounted CE

10-Port PoE Switch Full Gigabit Ethernet Single AC Powered Rack Mounted CE

$49.99 USD
$59.99 USD $49.99 USD
Sale Sold out
Introduction

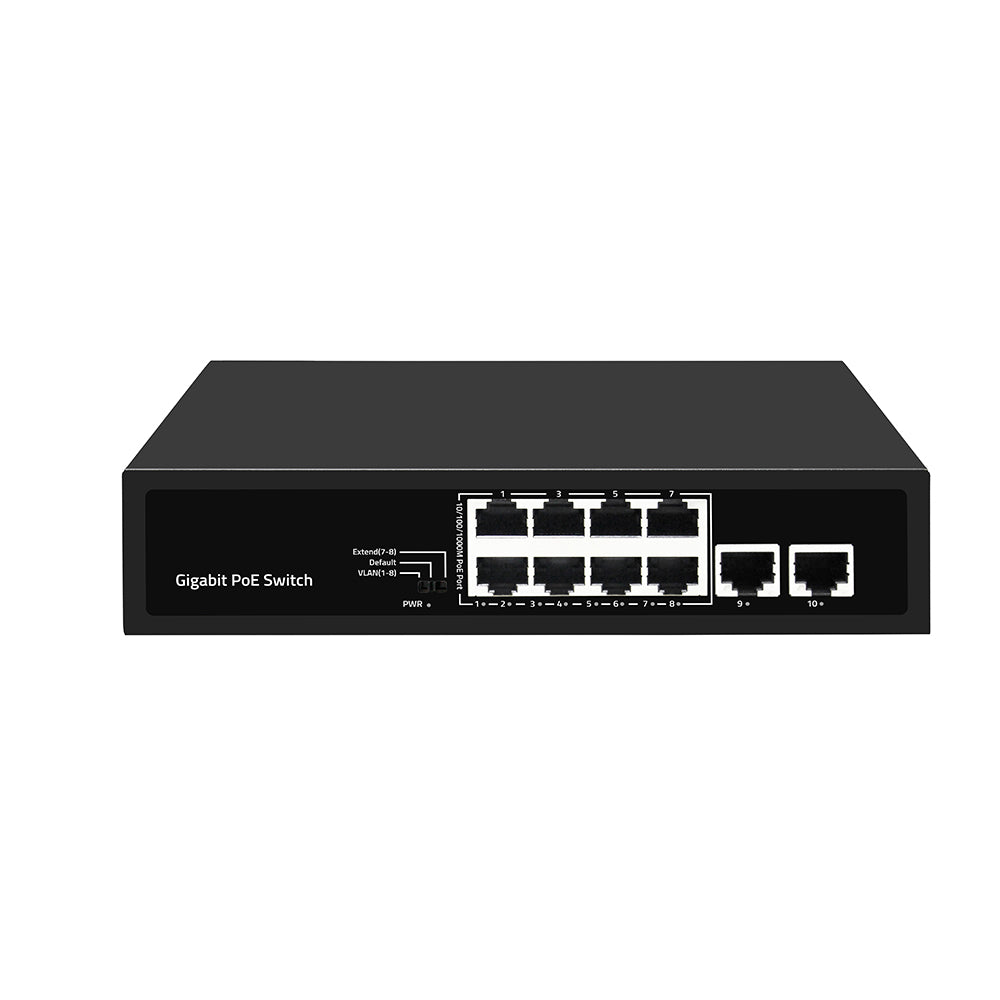

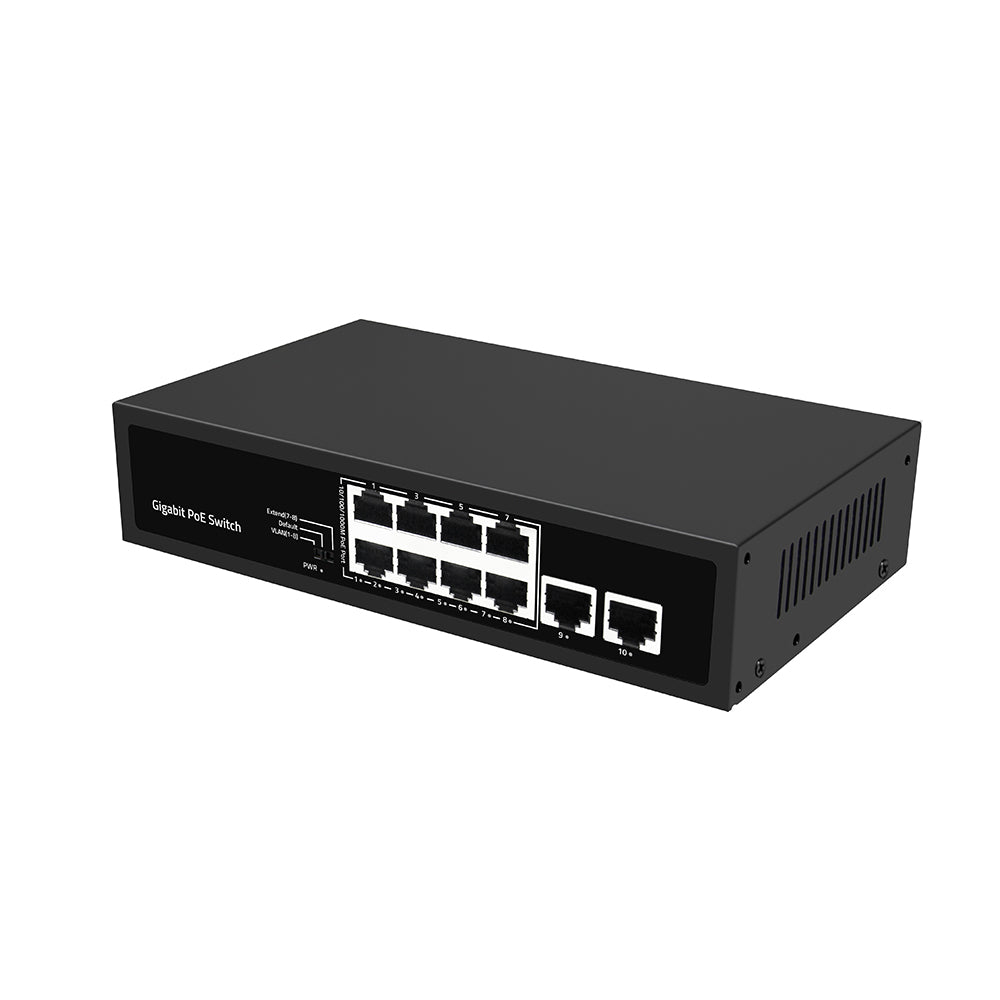

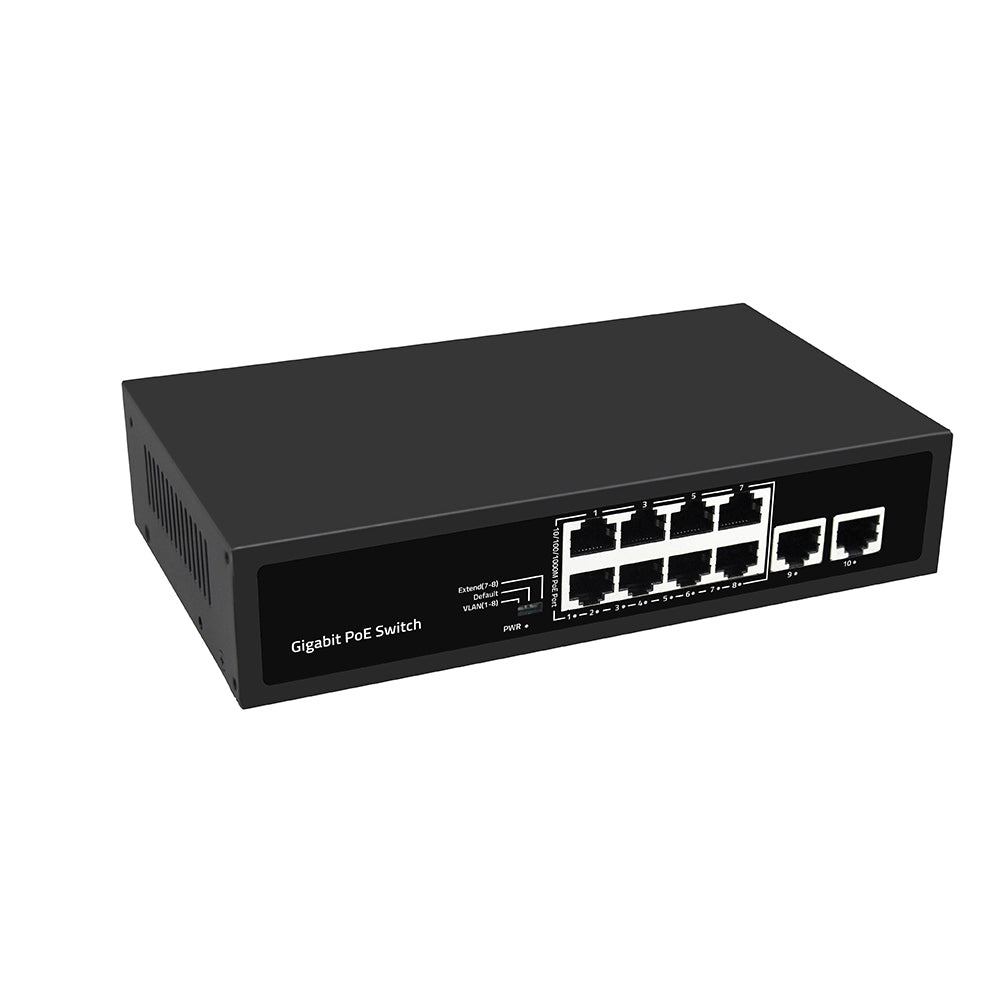

  • The Olycom OM01008-PSE-GE is a 10-port unmanaged Gigabit PoE switch that steps up where Fast Ethernet access switches leave off — delivering full 1000Mbps throughput on every port, a 110W PoE budget across 8 × IEEE 802.3af/at ports, and a 20Gbps non-blocking switching fabric in a plug-and-play platform that requires zero configuration to deploy.
  • Where the Fast Ethernet equivalent suits legacy camera and phone infrastructure, the OM01008-PSE-GE is built for the current generation of network endpoints: Wi-Fi 6 APs, 4K IP cameras, multi-stream NVRs, and high-power VoIP systems that demand Gigabit access speeds and stable PoE delivery simultaneously.
  • Three DIP switch–selectable modes — Default, VLAN isolation, and Extend (250m @ 10Mbps) — give installers meaningful control over security segmentation and cable-distance constraints without touching a management interface, while intelligent power priority automatically protects higher-priority endpoints when total PoE draw approaches the budget ceiling.

Key Features

  • 8 × 10/100/1000Mbps PoE Ports + 2 × Gigabit Uplink Ports — Eight full-Gigabit PoE access ports for powered endpoints, plus two dedicated Gigabit uplinks for high-throughput connection to the core switch or router; all ports auto-negotiate speed and duplex independently
  • IEEE 802.3af/at Dual-Mode PoE, 110W Total Budget — Per-port auto-detection delivers 15.4W (af) or 30W (at) based on each connected device’s standard; intelligent power priority automatically manages budget allocation when aggregate demand approaches 110W
  • Three DIP Switch Operating Modes:
  • Default Mode — Full-speed Gigabit transmission up to 100m; all ports communicate freely with maximum PoE delivery
  • VLAN Mode — Isolates every access port from its neighbors while maintaining shared uplink connectivity; enforces client separation in surveillance networks, hospitality deployments, and shared-access environments without a managed switch
  • Extend Mode — Drops to 10Mbps to push PoE transmission range to 250m over Cat5e/6; eliminates the need for additional extenders or media converters at distant endpoints
  • 20Gbps Switching Capacity / 14.88Mpps Forwarding Rate — Non-blocking wire-speed performance across all ten ports simultaneously; 448K memory buffer absorbs traffic bursts without frame drops under peak load
  • Intelligent Power Priority — Automatically ranks and protects higher-priority PoE ports when total demand approaches budget ceiling; prevents lower-priority endpoints from starving critical devices of power during load spikes
  • Zero-Configuration PoE Supply — Plug in and it works; no IP address, no software, no management overhead; adaptive device recognition identifies PoE vs. non-PoE endpoints per port automatically
  • Auto MDI/MDIX on All Ports — Connects any device with any cable type; crossover cables never required
  • IEEE 802.3x Flow Control — Prevents packet loss under high traffic load in full duplex environments
  • Store-and-Forward Switching — Full frame integrity verification before forwarding; eliminates error propagation across the network
  • Full Panel LED Indicators — Per-port link, speed, and PoE status LEDs provide instant visual fault diagnosis without management access
  • -10°C to +50°C Operating Temperature — Suitable for unconditioned wiring closets, retail back-of-house spaces, and light industrial environments
  • CE / FCC / RoHS Certified — Meets international electromagnetic compatibility, safety, and environmental compliance standards

Applications

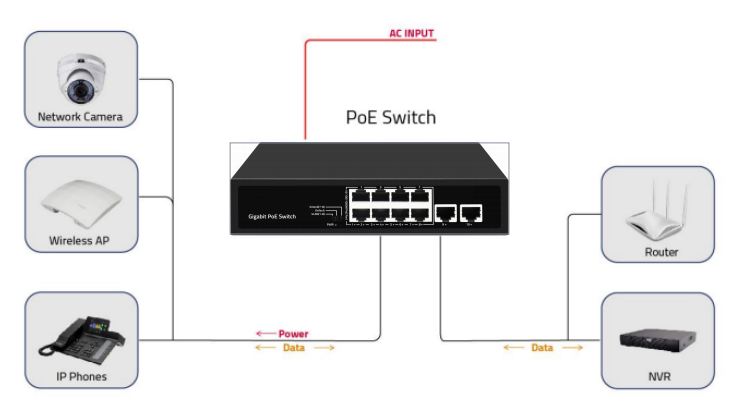

  • IP Surveillance & Security Networks — The combination of 8 Gigabit PoE ports, VLAN isolation mode, and 250m Extend mode makes the OM01008-PSE-GE a purpose-built access switch for medium-scale camera deployments. VLAN mode prevents lateral camera-to-camera traffic — a security best practice that contains compromised devices to individual ports — while Extend mode reaches cameras at entry points, parking structures, and perimeter locations well beyond standard 100m copper limits. Intelligent power priority keeps the most critical cameras powered even when total PoE demand spikes
  • Wi-Fi 6 & Wireless Infrastructure Deployments — Modern Wi-Fi 6 and Wi-Fi 6E APs increasingly ship with Gigabit or 2.5G uplink ports that Fast Ethernet switches simply cannot feed at full speed. The OM01008-PSE-GE ensures AP uplinks are never bottlenecked, delivering simultaneous Gigabit data and 802.3at PoE power through a single Cat5e cable to ceiling-mounted APs across offices, hotels, schools, and retail floors
  • Enterprise SMB & Branch Office Networks — Serves as a high-performance access-layer switch powering VoIP phones, wireless APs, IP cameras, and networked devices across small-to-medium offices and branch locations where a fully managed switch adds unnecessary complexity. The 20Gbps switching fabric and dual Gigabit uplinks ensure the switch never becomes a bottleneck, even under simultaneous full-load traffic from all eight connected endpoints
  • Hotels & Hospitality Environments — VLAN mode meets the guest isolation requirement for hospitality Wi-Fi without requiring a managed platform. Each guest-facing AP port is isolated from all others while sharing the uplink to the property network, preventing guest-to-guest traffic at the switch level. The Gigabit access speed supports demanding in-room services — 4K IPTV, video conferencing, and high-speed internet — simultaneously across all connected APs
  • Education & Campus Facilities — Powers IP cameras, wireless APs, VoIP phones, and interactive display systems across classrooms, corridors, and administrative areas from a standardized, easy-to-deploy platform. Extend mode is particularly valuable in older school buildings where network closets are far from certain classrooms or outdoor areas, enabling PoE device placement without additional infrastructure investment
  • Government & Public Sector Infrastructure — Provides reliable, certified Gigabit PoE access for IP terminals, access control systems, surveillance cameras, and VoIP communications across government offices, public safety facilities, and civic buildings where uptime, security separation, and standards compliance are all required simultaneously
  • Industrial & Manufacturing Environments — Connects IP cameras, wireless APs for mobile device and barcode scanner connectivity, and IP intercoms across production floors, logistics warehouses, and light industrial facilities. The -10°C lower temperature limit covers unheated storage areas and loading dock environments where standard commercial switches derate or fail
  • Multimedia & Unified Communications — Powers and connects video conferencing endpoints, IP phones, and IPTV set-top boxes across corporate meeting rooms, distance learning classrooms, and broadcast facilities where simultaneous high-bandwidth video and voice traffic require both Gigabit access speed and QoS-aware PoE priority management
