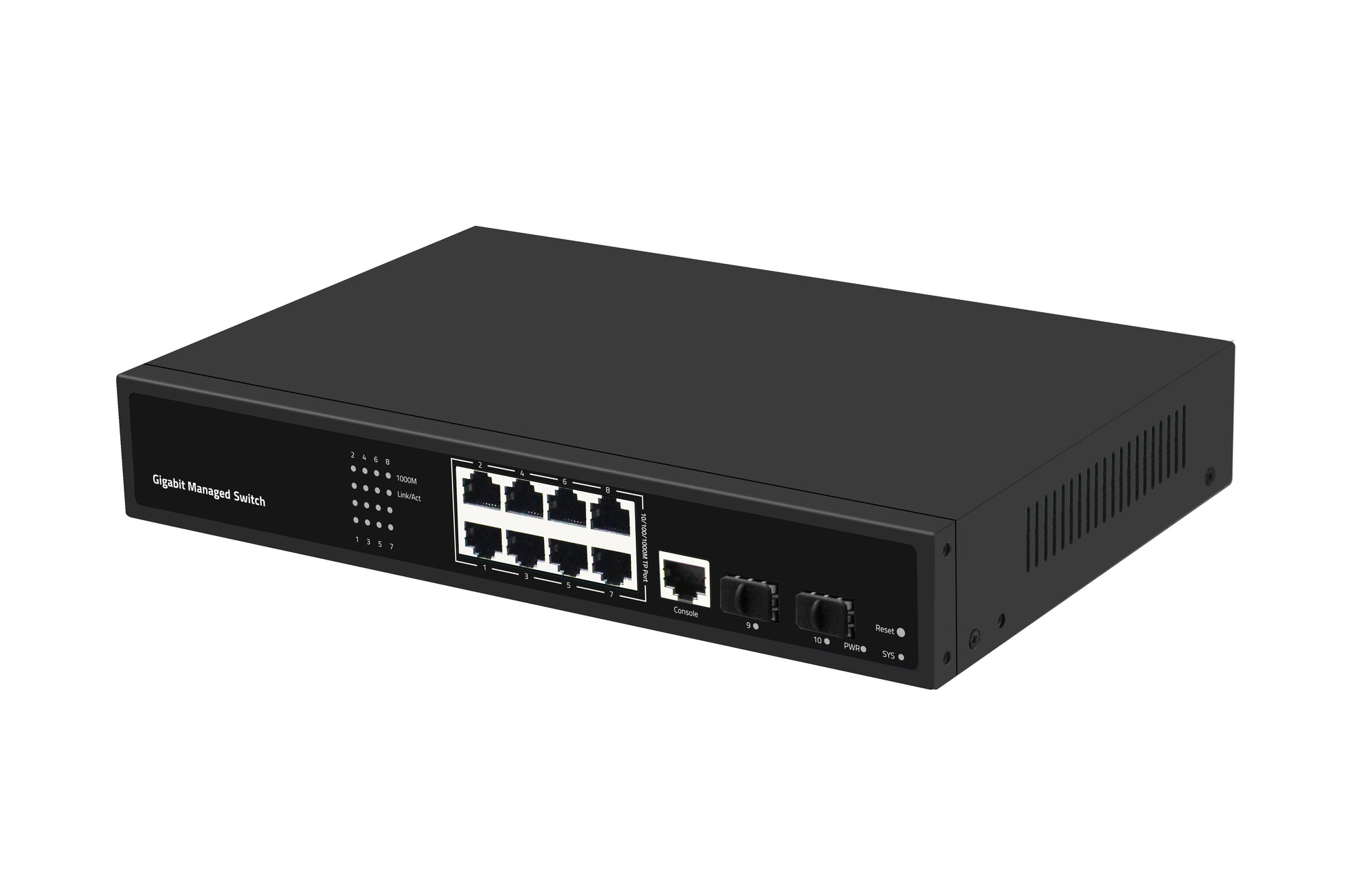

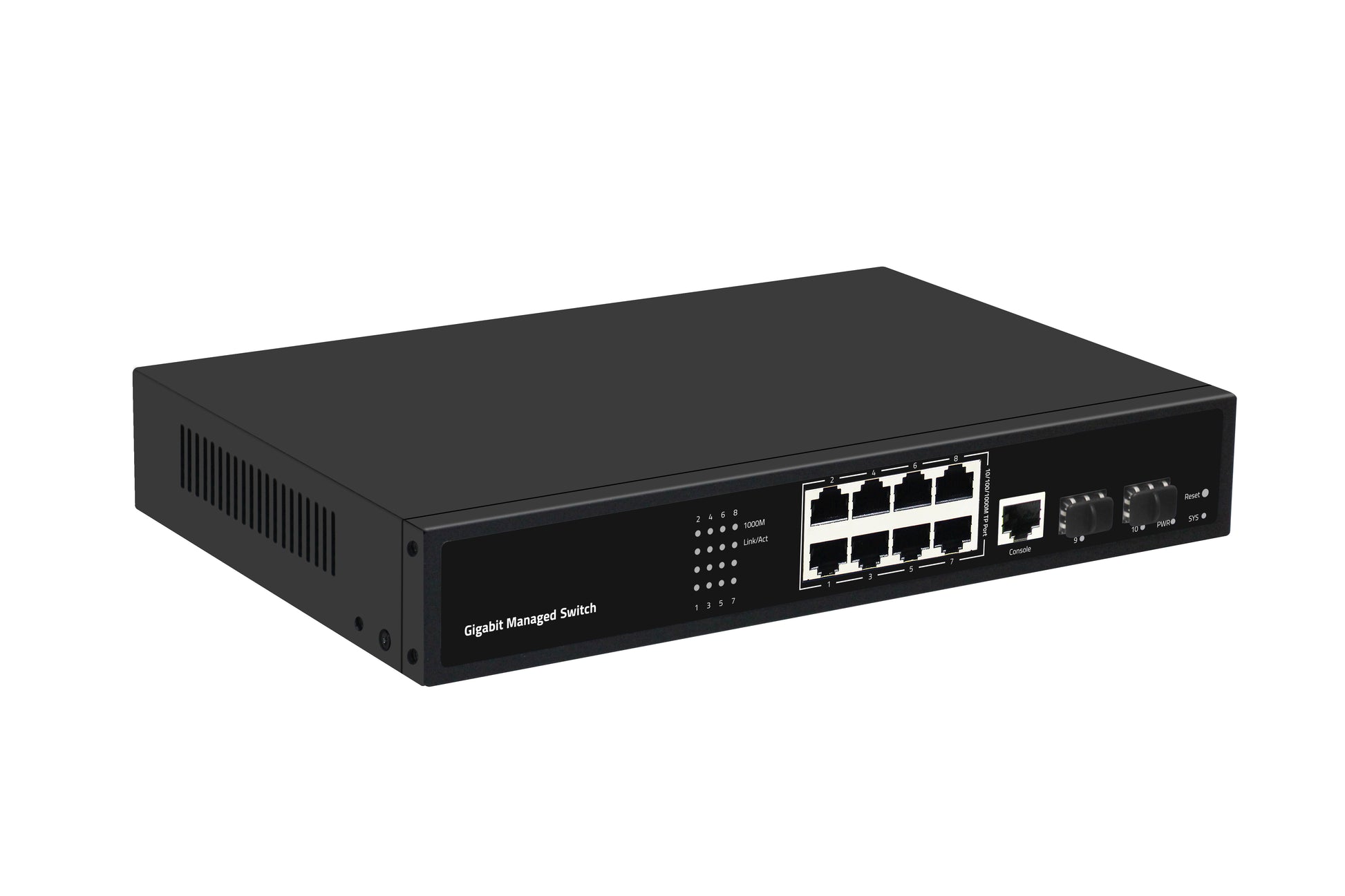

10-Port Full Gigabit Managed Ethernet Switch CCTV VLAN Fanless AC Input CE

Olycom OM280GW is an 8-port L2 managed Gigabit Ethernet switch designed for high-performance industrial and enterprise networks.

The compact fanless design and metal enclosure ensure reliable, silent operation, making the OM280GW ideal for deployment in office, industrial park, and smart surveillance environments.

Key Features

• High-Performance Architecture

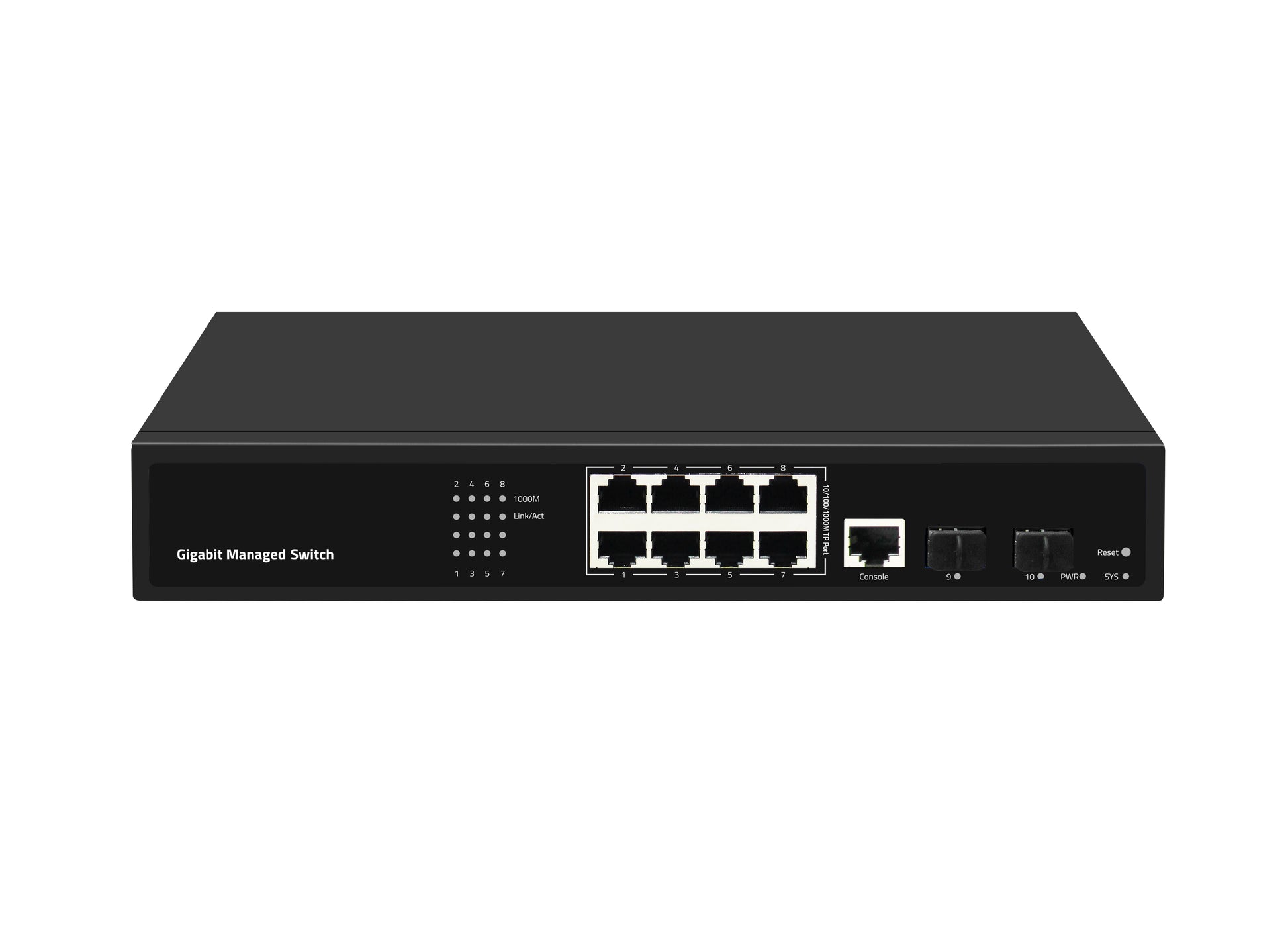

8× 10/100/1000Mbps auto-sensing RJ45 ports + 2× 1G SFP fiber uplinks + 1 console port

20Gbps switching capacity, 14.88Mpps forwarding rate, and 4Mbit buffer

IEEE 802.3/802.3u/802.3ab/802.3z compliant; full/half-duplex and flow control support

Store-and-forward switching mode prevents error propagation for stable data transmission

• Advanced Layer 2/3 Management

VLAN: Access/Trunk/Hybrid, Voice VLAN, Surveillance VLAN, Protocol VLAN, Q-in-Q tunneling

STP/RSTP/MSTP, LACP link aggregation (up to 8 groups), and loopback detection

DHCP Server/Relay, IPv4/IPv6 static routing, ARP/ND management, and SNTP time sync

Port mirroring, storm control, port isolation, and MAC address filtering for traffic control

Supports LLDP/LLDP-MED for topology discovery and RMON (1,2,3,9) for remote monitoring

• QoS & Security Functions

QoS based on 802.1p, DSCP, IP TOS with 8 queues per port and WRR/Strict scheduling

802.1X authentication with RADIUS/TACACS+ AAA integration for secure access control

DHCP Snooping, Dynamic ARP Inspection, and DoS attack prevention

MAC/IP/IPv6 ACL filtering, IP Source Guard, and port-based security policies

• Management & Diagnostics

Web, CLI, Telnet, SSH, SNMP v1/v2c/v3, and HTTP/HTTPS management interfaces

System log, ping, traceroute, copper test, and firmware upgrade via console or Web

Dual image support, backup/restore configurations, and session management

LED indicators for PWR, SYS, LINK, and ACT for easy status monitoring

• Robust Design & Electrical Protection

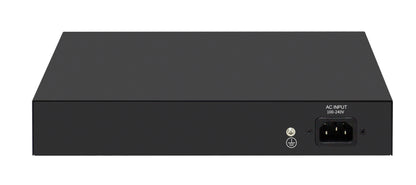

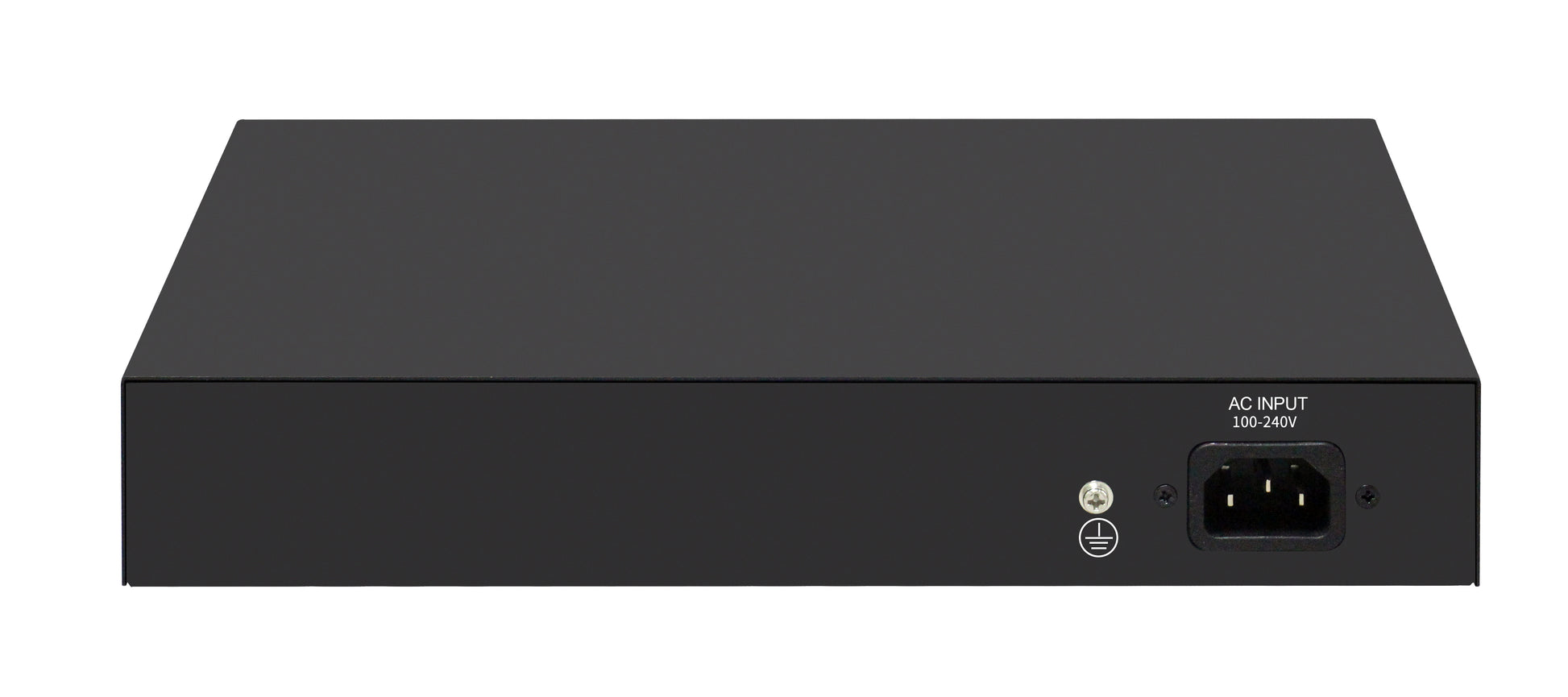

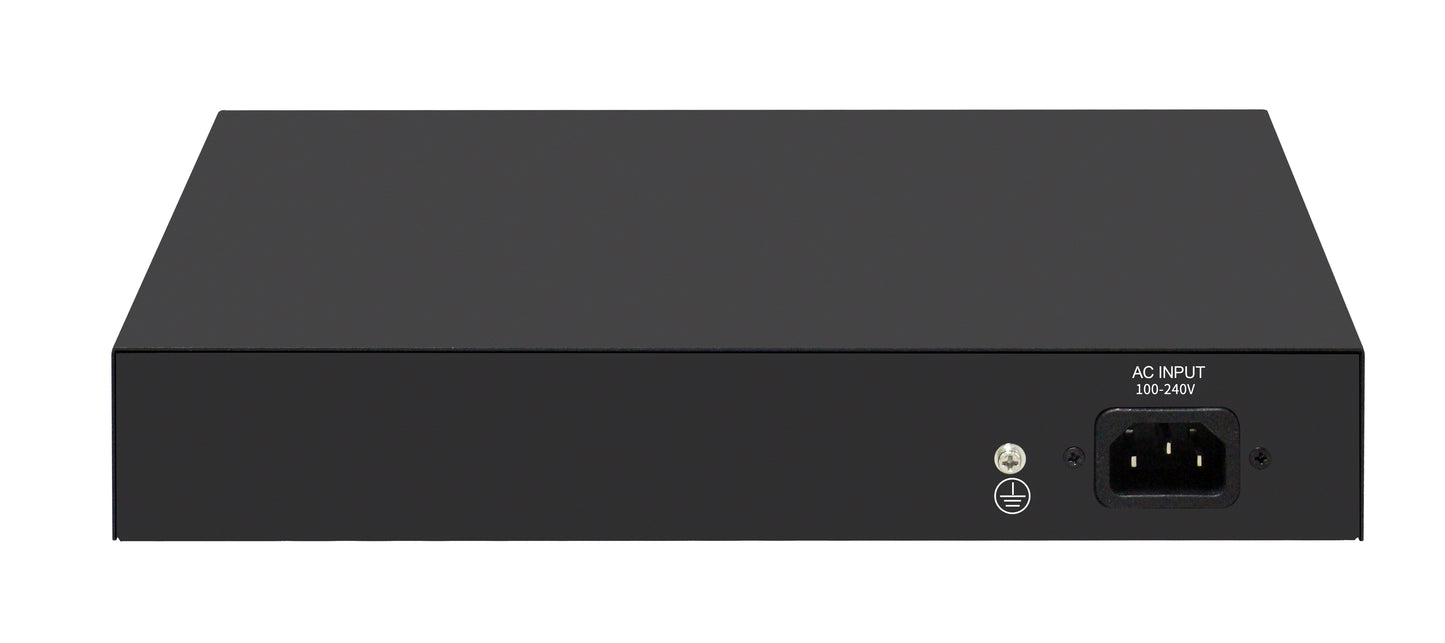

Input: AC100–240V, 50/60Hz; output: DC12V 2A, max power consumption 24W

Surge protection: 4kV (level B), ESD ±8kV air / ±6kV contact (level C)

Operating temperature: -10°C ~ +50°C; humidity: 10–90% RH non-condensing

Fanless design, MTBF >100,000 hours, and CE/FCC/RoHS certified for global standards

Dimensions: 268×181×44mm; net weight 1.01kg
