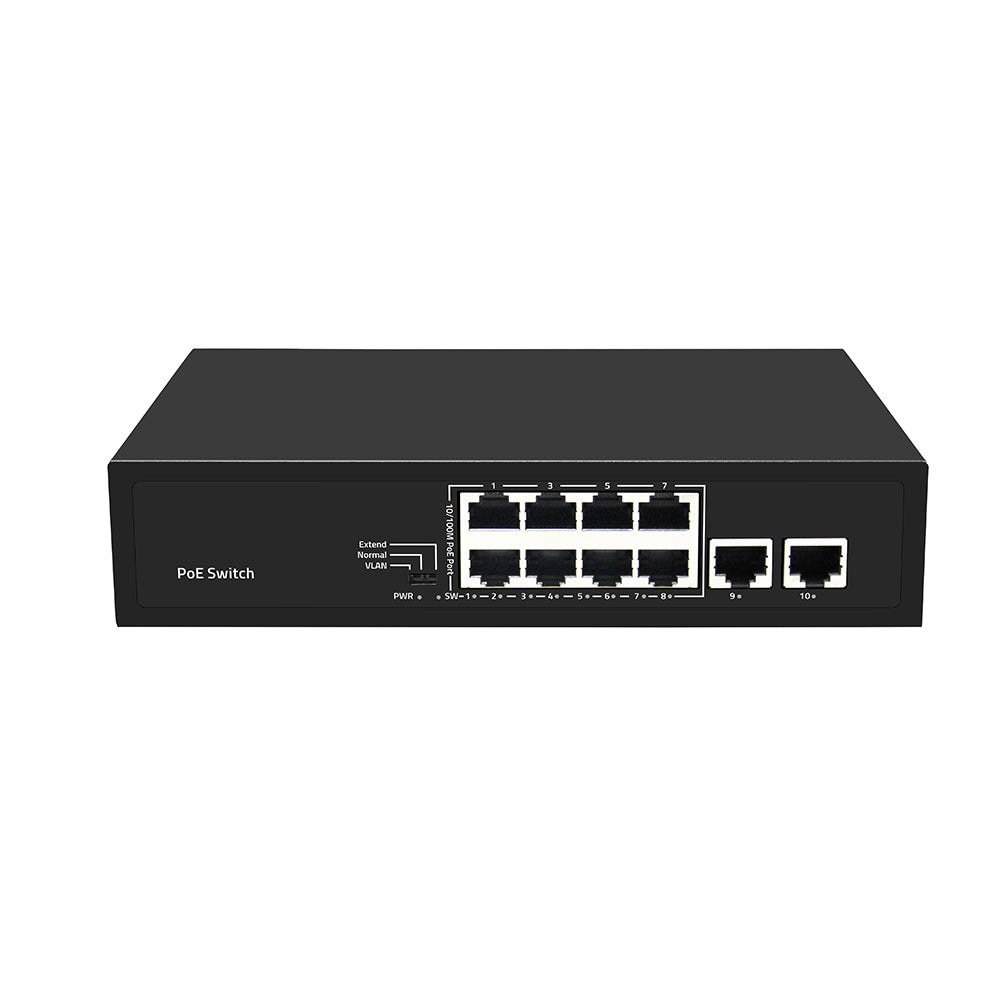

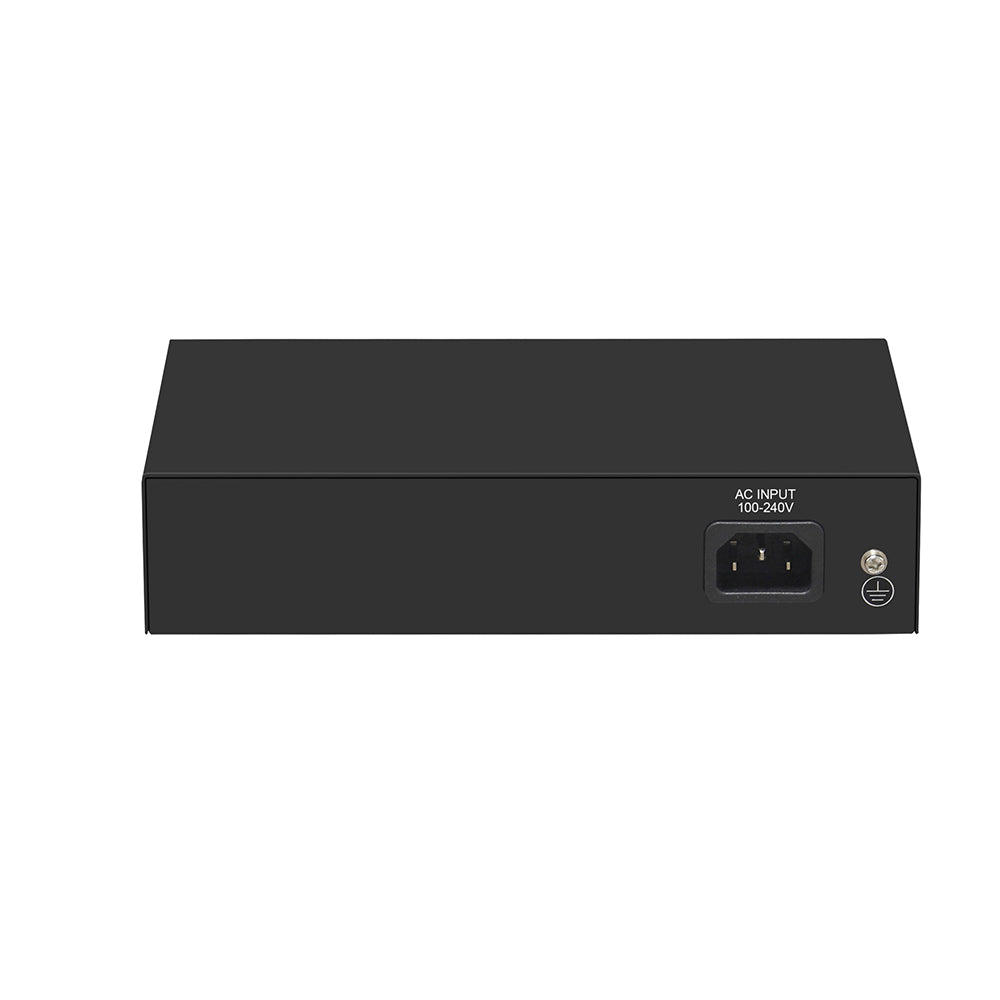

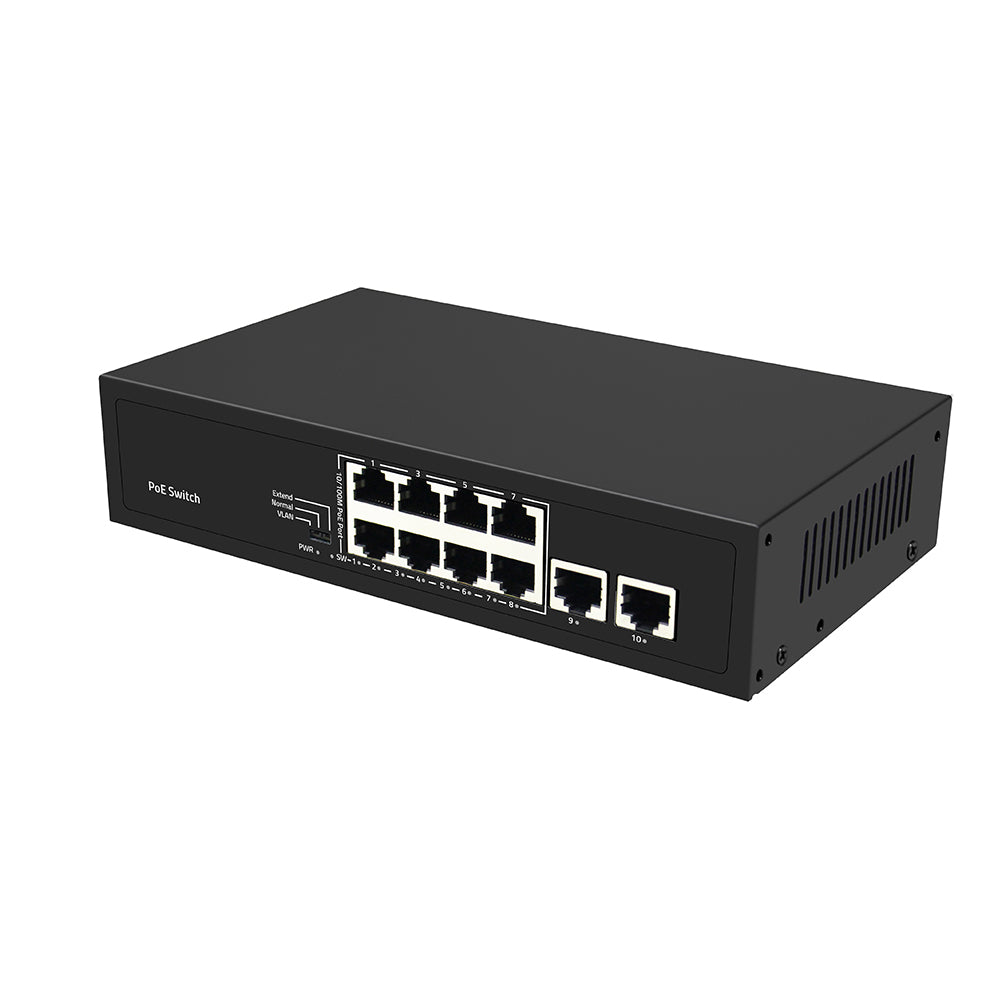

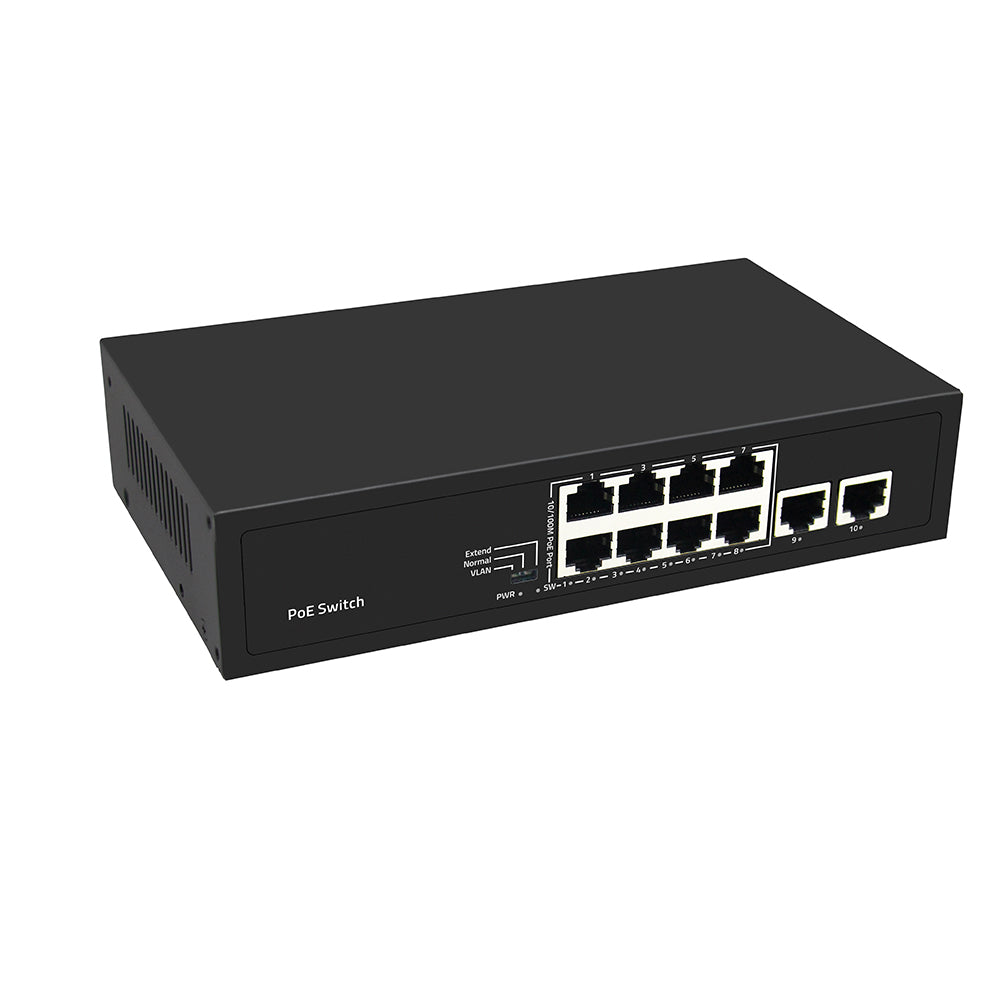

10 Port Fast Ethernet PoE Network Switch Gigabit Uplink 120W Unmanaged CE Approved

OM01008-PSE-FE (Olycom 100M Ethernet PoE Switch) features 8 port PoE af/at output to powered devices while only transmits data flow to non-PoE equipment.

Using high-speed network IC and stable PoE chip, it ensures good performance and seamless connection in CCTV monitoring and private networks.

Key Features

• Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards, 120W budget
• Metal case, fanless design, silent operation
• 8*10/100M PoE ports + 2*10/100M Ethernet Uplink ports
• Ethernet port supports 10/100M adaptive and PoE functions
• Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
• Support port auto flip (Auto MDI/MDIX)
• Automatically supplied to adaptive devices
• Panel indicator monitoring status and help failure analysis
• Support for VLAN mode, Normal mode and Extend mode
• Support chassis installation with mounting ears

Application

• IP cameras (used in video surveillance)
• VoIP phones
• Wireless access points (APs)
• IoT sensors
• Access control systems (like door readers or intercoms)

It is often located in the core or convergence layer of user networks such as industrial parks, buildings, factories and SMBs.
