10/100Mbps 15.4W 30W PoE Fiber Ethernet Media Converter

• SKU: Industrial PoE Media Converter IM-PC111FE
• 3-Year Warranty, 30-Day Returns, 30-Day Exchange
• Noted: Not including Power adapter and SFP transceiver
• GLOBAL TECH SUPPORT
• Packing List: 1pc 2-port Hardened Ethernet Fiber Optic Converter, 1pc User Manual, 1pc Warranty Card, 1pc 6-PIN Removable Terminal Block

Specification

• 1*100M SFP fiber, ideal to use SM/MM optical modules

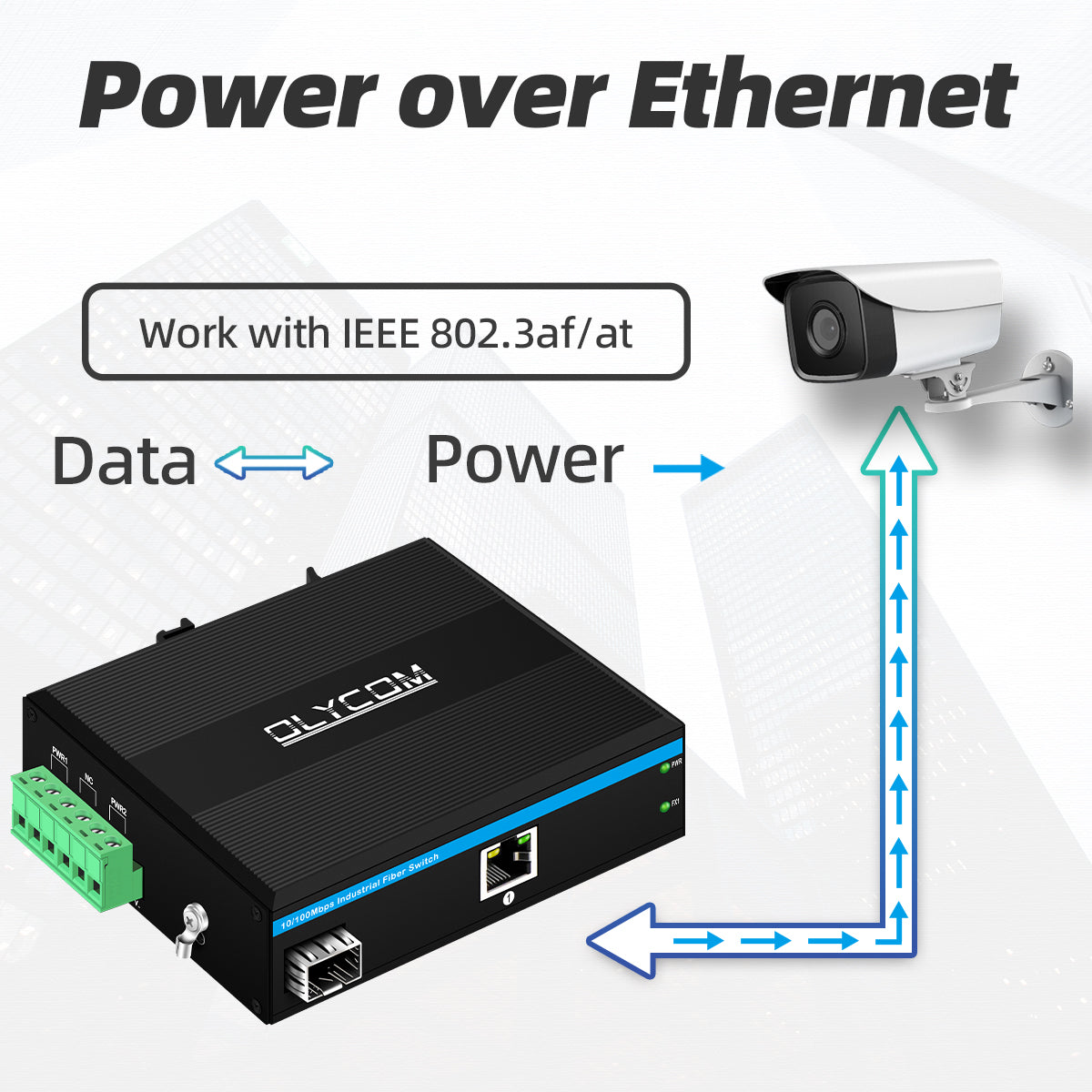

• 1*10/100M UTP RJ45 ports with PoE af/at compliance, 30W total budget
• 100-meter PoE distance, Active PoE DC48V output, 1/2(V+), 3/6(V-) PoE wiring

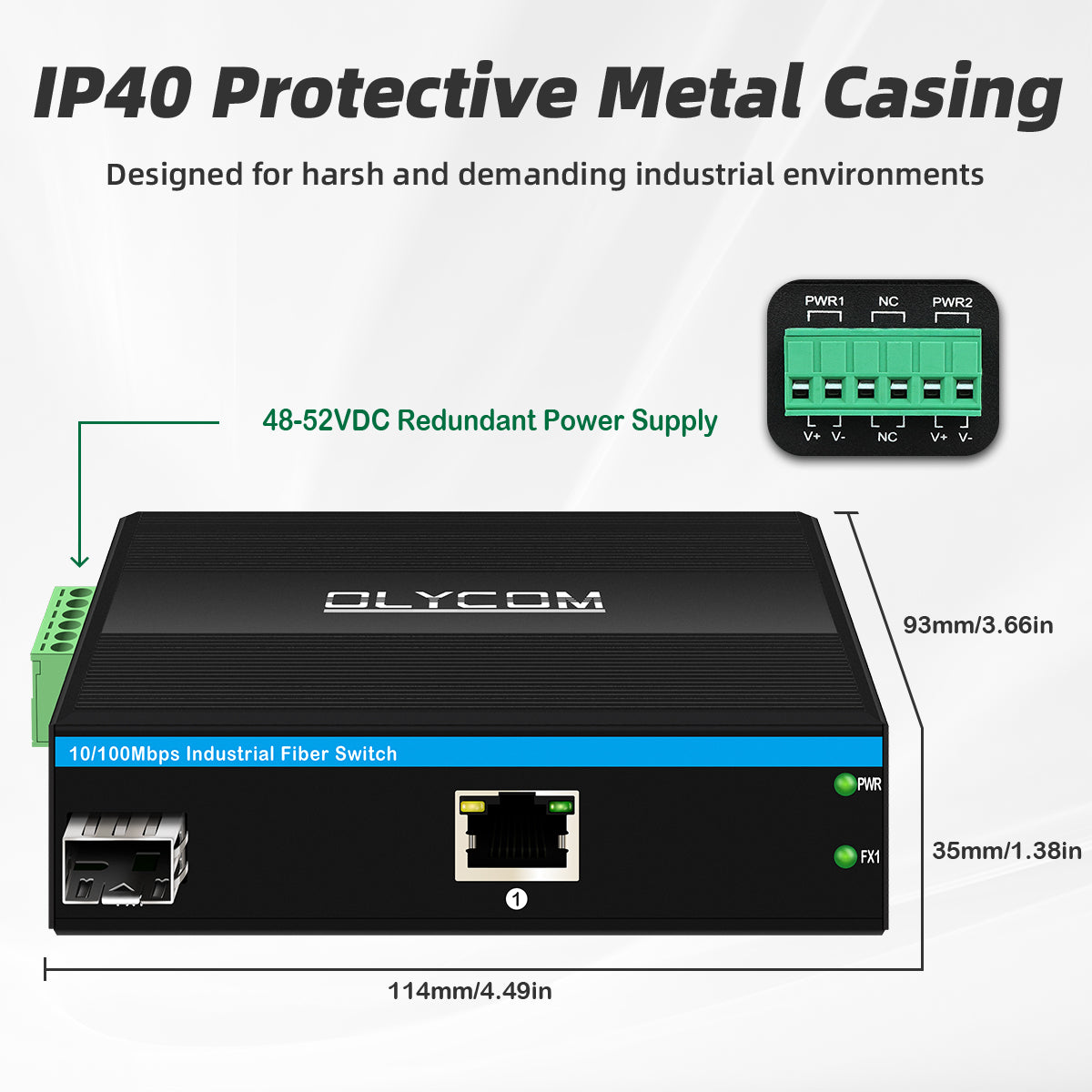

• Power: 48VDC redundant power, typically use DC48V0.67A or above power supply
• Support reverse connection
• Detect the PoE modes(Non-PoE, 802.3af/at compliant) of connected devices, avoid burning PDs

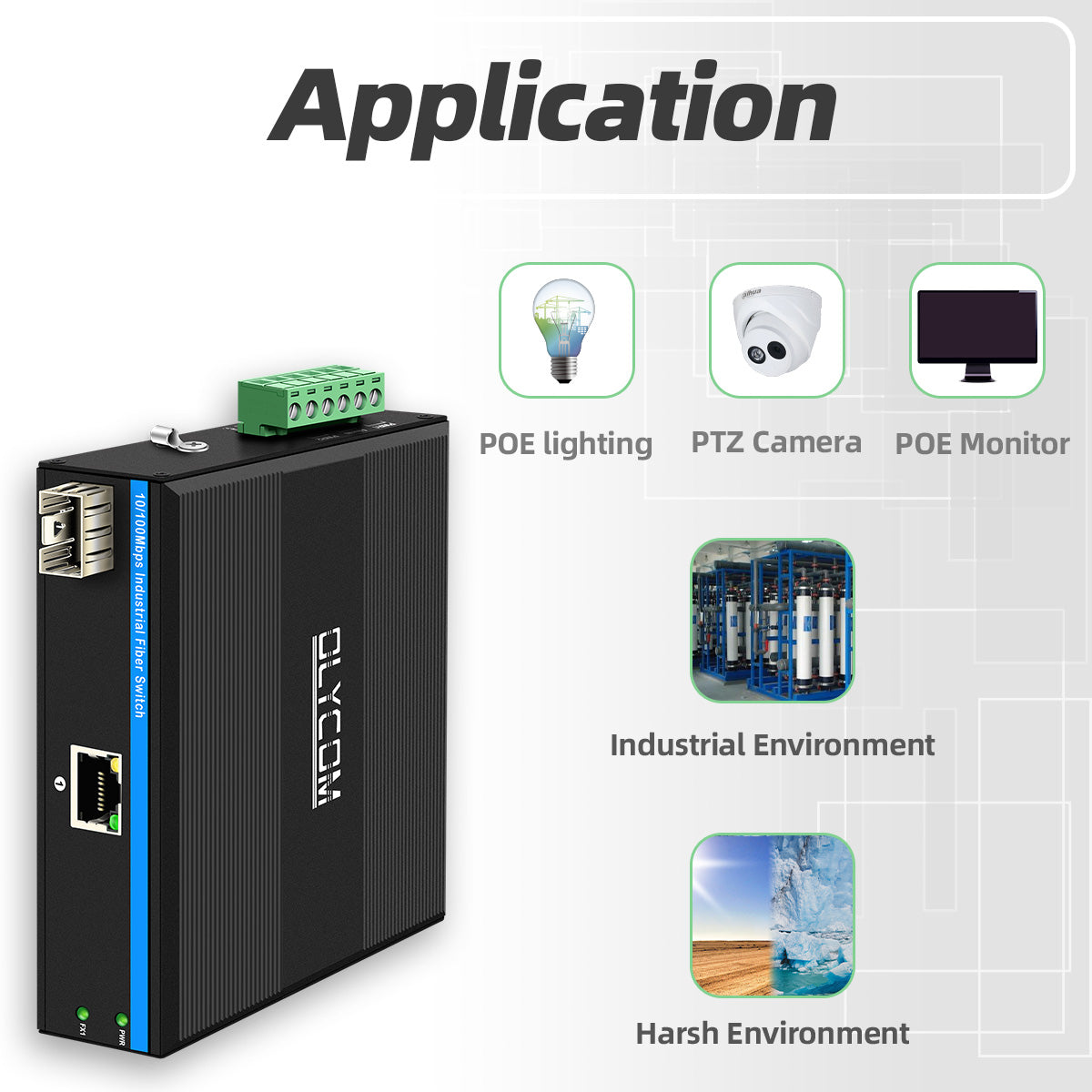

• Application 1: connect PoE extender or PoE splitter
• Application 2: CCTV security(PoE IP cameras, WAPs etc.)
• Application 3: point-to-point IP telecom

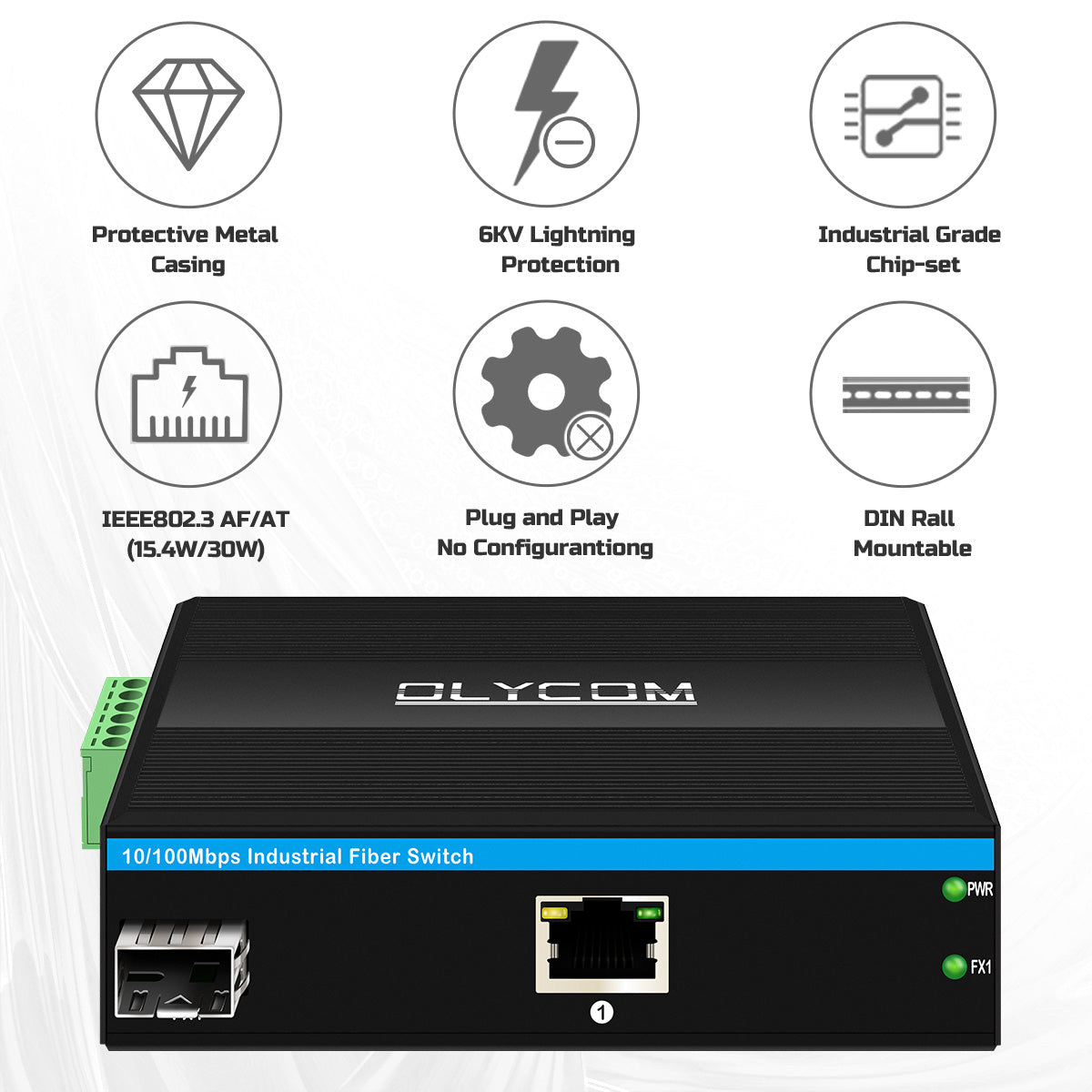

• 6KV Ethernet surge protection
• Operating temperature: -40°C～75°C at 30W output
• LEDs: PWR(Power), network(Orange: Link/ACT, Green: Network Speed), fiber(FX1)
• CE/FCC/ISO9001 compliant
• Din-rail mounting, IP40 grade metal shell
• Unmanaged, Realtek chip, support customization(product outlook or branding etc.)
