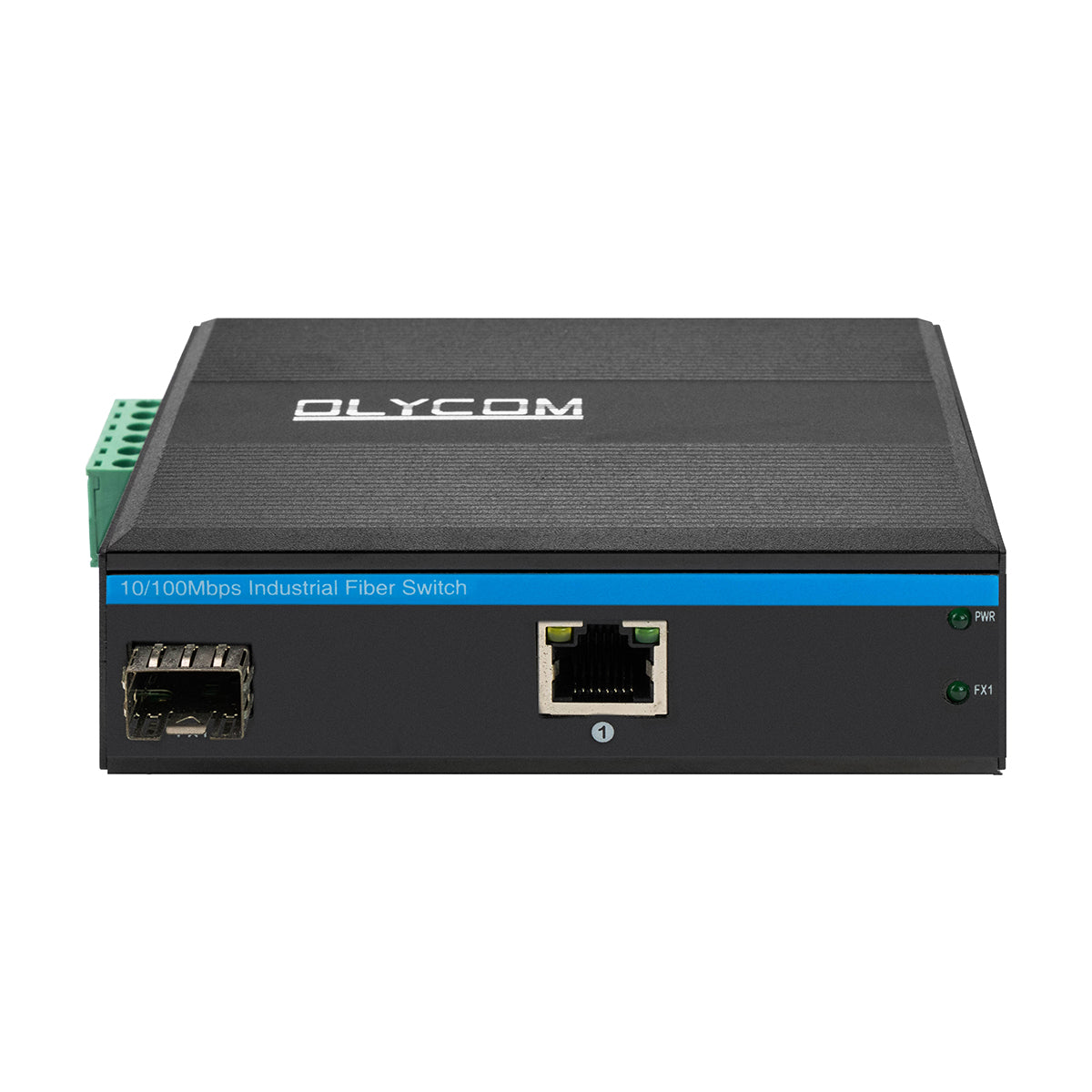

10/100Mbps Industrial Fiber Media Converter ( 1 Fiber to 1 UTP )
10/100Mbps Industrial Fiber Media Converter ( 1 Fiber to 1 UTP )
Couldn't load pickup availability
Introduction
IM-MC110FE series is the 10/100 Mbps industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Noted: This goods is not with PSU and modules.
Specification
Product Name |
10/100Mbps Industrial Fiber Media Converter (1TP+1F) |
Model No. |
IM-MC110FE |
Port |
1 x 100Mpbs port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 1x10/100M UTP RJ45(Support MDI/MDIX auto-sensing) |
Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
LEDs |
Power, network, fiber |
Power supply |
Input voltage:DC 9-52V No-load power:5W Reverse connection:support |
Environment |
Working temperature:-40°~ 85°C Storage temperature:-40°~ 85°C Working humidity:10%~90%,non-condensing Storage humidity:10%~95%,non-condensing |
Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
Safety |
CE Mark ,commercial CE/LVD EN60950 |
Mechanical information |

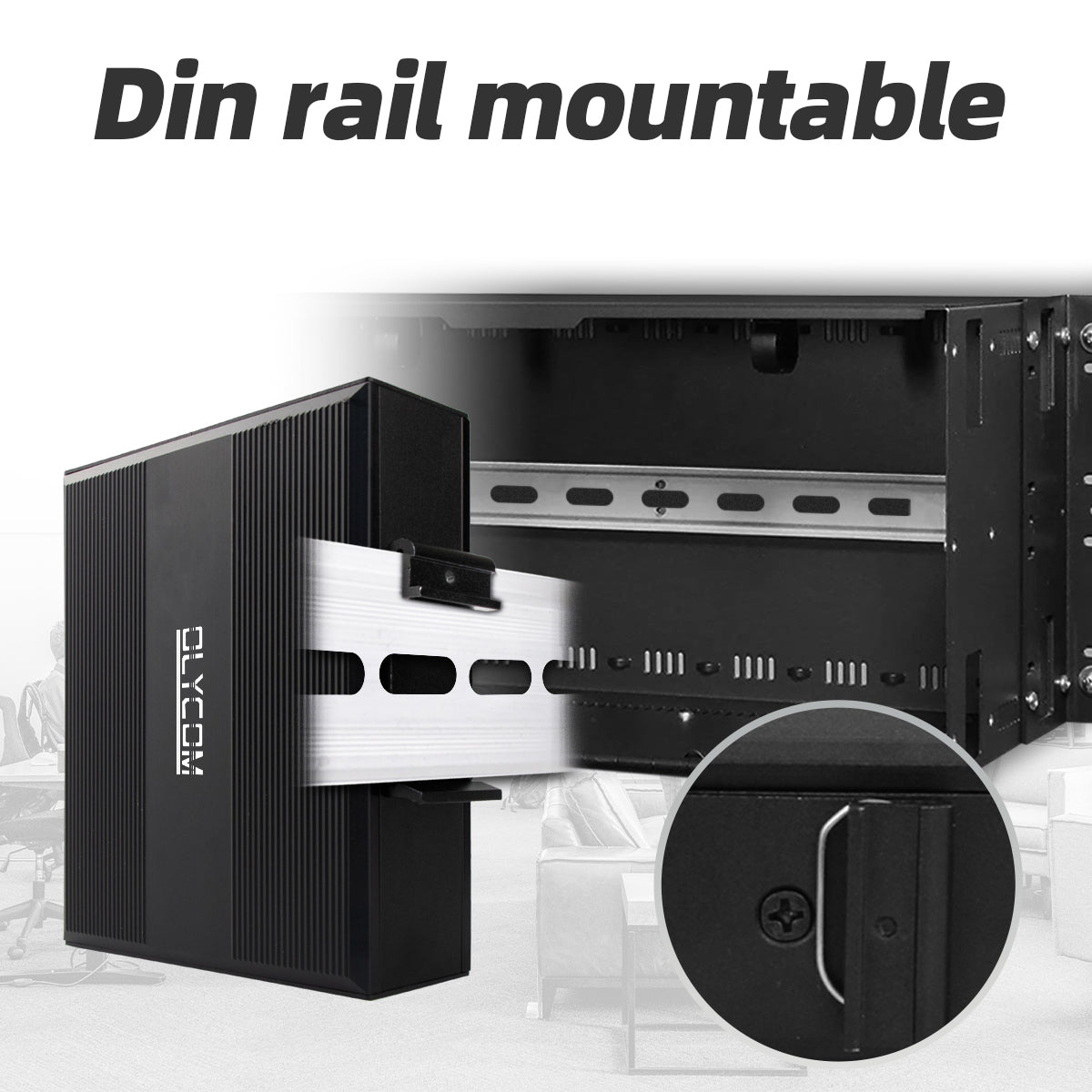

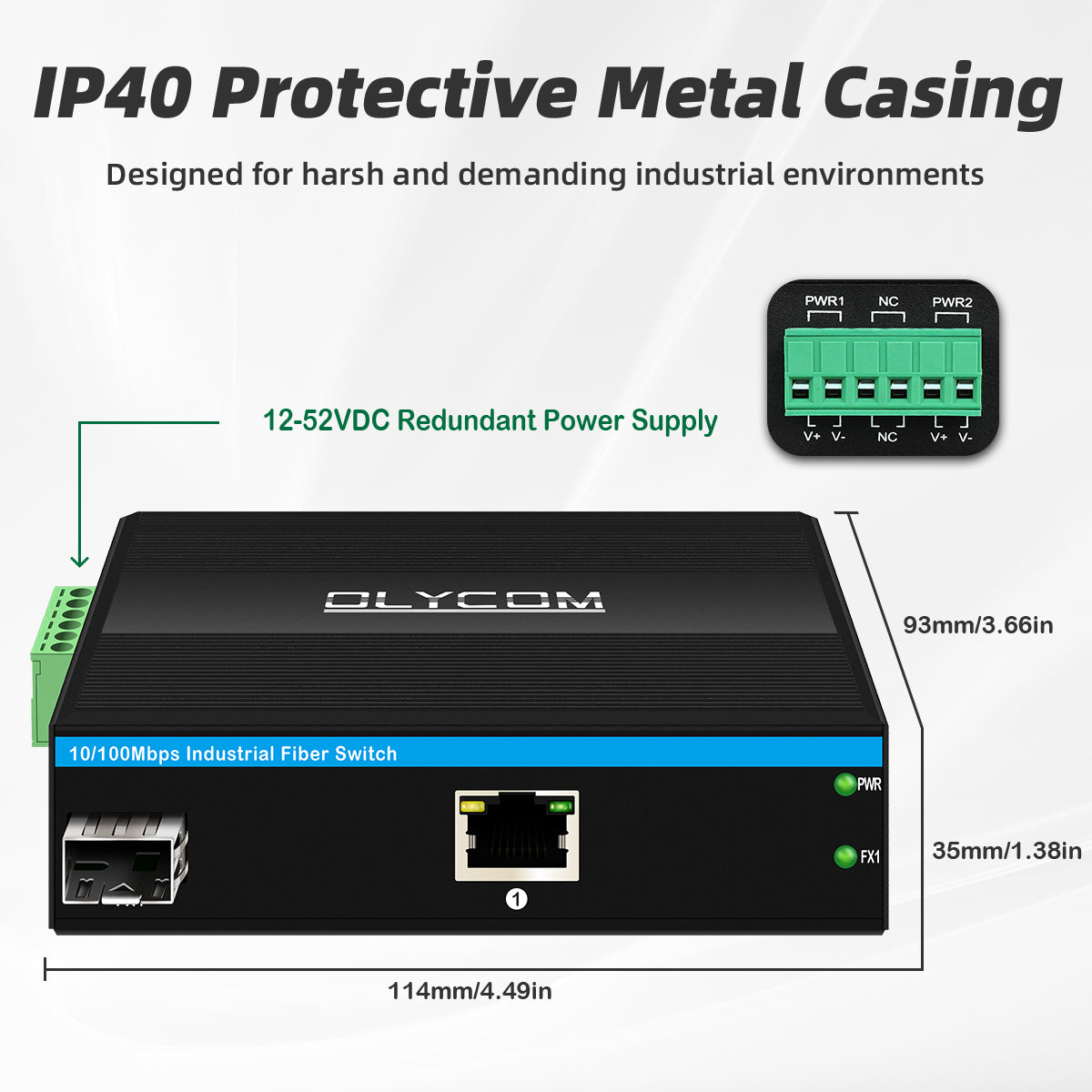

Shell:Corrugated metal shell Safety class:IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method:Din-rail mounting |
Warranty |
Replacement within 1year; 5 years repairing |

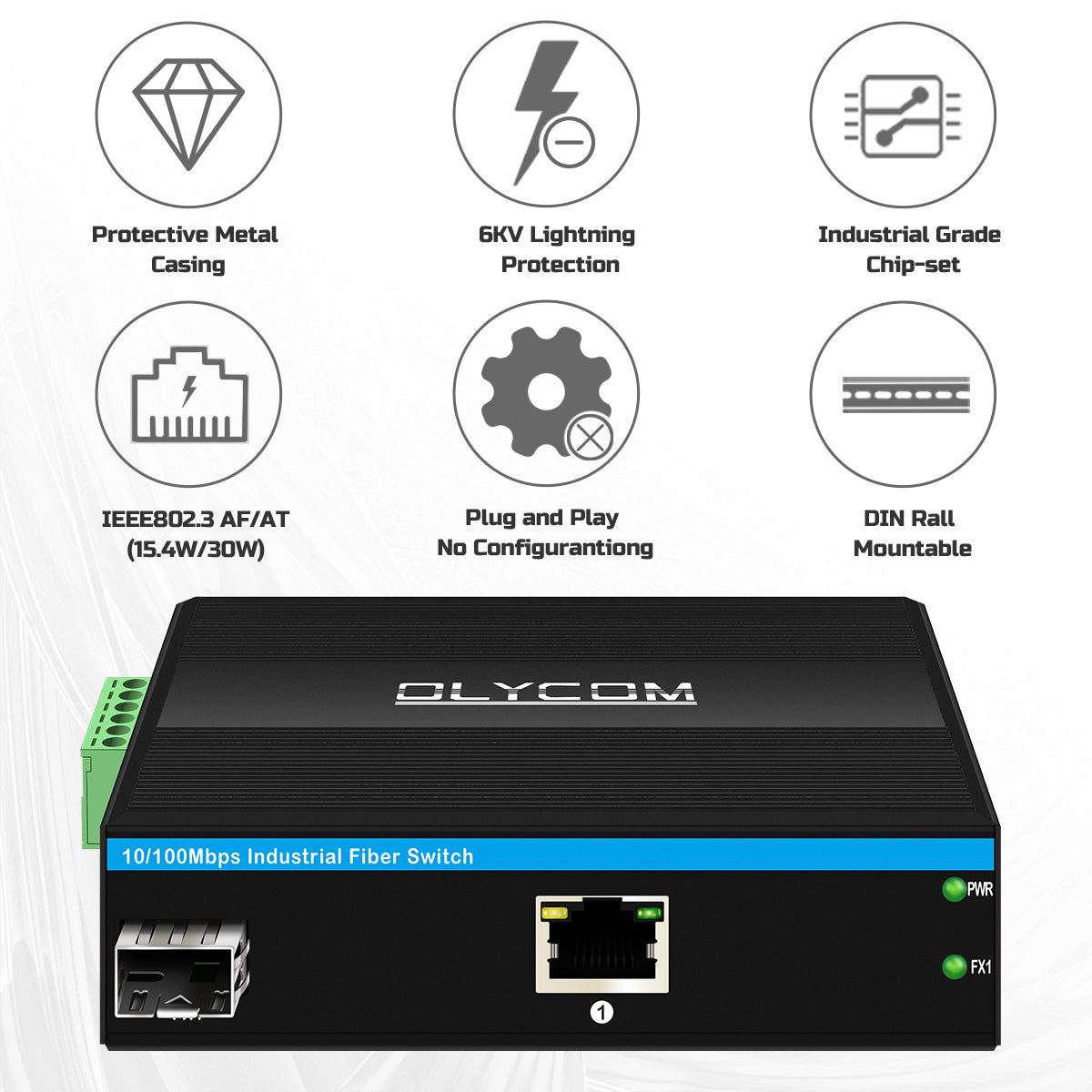

Key Features
- 1 x 10/100Mbps Auto-sensing RJ45 ports
- 1 x 100Mbps SFP fiber port
- 4KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- A store-and-forward switching mechanism
- Operating environment temperature:-40 ° ~85 ° c

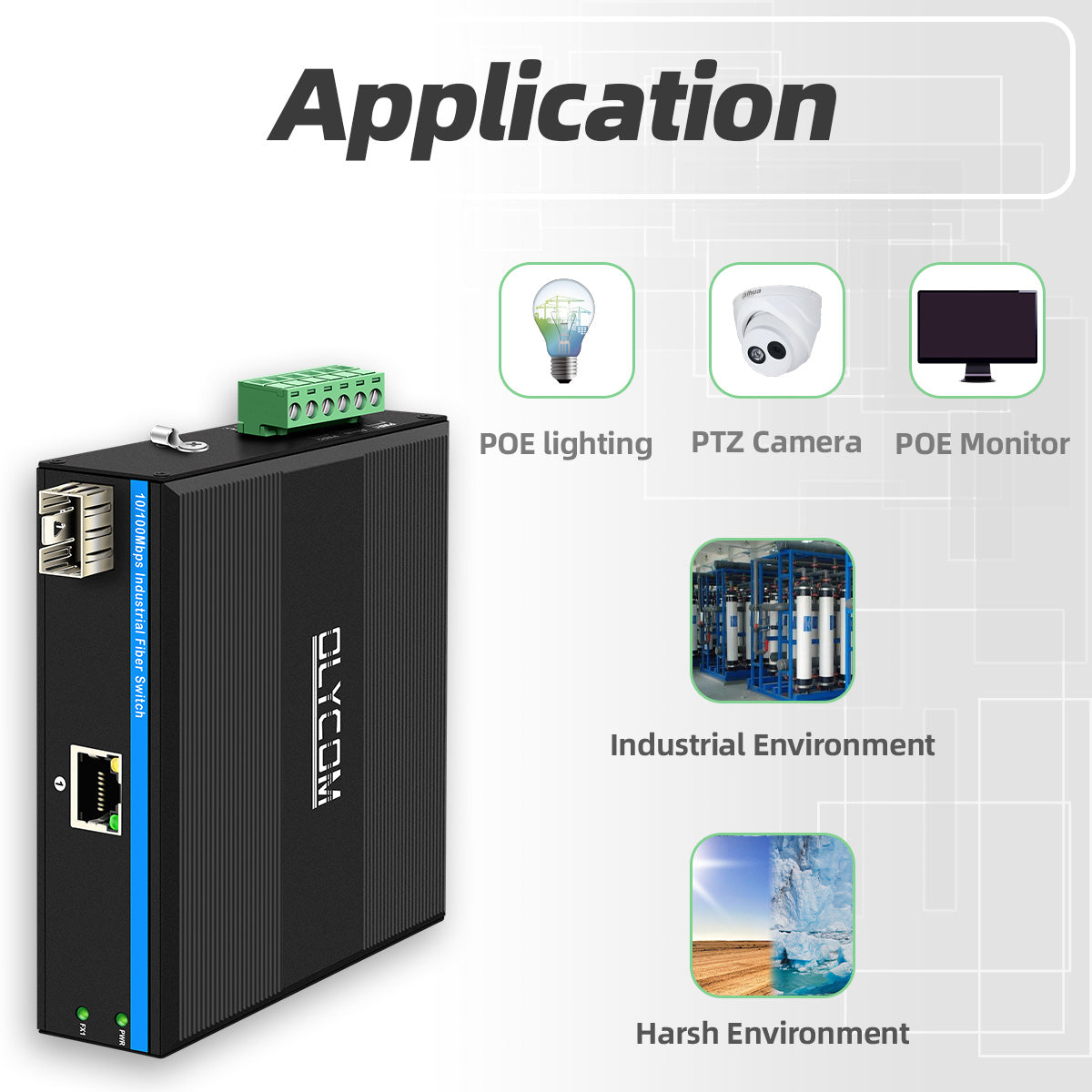

Application
FAQ:
Q1: Can i get a lower price? Any discount? |
A1: Yes, we can offer discount for large quantity. |
Q2: Can i get a free sample? |
A2: Sorry, our sample is not for free. |
Q3: How about the label and the logo? |
A3: Customize label and logo is workable. |
Q4: How about the MOQ? |
A4: MOQ is 1PC |
Q5: Warranty and after-sales issues. |
A5: All our goods are 3 years warranty and our engineer will be online for any after-sales questions. |
