OLYCOM

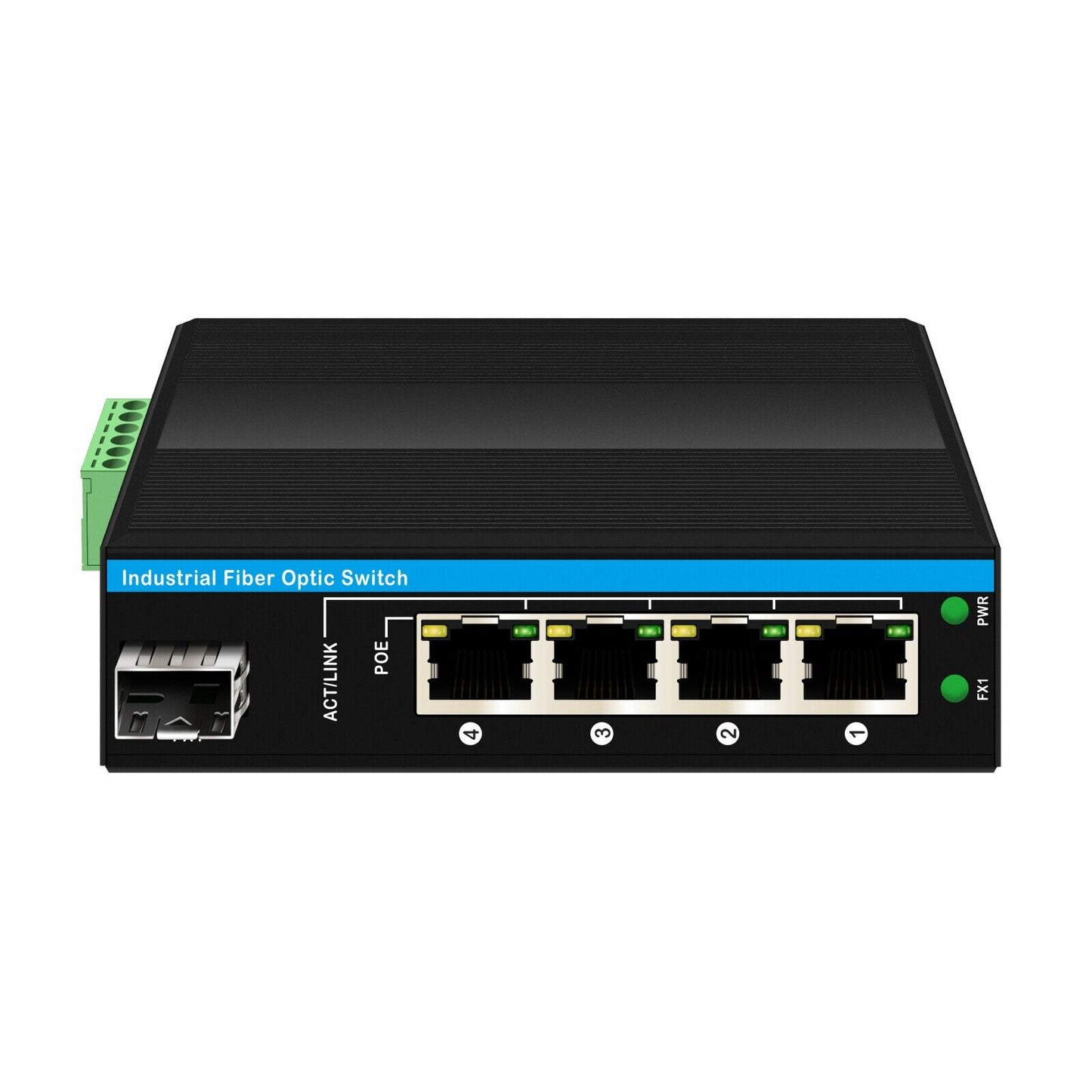

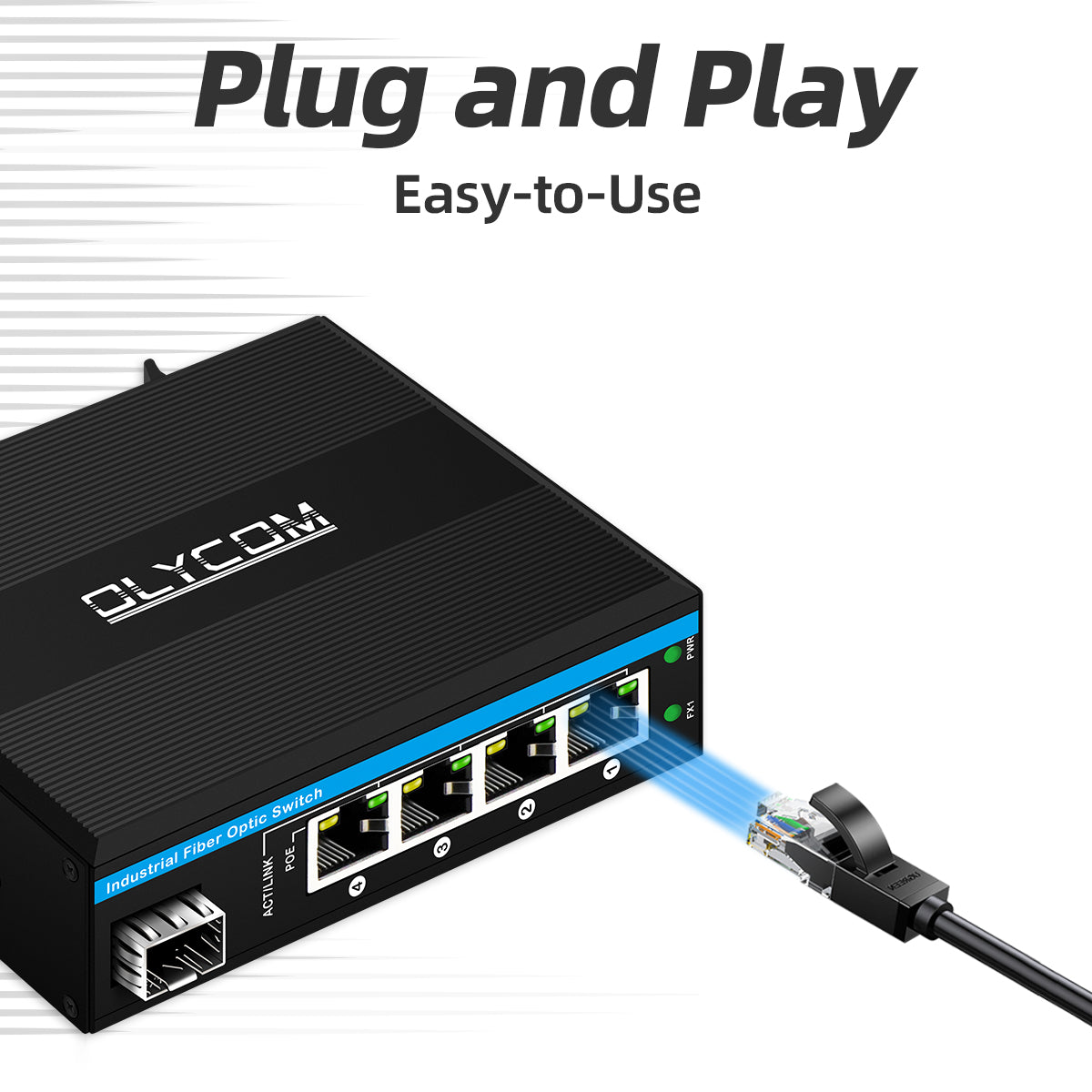

4 Port Industrial Fast Ethernet PoE Fiber Optic Switch

4 Port Industrial Fast Ethernet PoE Fiber Optic Switch

Regular price $45.89 USD
Regular price $65.00 USD Sale price $45.89 USD
Sale Sold out
  • SKU: Industrial PoE Fiber Switch IM-FP144FE
  • 3-Year Warranty, 30-Day Returns, 30-Day Exchange
  • Noted: Not including Power adapter and SFP transceiver
  • GLOBAL TECH SUPPORT
  • Packing List: 1pc 5-port Hardened DIN-Rail PoE Switch, 1pc User Manual, 1pc Warranty Card, 1pc 6-PIN Removable Terminal Block

Specification

  • 1*100M SFP fiber, ideal to use SM/MM optical modules
  • 4*10/100M UTP RJ45 ports with PoE AT(30w each RJ45 port)
  • 120W total budget, 100-meter PoE distance, active PoE, 1/2(V+), 3/6(V-) PoE wiring

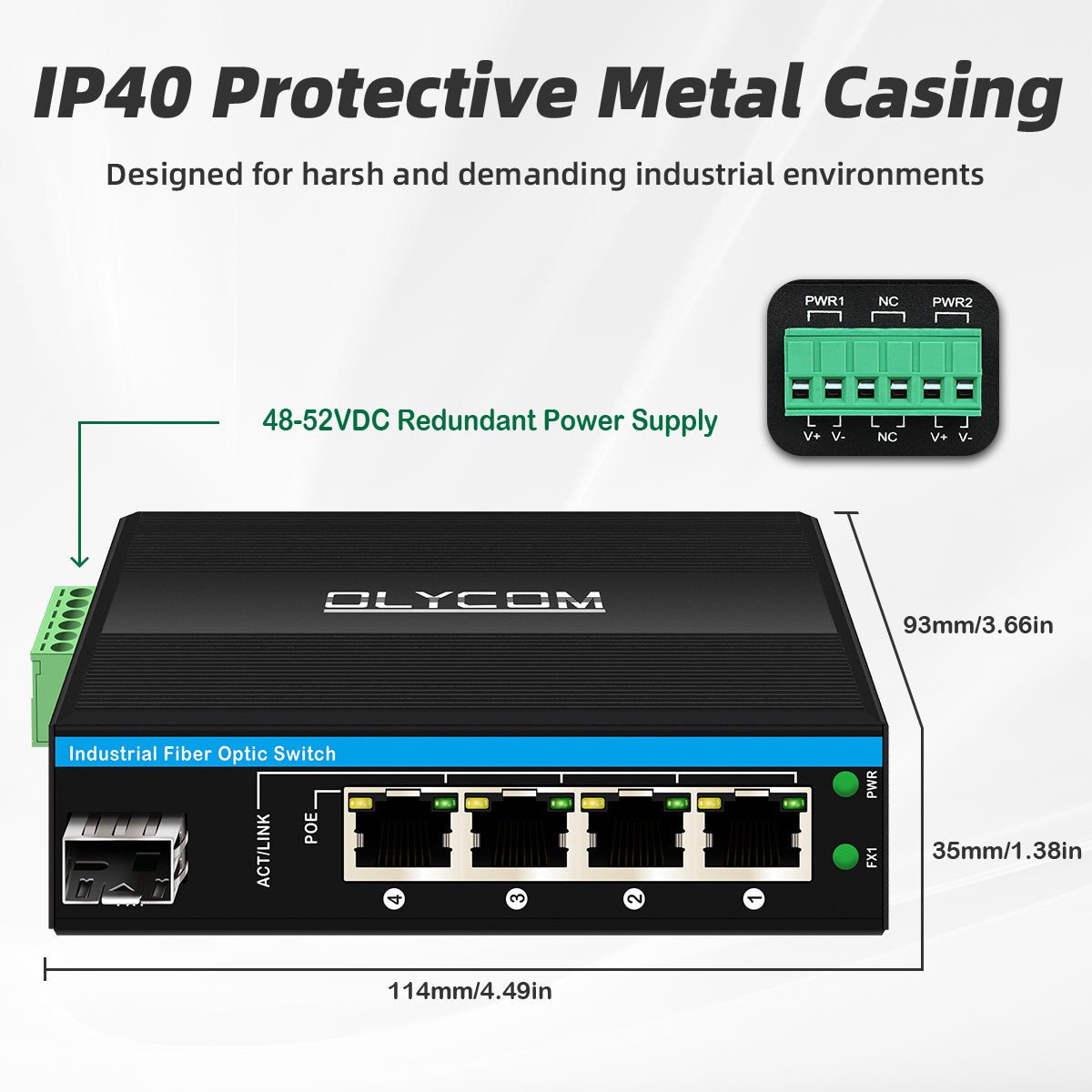

  • Power: 48V (max 52V) DC redundant power, typical specification DC48V2.5A or above

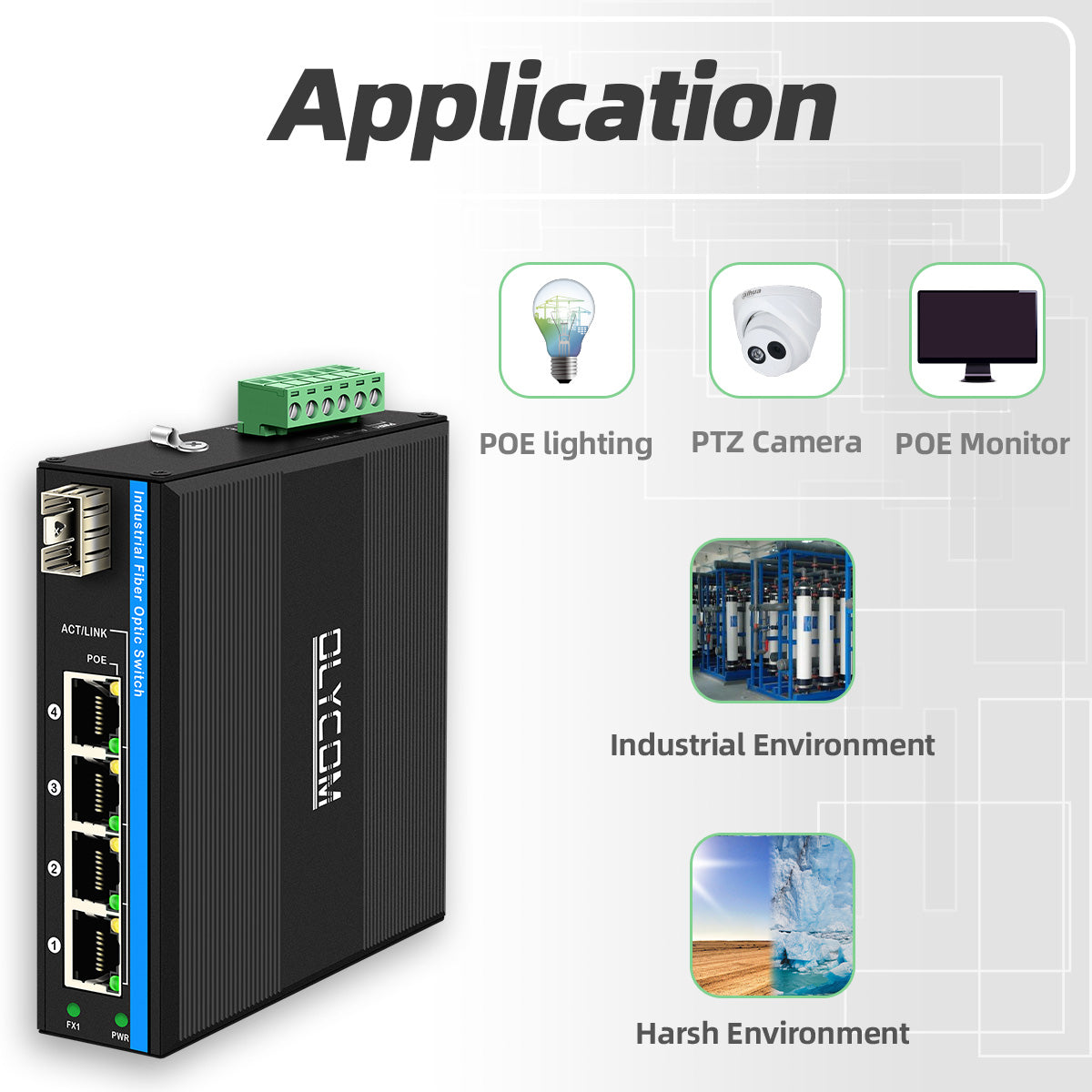

  • Application 1: connect PoE extender or PoE splitter

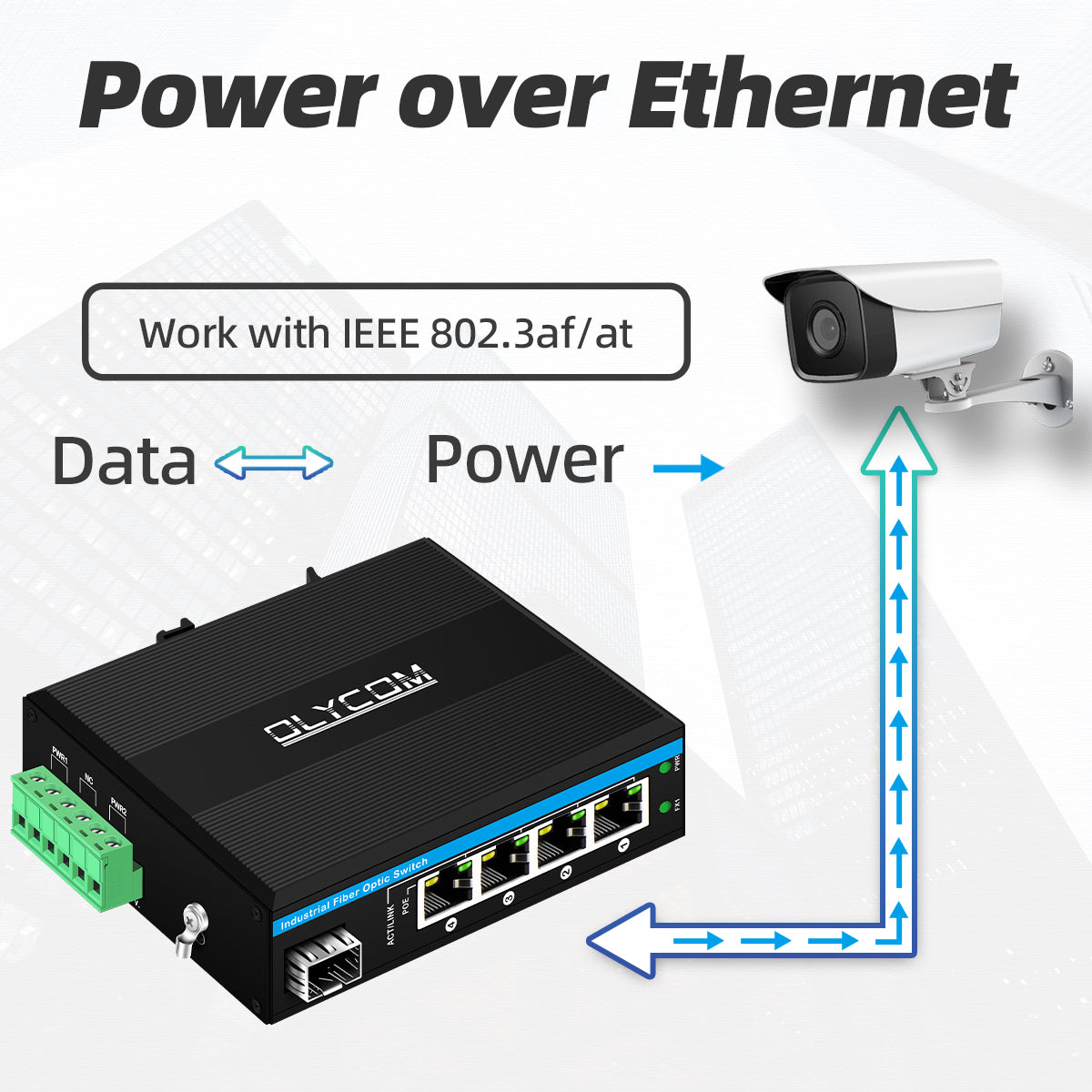

  • Application 2: CCTV security(IP cameras, WAPs etc.)

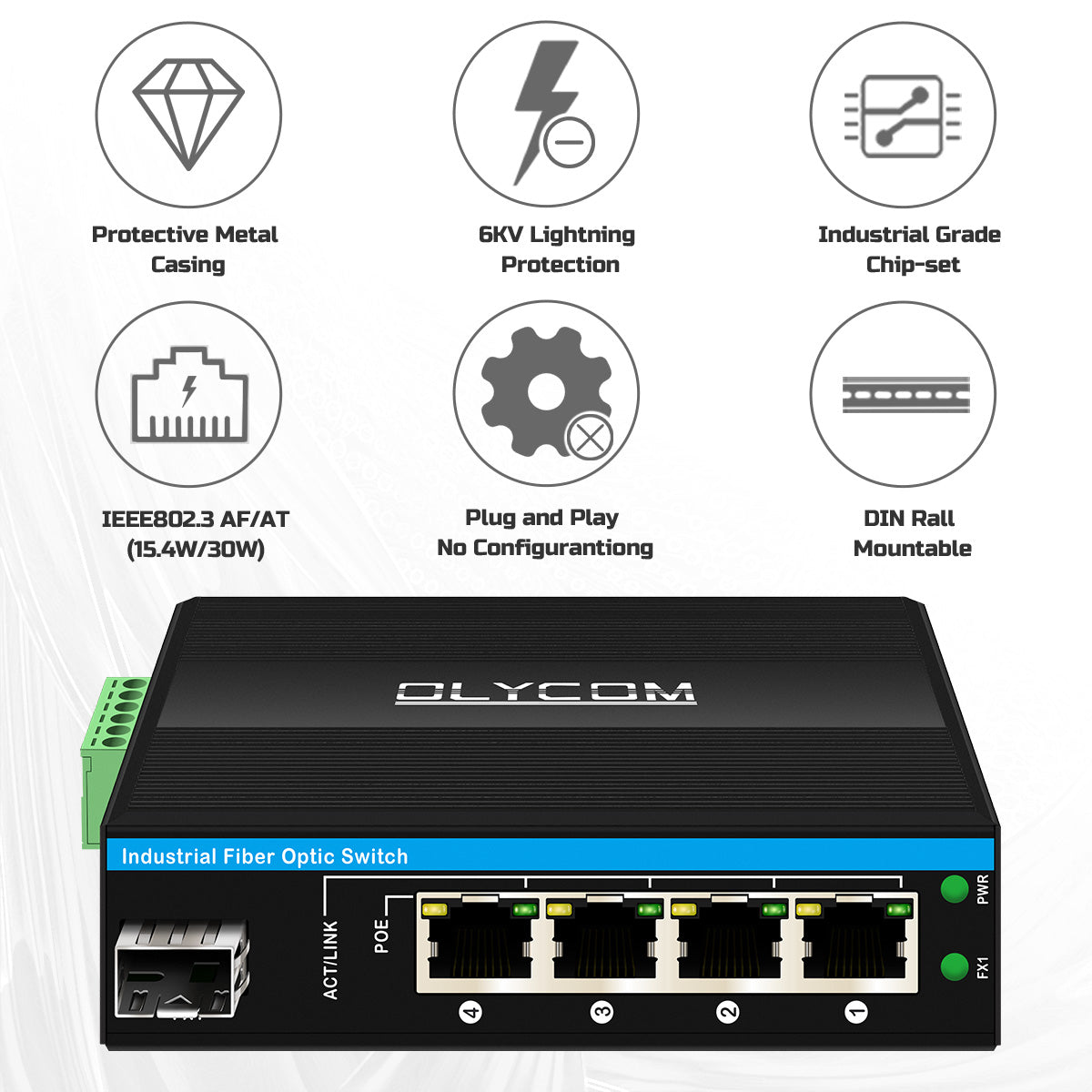

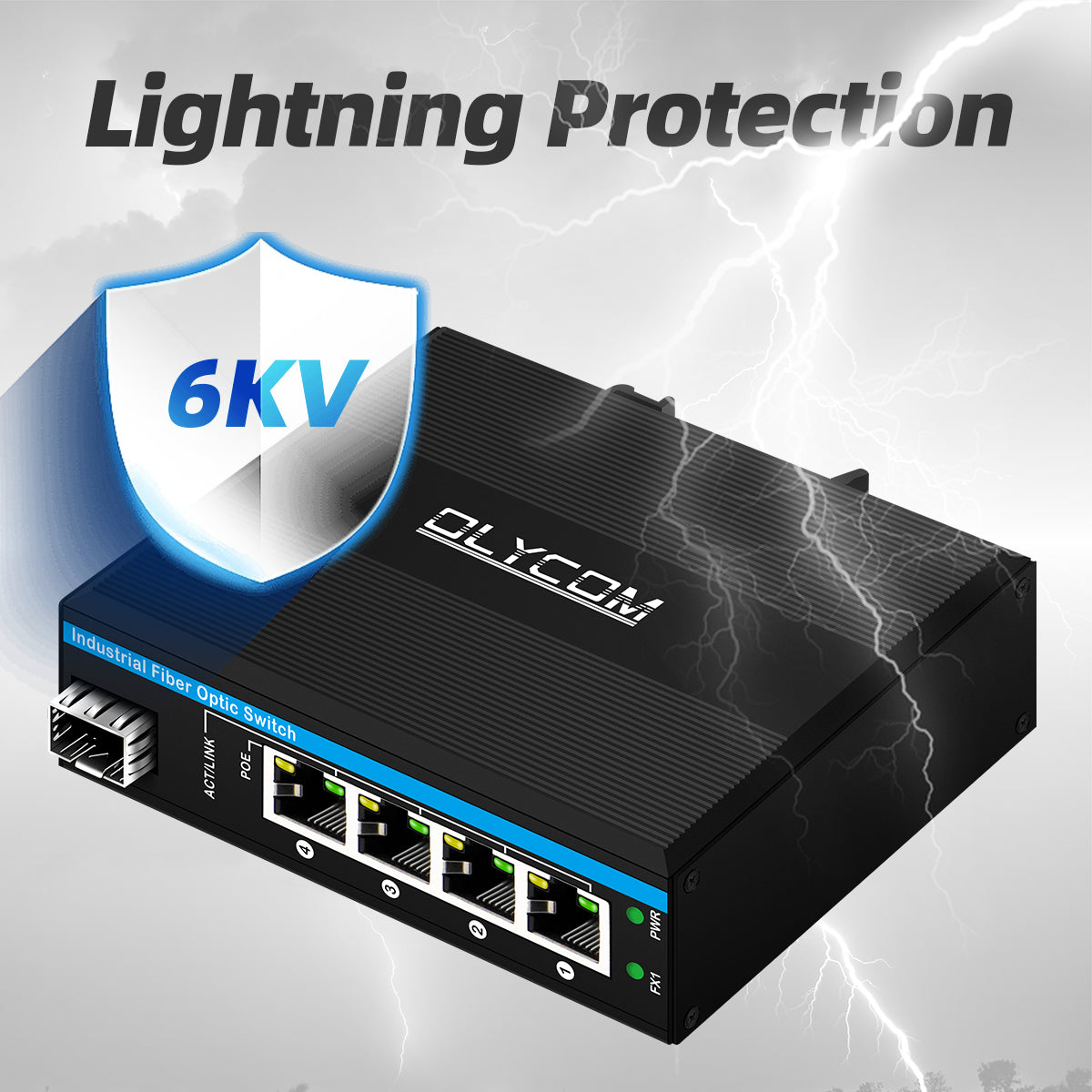

  • 6KV Ethernet surge protection

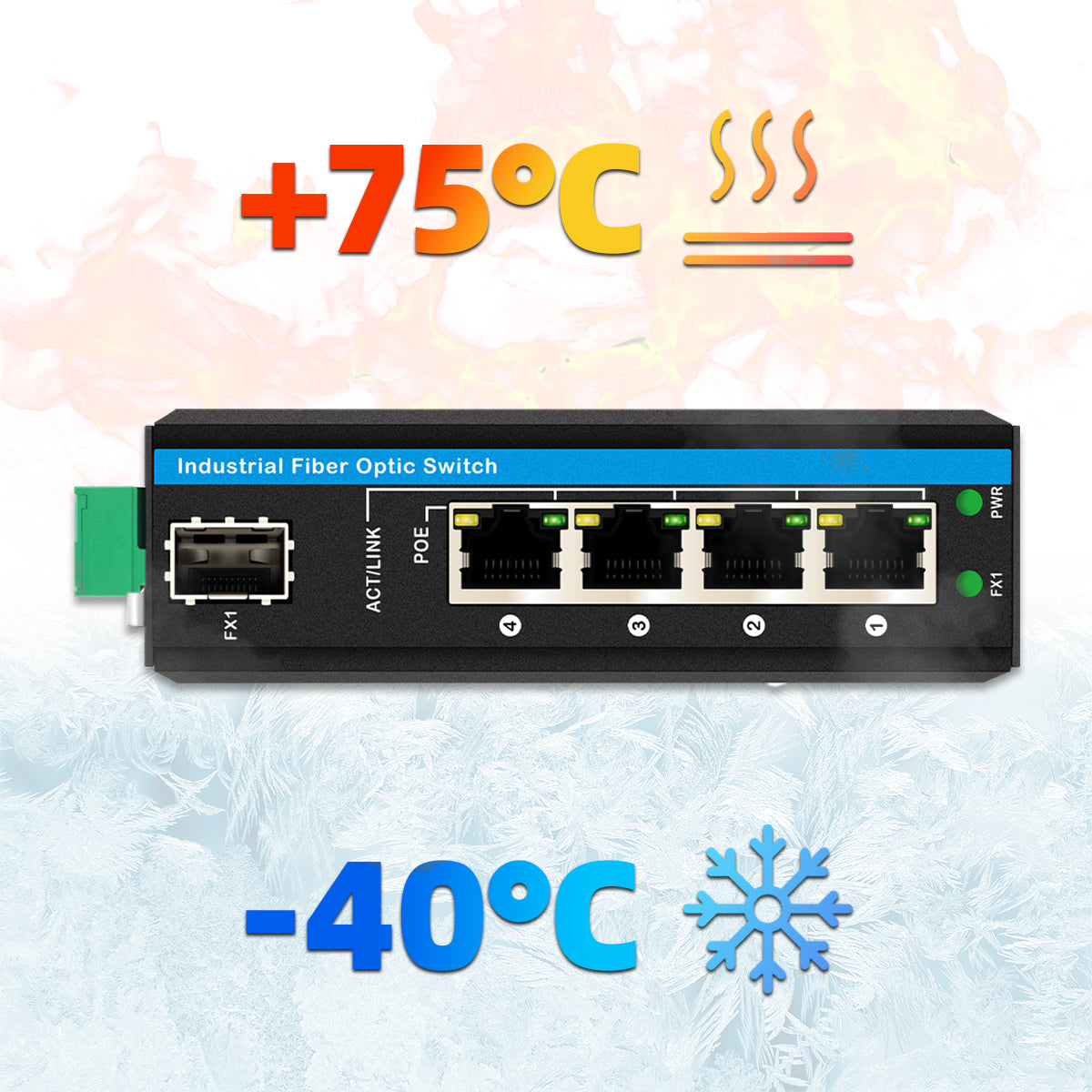

  • Operating temperature: -40°C~75°C at 120W output
  • LEDs: PWR(Power), network(Orange: Link/ACT, Green: Network Speed), fiber(FX1)
  • CE/FCC compliant

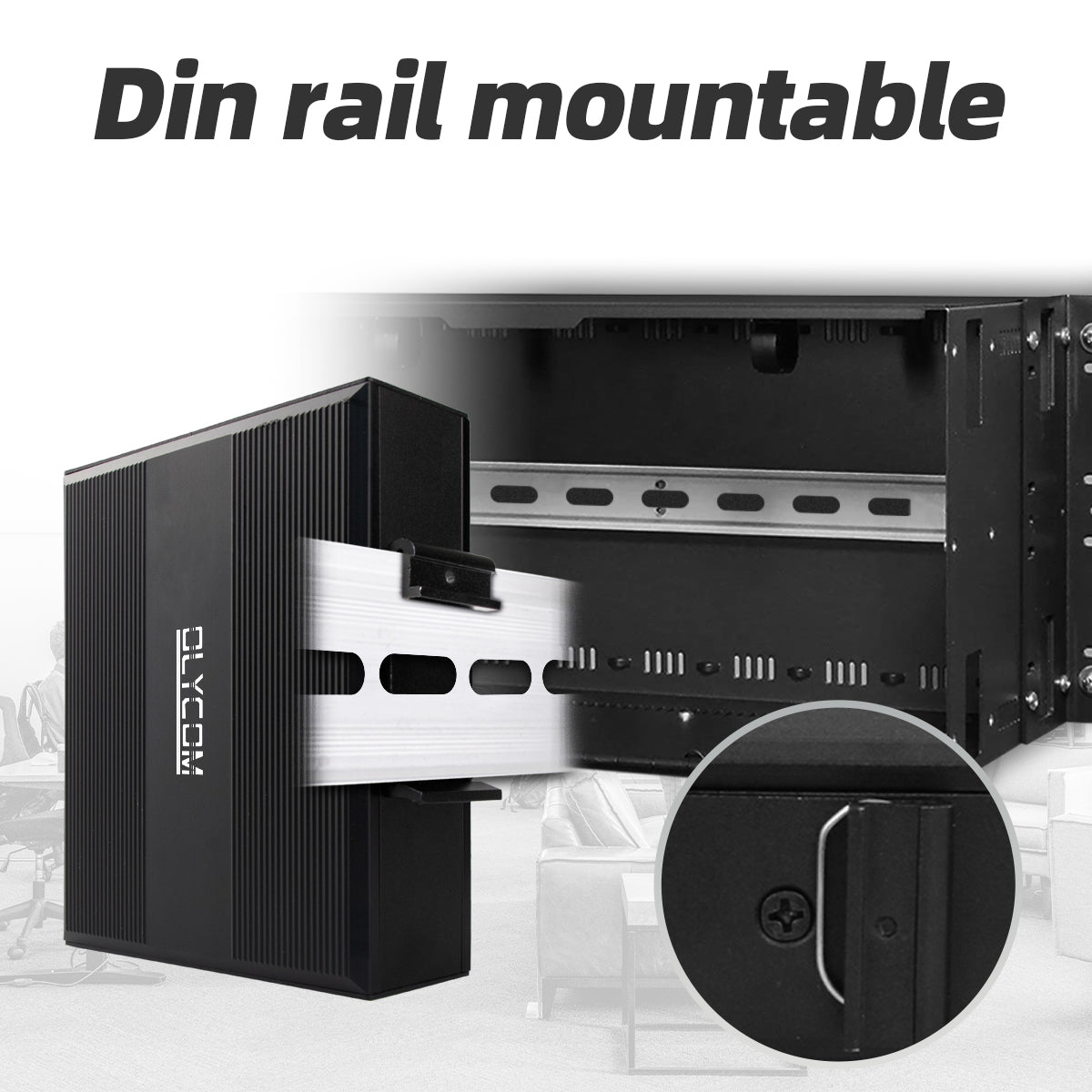

  • Din-rail mounting, IP40 grade metal shell
  • Support customization(product outlook or branding etc.)
