24 Port Gigabit PoE Switch SFP Fiber Uplink 300W PoE 15.4W/30W Rackmount Design

24 Port Gigabit PoE Switch SFP Fiber Uplink 300W PoE 15.4W/30W Rackmount Design

$119.99 USD
$129.99 USD $119.99 USD
할인 품절
Introduction

  • The Olycom OM22424-PSE-GE is a 26-port full Gigabit PoE switch that answers the question every network planner eventually faces when scaling from 16 to 24 access ports: does the switch underneath still have enough fabric, buffer, and power budget to handle the additional load without becoming the bottleneck?
  • The answer here is unambiguous.
  • A 52Gbps non-blocking switching fabric and 38.68Mpps forwarding rate — nearly 50% more than the 16-port tier — ensure that all 24 × Gigabit PoE ports and 2 × Gigabit SFP uplinks run at full wire speed simultaneously, with no queuing, no congestion, and no performance degradation under peak load.
  • The 280W PoE budget supports a fully loaded mix of 802.3af and 802.3at endpoints, and 9.6KB jumbo frame support keeps high-resolution video streams moving from cameras to NVRs without fragmentation overhead regardless of frame size.
  • Three DIP switch–selectable modes — Default, VLAN, and Extend (250m) — give installers the security segmentation and distance flexibility that medium-to-large deployments require, while the internal AC power supply, fanless design, 100,000+ hour MTBF, and CE/FCC/RoHS certification deliver the operational profile that enterprise, campus, and infrastructure operators expect from a switch running unattended around the clock.

Key Features

  • 24 × Gigabit PoE Ports + 2 × Gigabit SFP Uplinks — Full Gigabit throughput on every access port; dual SFP slots accept fiber or copper uplink transceivers for flexible backbone integration; Auto MDI/MDIX and store-and-forward on all ports
  • 280W Total PoE Budget — IEEE 802.3af/at — Per-port auto-detection allocates 15.4W (af) or 30W (at) based on each connected device’s negotiated standard; automatic PD detection prevents any power delivery to non-PoE devices; built-in overload, over-current, and short-circuit protection on all PoE ports
  • 52Gbps Non-Blocking Switching Capacity / 38.68Mpps Forwarding Rate — Wire-speed performance across all 26 ports simultaneously; the additional fabric headroom versus 16-port platforms is what makes 24-port full-load operation genuinely non-blocking rather than nominally so
  • 9.6KB Jumbo Frame Support — Eliminates fragmentation overhead for large video payloads from 4K and multi-megapixel IP cameras; directly benefits NVR write performance and video management platform responsiveness under high concurrent stream counts
  • 8K MAC Address Table / 4Mbit Packet Buffer — Handles large LAN environments with hundreds of unique endpoints; 4Mbit buffer absorbs simultaneous burst traffic from 24 active PoE devices without frame loss during peak periods
  • Three DIP Switch Operating Modes:
  • Default Mode — Full Gigabit communication across all 24 PoE ports and 2 SFP uplinks up to 100m; no restrictions, maximum throughput
  • VLAN Mode — Port-level isolation across all 24 PoE access ports; each port communicates only with the SFP uplinks and not with any other access port; enforces endpoint separation in surveillance networks, multi-tenant environments, and hospitality deployments without managed switch overhead
  • Extend Mode — Reduces access port speed to 10Mbps to extend PoE transmission range to 250m over Cat5e/6; eliminates the need for PoE extenders or media converters at distant camera and AP locations
  • IEEE 802.3x Full-Duplex Flow Control — Prevents packet loss under sustained high traffic load across all active ports
  • Dual Gigabit SFP Uplink Slots — Supports single-mode and multimode fiber transceivers for long-distance backbone connections; copper SFP modules for standard Gigabit uplinks; independent of the 24 PoE access ports so uplink bandwidth is never shared with access traffic

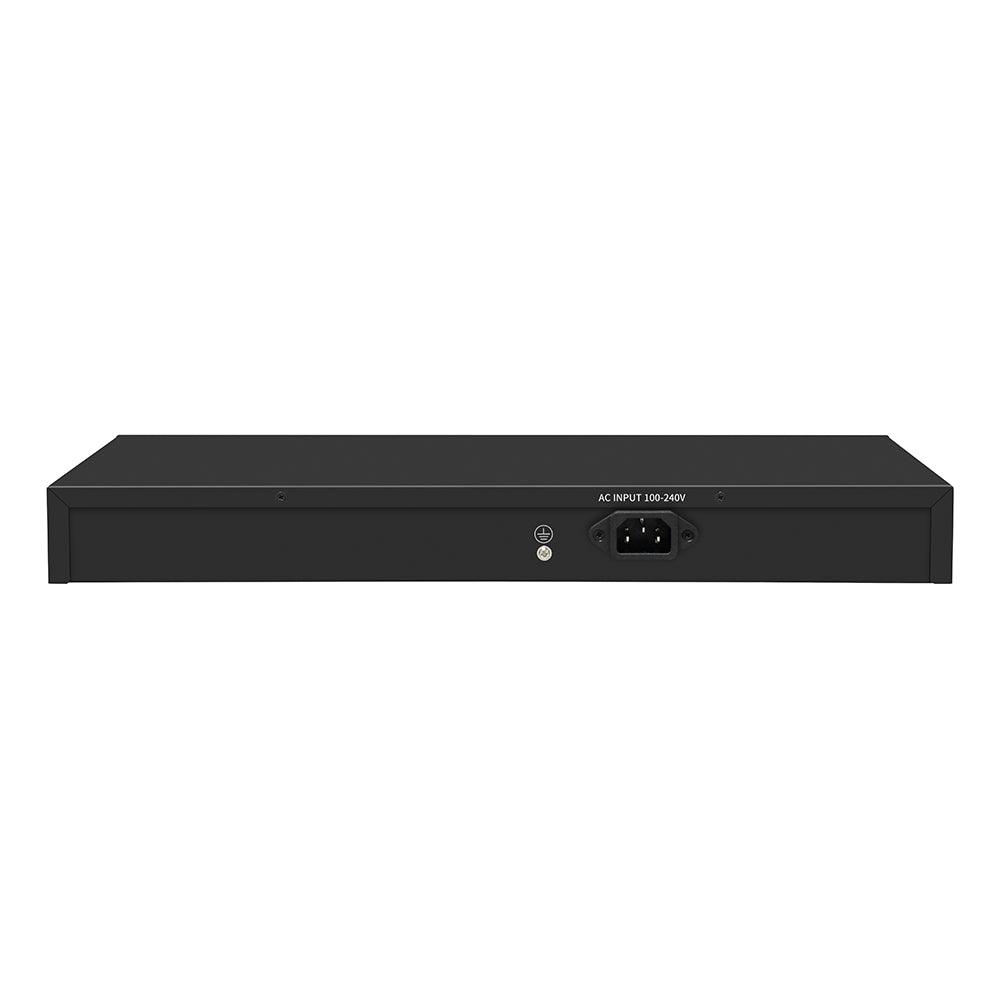

  • Internal AC 100–240V Power Supply — Universal AC input with no external power brick; sized to support the full 280W PoE budget plus switching overhead; CE/FCC/RoHS compliant power stage
  • Fanless Silent Operation — No moving parts across the entire chassis; no filter maintenance, no fan replacement schedule, no acoustic noise; suitable for open offices, clinical environments, and noise-sensitive installations running 24/7
  • MTBF > 100,000 Hours — Long-term reliability rating supports multi-year unattended deployment in infrastructure roles
  • 1U Rackmount, 440 × 204 × 44mm, 2.82kg — Standard 19-inch rack form factor; straightforward installation in any rack or wiring closet
  • -10°C to +50°C Operating Temperature — Covers building distribution rooms, unconditioned wiring closets, and light industrial environments
  • CE / FCC / RoHS Certified

Applications

  • 24-Camera IP Surveillance Deployments — The step-change from 16 to 24 PoE ports is most immediately felt in surveillance: a single OM22424-PSE-GE replaces what would otherwise require two 16-port switches plus inter-switch cabling, halving the rack space, power connections, and management points for a 24-camera floor or zone. VLAN mode isolates every camera port from its neighbors — a network security baseline for surveillance infrastructure that prevents lateral movement between devices — while Extend mode reaches the cameras that are physically too far from the wiring closet for standard 100m copper. Jumbo frames keep 4K streams intact end-to-end
  • Enterprise Floor & Department Access Layer — Covers a full medium-density office floor from a single rack unit: 24 Gigabit PoE ports simultaneously power VoIP phones, wireless APs, and video conferencing endpoints while the SFP uplinks connect to the building’s fiber distribution switch. The 52Gbps fabric ensures that a fully populated floor running simultaneous video calls, cloud sync, and VoIP traffic experiences no inter-port congestion — the fabric headroom that makes the difference between a switch that works at 50% load and one that works at 100%
  • Campus Wi-Fi Distribution Points — A campus building with 20–24 Wi-Fi 6 APs requires both Gigabit access speed and 802.3at PoE power at every AP port. The OM22424-PSE-GE serves an entire building’s AP infrastructure from one switch, with SFP uplinks connecting to the campus fiber backbone. Unlike a Fast Ethernet PoE switch that caps AP throughput below Wi-Fi 6’s actual capacity, full Gigabit access ensures the network switch is never the limiting factor in wireless performance
  • Hotel & Hospitality Floor Distribution — A mid-size hotel floor of 20–24 rooms, each with a PoE-powered guest Wi-Fi AP, connects through a single OM22424-PSE-GE in the floor wiring closet. VLAN mode enforces strict guest-to-guest isolation at the switch port level — a security and privacy requirement that hospitality networks must meet — while the SFP uplinks carry aggregated traffic to the hotel’s fiber backbone. One switch per floor, one management point per building: the economics work at 24 ports in a way they don’t at 16
  • School & University Building Networks — Connects classroom APs, IP cameras, IP phones, and interactive display systems across an entire school building from a single rackmount unit. Extend mode addresses the common campus problem of classrooms or outdoor areas where the cable run from the nearest IDF exceeds 100m — particularly relevant in older buildings where conduit routes add significant cable length between floors and closets. 24 ports also eliminate the second switch that a 16-port platform would require for a typically sized school floor
  • ISP FTTB/FTTH Aggregation & MDU Access — At the building distribution point in a fiber-to-the-building deployment, the OM22424-PSE-GE aggregates 24 subscriber connections onto dual SFP fiber uplinks to the ISP’s metro network. The 52Gbps fabric ensures that subscriber traffic is forwarded at full line rate without internal congestion, and PoE capability allows CPE devices — ONUs, routers, access points — to be powered from the same switch that carries their data, simplifying the equipment footprint at each building distribution point
  • Transportation & Smart Infrastructure Hubs — At transportation interchange points — bus terminals, metro stations, airport concourses — where IP cameras, passenger Wi-Fi APs, digital signage players, access control terminals, and public announcement systems all require simultaneous PoE power and Gigabit connectivity, the 24-port capacity of the OM22424-PSE-GE covers the full device count of a medium-sized public space from a single installation. SFP uplinks connect to the venue’s fiber backbone, and VLAN mode segments passenger-facing devices from operational infrastructure on the same physical switch
  • Healthcare Building Distribution — Powers and connects clinical IP cameras, nurse call systems, staff VoIP phones, and administrative workstations across a hospital wing or clinic floor. Jumbo frame support handles the large DICOM image transfers between radiology equipment and PACS servers that share the same network infrastructure, the fanless design eliminates mechanical noise in patient care areas, and the 100,000+ hour MTBF supports the long uninterrupted service life that healthcare infrastructure demands
