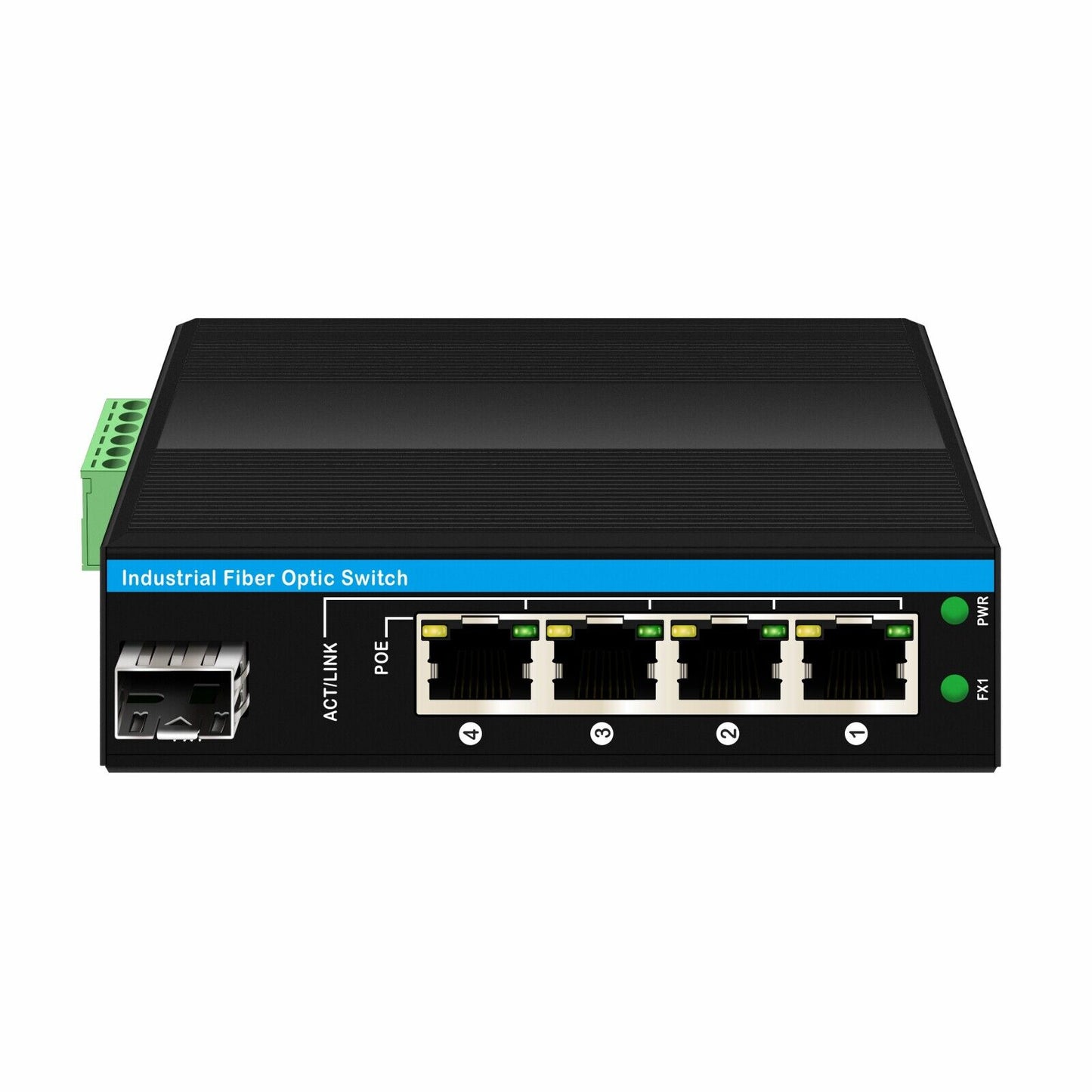

4-Port CCTV PoE Switch, Industrial Gigabit Ethernet, SFP Fiber, 4 × PoE af/at, 120W, DIN-Rail

4-Port CCTV PoE Switch, Industrial Gigabit Ethernet, SFP Fiber, 4 × PoE af/at, 120W, DIN-Rail

$59.99 USD
$65.00 USD $59.99 USD
セール 売り切れ
Introduction
  • The IM-FP144GE occupies a precise position in the industrial PoE fiber switch lineup: more PoE ports than a terminal node, none of the management overhead of a full L2 switch.
  • With 1 × Gigabit SFP fiber uplink and 4 × IEEE 802.3af/at PoE RJ45 ports delivering 30W per port and a 120W total budget, it serves as the unmanaged fiber-to-PoE distribution point for small clusters of field devices — four cameras, four APs, or any mix of PoE endpoints — connected to a fiber backbone without requiring a CLI, Web GUI, or any configuration whatsoever.
  • The design logic is deliberate: in automation plants, subway PIS systems, power SCADA networks, sewage treatment facilities, and roadside surveillance installations, most fiber distribution nodes do not need VLAN segmentation, QoS policy, or SNMP monitoring.

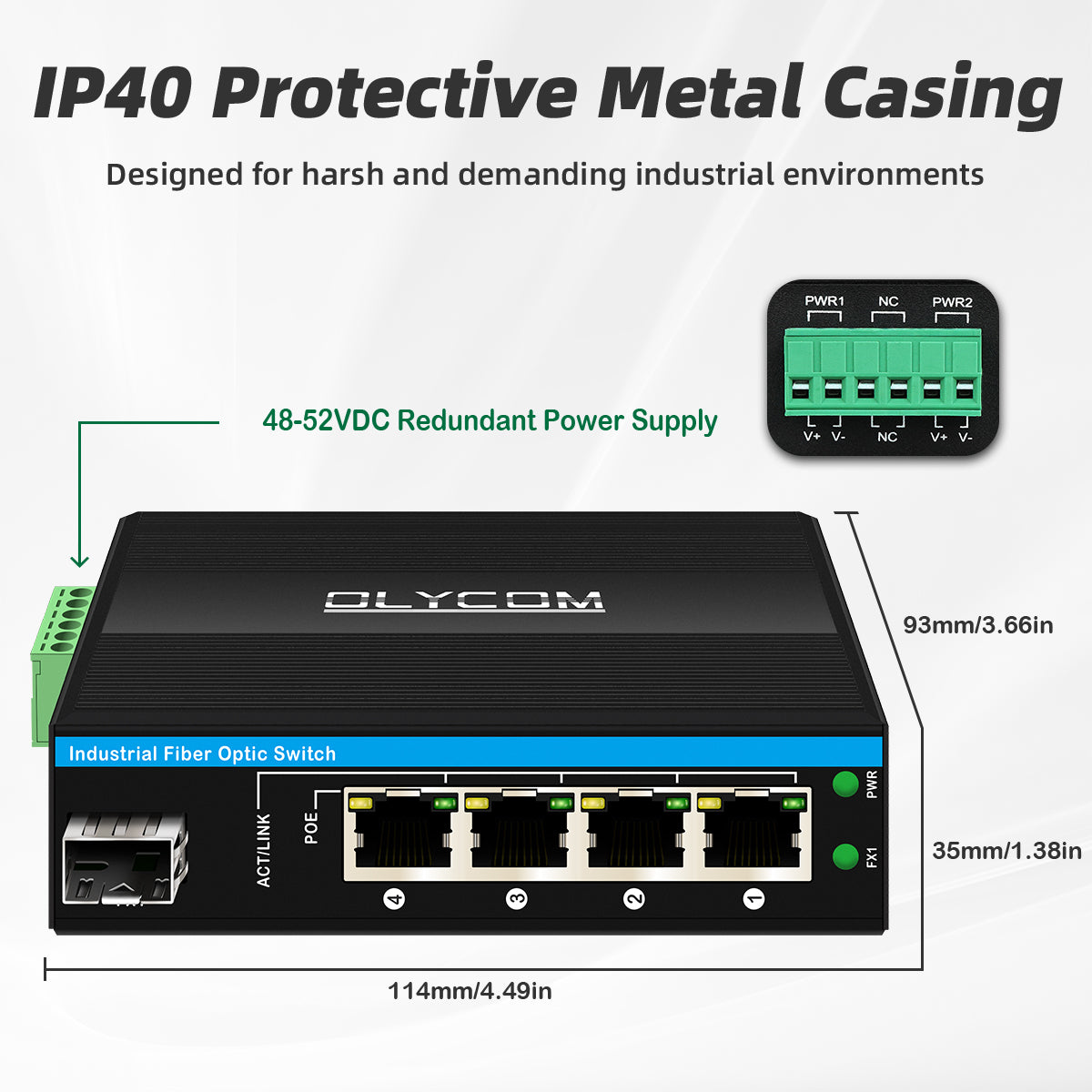

  • They need fiber in, PoE out, industrial robustness, and zero maintenance attention. At 114 × 93 × 35mm and just 0.35kg, with a 6-PIN industrial power terminal block, 6KV Ethernet surge protection, ±15KV ESD air discharge immunity, and a certified operating range of -40°C to +75°C, the IM-FP144GE delivers exactly that — in a form factor compact enough to mount inside the field enclosures where this class of device actually lives.

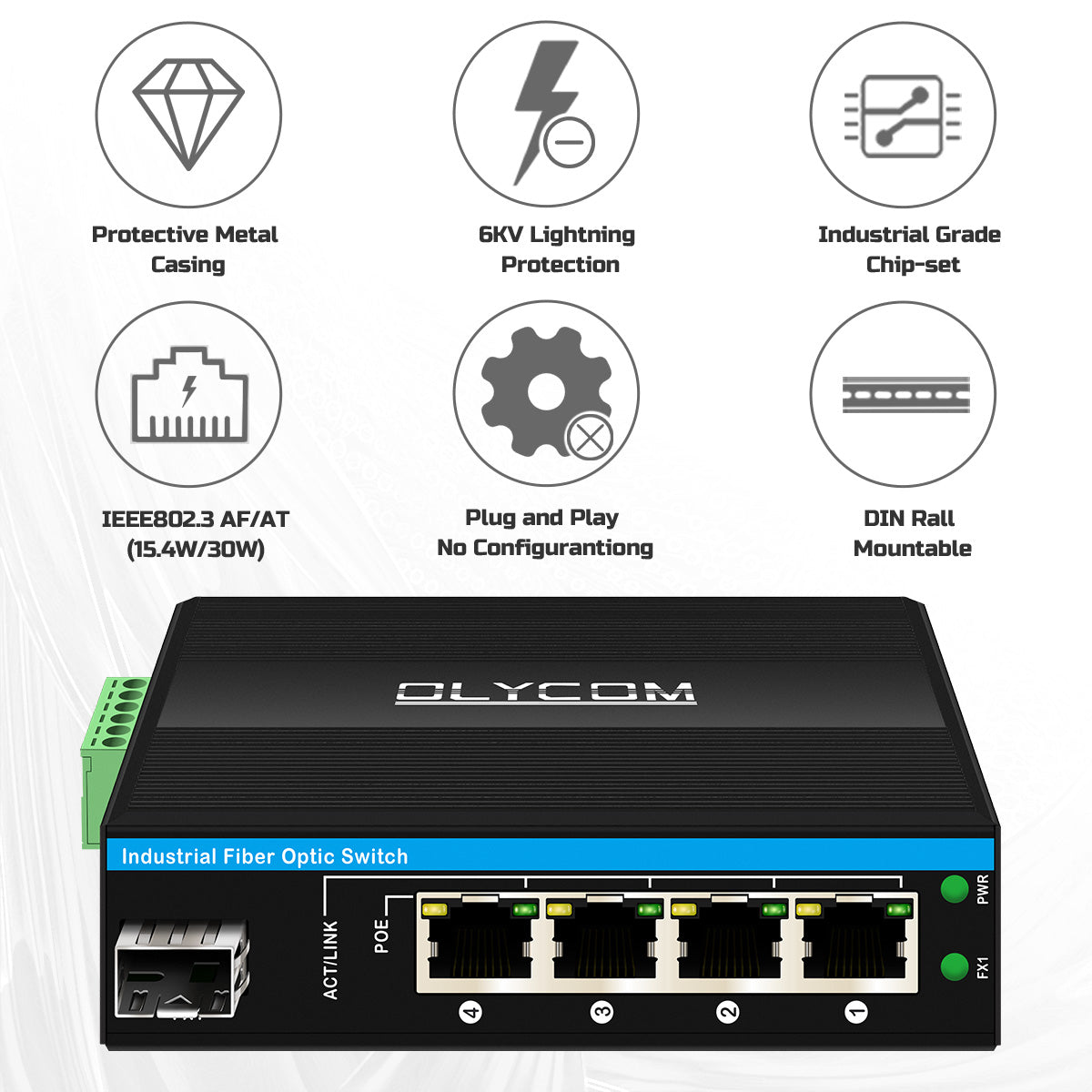

Key Features

  • 1 × 100/1000M SFP Fiber + 4 × 10/100/1000M PoE RJ45 — Single fiber uplink fans out to four copper PoE access ports; SM (20–120km) and MM (500m–2km) SFP modules supported; BiDi single-fiber modules compatible for single-strand fiber runs

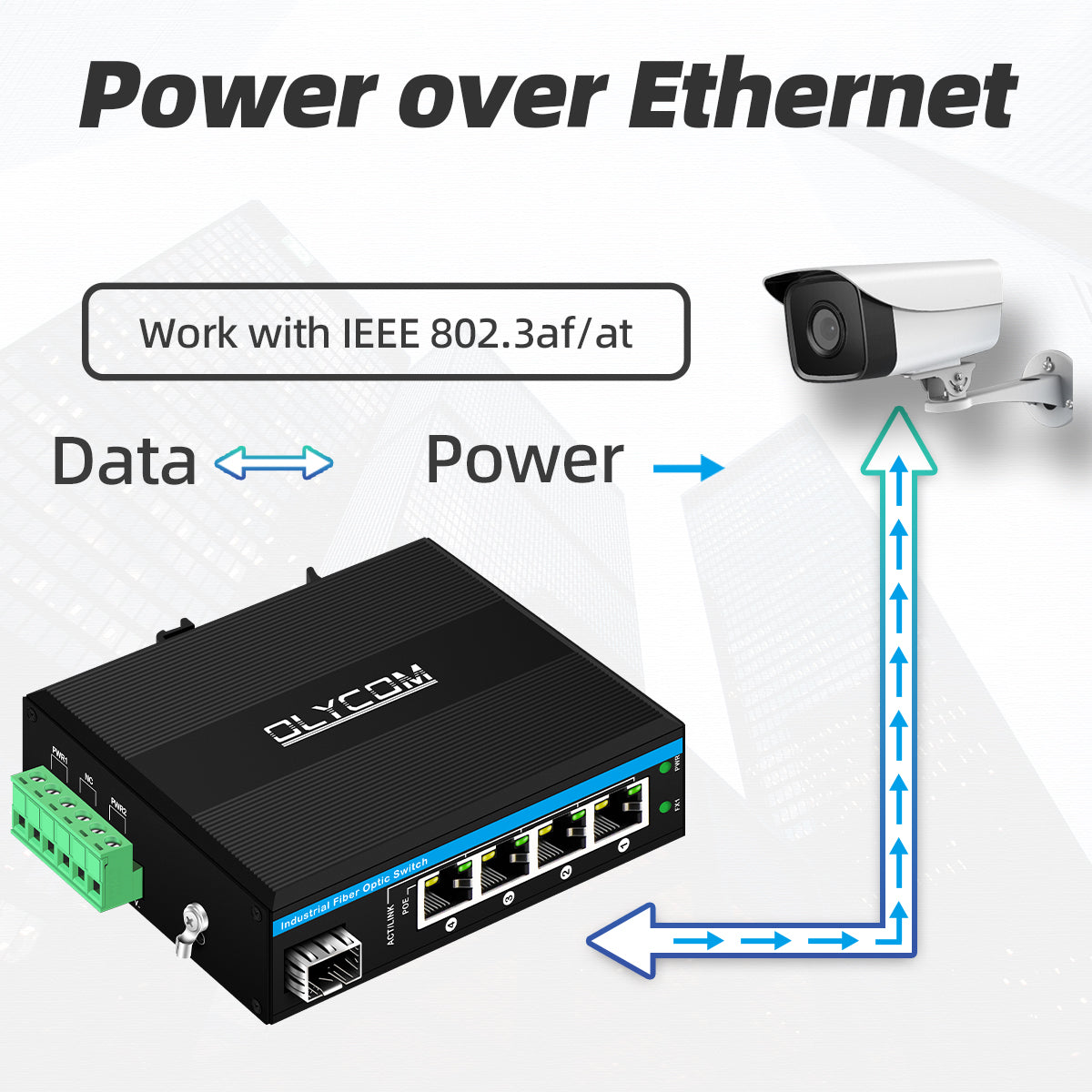

  • IEEE 802.3af/at on All 4 RJ45 Ports (30W/port, 120W total) — Automatic PD detection and classification on every PoE port; non-PoE devices connect safely without manual configuration or risk of damage; per-port PoE LED status indicator for instant visual confirmation
  • 6-PIN Industrial Power Terminal Block — Direct screw-terminal DC wiring connection; no barrel connector or IEC power socket; suited for permanent cabinet installation where terminal block wiring is the industrial standard
  • Unmanaged Plug-and-Play — No configuration interface, no setup procedure; connects fiber in, powers PoE devices out, operates continuously — the right choice for field technicians deploying nodes across large distributed infrastructure who need consistent, repeatable behavior with no per-device configuration
  • 6KV Ethernet Surge Protection — All four RJ45 ports protected against high-voltage transients; essential for outdoor cable runs, industrial environments with heavy electrical equipment, and field installations exposed to indirect lightning
  • ±15KV ESD Air Discharge / ±6KV EFT / Surge Differential ±2KV / Common ±6KV — Full IEC 61000-4 series industrial EMC immunity across all five parameters; CE-EMC / CE-LVD EN IEC 62368-1 / FCC Class B certified
  • 10Gbps Non-Blocking Switching / 14.88Mpps / <10µs Forwarding Delay — Wire-speed Gigabit forwarding across all 5 ports simultaneously; store-and-forward switching with full frame integrity verification before forwarding
  • Per-Port LED Status: PoE Active / Link Speed / Fiber Link — Dedicated orange PoE indicator per copper port shows PoE delivery status at a glance; separate speed and fiber indicators enable rapid fault isolation without test equipment
  • Auto MDI/MDIX / IEEE 802.3x Flow Control — Plug-and-play copper wiring in any topology; flow control prevents frame loss under burst traffic

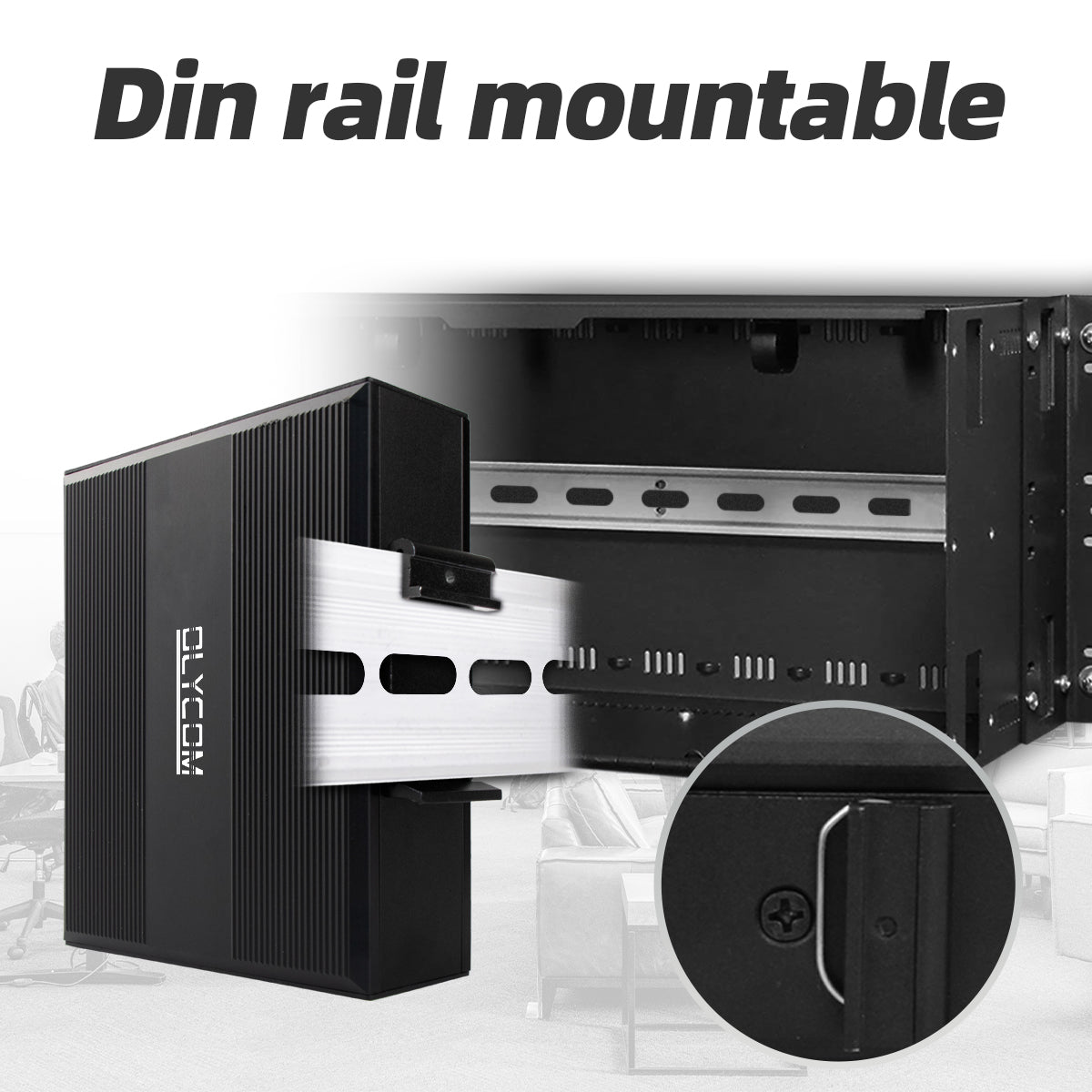

  • -40°C to +75°C / IP40 / DIN-Rail or Wall-Mount — Full industrial temperature range; corrugated metal shell IP40; dual mounting options for cabinet and surface installation
  • ≤5W Power Consumption (Without PoE Load) — Minimal self-consumption; the overwhelming majority of the DC input budget is available for PoE delivery to connected devices
  • CE / FCC Class B / LVD EN IEC 62368-1 / 3-Year Warranty + Lifetime Technical Support

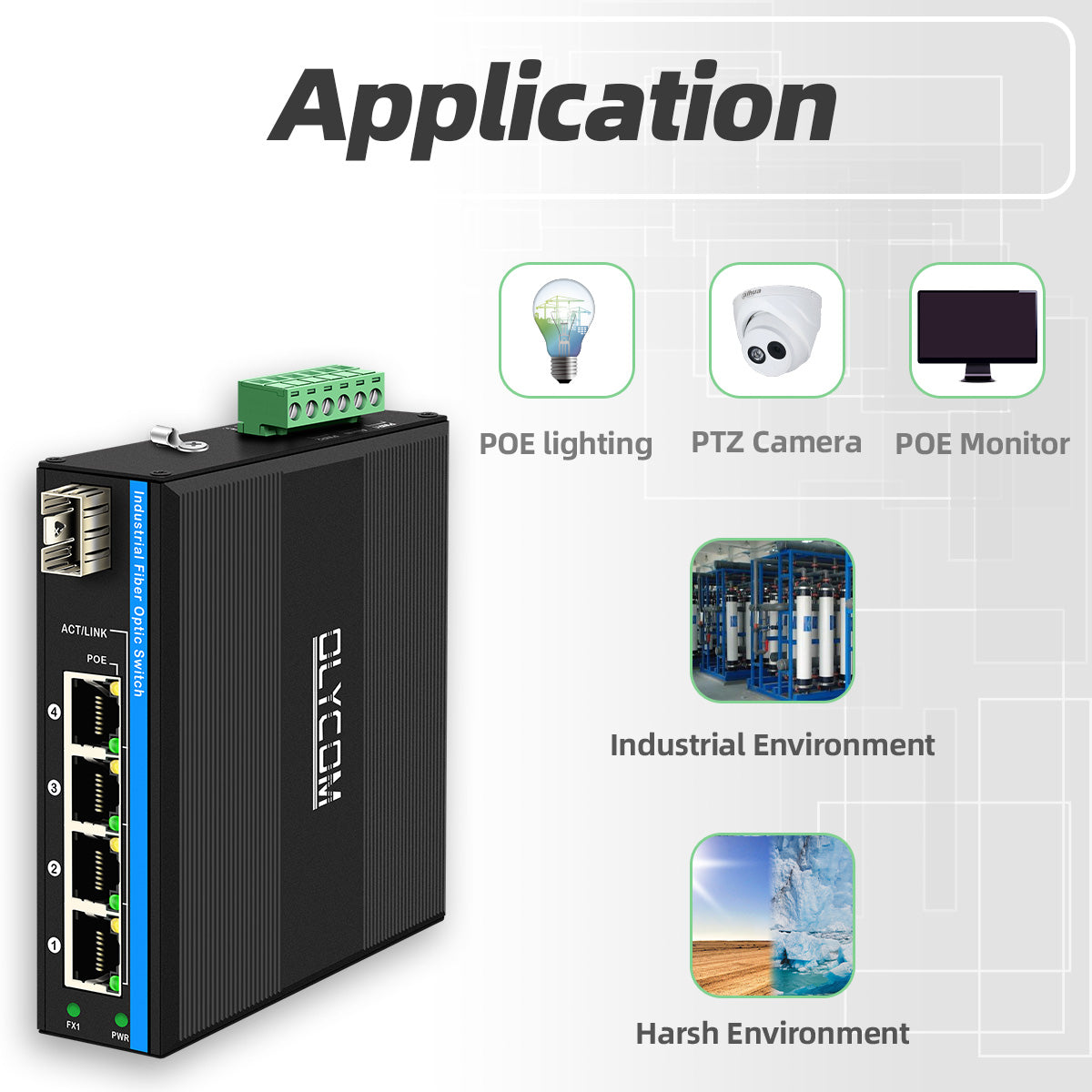

Applications

  • IP Surveillance Fiber Distribution Nodes — The most direct fit: a fiber run arrives at a pole cabinet, building IDF, or outdoor junction box serving a cluster of four cameras. The IM-FP144GE terminates the fiber, powers all four cameras over Cat5e/6, and requires nothing from the installer beyond cabling — no login, no VLAN setup, no ongoing management. Identical units deployed across hundreds of nodes in a large-scale CCTV infrastructure behave identically, simplifying commissioning and field replacement
  • Subway & Transit PIS (Passenger Information Systems) — Passenger information display networks in metro stations, bus terminals, and railway platforms connect display panels, IP speakers, and network cameras to a fiber backbone through compact DIN-rail nodes in station equipment rooms. The IM-FP144GE's unmanaged simplicity, compact footprint, and transit-applicable industrial certifications make it a natural fit for this deployment pattern — one fiber in, up to four PoE PIS endpoints out, at every station node
  • Power SCADA & Substation Field Nodes — In electrical substation automation and power SCADA networks, fiber is the standard backhaul medium and field nodes must be both compact and EMC-hardened. The IM-FP144GE connects to the substation fiber network and powers local IP cameras, environmental sensors, and access control devices at the field cabinet level — without a managed switch that would require configuration, firmware maintenance, and SNMP integration at every node across a large grid
  • Wind Farm & Renewable Energy Infrastructure — Wind turbine nacelles, transformer pads, and collection substation cabinets along wind farm arrays use fiber for long inter-turbine runs and require PoE for local nacelle cameras, vibration sensors, and control panel terminals. The IM-FP144GE's compact terminal block wiring, wide DC input range, and -40°C cold-start capability suit the exposed cabinet environments of renewable energy installations in extreme climates
  • Sewage Treatment & Water Utility Networks — Process monitoring networks in water and wastewater facilities connect IP cameras, flow sensors, level monitors, and wireless terminals across large plant sites via fiber. The IM-FP144GE provides the fiber-to-PoE distribution at each process area junction box — a simple, reliable node that plant maintenance teams can replace in the field without network configuration knowledge
  • Intelligent Transportation & Traffic Management — Roadside cabinets at intersections, highway interchanges, and toll plazas serve multiple PoE devices simultaneously: speed cameras, license plate readers, traffic counters, and variable message sign controllers. The IM-FP144GE powers up to four such devices from a single fiber drop, with 6KV surge protection on every copper port for the transient-rich roadside electrical environment, and a form factor that fits within standard traffic cabinet DIN-rail space allocations
  • Military & Secure Perimeter Deployments — Perimeter security networks at military bases, government facilities, and critical infrastructure sites run fiber backbone for both performance and tamper-resistance reasons. The IM-FP144GE deploys at each perimeter post or guard station enclosure — fiber in from the backbone ring, PoE out to local cameras and access control hardware — with the industrial EMC and surge credentials required for field-deployed security infrastructure operating in electromagnetically challenging environments
