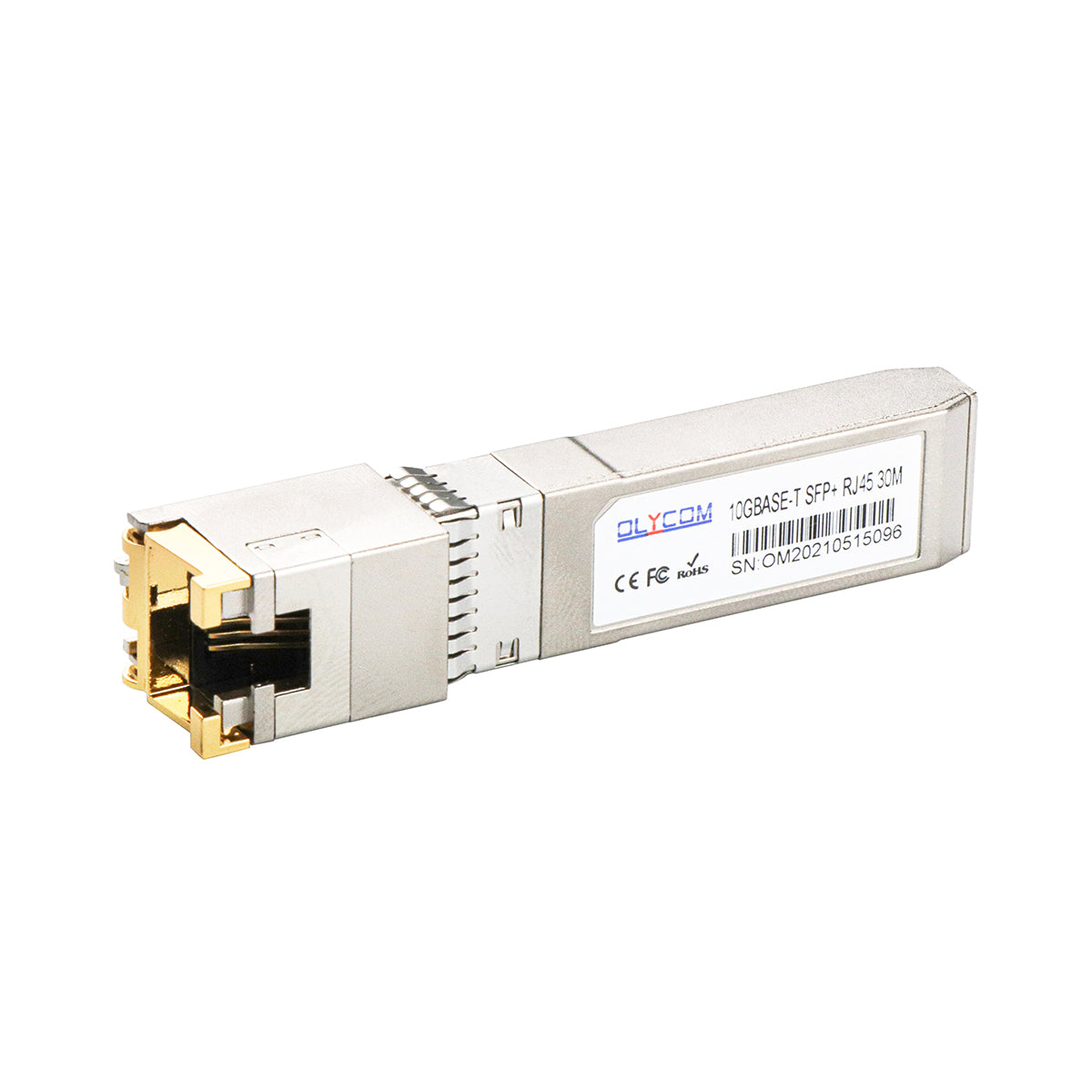

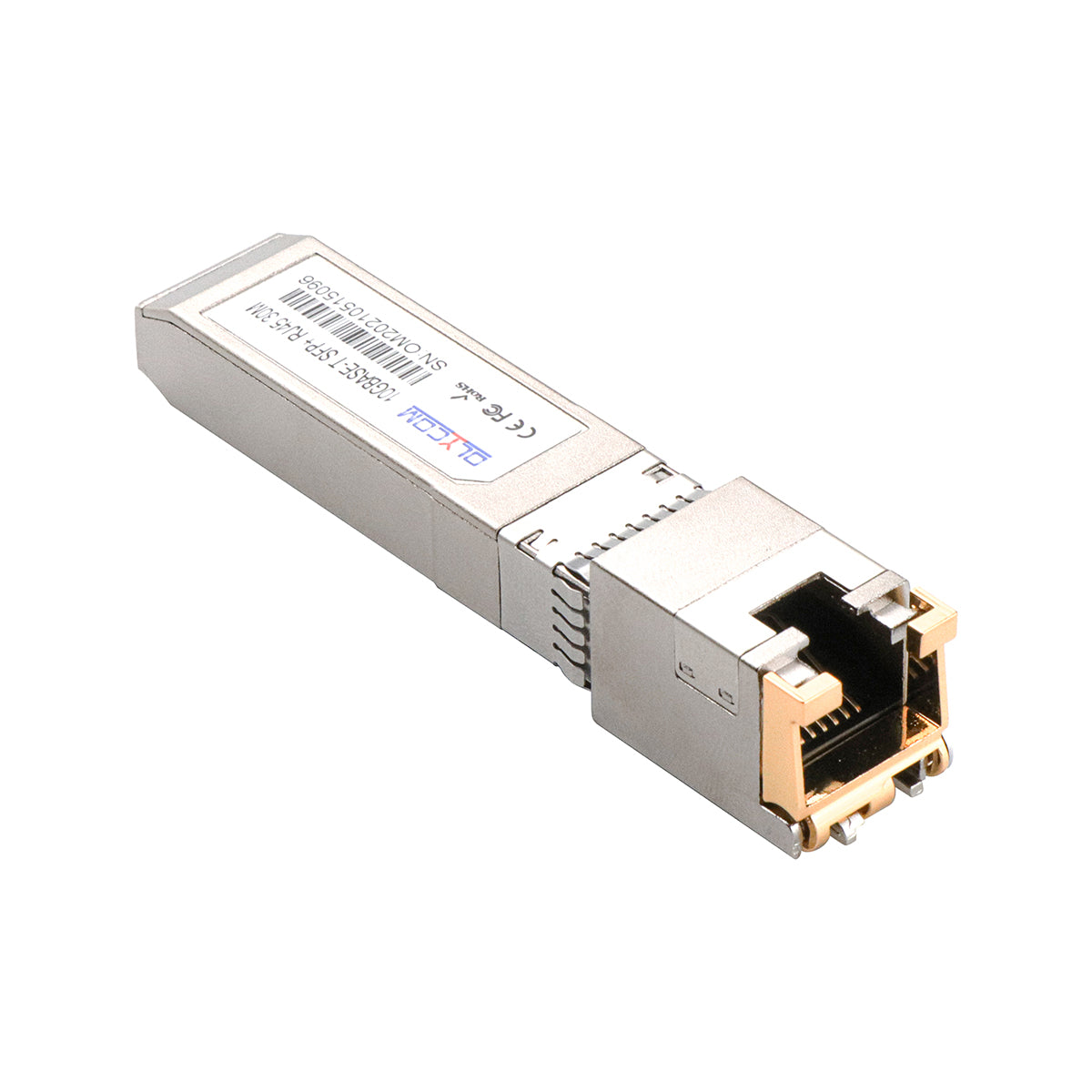

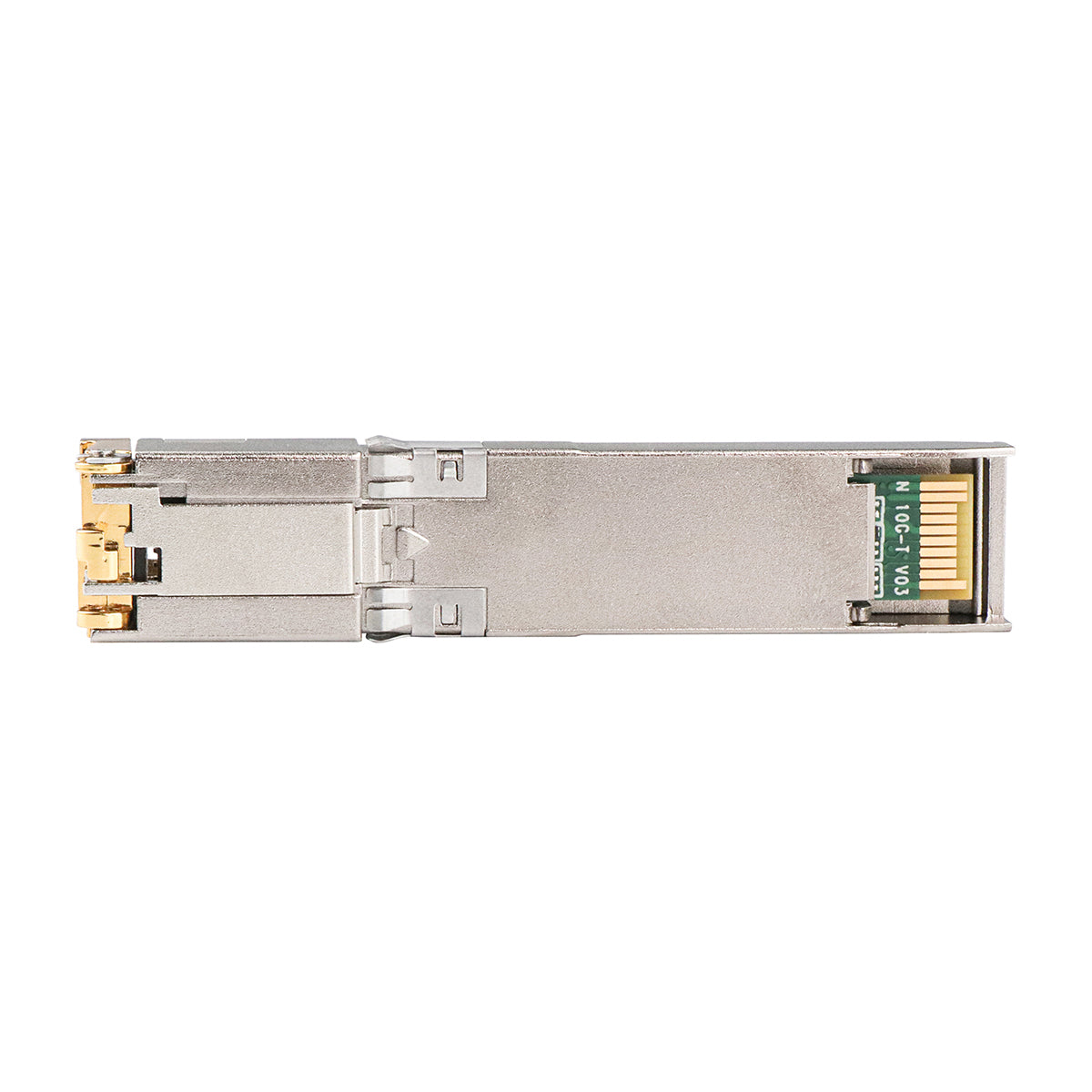

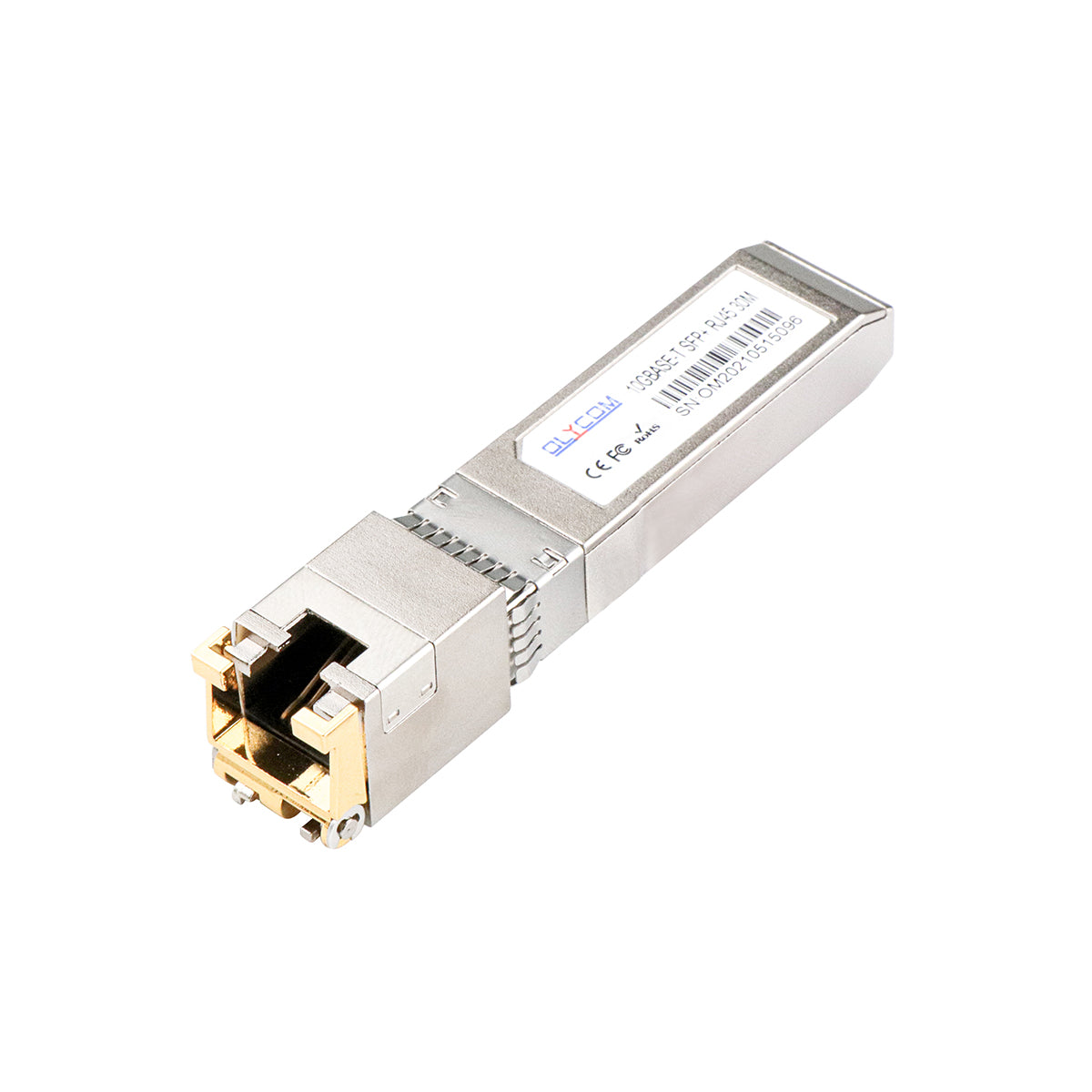

10GBase-T Copper SFP+ Transceiver ,OMT10GA-30M

Product Features
 Up to 10Gb/s bi-directional data links
 Hot-pluggable SFP+ footprint
 Fully metallic enclosure for low EMI
 Low power dissipation
 Compact RJ-45 connector assembly
 Access to physical layer IC via 2-wire serial bus
 Supports Links up to 30m using Cat 6a/7 Cable
 RoHS Compliant
 Operating case temperature: 0℃ to 70℃

Applications
 10 Gigabit Ethernet over Cat 6a/7 cable
 5000GBASE-T over Cat 5e cable
 2500GBASE-T over Cat 5e cable
 1.25 Gigabit Ethernet over Cat 5e cable
 100M Ethernet over Cat 5e cable
 10M Ethernet over Cat 5e cable

Description
OMT10GA-30M Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the 10G Ethernet and 10GBASE-T standards as specified in IEEE 802.3az, which supporting 10Gbps data- rate up to 30 meters reach over unshielded twisted-pair category 6a/7 cables. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial EEPROM protocol.

Pin Descriptions

Mechanical Specifications
