Industrial Fast Ethernet PoE Switch, No Uplink, No Fiber, Pure PoE Distribution, DIN Rail

Industrial Fast Ethernet PoE Switch, No Uplink, No Fiber, Pure PoE Distribution, DIN Rail

$85.99 USD
$78.00 USD $85.99 USD
セール 売り切れ
Introduction

  • The IM-WP066FE takes a different architectural position from every other switch in the IM series: there is no uplink port, no fiber slot, no non-PoE port reserved for backbone connectivity.
  • All six ports are 10/100Mbps PoE access ports, all delivering IEEE 802.3af/at power, all available for field endpoints.
  • This is a deliberate design for deployments where upstream connectivity is already handled — by a fiber switch, a managed aggregation device, or an existing copper uplink — and what the installation point needs is purely a hardened local PoE distribution block that expands the powered port count without adding topology complexity.
  • In practice, this means the IM-WP066FE connects into an existing network through any one of its six ports used as an uplink, with the remaining five serving local PoE devices — or it cascades from a PoE-capable upstream switch that powers it and passes data simultaneously, eliminating even the need for a separate DC supply at the distribution point.
  • The combination of 6KV surge protection on all six ports, IEC 61000-4 Level 3 full EMC immunity, NEMA-TS2 traffic control and EN 50121-4 railway certifications, and -40°C to +75°C operation brings industrial-grade survivability to a device whose value proposition is radical simplicity: six hardened 100Mbps PoE ports, nothing else, in a certified DIN-rail chassis that installs in minutes and operates indefinitely without attention.

Key Features

  • 6 × 10/100Mbps PoE RJ45 — All Ports Active, No Uplink Reservation — Every port delivers IEEE 802.3af (15.4W) or 802.3at (30W) PoE with automatic PD classification; use any port as an uplink to existing infrastructure and all remaining ports serve local PoE endpoints; no port is designated or restricted — maximum flexibility in how the six ports are allocated across the installation
  • 100Mbps Native Speed — Right-Sized for the Majority of PoE Field Devices — Standard HD IP cameras, single-radio wireless APs, VoIP phones, access control readers, IP intercoms, and environmental sensors all operate within Fast Ethernet bandwidth; specifying 100Mbps where Gigabit adds no operational benefit reduces per-node hardware cost without any functional trade-off at the device level

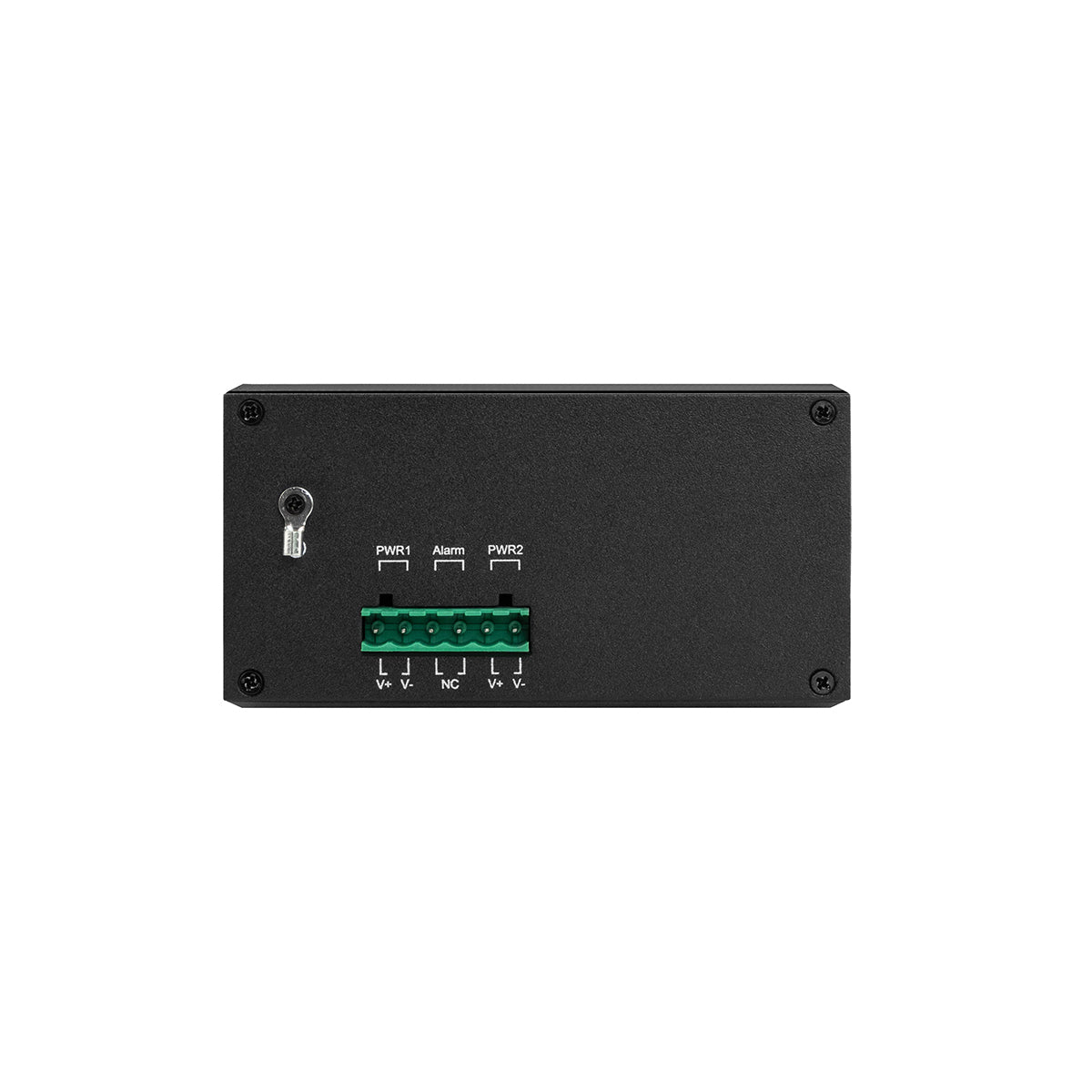

  • DC 48V Input (max 52V) / Reverse-Connection Protection — Direct integration into 48V DC infrastructure; hardware polarity protection on the input terminal prevents damage from field wiring errors; the full DC input budget is directed to PoE output with minimal self-consumption overhead
  • 6KV Ethernet Surge Protection on All Six Ports — Every port individually hardened against high-voltage transients; no unprotected port in the device regardless of how the uplink is configured — critical in outdoor and industrial environments where surge events propagate through copper runs from any direction
  • IEC 61000-4 Full Level 3 EMC Immunity — ESD / Radiated Immunity / EFT / Surge / Conducted Immunity all at Level 3; FCC Class A / CE-EMC / LVD EN60950 certified; the full industrial EMC suite at the same specification level as the fiber-equipped members of the IM series
  • NEMA-TS2 Traffic Control Certified — Direct procurement qualification for roadside traffic infrastructure without additional testing; matches the 100Mbps speed tier of the majority of installed traffic control copper infrastructure
  • EN 50121-4 Railway Certified — Validated for trackside and station applications in railway signaling and communications environments operating at Fast Ethernet speeds
  • IEC 60068 Mechanical Certifications — Vibration (IEC 60068-2-6) / Freefall (IEC 60068-2-32) / Shock (IEC 60068-2-27); qualified for transportation, rail, and vibration-intensive deployment environments
  • 40Gbps Internal Switching Fabric — Internal bandwidth far exceeds what six 100Mbps ports can generate; zero internal congestion under any traffic combination across all six active PoE ports
  • Store-and-Forward / Auto MDI/MDIX / IEEE 802.3x Flow Control — Frame integrity on every forwarded frame; plug-and-play copper wiring in any port assignment without crossover cables

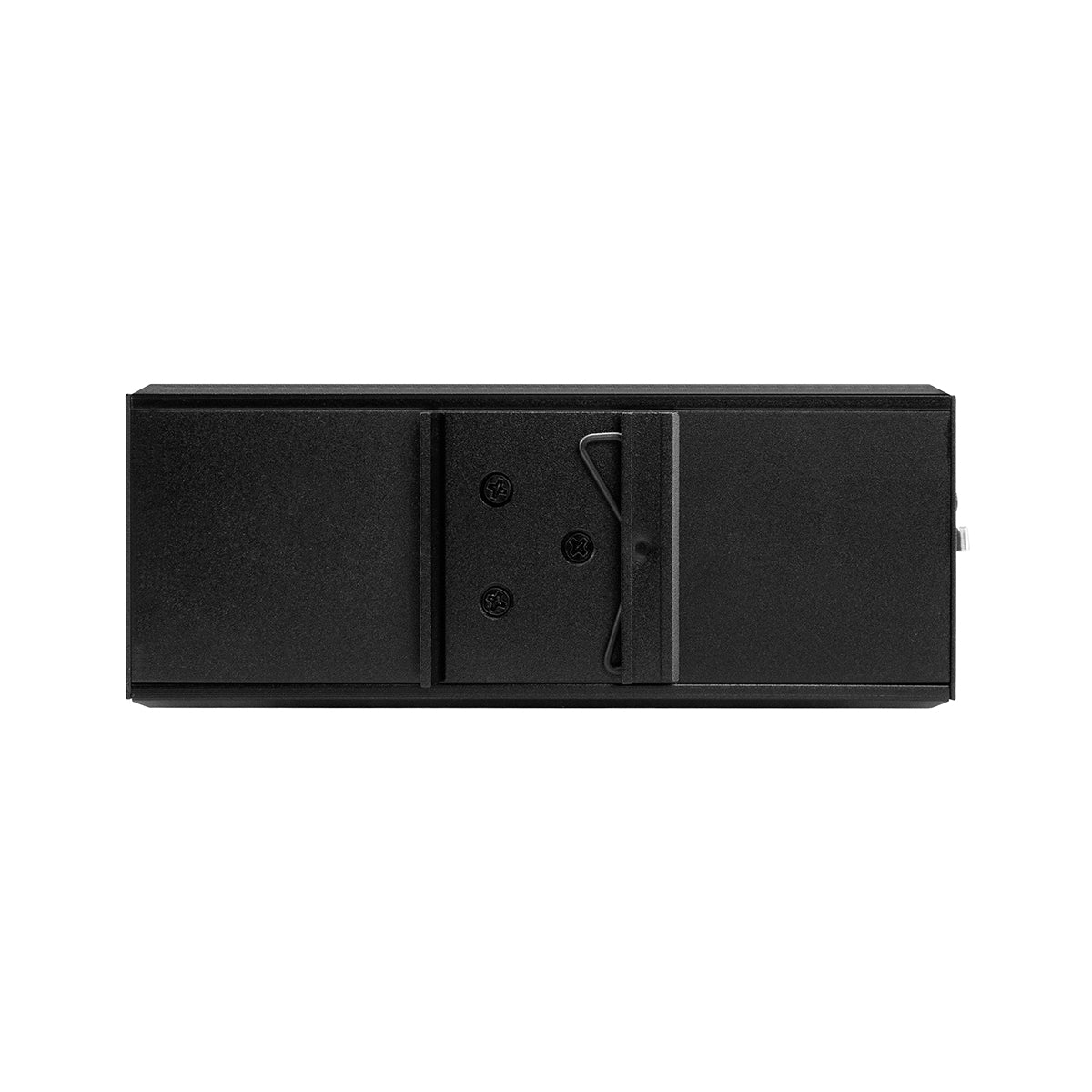

  • IP40 / DIN-Rail / 158 × 114.8 × 60mm / 3-Year Warranty

Applications

  • PoE Port Expansion at Existing Copper Distribution Points — The primary use case: an existing industrial switch or media converter at a field cabinet has fiber or uplink connectivity but insufficient PoE ports for all local devices. The IM-PS066FE cascades from one of those existing ports and expands the local PoE capacity by up to five additional endpoints — adding industrial-hardened 100Mbps PoE to a cabinet that already has backbone connectivity, without replacing the upstream switch or running additional fiber. The all-port-PoE architecture means the cascade connection consumes one port and the remaining five serve new endpoints, with no wasted uplink-only port in the expansion device
  • Roadside Cabinet PoE Distribution — 100Mbps Traffic Infrastructure — Highway and urban traffic management installations built on 100Mbps copper infrastructure use the IM-PS066FE as the local PoE distribution point within the roadside cabinet. Speed cameras, loop detector processors, intersection controllers, and communications modems all receive PoE from the same device, with NEMA-TS2 certification meeting the procurement requirement and 6KV surge protection on every port handling the transient environment of roadside electrical infrastructure. The all-port design means any port can serve as the cabinet uplink without a dedicated non-PoE port reducing the available device count
  • Railway Station Local PoE Blocks — At station equipment rooms where a fiber switch already provides backbone connectivity, the IM-PS066FE cascades from an existing port to distribute PoE to station cameras, passenger information terminals, access control readers, and emergency call points that could not be accommodated on the upstream switch's available PoE ports. EN 50121-4 certification ensures compatibility with railway EMC requirements; 100Mbps speed matches the Fast Ethernet backbone standard of many installed transit systems
  • Factory Floor PoE Extension Panels — Production lines and warehouse zones where an existing industrial fiber switch connects to the factory backbone but lacks sufficient PoE ports for all line-side devices use the IM-PS066FE as the local PoE expansion block. Machine vision cameras, RFID readers, barcode scanners, and zone wireless APs connect to the IM-PS066FE, which cascades back to the fiber switch through one of its six ports — with IEC 61000-4 Level 3 immunity handling the electrical noise of motor drives and frequency converters sharing the panel environment
  • Building Floor PoE Distribution for Legacy 100Mbps Infrastructure — Multi-floor commercial buildings and government facilities with 100Mbps floor distribution infrastructure use the IM-PS066FE to expand PoE capacity at floor IDF locations where the existing switch cannot power all the cameras, access readers, and IP intercoms that security or building automation requires. The compact DIN-rail form factor integrates into existing floor panels; the 100Mbps speed matches the installed fiber and copper infrastructure; and the industrial certifications provide the hardening that commercial expansion switches lack in environments with variable power quality
  • Transit Vehicle Onboard PoE Distribution — Buses, trains, and transit vehicles with onboard 48V DC electrical systems use the IM-PS066FE to distribute PoE to onboard cameras, passenger information displays, and communications terminals from the vehicle power bus. IEC 60068 vibration and shock certifications qualify the device for the continuous mechanical stress of vehicle operation; the all-port PoE design maximizes the number of powered endpoints from one DIN-rail slot in the space-constrained vehicle electrical cabinet; and 100Mbps speed is sufficient for the standard onboard device types deployed across transit fleets
