Olycom Industrial Unmanaged 8 Port Gigabit Network Fiber Switch

Olycom Industrial Unmanaged 8 Port Gigabit Network Fiber Switch

$89.99 USD
$89.99 USD
セール 売り切れ
Introduction

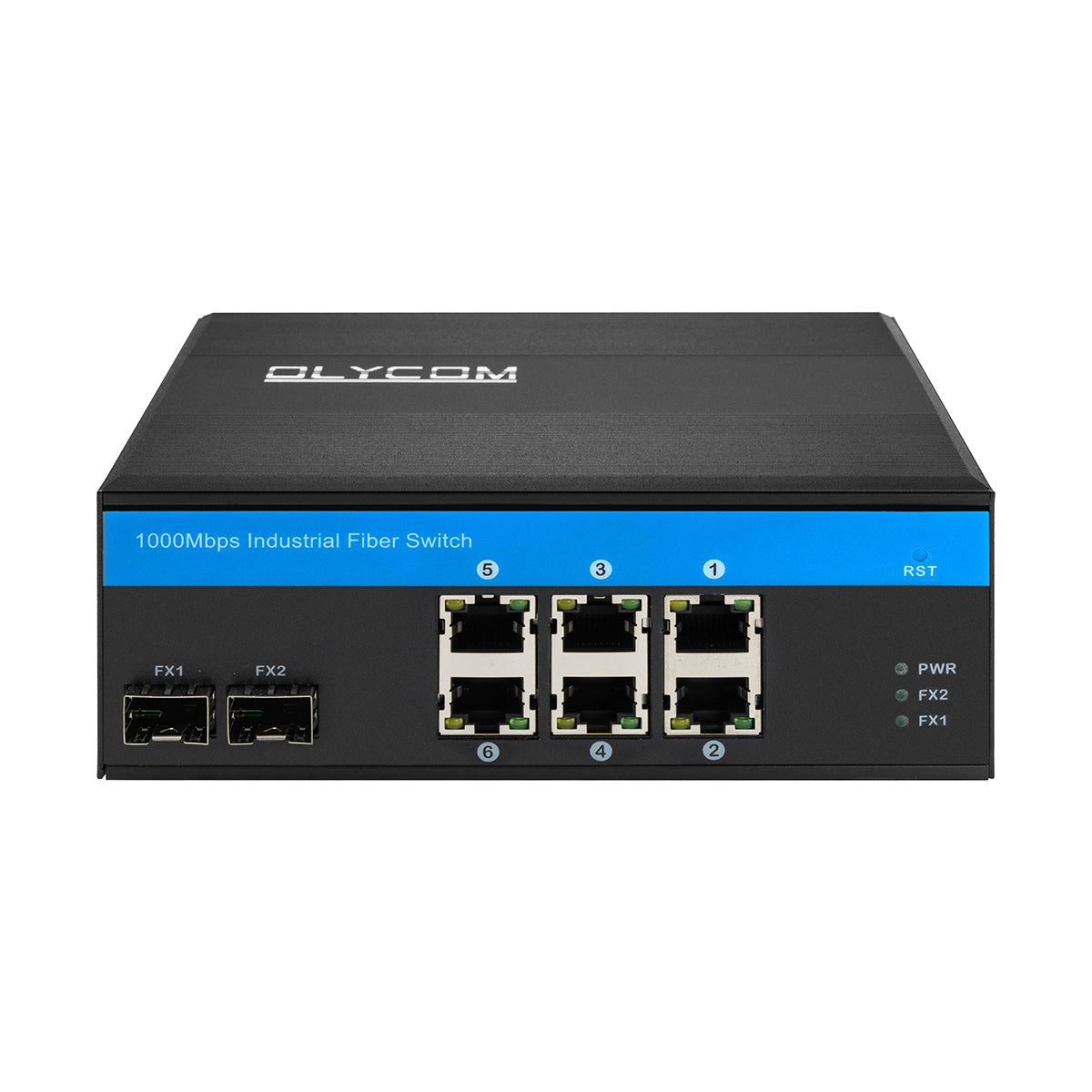

  • The Olycom IM-FS260GE is a 2-fiber + 6-copper industrial Gigabit fiber switch engineered for demanding outdoor and industrial environments where commercial-grade switches fail. With 2 × 1000Mbps SFP fiber ports and 6 × 10/100/1000Mbps RJ45 ports, it bridges long-distance fiber backbones and local copper device networks in a single rugged DIN-rail unit.
  • Built to operate from -40°C to +75°C on a wide DC 12–52V dual power input, and rated to IP40 with 6KV Ethernet surge protection, it is certified against vibration (IEC 60068-2-6), shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and rail traffic (EN 50121-4) — making it equally at home on a factory floor, a roadside cabinet, or onboard a moving vehicle.
  • Where commercial switches are built for server rooms, the IM-FS260GE is built for everywhere else.
Key Features

  • 2 × 1000Mbps SFP Fiber Ports — Supports single-mode (1310/1550nm up to 20km; 1490/1550nm up to 40–120km) and multimode (1310nm up to 2km) transceivers, covering short campus runs through long-haul metropolitan links in a single platform
  • 6 × 10/100/1000Mbps Auto-Sensing RJ45 Ports — Full Gigabit copper access for local devices; auto MDI/MDIX eliminates crossover cable requirements on all ports

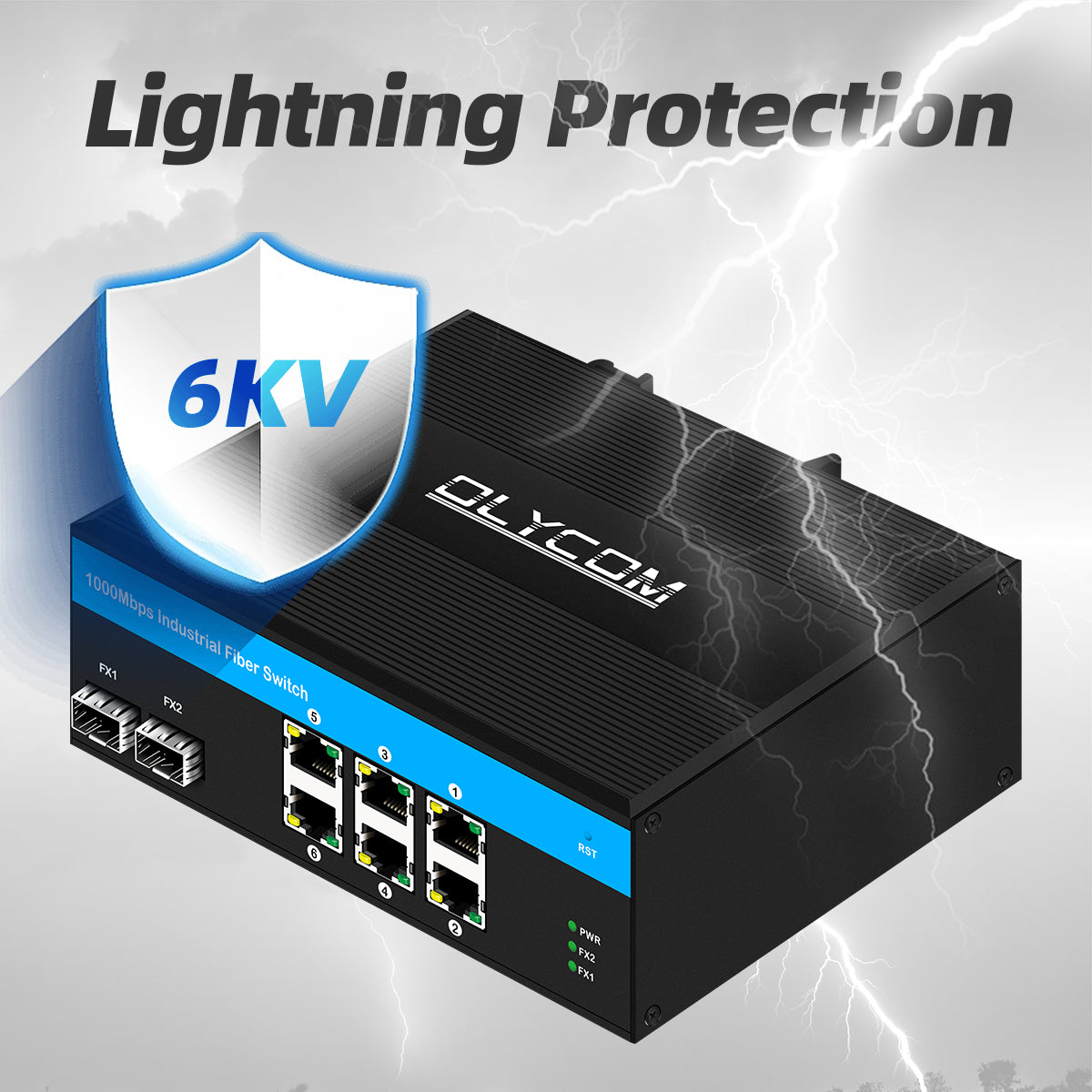

  • 6KV Ethernet Surge Protection — Industrial-grade lightning and surge protection on all copper ports safeguards connected equipment in outdoor, rooftop, and substation environments

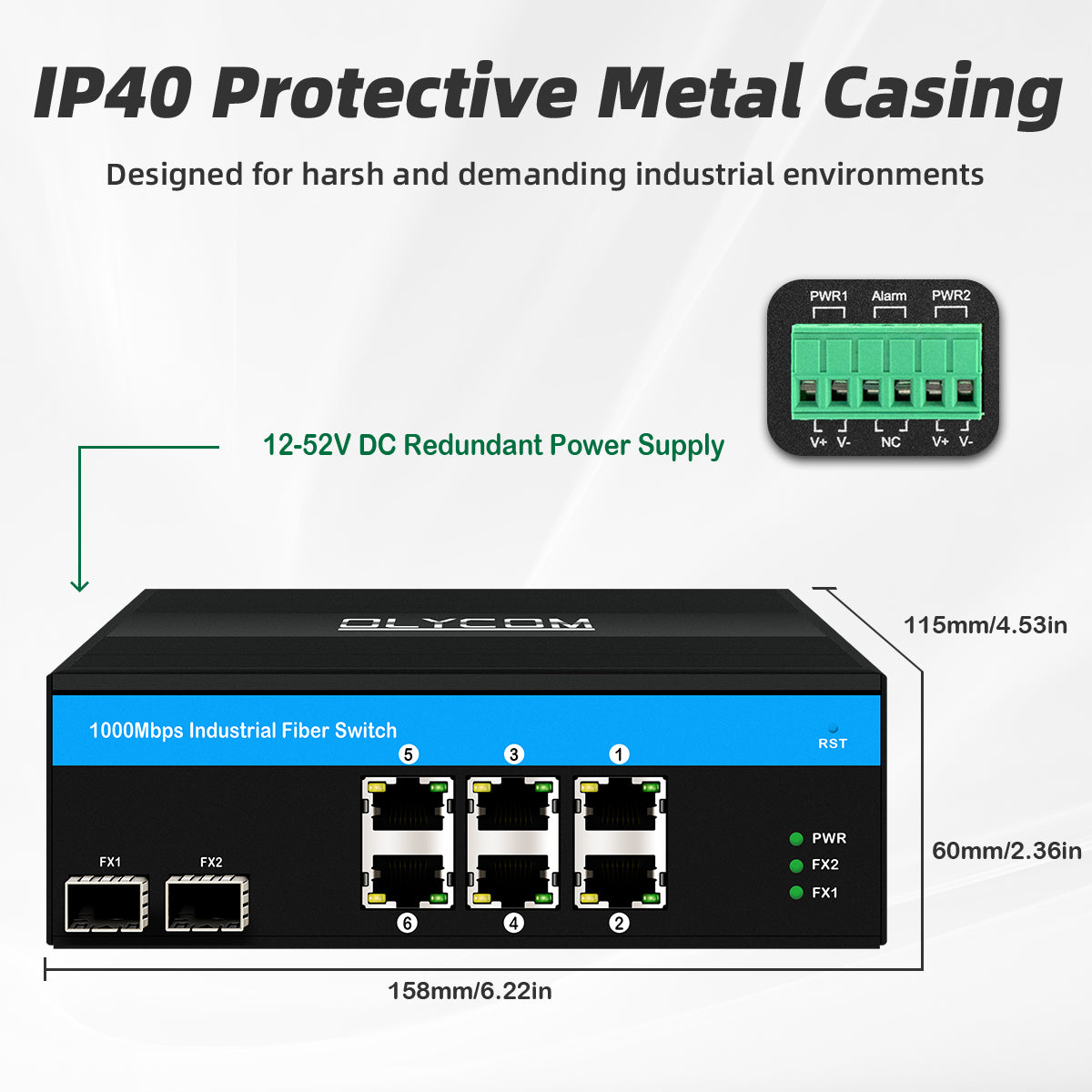

  • Wide-Range DC 12–52V Dual Power Input — Accepts power from vehicle batteries, solar systems, 24V plant bus, or 48V telecom rails; reverse polarity protection included; 5W no-load power consumption

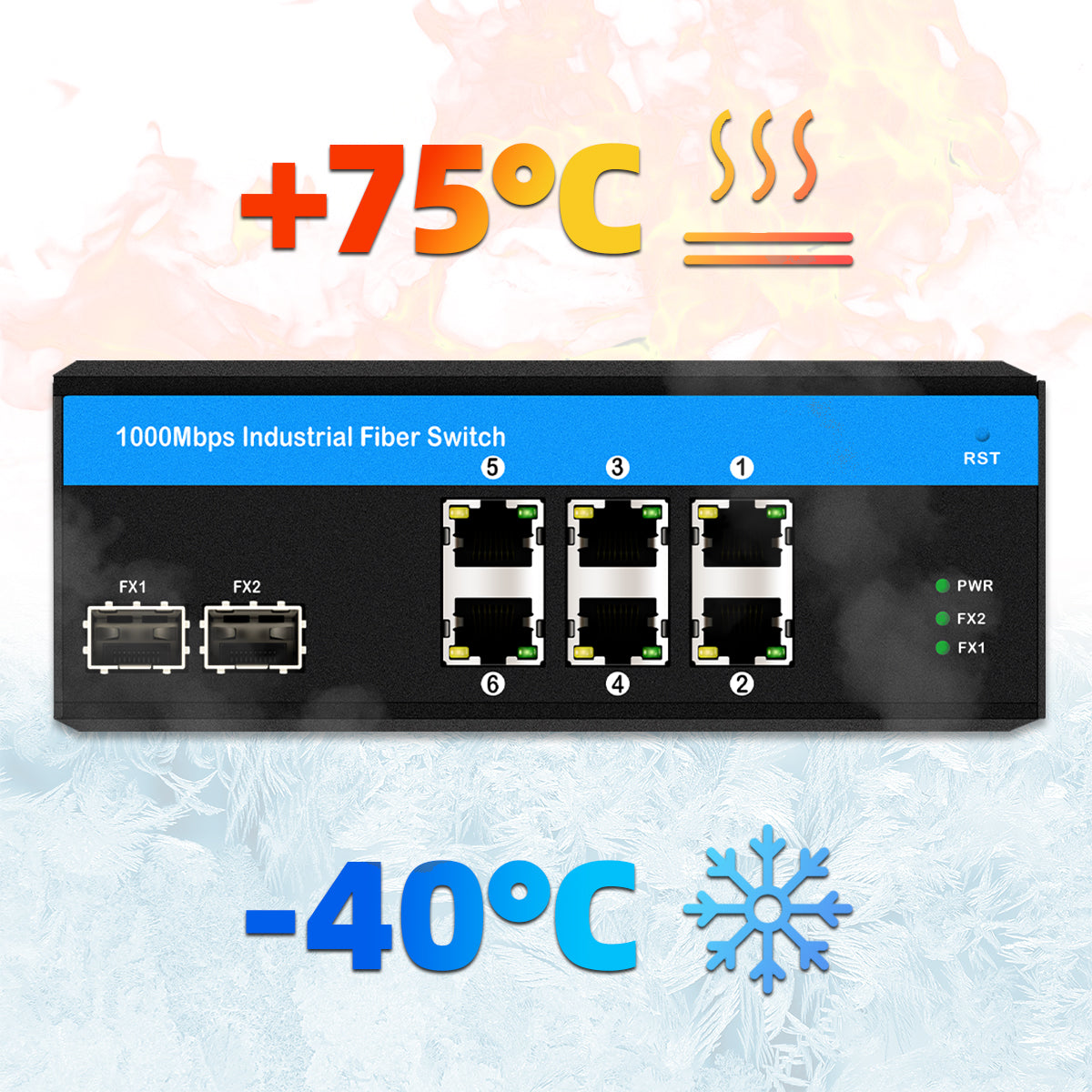

  • -40°C to +75°C Operating Temperature — Full-range performance from arctic cold starts to desert cabinet heat without derating or fan assistance
  • 40Gbps Non-Blocking Switching Fabric — Wire-speed store-and-forward switching across all ports with zero congestion under full simultaneous load
  • IP40-Rated Corrugated Metal Housing — Dust-protected, EMI-shielded enclosure built for permanent industrial installation

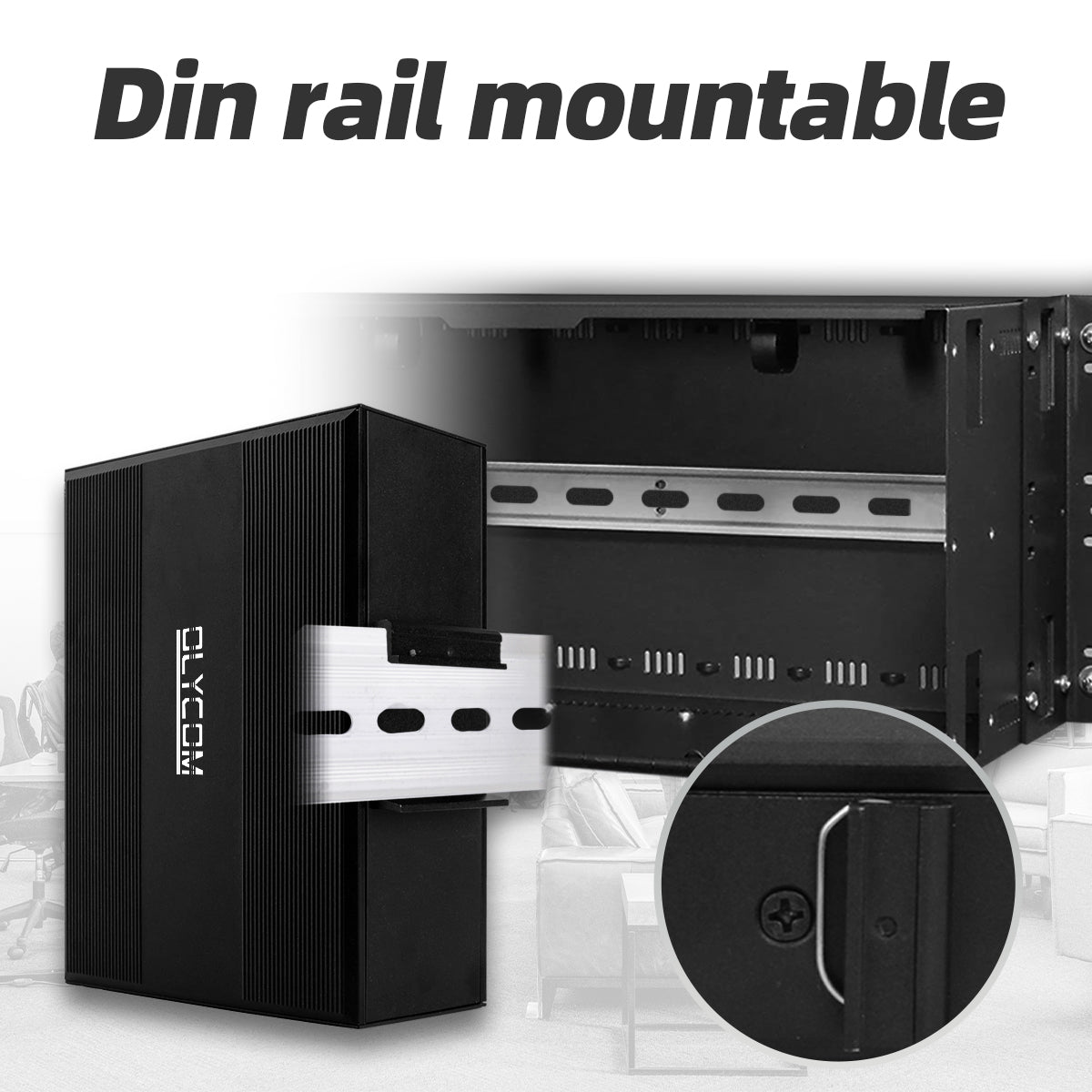

  • DIN-Rail Mounting — Standard 35mm DIN-rail installation fits directly into automation cabinets and industrial enclosures; compact 158 × 114.8 × 60mm footprint
  • Multi-Standard Industrial Certifications — EMC to FCC Part 15 Class A and EN 55022 Class A; EMS to EN 61000-4-2/3/4/5/6/8 Level 3; vibration, shock, freefall, and EN 50121-4 rail traffic certified
  • IEEE 802.3x / Back Pressure Flow Control — Prevents packet loss in both full and half duplex environments
  • CE / LVD EN60950 Safety Certified — 3-year warranty

Applications

  • Industrial Automation & Factory Networks — Connects PLCs, HMIs, sensors, and IP cameras to a fiber backbone inside manufacturing facilities where electrical noise, vibration, and temperature extremes rule out commercial switches. The wide DC input range integrates directly with plant-standard 24V or 48V power buses
  • Outdoor & Roadside Infrastructure — Deployed in roadside cabinets, traffic control enclosures, and utility junction boxes where the 6KV surge protection and -40°C cold-start rating are essential for year-round reliability without climate control
  • Railway & Rolling Stock Networks — EN 50121-4 rail traffic certification and IEC 60068 vibration/shock compliance make it suitable for trackside equipment rooms, station control panels, and onboard communications in trains and light rail vehicles
  • Long-Distance Fiber Extension — SFP port compatibility with transceivers up to 120km enables cost-effective fiber links across metropolitan areas, industrial campuses, and inter-building connections without additional media converters or repeaters
  • Substation & Power Grid Monitoring — Powers and connects protection relays, RTUs, and monitoring devices in electrical substations where 6KV surge immunity and EMC industrial-grade compliance are mandatory for equipment and personnel safety
  • Smart Transportation & Traffic Management — Integrates IP cameras, variable message signs, loop detectors, and wireless APs into fiber-connected traffic management networks along highways, tunnels, and urban arterials, with NEMA-TS2 traffic control compliance
  • Oil, Gas & Remote Site Monitoring — Wide DC input accepts solar or battery-backed power at remote pipeline monitoring stations, pump sites, and wellheads, while the rugged housing and extreme temperature tolerance ensure unattended long-term operation
  • Mining & Underground Environments — Shock and vibration certification covers deployment in mining operations where equipment is subject to blasting vibration, heavy machinery interference, and highly variable ambient temperatures
